Complete Wiring Guide for 2008 Dodge Durango Radio Installation

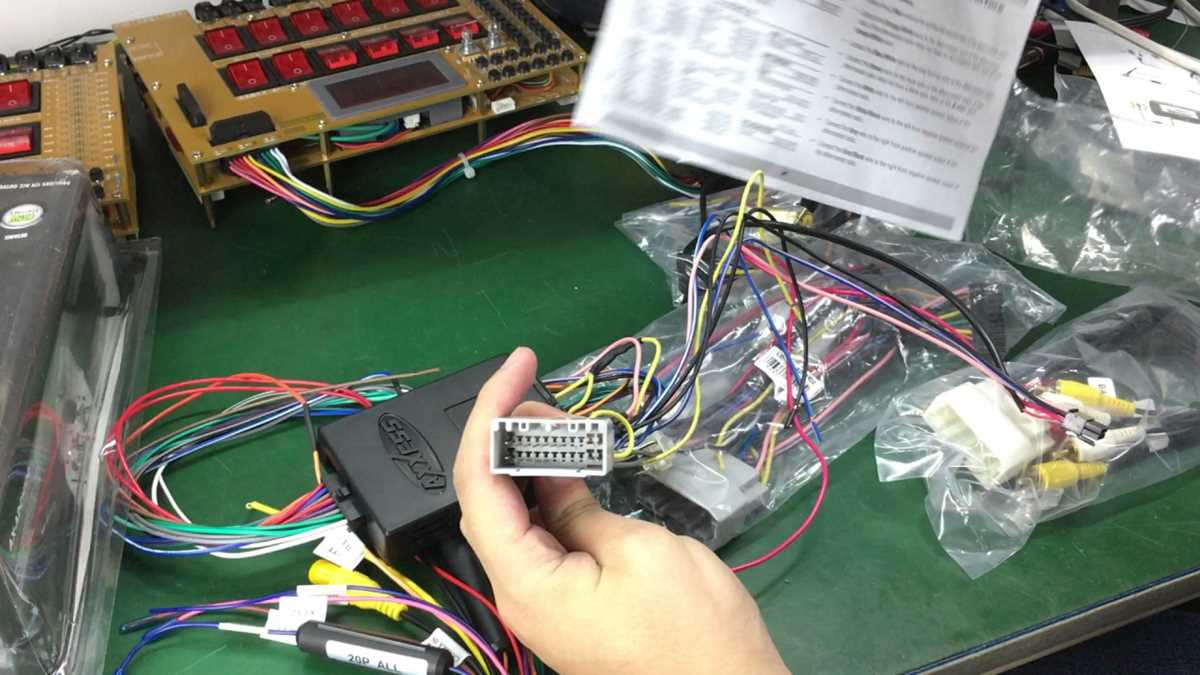

Locate the harness connectors beneath the center console–these link directly to the entertainment module’s rear panel. Pin C2 (16-way dark gray) controls power distribution; verify terminal 5 (violet wire) carries 12V from the fuse box. Avoid splicing into existing wires–use a matching 16-pin adapter (PAC RP4-CH11) for secure integration.

The aftermarket head unit requires two key connections: constant 12V (yellow, terminal 7) for memory retention and switched 12V (red, terminal 8) for active operation. Ground the black wire (terminal 4) to a bare metal chassis point–scratch away paint for solid contact. Speaker outputs are color-coded: front left (+ white, – white/black), front right (+ gray, – gray/black).

For amplifier retention, tap the pink wire (terminal 11)–this triggers the factory amp turn-on signal. OEM steering wheel controls rely on a data bus (green wire, terminal 13); use a resistance-matching interface (Metra ASWC-1) to preserve functionality. Test each connection with a multimeter before final assembly–low voltage (

Vehicle Audio System Electrical Layout Guide

Locate the harness connector behind the dashboard’s lower panel on the driver’s side. Pin 1 (yellow) delivers constant 12V power from the battery, while pin 5 (red) provides accessory power activated by the ignition. Ground is handled by pins 3 and 9 (black), requiring direct connection to chassis metal for stable performance. Verify voltage with a multimeter before securing any wires–avoid relying on visual inspection alone.

Speaker outputs follow this configuration: front left (gray, pins 6 and 12), front right (white, pins 2 and 8), rear left (green, pins 13 and 15), and rear right (purple, pins 11 and 16). Each pair carries both positive and negative signals; mismatching polarity will cancel audio output. For aftermarket upgrades, use 18-gauge or thicker wire to prevent signal loss over longer runs.

The antenna trigger (blue/white, pin 7) requires a 12V pulse to extend motorized antennas or activate powered amplifiers. If your system lacks this feature, leave the wire disconnected to avoid draining the battery. For vehicles equipped with factory amplifiers, check pin 4 (brown) for a dedicated remote turn-on lead–failure to connect this will mute all audio.

When splicing into existing circuits, use solder and heat-shrink tubing instead of crimp connectors. Stray strands or loose connections introduce noise, especially in high-frequency signals. For plug-and-play adapters, ensure compatibility with the vehicle’s 16-pin ISO connector; generic harnesses often omit OEM-specific lighting or chime integration.

Test all connections by cycling through each audio source: AM/FM, CD, and auxiliary inputs. Static during engine cranking indicates insufficient power or ground issues. If the display dims inconsistently, check pin 10 (orange) for illumination control–many installations overlook this minor but critical function.

Finding the OEM Audio System Connector Pin Configuration

Begin by accessing the rear of the infotainment unit–remove the trim panel securing the head unit by gently prying the clips with a plastic trim tool. Behind the factory stereo, you’ll find an 18-pin harness plug (typically gray or black) labeled with manufacturer-specific codes: pins 1-6 handle power, ground, and ignition, while 7-12 manage speaker outputs in a balanced pair layout (front/rear, left/right). Use a multimeter to verify pin functions–set to DC voltage mode, probe each pin while cycling the key to ACC position to confirm +12V (constant), switched power, and ground (pin 4, usually black).

Key Pins and Their Functions

Pin 1 (+12V constant): Powers memory retention for presets and clock. Pin 2 (illumination dimmer): References the instrument cluster brightness–expect 0-12V when headlights activate. Pins 5 and 6 (front left/right speakers): Carry +/- 4-8Ω impedance signals; reverse polarity here will invert audio phase, degrading soundstage. Rear outputs (pins 10-13) follow the same pattern–miswiring risks damaging the amplifier module. Ground (pin 4) must maintain

For aftermarket integration, match the OEM connector to the new harness using a breakout adapter–never splice directly. Chrysler’s proprietary data bus (pins 16-17) carries CAN signals; tapping these may trigger fault codes in the BCM. If bypassing the factory amp (located under the driver’s seat), bridge pins 5-6 and 10-13 directly to speakers–failure to do so mutes audio entirely. Always disconnect the negative battery terminal before probing to prevent short-circuiting sensitive electronics.

Decoding Audio and Power Circuit Wire Color Standards

Start by identifying the constant power wire–typically yellow or orange with a stripe–which supplies 12V even when the ignition is off. Connect this directly to the battery with an inline fuse (15–20A) to prevent shorts, as it powers memory functions and avoids draining the vehicle’s electrical system.

Ground wires (black or brown) must terminate to a bare metal chassis point free of paint, corrosion, or rust. Use a star washer to ensure a secure connection, as poor grounding causes hissing, erratic volume changes, or complete signal loss. Avoid daisy-chaining grounds; each circuit should have its own dedicated path to the chassis.

Speaker Wires: Polarity and Impedance

Front and rear speaker wires follow a paired color scheme: positive wires (solid colors like gray, purple, or green) and negatives (same color with a black stripe). Swapping these reverses polarity, flattening bass response and creating phase cancellation. Verify impedance (typically 4 ohms) with a multimeter before connecting amplifiers to prevent overheating or clipping.

Illumination wires (light blue or white with a stripe) dim the display with the dashboard lights. Test with the headlights on; brightness should reduce smoothly. If the display flickers, check for voltage drops (should remain above 11V) or faulty dimmer switches. Avoid splicing this wire into other circuits, as it can cause erratic behavior.

Accessor power wires (red or pink) only activate when the ignition is on, protecting the system from battery drain. Confirm this by probing with a test light–it should illuminate only when the key is in the “on” position. If the device loses settings when the engine starts, the constant power wire may be incorrectly connected to this circuit.

Troubleshooting Mismatched Colors

Aftermarket harnesses often deviate from OEM standards–document every wire before disconnecting. Use a wiring reference chart or a continuity tester to map functions, as labels may differ. For example, mute wires (gray or tan) silence audio during calls; verify they trigger at the correct voltage (usually 5V) to avoid cutting out unexpectedly.

Step-by-Step Guide to Tracing Audio System Cable Connections

Locate the vehicle’s main electrical interface behind the head unit’s mounting sleeve. On most recent models, this appears as a 12+ pin rectangular connector with distinct color groupings. Focus on the outermost cluster–these carry amplified signals to door and rear panel drivers.

Use a multimeter set to 1-2 kΩ resistance mode. Probe each colored strand against the chassis ground. Functional audio leads will register between 2-8 ohms, while power or ground wires show near-zero resistance. A table of expected readings simplifies verification:

Color Code	Typical Ω Reading	Driver Location
Gray (+) / Gray/Black (-)	3.8-4.2	Front Right
White (+) / White/Black (-)	3.6-4.0	Front Left
Green (+) / Green/Black (-)	3.7-4.3	Rear Right
Purple (+) / Purple/Black (-)	3.5-3.9	Rear Left

Switch the meter to AC voltage mode (200 mV range). With the audio system powered on but idle, tap each channel pair–valid signal lines will fluctuate between 3-15 mV. Ignore wires producing steady readings below 1 mV; these likely serve illumination or antenna circuits.

For rapid visual confirmation, disconnect the harness and apply a 9V battery across suspected speaker terminals. A faint pop confirms the correct circuit. Note polarity: positive feeds are solid hues, negative feeds add a contrasting stripe. Reversing these risks damaging crossover networks.

Trace each validated pair back through the firewall grommet. Door feeds follow bundled loom paths behind kick panels; rear speakers exit beneath rear seats through corrugated conduit. Label split points with heat-shrink tubing to prevent future misrouting.

If factory schematics are unavailable, cross-reference wire gauges. Primary amplifier feeds measure 18 AWG, while smaller 22 AWG leads typically indicate tweeters or subwoofer controls. Mixing these gauges risks impedance mismatch and premature amplifier failure.

Before reassembly, test each channel with a 1 kHz tone generator. Verify stereo separation and frequency response at moderate volume levels. Muted channels suggest shorted connectors–re-inspect splices before finalizing installation.

Secure all connections with soldered joints and adhesive-lined shrink tubing. Route harnesses away from sharp edges and moving components, fastening every 8-12 inches with nylon clamps. Improper strain relief frequently causes intermittent faults under temperature cycling.

How to Verify Audio System Connectors for Signal Flow and Power

First, disconnect the head unit’s harness from the vehicle’s main connector to prevent short circuits. Use a multimeter set to continuity mode (200Ω range) to probe harness pins against the chassis ground. A reading below 0.5Ω confirms a solid ground path; anything above 5Ω indicates corrosion or loose connections that require cleaning with a wire brush or replacement.

Switch the multimeter to DC voltage (20V range) to test power leads. Key-on power should read 11.5–14.5V at the yellow (constant) and red (switched) inputs. If voltage drops below 10V, inspect the fuse panel–blown fuses typically melt cleanly; replace with the same amperage rating. For switched inputs, trace the wire back to the ignition relay; faulty relays click but fail to pass current and must be swapped.

• Dimmed illumination? Check the orange dimmer wire’s feed–it should vary between 0–12V with dashboard lights. A steady 12V means the dimmer module failed.
• No sound from rear speakers? Probe the gray (+) and gray/black (−) leads; absence of 4–8V AC on audio signals suggests open circuits or blown speakers.
• Amplifier turn-on issues? The blue/white remote wire should pull 12V when the unit powers up; no voltage confirms a broken trigger line.

For speaker wires, reverse polarity briefly while playing a test tone–correct polarity yields louder, clearer output. If speakers remain silent, disconnect the harness and measure resistance across the leads: 2–4Ω indicates functional speakers; infinity means an open coil. Shorts (0Ω) require speaker replacement–not repairable.

Anticipate anomalies in older setups: frayed wires often short only when vibrated. Secure suspect wires with zip ties, then flex the harness while monitoring voltages–intermittent readings confirm broken strands inside insulation. Strip back a half-inch of sheathing and solder fresh wire directly to the core; electrical tape degrades–use heat-shrink tubing instead.

1. Set multimeter to 200mV AC to detect weak phantom signals before swapping components.
2. Load-test the antenna lead (typically pink) with an RF signal generator; a healthy cable peaks at −45dB.
3. Park the vehicle outdoors–EM interference from power lines can mask faults during bench tests.
