Complete 2008 Saturn Aura Stereo System Wiring Color Code Guide
Begin by securing the factory wiring schematic for the Green Line sedan’s 7-speaker sound system. The main harness connector, a 12-pin rectangular plug coded C1, carries power, ground, and speaker outputs. Pin assignments follow this sequence: Pin 1 (B+ 12V constant), Pin 2 (ground), Pin 3 (left front +), Pin 4 (left front –), continuing through Pin 10 (antenna trigger). Verify each wire with a multimeter set to DC volts–expect 12V at Pin 1 and fluctuating signals at speaker outputs when audio plays.
Aftermarket adapters often mislabel the illumination wire (yellow/black stripe), which controls dashboard dimming. Connect this directly to the vehicle’s lighting circuit, not the accessory wire, to avoid backlight failures. If the rear subwoofer lacks output, trace the pink/black wire from the amplifier (located behind the rear seat) back to Pin 12 in the main harness–corrosion here is a frequent culprit. Use deoxIT on terminals before re-seating.
For analog aux integration, splice into the purple/green and purple/white wires at the back of the head unit. These carry line-level audio and require a 3.5mm-to-RCA adapter with impedance matching below 500 ohms. Test connections with a 1 kHz sine wave before finalizing–distortion often points to reversed polarity or a missing ground bridge. Keep wire runs under 18 inches to prevent signal degradation.
If the system enters protect mode, check the orange/black data wire (Pin 7) for continuity. This bus communicates with the body control module; a failed pull-up resistor here will kill all audio. Replace the entire harness assembly (GM part #15199893) if voltage drops below 11.8V during engine crank–intermittent power causes permanent amplifier damage over time.
Complete Electrical Connection Schematics for Your Vehicle’s Audio System
Locate the aftermarket head unit harness adapter (Metra 70-1812 or equivalent) first–it directly interfaces with the factory connector behind the dashboard. Pin assignments on the OEM plug follow this sequence: constant 12V power (yellow, pin 1), switched ignition (red, pin 2), ground (black, pin 3), and illumination control (orange, pin 4). Verify voltage with a multimeter before proceeding; incorrect connections risk shorting the amplifier or draining the battery overnight.
Speaker outputs occupy pins 5 through 12. Front left positive (light green, pin 5), front left negative (dark green, pin 6), front right positive (gray, pin 7), front right negative (white, pin 8), rear left positive (brown, pin 9), rear left negative (dark brown, pin 10), rear right positive (violet, pin 11), and rear right negative (light blue, pin 12). Cross-referencing with the vehicle’s service manual prevents reversed polarity, which distorts sound and can damage aftermarket components.
For premium trims with Bose audio: retain the external amplifier (located under the driver’s seat) by splicing into its harness. Cut only the factory harness wires, leaving the amplifier connectors intact. Use crimp connectors (not solder) for reliability; heat-shrink tubing prevents corrosion. The amplifier requires a dedicated power source–tap into the fuse box (fuse #15, 10A) using an add-a-circuit device.
Parking brake and reverse signal wires (pink/black and pink respectively) must be isolated if installing a video-capable unit. Failure to do so disables video playback above 5 mph. For GPS integration, the purple/white wire (pin 16) carries serial data–connect it to the navigation module’s TX input. Mute control (gray/black, pin 15) triggers during calls; use a relay to prevent ground loops if adding a hands-free kit.
Color codes cited above follow the North American standard. Earlier production models may swap white and gray wires for rear speakers–test with a 1.5V AA battery before finalizing connections. Use stranded 18-gauge wire for extensions; solid wire cracks under dashboard vibration. Secure bundles with nylon ties spaced every 6 inches to prevent rattling or chafing against sharp metal edges.
Troubleshooting Post-Installation
If no sound emits from the front speakers, check the fuse behind the glove box (fuse #33, 15A). Rear speakers dead? Inspect the trunk-mounted crossover; rodents often chew the factory loom. Static during volume surges indicates insufficient ground–relocate the grounding point to a bare chassis bolt near the driver’s seat. Bass distortion at high volumes suggests the amplifier is clipping–lower the subwoofer output or add a capacitor (minimum 1 farad per 1000W).
Matching the Right Connector for Your Mid-Size Sedan’s Audio System

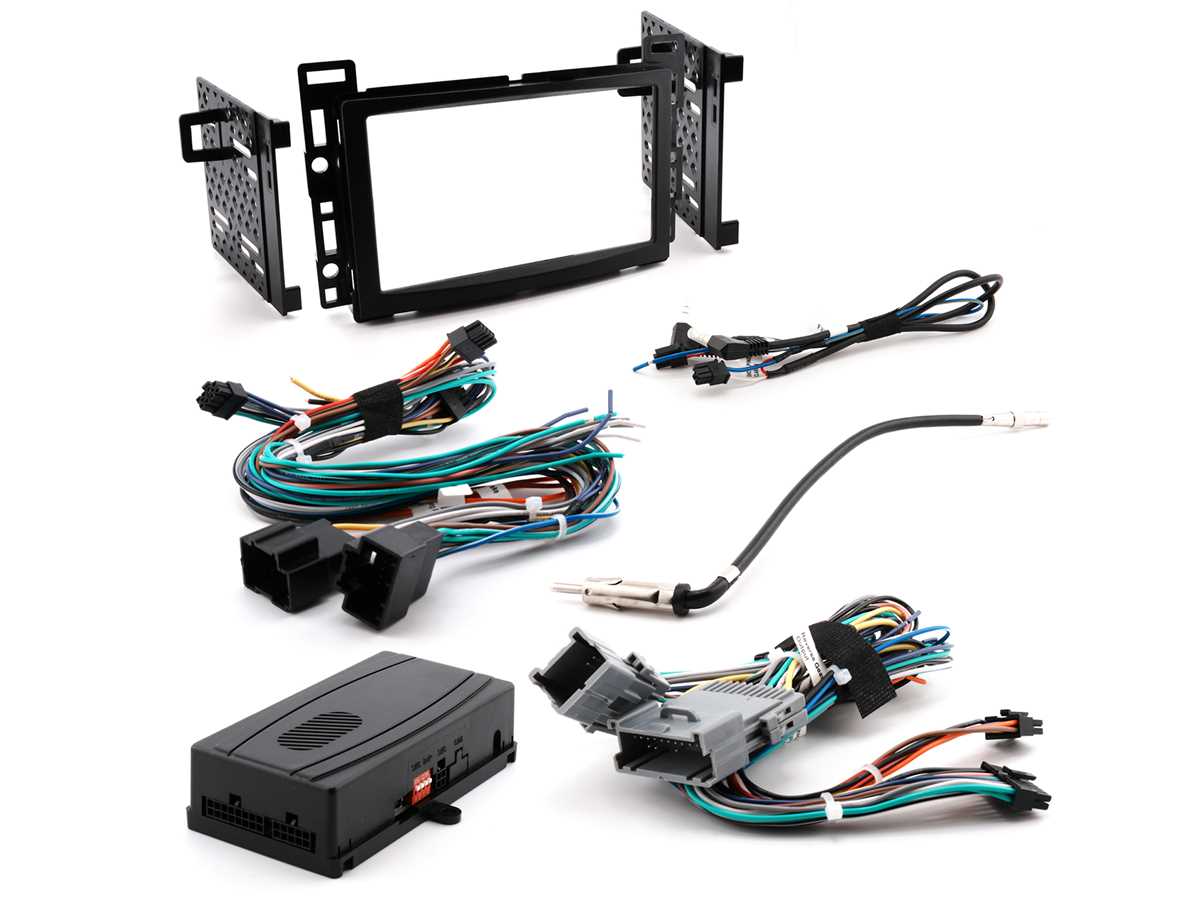

Locate the original factory radio harness behind the dash unit–typically a Metra 70-2103 or Axxess ASWC-1 adapter fits without cutting OEM cables. Check the color codes on the vehicle-side plug: yellow (constant 12V), red (switched 12V), black (ground), and orange/white (illumination). Brands like Scosche and PAC offer direct-fit plugs pre-terminated with ISO connectors, eliminating soldering. Verify the connector shape matches the rectangular 12-pin layout before purchasing.
Key Adapter Models and Compatibility
- Metra 70-2103: Supports single-DIN or double-DIN upgrades; includes amplifier turn-on lead for aftermarket units.
- PAC RP4-GM31: Retains steering wheel controls; compatible with third-party interface modules like iDatalink Maestro.
- Axxess ASWC-1: Universal steering wheel interface; requires firmware update for correct protocol pairing (GM Class II bus).
Cross-reference the adapter’s pinout diagram with the vehicle’s harness–mistakes risk blowing fuses or frying the radio’s power circuits. For factory amp retention, seek adapaters labeled “amplified” or “Bose-compatible”; standard models may lack the necessary low-level signal outputs.
Test connections with a multimeter before final installation. Probe each wire for continuity and correct voltage–yellow should read 12V with the key off, red only when ignition is in ACC or ON. If steering wheel controls behave erratically, reflash the ASWC-1 using the manufacturer’s software; incorrect protocol settings cause intermittent function or complete failure. Keep the OEM harness intact for resale value or potential factory reset needs.
Step-by-Step Color Code Breakdown of OEM Audio System Connections
Begin by identifying the 12-pin connector at the back of the factory head unit. Pin positions are labeled A through L, with each correlating to a specific cable color and function. Use a multimeter set to DC voltage (20V range) to verify live circuits before making any splices–battery power wires will register 12V, while ground connections should show minimal resistance.
| Pin | Color | Function | Verification Tip |
|---|---|---|---|
| A | Yellow (solid) | Constant 12V supply | Test with key off–should remain live |
| B | Red (solid) | Switched 12V (ignition) | Voltage appears only when key is in “on” or “accessory” position |
| C | Black (solid) | Ground | Attach directly to chassis or existing ground point with |
| D | Gray (solid) | Front right speaker (+) | Polarity test: brief 1.5V from AA battery should move cone outward |
| E | Gray/black (striped) | Front right speaker (-) | Verify continuity with D pin; no voltage should be present |
For aftermarket amplifier integration, locate the purple/purple-white pair (pins H/I) reserved for speed-sensitive volume. These require a lin-level converter if adapting to non-factory signal processors–standard line outputs from most third-party units exceed the ~4V threshold of the OEM system. Solder connections should be heat-shrunk to prevent shorts, especially near the climate control harness where vibrations are common.
Speaker outputs use a balanced impedance scheme–front and rear pairs mirror each other with identical wire gauges (typically 18AWG). Avoid splicing into the tan/orange pair (pins J/K) as these handle data communication for OnStar/chime modules. If bypassing the factory unit entirely, bridge the yellow and red wires to maintain memory functions; failure to do so will trigger a persistent voltage-drop warning on the dash cluster.
For vehicles equipped with navigation, note the brown/brown-white leads (pins F/L) carry the GPS antenna signal. These must remain connected unless replacing with an aftermarket GPS module–interrupting this circuit will disable turn-by-turn guidance without triggering an error code. Always reference the as-built label under the glovebox for vehicle-specific deviations; factory production runs occasionally swap gray and orange wires between model years.
How to Locate and Access the Radio Connector Behind the Dashboard
Begin by removing the center console trim panel securing the climate controls and infotainment unit. Use a trim removal tool or flathead screwdriver wrapped in electrical tape to pry off the panel without damaging clips–these are typically located at the bottom edges and sides. Once detached, unplug any wiring harnesses connected to the climate control module to expose the mounting screws holding the head unit in place. Four to six Torx or Phillips screws, depending on the trim level, secure the unit; remove them carefully to avoid stripping.
After unscrewing, slide the head unit forward until the rear connectors become visible. The primary harness typically includes:
- A 12-pin plug (ISO 10487 standard) for power, speakers, and antenna
- A separate 4-8 pin harness for amplified systems or OnStar compatibility
- Ground wires (usually black) secured with ring terminals to the chassis
Label each connector with masking tape before disconnecting to simplify reinstallation. For hard-to-reach areas, use a mirror and flashlight to verify pin alignment–misalignment during reconnection can damage integrated circuits.
