Complete Wiring Diagram Guide for 2008 Suzuki GSXR 600 Troubleshooting

Download the official service manual from reputable sources like ManualsLib or Clymer Repair Guides–these include verified, high-resolution schematics covering every circuit on the 599cc inline-four model. Print the file in A3 format to maintain clarity of wire colors: solid red (power), blue/yellow (ignition), green/white (ground), and black/white (ECU signals).

Trace starter, lighting, and sensor circuits first–these are prone to corrosion at connectors near the steering stem. Use a multimeter set to continuity mode to verify connections before soldering; faulty joints under the fuel tank or fairing often mimic ECU failure. Label all splices with heat-shrink tubing to prevent misconnections during reassembly.

Focus on the left-side harness cluster where engine control, throttle position, and MAP sensor leads converge. The middleweight machine’s wiring splits into three main trunks: front (headlight, horn), central (ECU, injectors), and rear (tail lights, license plate). Cross-reference each wire run with the exploded-view diagram in Chapter 9-4 of the factory documentation.

Carry out pin checks at the multifunction switch–broken strands in the clutch lever harness cause intermittent signal loss. Replace damaged leads with OEM-spec wiring (part numbers 31801-37G00 for main harness, 31850-37G00 for sub-harness) or superior-grade silicone-coated wire (22AWG for signal, 18AWG for power). Secure all routing along the frame rails using split-loom tubing to prevent chafing.

When diagnosing short circuits, isolate sections by disconnecting relays one at a time–most voltage drops occur at the 30A main fuse or 10A ignition fuse. Use a probe labeled diagram to map each relay socket: terminal 85 (coil), 86 (trigger), 87 (output), and 30 (common). Clean all grounding points at the battery tray and engine block with 220-grit sandpaper and dielectric grease.

Practical Electrical Layout for Your Mid-Size Sport Bike

Locate the main fuse block behind the left side fairing panel–remove the two 10 mm bolts to access it. The block contains eight blade fuses, each labeled on the plastic cover; verify continuity using a multimeter set to the 20 A range. Fuse 3 (ignition) and Fuse 6 (headlight relay) are prone to corrosion–replace with 15 A OEM spares if readings exceed 0.3 Ω.

Trace the yellow-red (Y-R) wire from the handlebar switch cluster to pin B12 on the ECM connector. Secure the connection by sliding a 3 mm heat-shrink sleeve over the splice before crimping; solder afterward and apply dielectric grease to prevent moisture ingress. A common fault here mimics faulty turn signals–test with a 12 V bulb before condemning the flasher relay.

The stator output leads are purple (P), white-blue (W-B), and black-red (B-R); measure AC voltage between each pair at 5,000 rpm–minimum 50 VAC indicates serviceable coils. If readings drop below 40 VAC, remove the clutch basket (eight 8 mm fasteners) to inspect the stator under the right crankcase cover; look for discolored windings or debris lodged between laminations.

Wire Color	Connector Pin	Component	Voltage (Key ON)	Voltage (Running)
Black-white (B-W)	A08	ECM ground	0 V	0 V
Green (G)	C01	Throttle sensor	4.8–5.2 V	0.5–4.5 V
Blue-yellow (B-Y)	A15	Tachometer feed	Battery voltage	Pulsed 0–12 V
Pink (Pk)	B07	Fuel pump relay	0 V	12 V (2 sec pulse)

Disconnect the 24-pin dashboard connector before probing–pin A10 (gray-black, Gr-Bk) carries serial data; shorting it to ground forces limp mode. Reconnect after verifying sensor resistance with a digital ohmmeter: coolant sensor should read 1.4 kΩ at 77 °F, bank angle sensor 560 Ω ± 10 %. Swap suspect sensors with known-good units if readings fall outside tolerances.

Finding Key Electrical Loom Interfaces on Your Sport Bike

Begin beneath the fuel tank cover–lift it by releasing the quick-release clips near the seat hinge. The primary loom bundle groups into three distinct connectors here: the 12-pin white plug for ignition and sensors, the 8-pin gray plug linking the fuel pump and injectors, and the 4-pin black plug powering the fuel gauge. Label each before disconnection to avoid misinstallation.

Trace the upper section of the frame down the steering stem. The headlight and turn signal harness merges into a T-junction concealed behind the front fairing. Detach the lower fairing screws first–torx T25–to expose the 10-pin rectangular connector for the front lighting cluster. Check for moisture corrosion on terminals if flickering persists.

Behind the right side panel, tucked near the battery tray, lies the ECU connector. The 48-pin plug carries signals from throttle bodies, oxygen sensors, and engine temperature probes. Never force extraction–press the release tab fully before pulling. Inspect pin alignment; bent pins disrupt fuel mapping.

The rear section demands removing the seat and tail section. Unfasten the two 10mm bolts securing the tail subframe to reveal the tail light assembly’s loom. Three plugs unite here: the 6-pin for rear lights, the 4-pin for license plate illumination, and a single-pin earth wire. Corrosion here often mimics tail light failure.

Near the left rear shock mount, a hidden 6-pin connector bridges the instrument cluster to wheel speed sensors and ABS. Access requires sliding the side cowling away from the frame. Misalignment here triggers speedometer glitches. Confirm sensor air gaps if readings fluctuate.

Follow the loom path behind the radiator to locate the cooling fan connector–a 2-pin plug often obscured by coolant hoses. Verify continuity if the fan fails to engage. The adjacent oil cooler lines frequently chafe the wire jacket, risking shorts.

Underneath the fairing air ducts, two smaller connectors service the turn signals mounted on the mirrors–each a 3-pin plug. Dry-rotted grommets here allow water ingress, causing erratic signaling. Silicone dielectric grease prevents future corrosion.

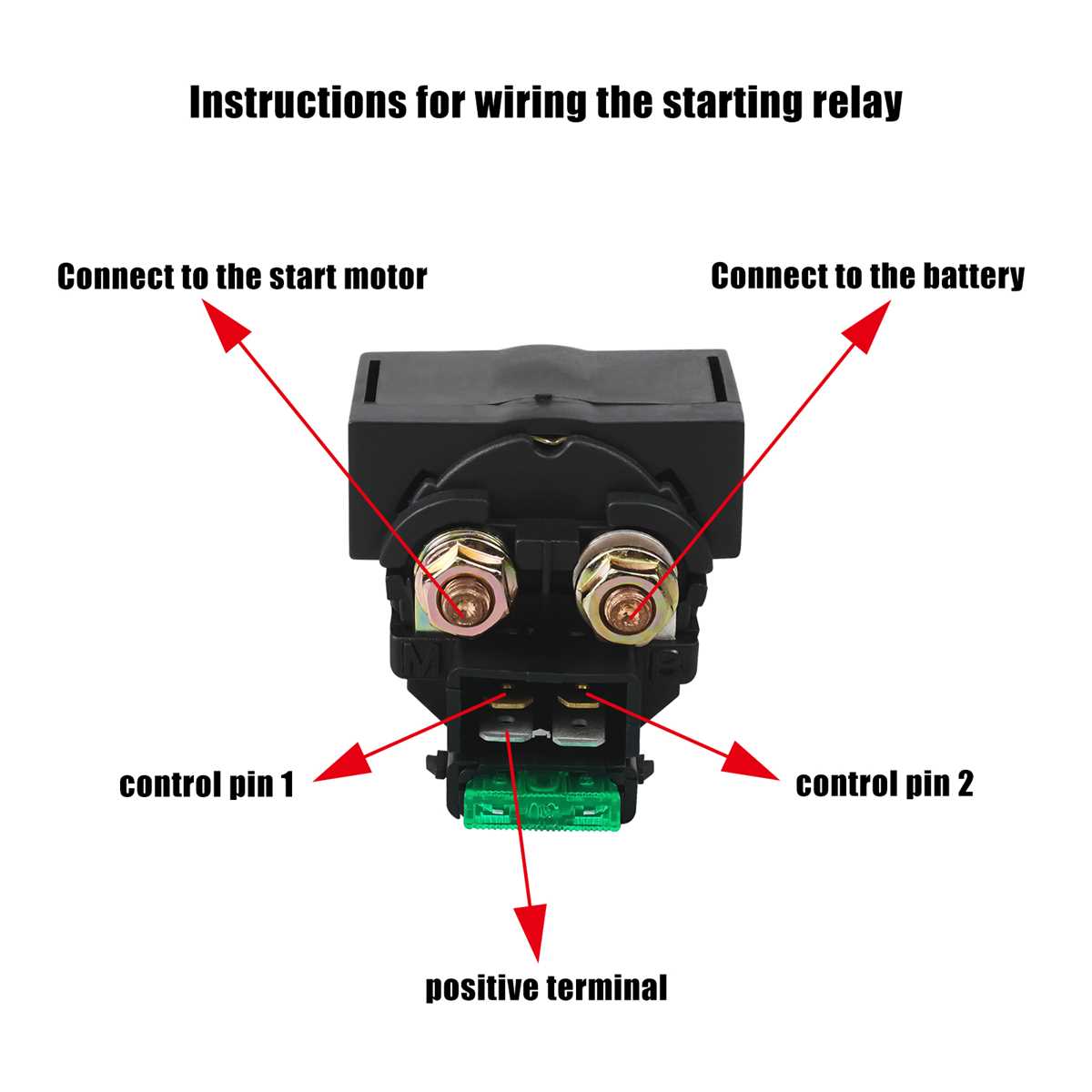

For the starter relay and solenoid, follow the thick red cable from the battery terminal. The 50mm yellow cable terminates in a blade-type connector near the frame backbone. Rust accumulation here mimics a dead battery; clean contact points before condemning the starter motor.

Color-Coded Wire Identification for High-Priority Electrical Paths

Start by isolating the ignition circuit harness–locate the solid red conductor terminating at the ignition switch’s primary input. This 10-gauge line carries unfiltered battery voltage and is non-fused; a misroute here risks catastrophic shorting. Verify continuity with a multimeter before reconnecting connectors to ensure zero resistance.

Inspect the lighting subsystem next: the white-with-black-stripe conductor governs low-beam operation, while the white-with-red-stripe feeds high beams. Both originate from the headlamp relay and split before reaching the bulb’s dual-filament assembly. Cross-referencing with a factory service manual confirms the correct amperage draw (12 A for low, 18 A for high)–exceeding these thresholds indicates faulty grounding or relay failure.

For the fuel injection control module (ECM), prioritize the black-with-white-stripe sensor ground return. This line consolidates signals from the throttle position sensor, oxygen sensors, and coolant temperature sender. A compromised connection introduces erratic idle behavior or fuel mixture imbalances. Use a diagnostic scanner to monitor voltage fluctuations while manipulating connectors; stable readings (0.1–0.3 V) rule out corrosion or loose terminals.

The charging system relies on two key paths: the yellow conductor from the stator to the regulator-rectifier (RR) and the red-with-white-stripe line feeding the battery. The yellow bundle should read 60–80 V AC at 5,000 RPM–values outside this range point to stator degradation. The RR’s output (red/white) must maintain 13.5–14.8 V DC under load; deviations suggest internal diode failure or excessive parasitic drain.

Trace the brake light switch circuit via the green-with-yellow-stripe wire. This path splits to the front brake lever and rear pedal switches, converging at the tail light assembly. Test input voltage (nominally 12 V) at both switches; a dropped signal confirms switch malfunctions or pinched wiring en route to the bulb. Replace the 10 A fuse if absent–skipping this risks brake light failure and violates safety regulations.

Step-by-Step Testing of Ignition System Circuits

Disconnect the battery negative terminal before probing any live circuits to prevent accidental shorts or damage to sensitive components. Using a multimeter set to 20kΩ resistance mode, check continuity between the ignition coil primary connector and the engine control module (ECM) output pin–expected values should range between 0.2Ω and 0.5Ω. If readings exceed 1Ω, inspect the harness for frayed insulation, corroded contacts, or loose connections between the ECM and coil packs.

Verifying Trigger Signal Path

• Set the multimeter to DC voltage mode (20V scale).
• Reconnect the battery and switch the ignition to ON (do not start the engine).
• Back-probe the ECM connector at the ignition trigger output pin while grounding the multimeter’s negative lead to the chassis.
• Observe voltage–should switch sharply from 0V to 5V when cranking. If readings stay static or drop below 3V, test the ECM’s ground reference by measuring voltage between the ECM ground pin and the battery negative terminal (must be <0.1V).
• Replace or re-crimp terminals if voltage drops exceed 0.3V during cranking.

For secondary circuit diagnostics, connect a spark tester between the coil boot and a grounded surface. Crank the engine–consistent blue-white sparks confirm proper high-voltage output. If sparks appear weak or orange, swap the suspect coil with a known-good unit to isolate the fault. Persistent misfires after coil replacement mandate scrutiny of the spark plug wires; resistances should measure 8–15kΩ per foot–excessive values (>25kΩ) necessitate wire replacement. Ensure all connections are torqued to 4–6Nm to prevent intermittent failures under vibration.
