Complete Suzuki SX4 2008 Electrical System Wiring Diagram Guide

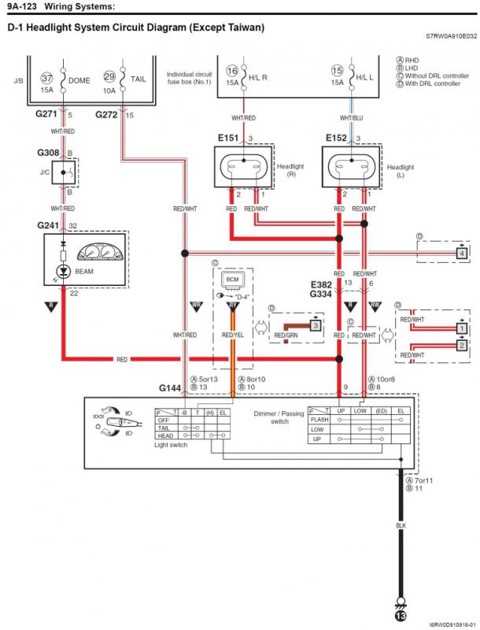

Locate the main fuse box under the dashboard on the driver’s side–remove the snap-on panel to access relay positions C101 and C102. Pin 16 (red-black wire, 1.25 mm²) carries ignition-switched 12V power; trace it to connector J201 for climate control diagnostics. Harness splits at the firewall grommet; verify continuity between ground points G401 (right kick panel) and G402 (engine bay near strut tower) using a multimeter set to 200 ohms.
For dashboard cluster wiring, focus on plug J180 (24-pin, black connector). Pins 7 (yellow-blue, 1.0 mm²) and 8 (yellow-white) link to the instrument backlight; test with parking lights activated–expected input: 12V ± 0.5V. If voltage drops below 11V, inspect bulbs and splice connections behind the glovebox. ABS sensor circuits run through J408; resistance between wheel sensor and pin 1 should read 1.0–1.3 kΩ at 20°C–values outside this range indicate corroded pins or cut wires.
Airbag system wiring pivots around connector J175 (orange, 12-pin). Pin 4 (gray-red, 0.75 mm²) triggers the passenger occupancy sensor; measure insulation resistance (>10 MΩ) between this wire and chassis ground to detect moisture ingress. Side airbag loops terminate at J174–check for twisted-pair continuity (pins 3–12) with doors open; breaks often occur near the B-pillar grommet.
OBD-II port (J196) mirrors ECM pin assignments: CAN-H (pin 6, orange) and CAN-L (pin 14, green) require termination resistors (120 Ω). If the scan tool reports U0100, probe pins 4 (ground) and 16 (battery voltage) first–faulty power there cascades to false module communication errors. Fuel pump relay (K15) sits in the under-hood box; energize manually by jumping 85–86 (40A fused circuit) to prime without cranking.
HVAC blend door motors utilize feedback potentiometers–measure voltage at plug J303 while adjusting temperature dial. Pins 1–3 should sweep 0.5–4.5V; voltage locked outside this window confirms stripped actuator gears or shorted resistors. Front wiper park switch (J192) interrupts 12V at pin 2 when blades rest; continuity between pin 2–ground resets park position errors logged as B1238.
Electrical Schematic for the 2007 Compact Crossover: A Field Manual
Start with fuse box locations before touching connectors–the main panel sits under the driver-side dashboard, a secondary unit resides in the engine bay near the battery. Circuit protection values must match replacements exactly: 10A fuses handle instrument clusters, 15A cover fuel injectors, 20A protect power windows. Use a multimeter in continuity mode to trace circuits–probe tips should be sharp enough to pierce insulation without severing wires.
Color codes follow a predictable hierarchy: red wires carry constant 12V, yellow supply switched power, black ground connections terminate at chassis points. Mixed-color stripes indicate secondary functions–blue/white directs the cooling fan, green/red triggers the airbag system. When splicing, crimp connectors with a ratcheting tool, then seal joints with adhesive-lined heat shrink tubing to prevent moisture intrusion.
Relays control high-current devices; locate them via the legend molded into the fuse box lid. The A/C compressor relay uses pins 85 (trigger) and 87 (output), while the fuel pump relay swaps pin assignments. Verify relay function by listening for audible clicks–no sound suggests a failed coil or corroded socket. Swap relays with known working units to isolate faults before disassembly.
Ground points cluster near the firewall and rear hatch; clean each contact surface with a wire brush, then apply dielectric grease to prevent oxidation. The ECU grounds at G101 under the driver’s seat–loose or corroded connections here mimic sensor failures. Test ground integrity by measuring voltage drop across the wire; readings above 0.2V signal resistance issues requiring attention.
Connector pinouts vary by trim level–consult the vehicle-specific repair manual for exact configurations. The MAF sensor connector (gray, 5-pin) carries signals on pin 2, power on pin 3, ground on pin 5. Probe pin 4 to confirm the intake air temperature input. Damaged terminals should be replaced with OEM components to maintain signal integrity.
Harness routing demands attention–avoid sharp edges near moving parts and heat sources like exhaust manifolds. Secure loose sections with zip ties every 8 inches, ensuring slack remains for full-range motion. Replace brittle or chafed sections entirely rather than patching; cheaper repairs risk intermittent faults that are harder to diagnose.
Finding the Complete Electrical Schematic for the Compact Crossover
Start by verifying the official service manual issued by the manufacturer. The SZ4 EWD (Electrical Wiring Diagram) volume is split into two segments: body electrical and engine/chassis. Look for PN 39010-69J20 (body) and PN 39010-69J30 (engine) – these identifiers correspond to the official printed manuals released for the fifth model year production run. Dealership technical portals often label these as “J20 (CE)” and “J30 (EC)” respectively. If sourcing digitally, confirm the files are PDF scans rather than OCR’d versions–original schematics preserve critical connector pinouts and circuit paths without errors.
Secondary sources include specialized automotive forums where enthusiasts share verified scans. Key platforms:
- ErWin (manufacturer’s paid portal) offers downloadable manuals, though access requires registration and a daily fee (~$25 USD).
- Autozone Repair Guides provides free schematics, but resolutions are often compressed; cross-reference with AllDataDIY for higher-quality renders.
- SX4OwnersClub.com hosts member-uploaded archives–search for “JDM wiring bundle” threads, as these often include full-size diagrams for export models with right-hand drive configurations.
Avoid torrent sites; pirated versions frequently lack ground distribution charts or mislabel wire colors (e.g., BR-W vs. BRN/WHT).
For physical tracing, disconnect the battery, then trace circuits from the fuse box (located behind the instrument panel, driver’s side). Use a multimeter set to continuity mode and probe harness connectors systematically:
- Mark each wire terminal with masking tape labeled by pin number (e.g., C305-12).
- Follow color codes rigidly–YL (yellow) differs from YL/R (yellow-red stripe) by grounding paths.
- Cross-check against the component location index (usually page 1-5 in the EWD), which maps sensors to their harness junctions.
Printed schematics should accompany hands-on work to avoid misrouting; even a single crossed wire can trigger DTC P0340 (camshaft position sensor) or U0100 (ECU communication loss).
Locating Critical Electrical Connector Points in the Crossover’s Harness Network
Begin by tracing the main engine compartment distribution block, positioned near the battery’s positive terminal. This junction consolidates multiple high-current feeds into a single bundle, reducing clutter while enabling concise diagnostics. Label each pinout with adhesive markers before disconnecting–misalignment here disrupts ignition timing and sensor calibration.
The instrument cluster connector hides behind the dashboard’s lower trim panel, secured by three 8mm screws. Its 26-pin interface carries voltage signals for illumination, fuel level, and warning indicators. Probe terminals 14 and 19 with a multimeter set to 20VDC–values below 11.8V indicate corroded ground links requiring sandpaper polishing.
Locate the underhood fuse box’s secondary harness plug–two 14-gauge wires exit left, terminating at the anti-lock brake module. Remove the weatherproof cap to expose the contact points; oxidation here mimics wheel speed sensor failure. Apply dielectric grease post-inspection to maintain conductivity across temperature swings.
Transmission control wiring converges at a black 16-pin connector beneath the driver’s seat. Terminals 3 and 7 relay throttle position data; intermittent resistance spikes here trigger “limp mode.” Disconnect the battery before probing to avoid false ECU codes.
The rear lighting harness splits into three sub-branches near the tailgate hinge. Each tail lamp assembly uses a 6-pin plug; inspect for cracked insulation around the license plate illumination circuit–exposed copper generates phantom brake light signals.
Airbag connectors use distinctive yellow shielding and latch mechanisms requiring a depressible tab for release. The passenger-side unit sits above the glovebox; its 12-pin interface includes crash detection lines–never jumper these during testing.
Climate control wiring terminates at a gray 22-pin connector behind the center console. Pin 11 carries cabin temperature sensor voltage–shorts here freeze climate settings at 68°F regardless of user input. Test continuity with a tone generator across all occupied pins.
Verify the powertrain harness’s ground strap–bolted beneath the driver-side kick panel–to chassis integrity. Rust accumulation here mimics alternator failure symptoms; clean contact surfaces with a wire brush then torque fasteners to 18 lb-ft.
Step-by-Step Electrical Circuit Verification Using Schematic Maps
Start by disconnecting the vehicle’s battery to prevent shorts or unintended power surges during testing. Identify the circuit path on the reference schematic–trace the colored lines from the power source to the load and back to ground. Use a multimeter set to continuity mode to validate each segment, ensuring the probe touches both terminals of connectors without forcing connections.
For voltage drop tests, reconnect the battery and activate the relevant system (e.g., lighting, sensors). Measure across expected voltage points–typically 12V at the fuse box and near-zero at the component’s ground side. Deviations exceeding 0.5V suggest resistance, corrosion, or faulty connections. Record readings in a structured table:
| Test Point | Expected (V) | Actual (V) | Interpretation |
|---|---|---|---|
| Fuse terminal | 12-14V | 11.2V | Possible resistance in line |
| Component input | 12-14V | 9.8V | High resistance or failing joint |
| Ground return | 0-0.2V | 1.5V | Faulty ground connection |
Inspect connectors for bent pins or oxidation. Use dielectric grease on reassembly to prevent future corrosion. For fuses, swap questionable ones with known-good spares of identical rating; if the new fuse blows immediately, suspect a dead short in the circuit. Probe the harness with the multimeter in resistance mode–values above 5Ω indicate damaged or deteriorated wiring.
Isolating Faulty Components
Disconnect suspected components one at a time to observe changes in voltage or continuity. If readings normalize when a device is unplugged, that unit is likely defective. For switches, measure voltage on both sides–failure to toggle between 0V and 12V confirms a faulty switch. Relay testing requires a 12V power source and a load light; if the relay clicks but the light doesn’t illuminate, the contacts are burned.
Harness chafing often occurs near sharp edges or moving parts. Flex suspect wires while observing the multimeter–fluctuations reveal intermittent breaks. Repair with solder and heat-shrink tubing, avoiding tape alone as it degrades over time. For ground points, remove paint or rust, then secure tightly to bare metal; loose grounds cause erratic behavior in multiple systems.
Digital signals require an oscilloscope for precise readings, but a basic frequency test can be performed with the multimeter’s frequency setting. Signals outside the expected range (e.g., 100–200 Hz for sensors) suggest wiring noise or ECU issues. Replace wires if shielding is compromised. Always cross-reference pinouts from the schematic when probing control modules.
After repairs, retest the entire circuit path to confirm resolution. Recheck voltage drops and continuity under load–some faults only appear during operation. Document findings and any deviations from the schematic’s color codes, as aftermarket repairs may use non-standard wires. Store notes with the vehicle’s service history for future diagnostics.
