Complete 2010 Chevy Malibu Wiring Diagram Guide for Electrical Repairs
Start by locating the instrument panel fuse block under the driver’s side dashboard–remove the protective cover to access the color-coded schematics. The BCM (Body Control Module) wiring harness connects to pinouts labeled X1 through X5, with X3 handling power windows and X4 managing door locks. Verify continuity on the yellow/black (YE/BK) wire running from the ignition switch to the underhood fuse box; corrosion here disrupts engine crank signals.
For the passenger comfort system, trace the light blue (LT BU) circuits feeding the climate control actuators–ground faults often occur at splice S203 near the firewall. The anti-lock brake module uses a dedicated orange (OG) power wire from fuse 32; probe this line at the module’s C1 connector with a multimeter set to 20V DC–readings below 11.5V indicate a parasitic draw from the ABS relay.
Exterior lighting shares a brown (BN) common ground at G101 behind the left kick panel; check for voltage drop across this splice under load–any deviation above 0.5V requires cleaning the joint with dielectric grease. The OnStar module draws power from the dark green/white (DK GRN/WH) wire at fuse 17; wiring conflicts here can disable remote start functionality.
For the automatic transmission control, inspect the pink/black (PNK/BK) wire between the TCM and the transmission range sensor–frayed insulation causes erratic gear shifts. The battery positive cable (thick red wire) splits at the starter solenoid; corrosion near this junction mimics a dead battery–clean with baking soda paste for reliable cranking.
Use a toner probe to track the purple (PPL) fuse sensor wire from the rear fuse box to the trunk harness–breaks in this line prevent fuel pump priming. The radio frequency (RF) interference shield requires proper grounding at G203 behind the instrument cluster; poor contact introduces static during AM reception.
Electrical Schematic Guide for the 2010 Mid-Size Sedan: Key Connections

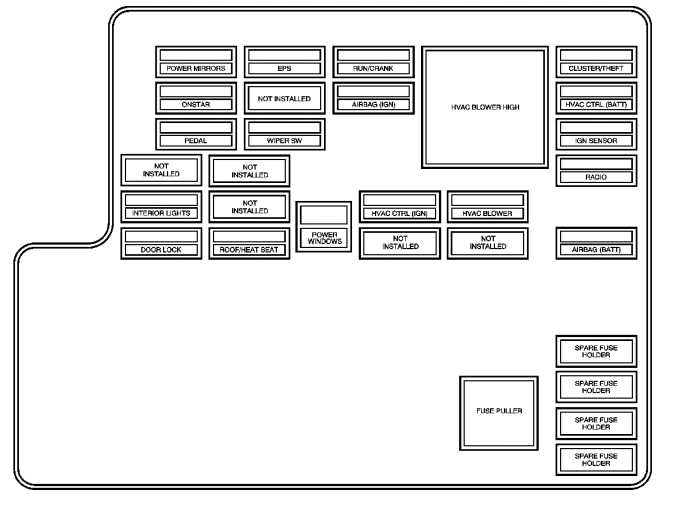

Start by locating the fuse box under the dashboard on the driver’s side–it houses critical relays for the vehicle’s lighting, ignition, and power distribution systems. The BCM (Body Control Module) manages over 60% of the car’s electronic functions, including door locks, interior lights, and the instrument cluster. Use a multimeter set to 20V DC to verify voltage at terminal 30 of the ignition switch (measured against ground) before proceeding with any repairs–this prevents misdiagnosis of parasitic drains.
Trace the orange wire (18 AWG) from the alternator’s output terminal to the underhood fuse block–this is the primary charging circuit. The purple/white stripe wire (16 AWG) carries the fuel pump relay control signal; any voltage drop here above 0.5V at 13.5A load indicates corroded connectors or a failing relay. Replace the vehicle’s 30A fusible link (near the battery) if resistance exceeds 0.2 ohms–ignoring this may lead to fire hazards in the engine bay wiring harness.
Ground points G103 (near the left front strut tower) and G200 (under the rear seat) support the majority of the car’s sensor and actuator circuits. Clean these connections with 120-grit sandpaper and apply dielectric grease during reassembly–this prevents intermittent failures from oxidation. The OBD-II port’s pin 16 delivers 12V power; if absent, check the red/white stripe wire (14 AWG) at the instrument panel junction block for continuity–this affects all module communications.
Finding Electrical Schematics in the Official Service Guide
Start by opening the repair manual to section 8A, labeled “Electrical System.” Flip directly to subsection 8A-5, where the complete factory schematics are organized by major circuits–ignition, lighting, power accessories, and sensor networks. Each subsection includes a small index at the top right corner, listing page numbers for quick reference; use these instead of skimming entire chapters.
Key Pages for Rapid Access
| Circuit Type | Subsection | Page Range |
|---|---|---|
| Starting & Charging | 8A-5A | 42-51 |
| Exterior Lights | 8A-5B | 52-63 |
| Interior Controls | 8A-5C | 64-78 |
| Instrument Panel | 8A-5D | 79-95 |
| Body Electronic Modules | 8A-5E | 96-110 |

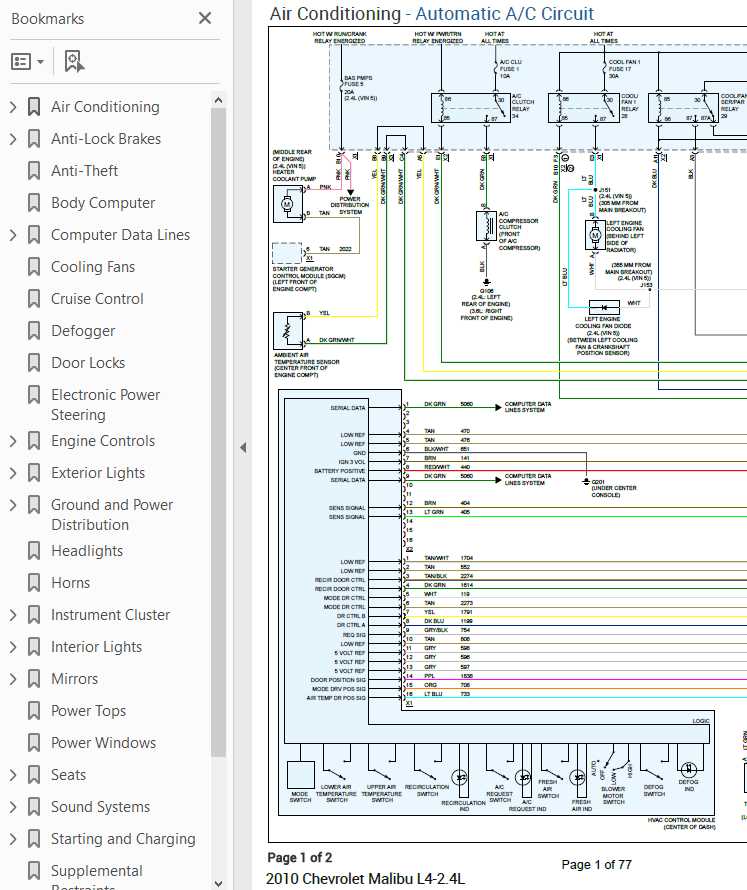

Printed schematics follow a uniform color code across all pages–thick black lines for power feeds, red for ignition-switched circuits, yellow for fused outputs, and dotted lines indicating ground returns. Components like relays are marked with their connector pin numbers (e.g., C301 for the under-hood fuse block), matching labels on the vehicle’s harness connectors. Verify wire gauges in the legend on page 41; mismatches between diagram and actual runs often signal worn insulation or corroded splice points.
Annotated notes appear in shaded boxes next to complicated splices or multi-function switches, detailing which circuits share a common feed. For instance, page 67 highlights that the brake pedal switch also supplies power to the cruise control module–an overlap frequently overlooked during diagnostics. Use a highlighter to mark these intersections before disconnecting any harness; cross-referencing them against a continuity tester prevents accidental shorts.
Digital versions of the service guide embed hyperlinks within each schematic page–clicking any fuse number jumps to its amperage rating and affected systems. Bookmark the first page of subsection 8A-5D (instrument cluster); this overview diagram maps how sensor signals route through the powertrain control module, streamlining troubleshooting for intermittent dashboard warning lights.
Step-by-Step Guide to Decoding Electrical Connector Coloring in Standard Vehicle Systems
Start by identifying the power distribution schematic for the specific fuse link or relay you’re inspecting. Locate the fuse panel–the left kick panel or under-hood junction box typically contains yellow (10–16 AWG), orange (4–8 AWG), or red (2–4 AWG) cables marked with numeric labels like “F2-10A” or “R1-30A.” Cross-reference these identifiers with the service manual’s legend; yellow often denotes constant battery voltage (B+), while light blue signifies switched ignition input (IGN). Use a multimeter set to DC voltage: probe the pin at the harness connector–not the fuse terminal–to confirm live current matches the expected 12.6V (B+) or 0.5V (ground offset). If readings deviate, trace the circuit backward through splice points (e.g., S215) where corrosion commonly disrupts signal continuity.
Tracing Signal and Ground Paths
For signal circuits–control modules, sensors, or lighting–look for thin-gauge wires (18–22 AWG) with striped patterns. Dark green/white stripe typically represents engine control outputs (e.g., fuel pump prime), while dark blue/white may indicate instrument cluster feeds. At the sensor connector, probe the solid-colored pin (e.g., tan for throttle position) while activating the circuit (cranking engine, cycling switch); expect 0.5–4.5V for analog sensors or 0–5V for digital. Ground paths (black or brown) must show less than 0.1Ω resistance–use a continuity tester between the chassis ground terminal and the wire’s end at the component (e.g., headlight housing). Replace any terminal exhibiting green oxidation; solder and heat-shrink repairs if crimping is unreliable.
For lighting systems, verify the relay’s coil side (85: ground, 86: trigger voltage) and load side (30: B+, 87: output) using the relay’s internal schematic. Low-beam circuits often use light green/black for left and light blue/black for right; confirm voltages at the bulb socket–12.8V (operational) or 0V (shorted). Twisted pairs (e.g., CAN bus) require differential probing: measure between the two wires (60Ω nominal) while monitoring for noise spikes, which indicate damaged shielding. Document every measurement; compare against the factory pinout table to isolate discrepancies.
Diagnosing Circuit Problems via the Central Electrical Schematic
Locate the main fuse box layout first–it’s the roadmap for current flow. Trace each line from the battery terminal to the component suspected of failure. Highlight the paths in red if they feed multiple modules, as a single break upstream can disable downstream devices.
Use a multimeter set to DC voltage for sequential probing. Attach the black lead to chassis ground, then touch the red lead to each test point along the suspected branch. A healthy connection reads near battery voltage (≈12.6V); a zero reading reveals open circuits or blown fuses.
Check relay sockets before replacing relays–burnt pins often mimic faulty switches. Remove the relay and jumper terminal 30 to 87 with a fused wire (≤10A). If the device activates, the relay contacts degraded; if not, inspect wire integrity between relay and load.
Inspect ground studs last–corrosion under mounting bolts creates resistive faults. Scrape paint from ring terminals, clean mating surfaces with sandpaper, and re-secure. Verify grounds by measuring 0Ω from post to bare metal on nearby chassis points.
Isolate parasitic drains by disconnecting fuses one-by-one while monitoring ammeter readings. Target circuits drawing >50mA; most vehicles maintain ≤30mA in sleep mode. Label each fuse’s associated loads directly on the diagram to speed future checks.
Review splice points for frayed strands–especially near doors or hinges. Tug-test wiring harnesses along their path; brittle insulation cracks under light tension. Repair fractured wires with sealed butt connectors and heat-shrink tubing to prevent moisture ingress.
Reference color codes from the schematic’s legend–striped wires identify sub-branches off solid colors. Swap connector pins if intermittent faults persist; terminals spread apart over time. Probe both sides of connectors with back-probe pins to confirm voltage without unplugging.
Cross-link shared power feeds between modules–one overloaded circuit can pull others down. Measure voltage drop across fusible links during activation; >0.5V suggests undersized conductors. Upgrade gauge size if replacing burned segments to handle peak current demands.
