Complete Electrical Wiring Diagram for 2010 Chrysler Town and Country Models

For immediate troubleshooting, locate fuse box relay panel C200 beneath the instrument panel on the driver’s side–its wiring harness connects to the front control module via a 40-pin connector labeled T25. Pin assignments 14 (yellow/light blue) and 15 (violet/orange) govern rear wiper motor operation; verify continuity with a multimeter if the system fails. The body control module (BCM) interfaces through T47, a 52-pin plug–pins 32 (gray/black) and 33 (dark green/white) manage power sliding door sensors. Replace any corroded terminals in this section to prevent intermittent faults.

Access the under-hood fuse block (integrated power module) by removing the air intake duct; the T30 connector routes power to the anti-lock brake system via wires 11 (dark blue/light green) and 12 (tan/light blue). A parasitic battery drain often traces to alternator field circuit–inspect pin 1 (red/white) at T1 for voltage drop exceeding 0.5V. For climate control issues, focus on the HVAC actuator motor harness (behind the glove compartment), where pin 5 (light green/orange) delivers 5V reference signal–deviation indicates a faulty PCM output or damaged wire.

To isolate audio system failures, probe T6 (radio harness) at the back of the head unit–pins 2 (purple/white) and 3 (yellow/black) carry CAN bus data; a missing 2.5V signal confirms a severed connection or defective star network module. The rear defogger grid receives power through T5 (rear fuse block); check pins 7 (dark blue) and 8 (brown) for relay activation–absence of 12V suggests a burnt thermal fuse near the liftgate latch. Always disconnect the battery before probing SRS wiring (T12, orange/yellow wires) to avoid airbag deployment.

For engine bay diagnostics, the T51 connector links the PCM to sensors–pin 47 (gray/red) carries camshaft position signal; verify with an oscilloscope for a 0–5V square wave. Transponder key programming requires bridging pins 1 and 2 of T46 (immobilizer module) while cycling the ignition–failure to detect a 12V pulse indicates a compromised SKIM unit. Static discharges on the fuel pump relay circuit (T3, pink/black wire) often mimic fuel starvation–inspect for voltage after cranking (minimum 10.5V).

Electrical Schematic Guide for the 2011 Minivan Model

Locate the central fuse box beneath the dashboard on the driver’s side–remove the lower trim panel by pressing the release clips at the edges. The integrated power module (IPM) schematic page 8W-30 in the official service manual corresponds to this assembly, detailing circuits for the sliding door motors and rear defogger. Use a digital multimeter set to 20V DC to probe terminal 14 (light blue wire) for battery voltage when the ignition is in the “ON” position.

For the sliding door auto-reverse mechanism, reference the door control module (DCM) diagram on sheet 8W-42. The reversible motor receives power through pins 6 (yellow/red stripe) and 7 (purple) via a 30A fuse from the battery. If the door halts abruptly, test the Hall-effect sensors at connectors C266 (left door) and C267 (right door)–sensors should output 0.5-4.5V while the door operates. Replace the entire DCM unit if readings deviate.

The powertrain control module (PCM) wiring harness, illustrated on schematic 8E-1, includes critical ground points G100 (near the left front strut tower) and G101 (under the intake manifold). Corrosion at these points often mimics transmission faults–clean surfaces with 600-grit sandpaper and apply dielectric grease before reassembly. The CAN bus network connects the PCM, anti-lock brake module (ABS), and instrument cluster via twisted pair wires: yellow/black (CAN-H) and orange/black (CAN-L).

To diagnose flickering headlights, examine the totally integrated power module (TIPM) schematic 8W-28. The headlamp switch output (gray wire at pin 8) routes through cavity C5 of the under-hood fuse block before reaching the bulbs. A voltage drop exceeding 0.2V between the TIPM and lamp socket indicates a corroded splice at connector C220–common near the front grille.

Rear entertainment system failures typically stem from the RF head unit connector C150. The video signals (yellow RCA cable) pass through pin 9, while power enters at pin 11 (orange wire) and ground at pin 8–verify these three connections first. If the screen remains blank, trace the purple/white wire (component video) from the unit to the overhead console. The wiring looms often chafe against the roof panel seam, requiring insulation tape to prevent short circuits.

For trailer towing preparations, consult sheet 8W-55–the dedicated harness under the rear bumper connects to the vehicle’s body control module (BCM). The trailer brake controller wires (red for output, blue for brake signal) must show 12V when the brake pedal is depressed. If voltage appears only intermittently, splice jumper wires directly to the BCM connector C2 rearward of the glove box, bypassing the factory plug prone to corrosion.

Locating the Manufacturer-Authorized Electrical Schematic PDF for the 2010 Minivan

The primary source for the OEM electrical schematic is the Fiat Chrysler Automobiles (FCA) Service Information Portal, accessible at moparrepairconnect.com. Registration requires a paid subscription, with options ranging from 1-day ($35) to annual ($300) access. Once logged in, navigate to the Vehicle Information section, select the appropriate model year, then Electrical followed by Wiring Diagrams to download the complete PDF.

Alternative authorized outlets include Factory Service Manuals (FSM) sold by third-party vendors like eManualOnline or ChiltonDIY. These platforms offer digital copies of the original schematic, often bundled with repair procedures. Prices typically range from $25 to $50. Verify the seller’s reputation by checking customer reviews–counterfeit or outdated schematics frequently lack critical updates for fuse panels, multiplex modules, or trailer wiring pinouts.

• Dealer Parts Departments: Some dealerships print or email schematics for customers engaged in DIY repairs. Contact the service advisor and request the Electrical Troubleshooting Manual (ETM) under part number 82214344. Dealers may charge a $20–$40 fee for this service, but it guarantees the most current revision.
• Public Libraries: Select branches subscribe to automotive databases like AllData or Mitchell1. Patrons can access these resources on-site using library credentials. Check libraries in major cities (e.g., Los Angeles Public Library, New York Public Library) for availability.

Forums can yield direct PDF links shared by mechanics, but reliability varies. Sites like chryslerminivan.net or dodgecaravan.net host threads where members upload scans or high-resolution photos of the schematic. Exercise caution–common errors in user-uploaded files include cropped pages for the TIPM (Totally Integrated Power Module) or mislabeled ground points. Cross-reference any downloaded schematic with the VIN decoder to ensure compatibility before proceeding with repairs.

Salvage yards occasionally provide hard copies of the electrical manual with purchased components. Request the Wiring Diagram Supplement (often stored in the glovebox or underhood diagnostic binder) when buying parts like rear liftgate modules or sliding door harnesses. While these manuals may show wear, they include color codes for wires–critical for identifying circuits like the CAN bus or BCM connectors.

1. Visit Schaeffler’s ERWIN–a lesser-known but legitimate OEM resource. Search for “2010 Grand Voyager” (the international model name) and filter by Wiring Diagram. The platform offers free previews of specific circuits (e.g., powertrain, HVAC), with full PDFs behind a €20 paywall.
2. Check RockAuto’s “Info” tab under the Electrical category. While primarily a parts retailer, they link to manufacturer-released schematics for certain models. Look for the Owner’s Manual or Service Manual downloads.

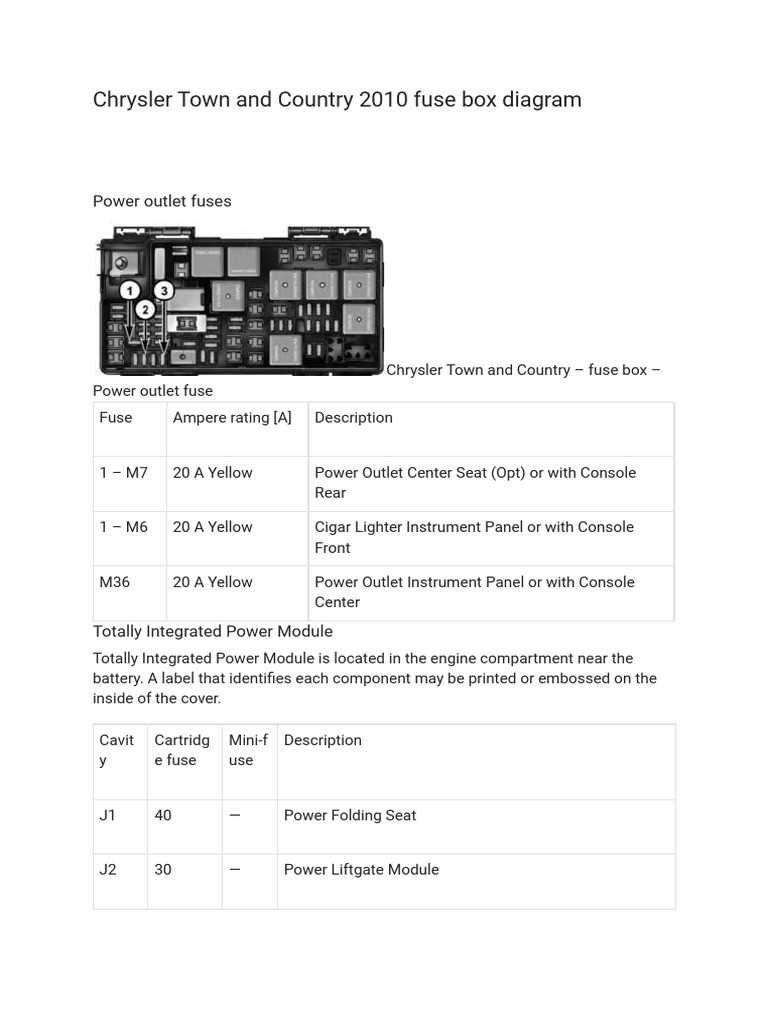

Identifying Key Fuse Box and Relay Connections in the Minivan’s Electrical Blueprint

Begin by referencing the vehicle’s service manual, focusing on the power distribution section labeled IPM (Integrated Power Module). This primary hub houses most fuses and relays, typically situated beneath the dashboard on the left side, adjacent to the brake pedal assembly. Locate the TIPM (Totally Integrated Power Module) diagram–an 80-amp main fuse feeds the entire system, branching into smaller circuits. Cross-reference the labels with the schematic’s color-coded lines; for instance, RD/YL (red with yellow stripe) often denotes constant battery voltage, while DB/OG (dark blue with orange stripe) may supply accessory power.

Trace the relay slots within the TIPM using the manual’s pinout table. Critical relays include:

– Fuel Pump Relay (Slot 14)

– Starter Relay (Slot 22)

– Front Wiper Relay (Slot 35)

– Blower Motor Relay (Slot 47).

Each relay’s socket corresponds to numbered terminals–verify continuity with a multimeter set to ohms mode. Probe the relay’s 85 and 86 coils for a reading under 100 ohms; deviation suggests an open circuit. For relays controlling high-current devices (e.g., A/C compressor), inspect the 30 and 87 terminals for 12V during activation.

Inspect the auxiliary fuse box under the hood, near the battery tray. This secondary panel contains fuses for external components like the radiator fan, headlights, and horn. Use needle-nose pliers to extract fuses, checking for blown filaments with a flashlight. Common fuse ratings here include:

– 30A for cooling fan

– 20A for headlamp low beam

– 15A for power outlets.

Label each fuse with its amperage and circuit name using masking tape before removal to avoid misplacement.

The wiring harness from the TIPM to the rear fuse panel follows the driver’s side rocker sill. Peel back the carpeting at the B-pillar to expose the harness; split-loom tubing protects cables feeding the liftgate, sliding doors, and third-row seat motors. Identify splices by color–VT/OG (violet with orange stripe) typically signals rear defroster circuits. Strip a 1/4-inch section of insulation at suspected trouble spots, testing for voltage drop with the ignition on (acceptable range:

Testing Relay Circuits Without Direct Access

When relay slots are inaccessible, bypass the relay by jumpering the 30 and 87 terminals with a 14-gauge wire. Example: To verify the blower motor relay, connect battery voltage directly to the motor’s DB/LG (dark blue with light green stripe) wire while monitoring fan operation. For the fuel pump, jump the relay’s F1 and F2 pins–the pump should hum within 2 seconds of ignition switch engagement. Record any anomalies (e.g., clicking without activation) as indicators of relay fatigue or corroded terminals.

Ground paths often fail silently. Locate the main chassis ground strap (G400) behind the left rear quarter panel, bolted to the frame rail. Scrape away paint at the contact point, reattaching with a #10 self-tapping screw if corrosion is present. Secondary grounds (G101, G201) reside near the front strut towers–use dielectric grease to prevent oxidation on reconnected terminals. Probe ground wires with a multimeter on DC voltage mode; readings above 0.3V suggest resistive grounds requiring cleaning or replacement.

For schematics lacking clarity, overlay a highlighter on the printed diagram to mark traced circuits. Start from a known power source (e.g., fuse 17 for the BCM) and follow the path to the component. Example:

1. Fuse 34 (20A) → Dashed purple line → Rear control module

2. Relay 53 → Green/black wire → Sunroof motor.

If a segment ends abruptly, cross-check with the connector pinout section–many circuits pass through bulkhead connectors (C1, C2) near the firewall.

Document all findings with photographs of fuse labels, relay positions, and wire colors before disassembly. Use zip ties to secure loose harnesses, ensuring no strain on connectors. For intermittent faults, tap suspected components (e.g., TIPM casing) with a screwdriver handle while monitoring–for relay contacts, tapping may reveal brief connectivity if contacts are carbonized. Replace components only after confirming upstream voltage and downstream continuity, avoiding false diagnoses of failed loads.
