Complete 2010 Nissan Altima AC Circuit Wiring Diagram Guide
Locate the black-and-white striped wire at connector M68–this is the blower motor power feed on early-model mid-size sedans. If the fan operates only on high speed, probe this line first; a reading below 12 V indicates a corroded junction inside the under-dash harness or a failed body control relay. Replace the relay only after verifying continuity from pin 30 to ground with the key off.
For the condenser fan circuit, trace the dark blue wire from the high-pressure switch (mounted on the A/C accumulator) back to the horn relay box. A functional switch should open above 210 psi; if it stays closed at idle, bypass it with a jumper to confirm whether the fan motor or the switch itself is faulty. While bypassing, let the engine run no longer than 90 seconds to avoid overheating the condenser coils.
Cabin temperature sensor failures often mimic heater blend door actuator problems. Unplug the yellow connector at the rear of the climate control head and test for 5 V reference voltage on pin 4; absence points to a severed pink wire inside the dashboard firewall grommet or a dying BCM. Re-seat the 22-pin BCM plug before ordering parts–oxidized pins account for over half of false sensor codes.
When diagnosing intermittent A/C clutch engagement, ignore dashboard indicator lamps; instead, back-probe the dark green wire at the compressor clutch coil. Expect 12 V pulses synchronized with compressor cycling. If pulses exist but the clutch remains disengaged, measure clutch coil resistance (spec: 3.5–4.5 Ω); readings above 6 Ω signal internal open circuits warranting clutch replacement.
Always strip ¼-inch of insulation from the suspect wire, then crimp a new 18 AWG female terminal onto the splice. Heat-shrink tubing over the repair prevents short circuits against the shift linkage or steering column supports.
Electrical Schematic for Climate Control in Mid-Size Sedan Models
Locate the A/C relay under the dashboard near fuse box position F38, labeled “A/C Relay” in the service manual–this is your first checkpoint for troubleshooting compressor engagement issues. Disconnect the vehicle’s negative battery terminal before probing terminals 85 and 86 on the relay socket with a multimeter set to continuity mode. If readings exceed 2 ohms or show open circuit, replace the relay immediately; corrosion on socket contacts often mimics relay failure but can be cleaned with electrical contact cleaner and a wire brush.
Trace the blower motor circuit through connector M41, pin 2 (light green/black wire), which carries input from the blower resistor assembly. For intermittent fan operation at specific speeds, measure voltage drop across resistor terminals R1-R4 while cycling through fan settings–any drop greater than 0.3V indicates excessive resistance, requiring resistor replacement. Verify ground integrity at chassis point G201 near the left strut tower; resistance above 0.5 ohms between this point and negative battery post mandates cleaning or re-securing the ground strap.
- Pressure switch cycling behavior: probe terminals 1 and 2 on compressor clutch connector C23 during system operation–clutch should engage at 45-55 psi low-side pressure.
- Condenser fan activation: check inverter box connector IV7, pins 4 (black/white) and 5 (blue/red) at 3100 RPM engine speed–both fans should draw 8-12 amps on clamp meter.
- Evaporator temperature sensor resistance: disconnect sensor connector S31, measure between pins 1-2 at 32°F–expected range 3.2-3.8 kΩ; values outside this indicate sensor drift requiring recalibration or replacement.
Diagnostic Flow for Common Climate System Failures
For non-responsive climate control interface:
- Check fuse F17 (10A) for cabin air filter motor–blown fuse often causes cascading HVAC failures.
- Inspect 16-pin climate control module connector C15 for bent pins–terminal 7 (blue/yellow) carries 5V reference signal critical for button matrix functionality.
- Verify CAN bus communication by back-probing OBD-II port pins 6 (CAN-H) and 14 (CAN-L) with oscilloscope–proper data packets show 2.5V nominal with +/-1V differential for valid messages.
Electrical Load Testing Parameters
Confirm compressor clutch coil resistance between 3.2-3.8 ohms at 68°F–values below 2.8 ohms indicate internal short, while open circuit requires clutch assembly replacement. Blower motor current draw should stabilize at 14-17 amps on high setting, measured at blower motor relay (F38) output terminal 30; fluctuations exceeding 22 amps suggest bearing wear or debris obstruction in blower wheel assembly, necessitating motor replacement rather than mere resistor swap.
Identifying Key Components in the AC Electrical System

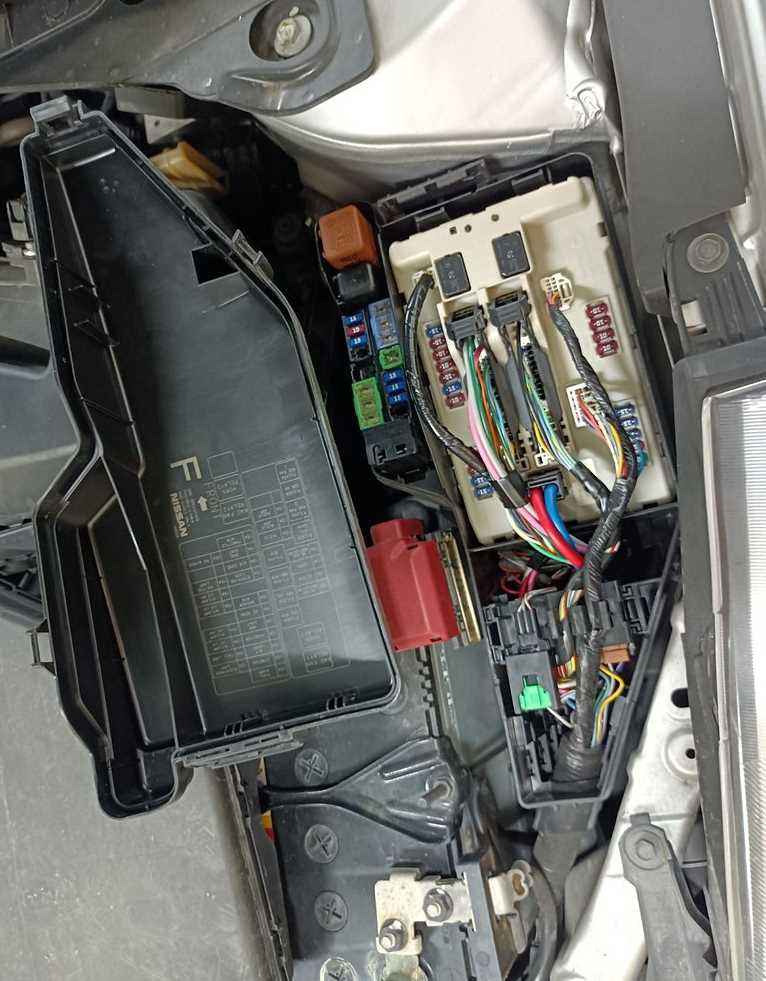

Begin diagnostics by locating the compressor clutch relay, typically housed in the under-hood fuse box near the battery. Use a multimeter set to continuity mode to verify the relay’s coil resistance–values between 50 and 120 ohms confirm functionality. If resistance deviates, replace the relay before proceeding; a faulty relay mimics low refrigerant symptoms but requires no refrigerant servicing. Cross-reference the relay’s pin layout with the manual–misaligned connections waste time during voltage testing.
Pressure Switch and Thermistor Verification
Check the dual-pressure switch connected to the accumulator–low-pressure cutoff should activate at 25-30 psi, high-pressure at 350-400 psi. Bypass the switch only for testing; sustained bypass risks compressor damage from inadequate lubrication. For the in-cabin thermistor, measure resistance at known temperatures: 10k ohms at 25°C, decreasing to 2k ohms at 60°C. A non-linear resistance curve indicates failure, requiring replacement to prevent erratic compressor engagement.
Trace the condenser fan motor wires to the control module–corrosion at wire crimps often causes intermittent failures. Probe the fan’s power feed with system energized; 12V at the connector confirms module output, while 0V suggests a fused link or open circuit. For single-speed models, the fan should operate at 100% duty cycle during AC demand; partial speed signals a failing relay or degraded ground connection. Always secure wire looms away from moving parts to prevent chafing, which introduces shorts after 80-100k miles.
Step-by-Step Guide to Locating the Climate Control Cable Assembly
Begin by disconnecting the vehicle’s negative battery terminal to prevent short circuits. Locate the dashboard’s lower panel beneath the steering column–it’s secured by three 10mm bolts and two plastic clips. Remove the panel carefully, as the clips are prone to breaking. Behind this panel, you’ll find the main HVAC controller and its attached cable bundle, typically wrapped in black corrugated tubing with white, blue, and green striped leads.
| Connector Type | Wire Colors | Typical Pinout | Common Faults |
|---|---|---|---|
| HVAC Control Module | White, Blue/Green stripe | Pins 2 (ground), 5 (A/C clutch) | Corrosion on pin 5, frayed insulation |
| Pressure Switch | Black, Yellow/Red stripe | Pins 1 (high-side), 3 (low-side) | Loose connection at crimp joints |
| Blower Resistor | Brown, Orange/White stripe | Pins 4 (speed control), 6 (ground) | Melted housing near resistor pack |
Trace the blue/white-striped wire from the compressor clutch relay–it runs along the firewall’s passenger side, passing through a rubber grommet near the brake master cylinder. Use a multimeter set to continuity mode to verify the wire’s integrity; resistance should not exceed 0.5 ohms. If the reading spikes, inspect the wire for chafing where it bends around the engine’s serpentine belt tensioner–this is a known failure point.
For the cabin-side harness, remove the glovebox by releasing its dual hinge clips–no tools required. The fan speed switch’s wiring harness is tucked behind the blower motor housing, identifiable by a 6-pin connector with red, pink, and black wires. Label each connector with masking tape before disconnecting: pin 1 (red) is always 12V constant, while pins 3-6 (pink variants) control speeds 1-4. Reassembly requires aligning the lower duct adapter–and its single-use foam seal–to avoid air leaks.
Common Electrical Circuit Problems and Their Visual Clues
Inspect the relay sockets first–corroded terminals here trigger intermittent cooling failures. Use a multimeter to check for voltage drops below 10.5V; anything lower suggests a poor ground connection near the firewall or compressor mount. Replace the relay if resistance exceeds 100 ohms between terminals 85 and 86.
Frayed Harness Sections Near Moving Components
Focus on the harness near the condenser fan and blower motor. Twisted or exposed strands often short against metal edges, causing erratic fan speeds or total system shutdown. Wrap damaged sections with adhesive-lined heat shrink tubing rated for 125°C–standard electrical tape degrades within months under temperature cycles.
Check the pressure switch harness for brittle insulation–common around the accumulator. A single cracked wire here sends false low-pressure signals, preventing compressor engagement. Splice in fresh 16-gauge wire with crimp connectors; solder alone fails under vibration. Verify continuity between the switch and control module pins 12 and 15–absence confirms an open circuit requiring trace repair.
How to Test the AC Pressure Switch Circuit
Disconnect the electrical connector from the pressure switch and set a multimeter to the 200-ohm resistance setting. Probe the terminals on the switch–readings should show continuity (near 0 ohms) in normal operating conditions. If the meter displays infinite resistance, the switch has failed internally and must be replaced. Repeat this test with the system pressurized to confirm functionality under real-world conditions.
Locate the two wires leading from the switch back to the climate control module. Use a back-probe technique to measure voltage at the harness connector while the ignition is on and the AC is engaged. Expect 5V reference voltage on one wire and a ground signal on the other. If either wire shows 0V or fluctuates erratically, inspect the wiring for opens, shorts, or corroded connections. Check the fuse feeding the circuit–typically a 10A mini fuse in the under-hood box.
Attach a scan tool to monitor live data parameters for AC pressure readings. Compare readings with a physical pressure gauge connected to the service port–both should align within ±5 psi. Discrepancies indicate either a faulty sensor or an issue in the signal circuit. Clear any stored trouble codes after repairs, then cycle the AC system to verify normal operation and proper code reset behavior.
- Set the multimeter to DC voltage mode and back-probe the signal wire while an assistant toggles the AC request on/off
- Observe a 0-12V swing on a functional circuit–absence of voltage swing suggests module-side issues
- Use a non-contact thermometer to check the condenser inlet and outlet temperatures–temperature drop below 20°F indicates adequate refrigerant flow
- Examine the switch mounting for oil residue or debris that could interfere with accurate pressure readings
If the switch passes electrical tests but the system still behaves erratically, replace the switch and evacuate then recharge the system. Always use OEM-specified refrigerant oil during service to maintain proper clutch coil lubrication. Recheck all connections for torque–switch connectors should be secured to 2.5 Nm to prevent intermittent faults.
