Complete 2010 Toyota RAV4 Radio Wiring Diagram and Wire Colors Guide

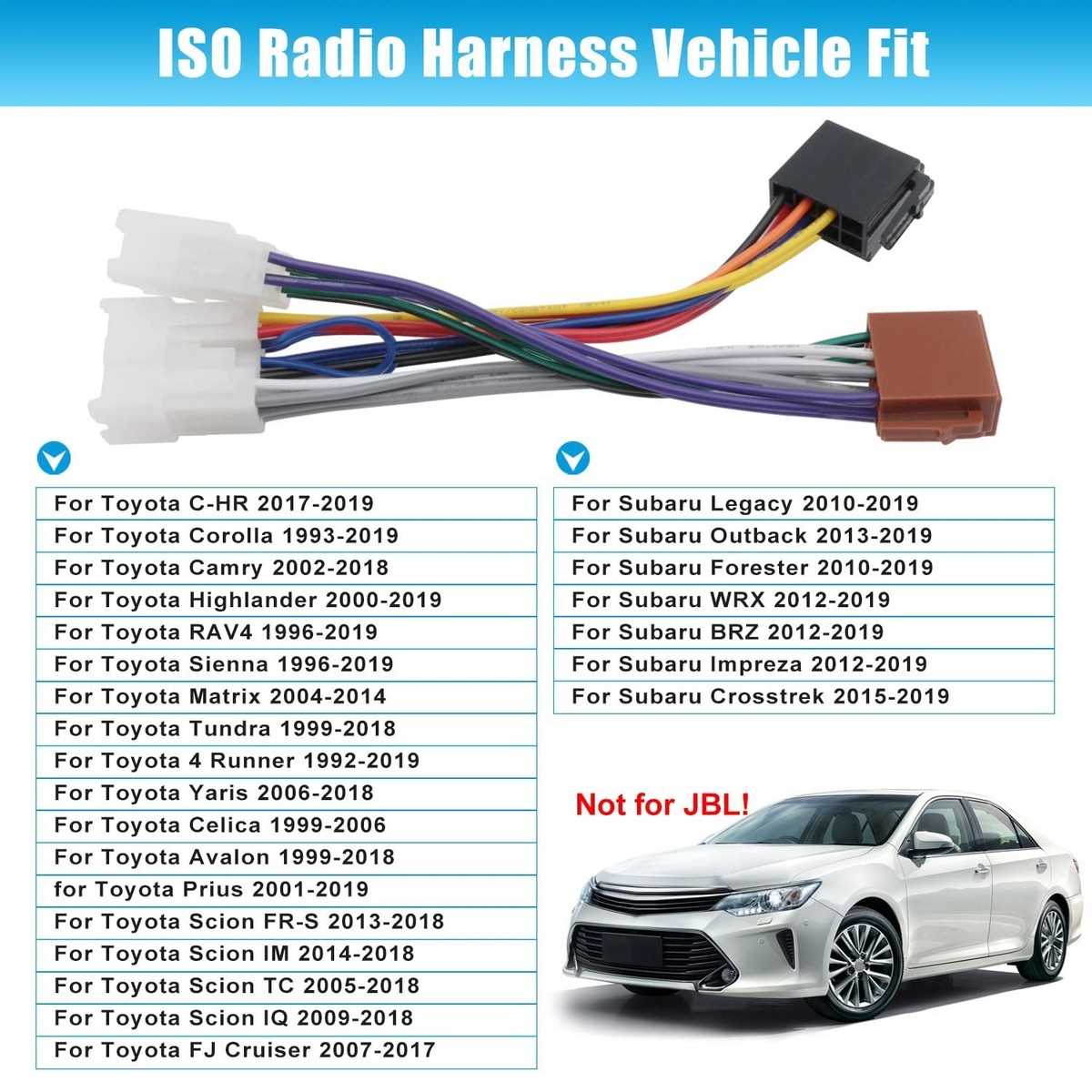

If you’re replacing or upgrading the sound unit in your compact crossover, locate the harness adapter marked Metra 70-8113 or Scosche TY14. These adapters interface directly with the vehicle’s original plug configuration, eliminating the need to splice wires manually. The main power lead–typically a yellow (12V constant) line–must connect to a fuse-protected circuit to prevent battery drain. Verify the fuse rating matches the original at 10 amps.
The illumination control (usually light green with red trace) adjusts display brightness with the dashboard lights. Ground connections (black) should terminate at the chassis or a dedicated screw point near the unit’s mounting bracket–never share grounding points with high-current accessories like amplifiers. For vehicles with steering wheel controls, the data bus (blue/white, pink, or purple depending on trim) requires a specific resistor network (390-820 ohms) to maintain functionality.
Aftermarket units with RCA outputs demand shielded cables routed away from the ignition wiring (red, 12V switched) to avoid alternator whine. Factory speaker wires (front: gray/light blue, rear: green/dark blue) follow a non-standard resistance pattern–check impedance (4-8 ohms) before pairing with new amplifiers. For models equipped with Bluetooth or navigation, retain the telematics module by splicing into the brown and white/black lines only when necessary.
Always use a multimeter to confirm wire functions before finalizing connections. Reversing the antenna trigger (blue) and remote turn-on (blue/white) can damage the head unit. If static persists, re-route grounding wires and ensure all shielded cables are intact. For troubleshooting, refer to the vehicle’s PIN layout–pins 18-24 on the 24-pin connector control auxiliary inputs and must match the new unit’s specifications.
Electrical Connections for Your Vehicle’s Audio System

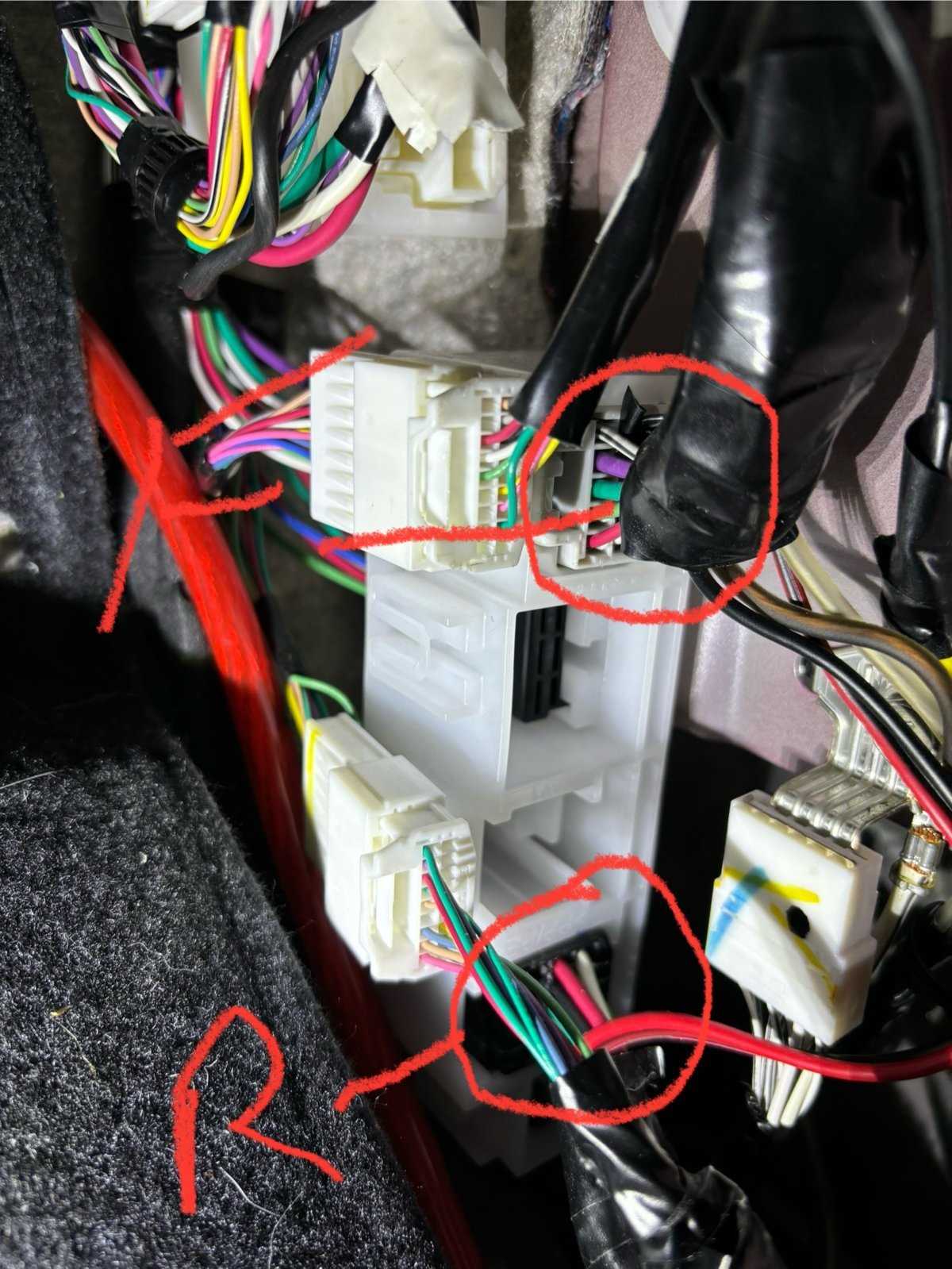

Locate the harness connector behind the dashboard panel on the driver’s side–it’s a 16-pin plug with color-coded leads. The solid yellow wire delivers constant 12V power; splicing it incorrectly risks draining the battery. Pair it with a 20-amp fuse for protection. The red lead provides switched voltage, activating only when the ignition is on, ideal for memory retention in aftermarket units.
Ground wires (black or brown) must attach to bare metal, preferably near the factory bolt hole. Avoid daisy-chaining grounds; corrosion at connection points causes intermittent sound dropouts. For speaker outputs, match the factory polarity: white/black for front left negative, gray/black for front right negative, violet/black for rear left, and green/black for rear right.
If integrating an amplifier, use the purple (rear right positive) and pink (rear left positive) wires–these carry unfiltered signals, reducing distortion. For vehicles with premium audio, the light blue wire outputs a low-level signal to the subwoofer; tapping it requires a line-output converter to prevent damage to aftermarket receivers.
Resist the urge to splice into the orange illumination lead unless your new head unit supports automatic dimming. This wire adjusts brightness in sync with dashboard lights; forcing a mismatch causes glare at night. For steering wheel controls, consult pinouts for the beige connector–miswiring here disables volume adjustment or voice commands.
Test each connection with a multimeter before reassembly. Probe the harness side of the plug for 12V on yellow and red, then verify continuity on ground and speaker wires. A mismatch here often manifests as a single channel playing or no audio at all. Document your work with photos–these simplify future troubleshooting if the system malfunctions.
When reinstalling the trim, secure harnesses away from moving parts to prevent pinched wires. Loose connections behind the dash are a leading cause of flickering displays and erratic Bluetooth behavior. If static persists, inspect the antenna lead (usually blue/white) for proper seating in the receiver’s input–poor contact here weakens FM reception.
Finding the Factory Audio System Plug Connections
Disconnect the negative battery terminal before touching any harness connectors to prevent short circuits or system resets. The factory audio assembly is secured by four spring clips–two on each side–that require release using trim removal tools or a thin plastic pry bar. Insert the tool between the fascia panel and the center console, applying gentle outward pressure until the clips snap free. Once removed, the rear of the unit reveals two primary plugs: an 8-pin rectangular harness for power and speaker outputs, and a 16-pin ISO connector handling antenna control and data signals.
Identifying Key Terminals
The 8-pin plug labels include:
- Pin 1 (BATT) – Permanent 12V supply (yellow wire, 18-gauge).
- Pin 4 (GND) – Chassis ground (black wire, 16-gauge).
- Pin 6 (ILL+) – Illumination positive (orange wire, 20-gauge).
- Pin 8 (ACC) – Accessory power (red wire, 18-gauge).
Trace each wire at least 2 inches from the connector to confirm no damage or previous splice repairs. For aftermarket installations, tap into these wires using crimp connectors rated for the gauge thickness; avoid soldering near the factory harness to prevent brittle connections over time.
Reassembly requires aligning the spring clips into their slots before pressing the unit firmly into place. Test all functions–volume, station tuning, and display illumination–before securing the fascia panel. If retaining the stock antenna, ensure the 16-pin ISO connector’s coaxial pin (typically Pin 12) remains intact; a damaged shield can cause signal interference in AM/FM bands.
Pinpointing Electrical Connections in Factory Audio Systems
Locate the constant 12V supply wire–typically color-coded yellow or white with a red stripe–by tracing the harness to the fuse box connection. Verify voltage with a multimeter while the ignition is off; readings should remain steady at 12V. For switched power (red or light blue with a stripe), expect voltage only when the ignition is in ACC or ON positions. Ground wires (black or brown) attach directly to chassis points; test continuity between the wire’s end and bare metal to confirm a solid connection under 0.5 ohms.
| Wire Function | Standard Color | Detection Method |
|---|---|---|
| Constant power | Yellow, white/red | Multimeter at 12V with key off |
| Switched power | Red, light blue/stripe | Voltage only in ACC/ON |
| Ground | Black, brown | Continuity to chassis <0.5Ω |
| Front left speaker (+) | Gray or gray/black | Tone test reverses polarity |
| Front right speaker (+) | White or white/black | Tone test reverses polarity |
| Rear left speaker (+) | Green or green/black | Tone test reverses polarity |
| Rear right speaker (+) | Purple or purple/black | Tone test reverses polarity |
Speaker circuits require polarity checks: connect a 9V battery briefly to each wire pair–positive leads (solid colors) should produce a popping sound from the corresponding speaker, while negative leads (striped) remain silent. Reverse the battery connections to confirm correct polarity; incorrect wiring results in phase cancellation and weak audio output. Label each wire immediately after verification to prevent mix-ups during reinstallation.
Step-by-Step Guide to Installing a New Audio System in Your Compact Crossover
Disconnect the negative terminal from the vehicle’s battery before handling any connections. This prevents short circuits and protects sensitive electronics in the stereo harness. Locate the factory wiring harness behind the dashboard–it typically uses a 12-pin Molex connector for power, speakers, and illumination.
Match the aftermarket head unit’s wiring colors to the factory harness using a wiring adapter (e.g., Metra 70-1761). Verify the adapter’s compatibility with the vehicle’s model year. For instance, constant 12V power (yellow) hooks to the battery line, switched 12V (red) connects to the ignition wire, and ground (black) attaches to chassis metal or a dedicated ground wire.
Speaker and Amplifier Connections
Identify speaker wires by testing with a 9V battery–positive connections will cause a faint pop when touched. Front left (gray), front right (white), rear left (green), and rear right (purple) pairs include striped wires for positive (+) and solid for negative (-). Avoid splicing into amplifier wires unless upgrading to an external amp; instead, use high-level inputs to preserve sound quality.
If integrating a subwoofer, route the RCA cables from the new unit to the amp, ensuring they don’t run parallel to power wires to minimize interference. Secure connections with solder and heat-shrink tubing, or use crimp connectors for a quicker but less durable fix. Double-check polarity before finalizing–reversed wires reduce bass response and stereo imaging.
Reconnect the battery and test the unit before reassembling the dashboard. Adjust amplifier gains if installed, using a multimeter to confirm 13.8V–14.4V at the power terminals. Factory steering wheel controls may require an interface module (like iDatalink Maestro) for full functionality. If static occurs, reroute RCA cables away from power sources or add a ground loop isolator.
Final Adjustments and Troubleshooting
Program the antenna adapter if the vehicle uses an amplified system–the correct setting (usually “12V Out”) ensures FM reception. Calibrate the equalizer settings for the cabin’s acoustics, as factory speakers may differ in impedance (typically 4 ohms). If the display dims erratically, verify the illumination wire (orange) matches the vehicle’s lighting circuit.
