Complete Electrical Wiring Guide for 2011 Kia Soul Models

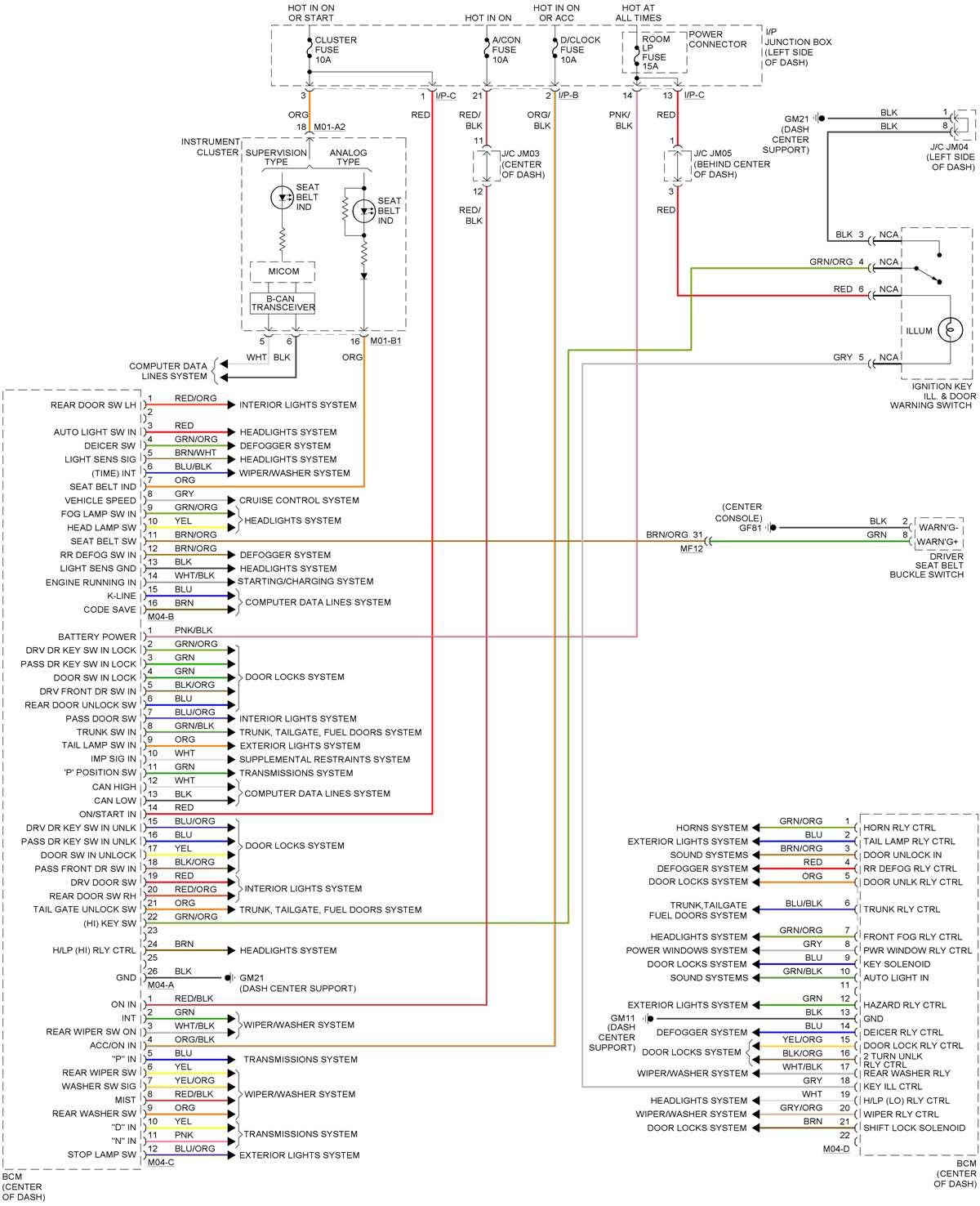

For precise troubleshooting, begin with the main fuse box under the dashboard–located on the driver’s side. Trace the thick red wire (terminal 30) from the battery to fuse F26 (30A), which feeds the ignition switch. If power cuts off at this point, inspect the 10mm bolt securing the positive cable for corrosion or loose contact. Replace the fuse only after confirming no short exists in downstream circuits.

Direct your focus next to the engine bay relay block. The BCM (Body Control Module) harness connects via an 18-pin gray connector (C100). Pin 11 carries a constant 12V reference–verify this with a multimeter before proceeding. A drop below 11.5V here indicates a failing alternator or degraded ground at G401 near the strut tower. Clean both contact points with a wire brush and apply dielectric grease during reassembly.

Door locks and window motors share a 14-gauge purple wire in harness conduit C-304. If actuators respond intermittently, splice into the wiring at the kick panel and check for voltage while cycling the switch. A steady 11.8V–12.2V should register within 500ms of command. Voltage fluctuations under load suggest a worn motor brush or broken circuit protection diode (D302 in the driver’s door module). Replace the diode with an OEM equivalent rated for 1.5A reverse current.

Instrument cluster backlighting relies on pins 5 and 6 of the 24-pin beige connector (I81). Dimmer functionality maps to a 5kΩ variable resistor near the headlight switch. If illumination fails, probe pin 6 for a stable 0V–12V signal while rotating the knob. Absence of change points to a faulty resistor or open trace on the cluster PCB–resolder cracked joints with 60/40 leaded solder for reliability.

Electrical Schematic Guide for the 2011 Compact Crossover

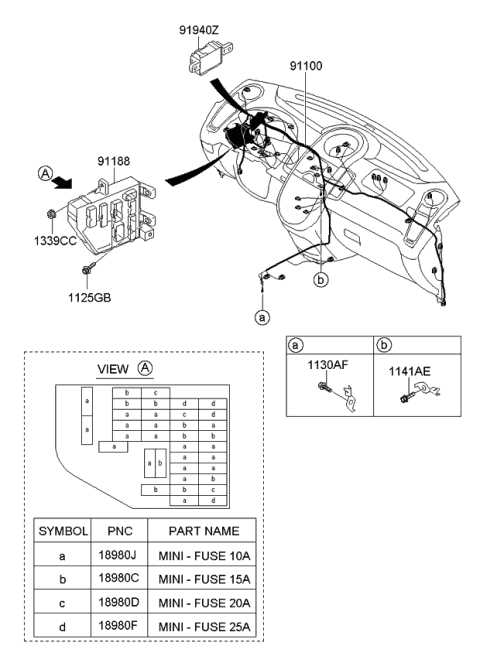

Start by locating the fuse box beneath the dashboard on the driver’s side–remove the cover to expose relays and fuses. Use a multimeter set to continuity mode to test fuse terminals; a reading above 0.2 ohms indicates a blown fuse. Replace with an identical amperage rating–refer to the label inside the fuse box door for exact values. For wire tracing, disconnect the battery negative terminal first to prevent shorts.

Critical Circuit Reference

Component	Wire Color (Main)	Connector Pin	Voltage (Key On)
Headlight Switch	Black/Yellow	C-302-12	12V
Blower Motor	White/Black	A-37-4	12V
Rear Defroster	Orange/Black	C-306-1	12V
PCM Power	Red/Green	E-17-5	12V

For instrument cluster diagnostics, probe pin C-301-1 (Pink/Black wire) with ignition on–absence of 12V suggests a faulty ignition switch or blown IGN fuse. Ground connections cluster near the left front strut tower; verify with a test light connected to battery positive.

When repairing damaged harness sections, strip 5mm of insulation, twist strands tightly, then solder and heat-shrink–avoid electrical tape alone. For splicing, match wire gauge exactly; 18-22 AWG is standard for most circuits in this model. Always cross-reference splice points with the official manual to prevent mismatches–example: the stereo amplifier harness (White/Green wire) must connect to pin A-6-3, not A-6-1.

Troubleshooting Common Faults

Symptom	Probable Cause	Action
No crank, dash lights on	Faulty starter relay or clutch switch	Verify relay coil voltage (pin 85) and clutch pedal position sensor output
Intermittent power windows	Broken window regulator motor wires at door hinge	Inspect door jamb harness for fraying; replace door boot if necessary
Check engine light (P0300)	Damaged ignition coil pack wiring	Test coil harness for shorts–probe pins A-10-1 (Black/Yellow) and A-10-2 (Blue/White)

Locating the Authentic Electrical Schematic for Your Vehicle Model

The manufacturer’s official service portal is the primary source for verified schematics. Access requires registration at Kia Tech Info, where original documents are stored in downloadable format. Look under the “Electrical Troubleshooting” section–files are categorized by system (engine, lighting, climate control). Subscription costs approximately $25 for 48-hour access, but the investment ensures accuracy.

Alternative repositories include:

• Auto repair forums like iATN (iatn.net)–members upload scanned OEM manuals, though quality varies.
• Online communities (Kia Owners Club on Facebook or Reddit’s r/Kia)–users share direct links to hosting sites like Mega or Google Drive.
• Third-party manuals (ChiltonDIY, Haynes)–these often repackage factory data but may lack updates for later recalls.

Physical dealerships can print excerpts from the schematic under warranty claims or paid diagnostics. Request the “EWD” (Electrical Wiring Diagram) volume–technicians label connectors and wire colors per page 12-45 (depending on trim). Some independent shops keep binders of older models; call ahead to confirm availability.

For DIY repairs, prioritize:

1. Official PDFs–search by VIN to match exact build configurations.
2. Multimeter-verified downloads–avoid user-edited versions with missing pins.
3. Printed hardcopies–fuse box maps and ground locations are easier to trace on paper.

Torrent sites occasionally host full-service manual archives, but risks include malware or corrupted files. Verify checksums using tools like WinMD5Free if choosing this route. Legitimate sellers on eBay offer USB drives with OEM schematics; inspect seller feedback for authenticity claims.

Local libraries with auto repair sections may stock reference books. The “Mitchell 1” series includes wiring schematics cross-referenced with circuit codes–ask for volume 2 of the 3-book set. Always compare any downloaded schematic against the vehicle’s fuse panel legend to confirm component assignments.

Decoding Color Codes in Compact Vehicle Electrical Schematics

Begin by isolating each branch of the harness at its connector. Pinpoint wires using a two-letter identifier: the first denotes the base hue, while the second marks the stripe. Solid orange becomes OR, orange with a white tracer becomes OW. This system repeats consistently across body, chassis, and powertrain circuits–no deviations exist for critical safety loops like ABS or airbag modules. Skip resistance checks until you confirm color-to-pin fidelity; misreading GY (gray) versus LG (light green) risks shorts in fused high-amp pathways.

Reference the printed splice guide adjacent to fuse panel JB-01. Dual-color wires entering splice S-201, for instance, merge BK/R (black/red) from the ignition feed with BN/Y (brown/yellow) from the tailgate latch sensor–interrupting this node disables both intermittent wiper and rear defroster relay triggers. Use a non-contact voltage probe to trace these paths; 14-gauge BN/Y carries 7A under nominal load, detectable as a faint 80°C heat signature behind the dash cluster.

Common Pitfalls in Harness Translation

Manufacturers reuse some stripes across unrelated systems: PK (pink) may govern heated seat elements in one segment yet terminate at the ECM temperature sensor in another. Always cross-verify with adjacent pin assignments–IC pin 27 should map to YL (yellow) on the instrument lighting dimmer, not YL/BK (yellow/black), which feeds the parking brake switch. Maintain a live-circuit log; false positives occur when testing wires dormant below 10°C ambient conditions.

Step-by-Step Tracing of the Powertrain Control Unit Circuit Pathways

Locate the PCU beneath the dashboard on the driver’s side, secured by a protective plastic cover with three 10mm bolts. Remove the panel to expose the harness connectors–label them A (main), B (sensor cluster), and C (actuator feed) using masking tape to prevent mixing pins during reconnection.

Disconnecting and Inspecting the Harness

• Release the locking tabs on each connector using a flathead screwdriver–apply lateral pressure only to avoid damaging the plastic housings.
• Inspect terminals for corrosion: green/white oxidation indicates moisture ingress; clean with a wire brush and dielectric grease before reinsertion.
• Trace the primary harness from the PCU outward, following color-coded cables:
  • Red/blue: ignition power (check fuse #15 in the under-hood box)
  • Yellow/black: ground (verify continuity to chassis mounting point)
  • Green/white: throttle position sensor (TPS) signal

Use a multimeter set to 200 ohms to verify ground integrity–probe between the PCU’s designated ground pin (typically B-12) and bare metal on the firewall. Resistance should read below 0.5 ohms; higher values suggest a compromised chassis connection requiring sanding of paint or rust at the attachment point.

Verifying Signal Integrity

1. Reconnect connector A and switch the ignition to ON (engine off). Measure voltage on:
2. Pin A-3 (red/blue): 12.6V (±0.5V) from the battery
3. Pin A-7 (yellow/black): 0V (ground reference)
4. For dynamic testing, connect a scan tool and monitor live data while manually manipulating sensors (e.g., gently wiggle the TPS harness near the connector–fluctuations above 0.1V indicate intermittent shorts).
5. Reassemble in reverse order, ensuring all grommets sealing cable entry points into the cabin are intact to prevent water intrusion.

Common Electrical System Failures and Their Circuit Locations

Check the alternator output circuit if the battery warning light flickers or remains illuminated. The charging system’s primary failure points lie in the B+ terminal (typically a 10mm nut on the alternator) and the field control wire (usually a thin blue or yellow lead). Corrosion at the B+ connection reduces voltage delivery, while a broken field wire prevents the alternator from regulating output. Use a multimeter to verify 13.8–14.4V at the battery posts with the engine running; readings outside this range indicate a failing rectifier or voltage regulator.

Blown fuses in the instrument cluster circuit (often labeled IGN or METER) cause intermittent gauge failures. The problematic fuse (usually 10A) sits in the interior fuse block beneath the dash on the driver’s side. Remove the fuse block cover–no tools needed–and inspect the fuse with a flashlight. If the filament is broken, replace it with an identical amperage rating, not a higher one, to avoid damaging the speedometer, tachometer, or fuel level sensors. Recheck functionality by turning the key to ON; a persistently dead gauge suggests a short in the white/red wire feeding the cluster.

Faulty ground connections are a frequent yet overlooked cause of electrical gremlins. The main chassis ground (G301) is located near the front strut tower on the left side; corrosion here disrupts signals to the ECU, ignition coils, and fuel pump. Clean the ground terminal with a wire brush until bare metal is exposed, then secure it with dielectric grease. Secondary grounds, such as G103 (near the battery tray) and G203 (under the rear seat), also degrade over time. Test continuity from the ground terminal to the battery negative post with a multimeter–measurements above 0.2 ohms require replacement of the ground cable or terminal.

Headlight circuits fail due to worn relays or damaged low-beam filaments. The relay for the headlamp system (HLP LO or HLP HI) is housed in the under-hood fuse box, identifiable by a clicking sound when toggling the lights. Swap it with a known-good relay (e.g., the horn relay) to confirm failure. If the relay tests fine, probe the light green/black wire at the headlamp connector while activating the low beams; absence of 12V indicates an open circuit in the harness near the front bumper or a blown fuse 15 (headlamp) in the interior fuse panel.

Power window malfunctions trace back to the window control module or degraded motor brushes. The module sits inside the driver’s door; remove the door panel by prying off the clips (use a plastic trim tool) and unplugging the electrical connector. Test for battery voltage at the module’s red/yellow power wire when the ignition is ON. If voltage is present but the window fails to move, the motor is faulty–replace it as a unit. For intermittent operation, check the window switch contacts for carbon buildup; clean with electrical contact cleaner or replace the switch if unresponsive.

Ignition switch failures manifest as erratic dashboard lights or a no-start condition. The switch is integrated into the ignition lock cylinder and connects via a black/white wire to the starter relay. Bypass the switch temporarily by jumpering the starter solenoid terminal to battery positive; if the engine cranks, the switch must be replaced. Disassemble the steering column shroud to access it–remove the two 10mm bolts securing the cylinder. Ensure the new switch aligns with the key tumbler’s groove before tightening; misalignment prevents the key from turning fully to the START position.
