Complete Wiring Guide for 2011 VW Jetta Tail Light Circuit Diagram

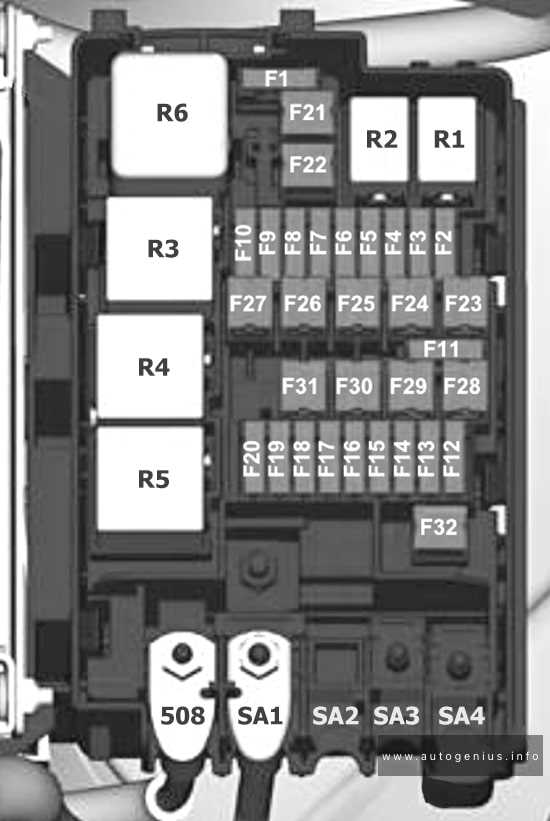

Check the fuse first. If rear lamps on your compact Volkswagen sedan fail, pull fuse SB27 (10A) from the dashboard panel–the most common failure point. Test with a multimeter; replace if continuity is absent. Avoid guessing–corrosion at the fuse box terminals mimics failure even with intact circuits.

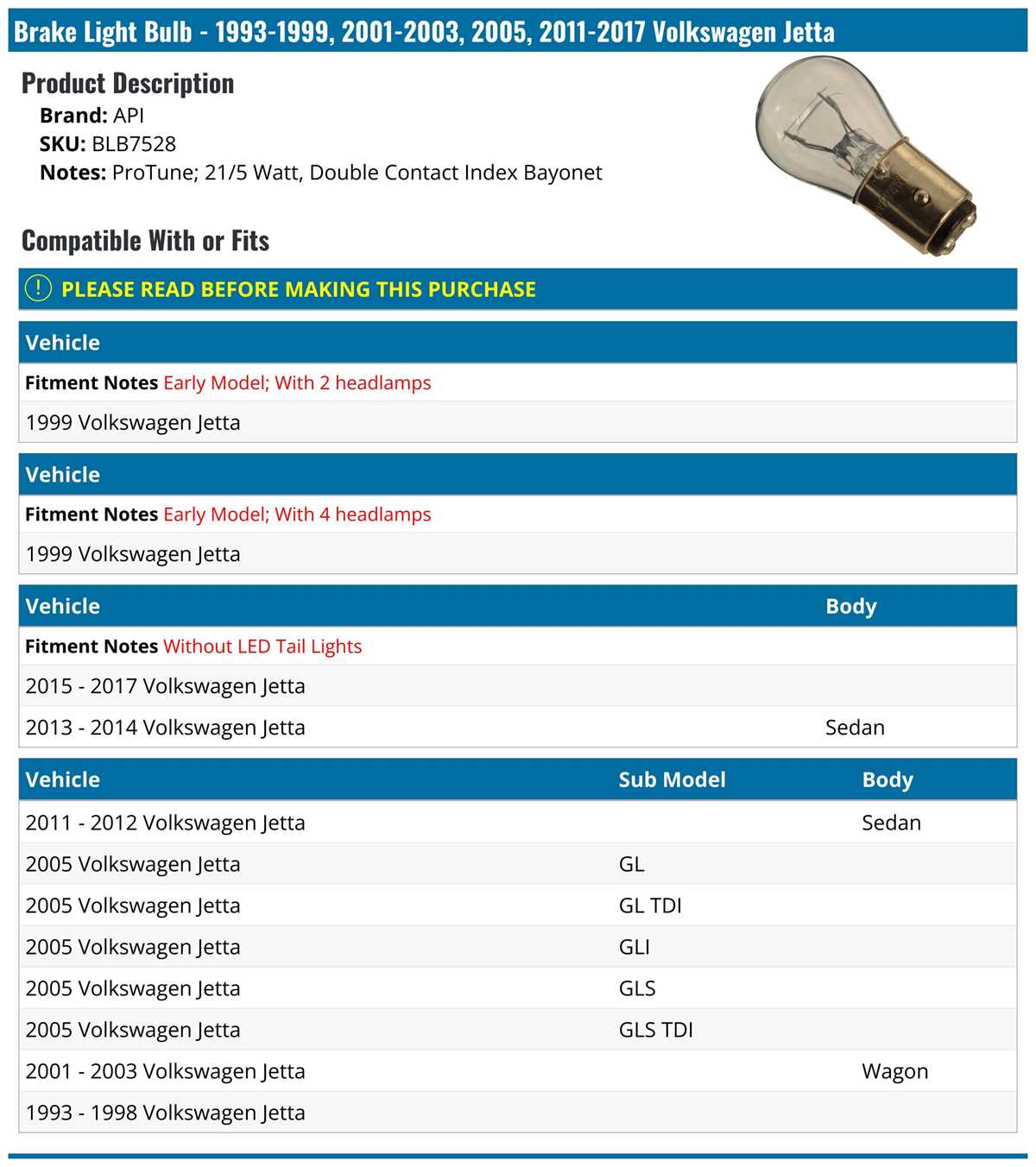

Next, inspect the bulb sockets. Remove the taillamp housing by prying three clips: two near the outer edge, one at the inner trim. Socket T12 (brake/signal) and T10 (reverse) share a ground–clean contact surfaces with 400-grit sandpaper if oxidation is visible. Sockets often melt before bulbs; look for plastic distortion before assuming filament issues.

Trace the main harness behind the rear bumper. The connector (12-pin, black, labeled “T32/1”) carries three critical wires: yellow/red strip (brake input), yellow/green strip (signal input), and brown (ground return). Probe with a powered test light–if voltage arrives but lamps remain off, suspect wire chafing where the harness exits the trunk seal. Cut the tape, solder and shrink-wrap any exposed copper.

For reverse lamp circuits, verify terminal X1 (white/black wire) in the same 12-pin connector. Voltage should spike to 12V when shifting into reverse–if absent, the selector switch or relay J724 under the dashboard may be faulty. Replace relay clusters as a set if one lamp works intermittently.

Ground faults are frequent. Every lamp relies on brown wire routed to contact point G303 (sheet metal flange near the hatch hinge). Scrape paint off the frame, star-washers prevent loosening over time. If corrosion persists, bypass by running a dedicated 12AWG ground to the battery negative–redundancy prevents phantom failures.

Electrical Schematic for Rear Illumination on the 2011 VW Sedan

Begin by locating the fuse panel on the driver’s side kick panel–remove the cover to expose slots 5 (right cluster) and 6 (left cluster), each rated at 10A. A blown fuse here typically explains unilateral failure patterns, particularly if the corresponding brake signal also malfunctions. Verify voltage at the fuse terminals using a multimeter; readings below 12V indicate corroded connectors or a faulty relay upstream.

Trace the harness from the fuse box toward the rear assembly. The right-side conduit merges into a six-pin connector beneath the cargo panel, while the left follows a similar path but branches through the driver-side door sill. These connectors, identified by matching arrows on their housings, often accumulate moisture–disassemble and clean contacts using electrical grease and a wire brush before reassembly. Ignoring this step risks intermittent flickering or complete signal dropout.

The bulb sockets within the lamp housing use a three-wire configuration: ground (brown), power (red/black stripe for running, red/white stripe for brake/turn), and an additional white/blue stripe reserved for the reverse function on the right unit. Test continuity between each socket pin and the harness-side connector; resistance exceeding 0.5 ohms suggests a broken internal conductor, requiring harness replacement rather than socket-only repairs.

If diagnostic tests confirm intact wiring but partial functionality, inspect the body control module (BCM) behind the dash. Pinout diagrams for connector T32a/20 (fused supply for rear circuits) and T32b/16 (ground return) are essential–cross-reference measured voltages against the vehicle’s manual to isolate a failing BCM output. Software recalibration via VCDS may restore proper voltage regulation before resorting to module replacement.

For vehicles equipped with LED upgrade kits, note the reduced current draw compared to filament bulbs. Factory wiring tolerates this, but aftermarket converters introduce voltage fluctuations that often trigger hyperflash or bulb-out warnings. Bypass the warning by installing a load resistor (resistance 6Ω, power rating 50W) inline with the bulb socket’s ground terminal, tapped directly from the running light circuit. Secure mounting to metal chassis points avoids thermal damage to adjacent harnesses.

Document any splice points when modifying the circuit, particularly if integrating trailer harnesses or auxiliary lighting. Use weatherproof butt connectors and solder joints wrapped with adhesive-lined heat shrink tubing–avoid non-adhesive varieties, as they permit moisture ingress leading to corrosion. Label each reconnection point with heat-stable tape, detailing wire gauge and function for future diagnostics.

Before final reassembly, recheck all connections with the ignition set to “ON” and each signal activated in sequence. Observe both physical bulbs and dashboard indicators to confirm all functions–tail, brake, turn, and reverse–illuminate without error codes. Reset the BCM by disconnecting the negative battery terminal for 15 minutes if persistent warnings remain, allowing the module to recalibrate to the corrected wiring state.

Matching the Proper Connector Assembly for Rear Exterior Illumination

Begin by locating the vehicle’s original harness color codes on the reverse side of each lamp housing. The left assembly uses a white eight-pin plug, while the right counterpart employs a grey variant–both marked with alphanumeric labels: T12, T14, or similar. Cross-reference these identifiers with theHarness Reference Chart found in service manual section 8E-5.

Verify pinout alignment using a multimeter set to continuity mode. Probe the connector terminals against the bulb sockets: the left unit carries a single-filament setup at positions 1, 2, and 4, whereas the right unit integrates dual-filament circuitry at pins 3 and 5. Misalignment here indicates compatibility issues with aftermarket replacements.

Select replacement connectors based on manufacturer specifications rather than visual similarity. OEM parts from suppliers like Hella or Valeo often include laser-etched terminal labels, which third-party brands frequently omit. Use the following checklist for authenticity:

• Eight-pin connector with molded keyway notch
• Terminals coated in gold or tin plating
• Color-coded wires matching the original scheme: BK (ground), YL (turn signal), RD (brake), BR (running)

For vehicles equipped with LED upgrades, confirm the presence of load resistors within the harness. Factory wiring assumes incandescent resistance levels; improper current flow triggers a false bulb-out warning on the instrument cluster. Aftermarket solutions may require inline resistors rated at 6-ohm/50W.

When splicing is unavoidable, use heat-shrink tubing with adhesive lining over crimp connectors–never twist-and-tape methods. Ensure all junctions meet the 14-16 AWG wire gauge standard to prevent voltage drop. Test each circuit under load (12.8V) before final assembly.

Troubleshooting Common Harness Issues

1. Flickering or intermittent function: Check for corrosion at the chassis ground point G201, located beneath the left rear bumper support.
2. Non-responsive brake lamps: Inspect fuse S32 (10A) and relay J397 in the fuse box, row K.
3. Reverse lamp failure: Trace wires to connector T14/9 (violet/black stripe) on early models–later revisions relocate this to T14/10.

Step-by-Step Guide to Accessing the Rear Lamp Socket Behind the Cargo Area Trim

Detach the interior cargo panel by locating the two plastic clips along the upper edge–use a trim removal tool to pry them upward without breaking the mounting tabs. Slide the tool between the panel and chassis at a 45-degree angle to avoid damaging the fragile plastic. Work from the outermost clip inward, as misaligned force can snap the retaining hooks.

Once the upper clips release, tilt the panel forward to expose the lower retaining tabs. These tabs slot into metal brackets; lift the panel vertically by no more than 2 cm to disengage them. Avoid pulling outward–excessive force can bend the bracket alignment. If resistance persists, check for hidden screws near the license plate recess, which some vehicles secure with Torx T20 fasteners.

Locating the Connector Beneath Insulation

Push aside the foam padding covering the wiring loom–this insulation is held by friction alone and can be repositioned by hand. Trace the bundle to the gray plastic socket mounted on the vehicle’s sheet metal. The connector locks via a secondary latch; depress the tab on the upper side while pulling the two halves apart. Tugging without releasing the latch risks bending the pins or cracking the housing.

For vehicles with LED assemblies, the socket may include a ground wire secured by a 10 mm ring terminal. Use a ¼-inch socket wrench to loosen the bolt, noting the terminal’s stack order if multiple wires connect to the same stud. Corrosion on aluminum studs can be cleaned with a stiff wire brush before reinstalling to ensure proper conductivity.

Reassemble by reversing the steps–align the lower tabs first, then snap the upper clips into place. Test the assembly before finalizing installation by cycling the brake and turn signals. If illumination flickers, recheck the socket’s pin engagement; misaligned connectors are a common culprit for intermittent failures.

Color-Coding Explained: Matching Wires for Brake, Turn Signal, and Reverse Functions

Locate the brown wire–this is your ground connection. Strip 5mm of insulation, crimp with a 14-16 AWG ring terminal, and secure it to the chassis near the rear assembly using a 5/16″ self-tapping screw. Ground integrity prevents intermittent flickering or total signal failure, especially under load. Verify continuity with a multimeter before proceeding; resistance above 0.5 ohms indicates corrosion or insufficient contact.

For the braking circuit, the red wire carries the 12V brake signal. Connect it to the vehicle’s existing loom using a butt splice or weatherproof crimp connector–ensure no exposed copper remains. Test the circuit by pressing the pedal: the lamp should illuminate at full brightness, not dim. If dimming occurs, check for voltage drop across the connection; more than 0.2V loss signals a faulty splice or corroded terminal.

The turn indicator uses a black wire with a white stripe (or black/white tracer). Route this to the flasher relay output–typically a purple wire in European-market vehicles–using a soldered joint for reliability. Avoid twisting wires together without solder; vibrations will loosen the connection over time. Confirm function by activating the blinker: the assembly should flash at 60-120 cycles per minute. Deviations suggest a relay issue or incorrect feed point.

Reverse illumination is handled by a green wire, often paired with a black stripe. Tap into the transmission’s reverse switch–identified by a single-pole switch with a 12V signal when engaged–or splice into the harness behind the dashboard if accessibility is limited. Use a T-tap connector only if the wire gauge matches; otherwise, solder for a permanent bond. Test by shifting into reverse: the lamp must activate immediately. Delayed response points to a weak ground or reversed polarity.

Isolate every splice with adhesive-lined heat shrink tubing, applying heat evenly until the sealant melts and encapsulates the joint. This prevents moisture ingress, a primary cause of intermittent failures. For recurring issues, examine the fuse block: a 10A fuse protects these circuits–blown fuses often indicate short circuits, typically traced to chafed wires near the trunk lid hinges.

When rewiring clusters, prioritize factory color codes but verify with a wiring schematic specific to the trim level. Luxury variants may include additional wires (e.g., violet for side markers), while base models simplify to core functions. Cross-reference the harness pinout: swapping turn signal and brake feeds will trigger hyper-flashing or cancel the flash entirely.

Final checks include a load test: disconnect the battery, then reconnect and observe for stray current. Any voltage at the tail section connections without activation signals a short. Recheck all splices, grounds, and connections before reassembling interior panels–access becomes restricted after initial installation.
