Ford F350 Trailer Wiring Harness Diagram for 2012 Model Complete Guide
Connecting a camper or hauled load to a late-model super-duty truck starts with locating the factory-installed seven-way socket under the rear bumper. Look for the gray or black plug tucked beside the hitch receiver–this is your primary power hub. Wire colors follow strict SAE standards: yellow handles left turn and brake signals, green manages right turn and brake, brown feeds tail and marker lamps, and white grounds the entire circuit. Attach the corresponding leads from your trailer harness, ensuring each connection is crimped with a heat-shrink butt connector to prevent corrosion.
Use a 12-volt test probe to verify each pin before securing the plug. Probe the center post (blue wire) for the auxiliary circuit; if your trailer requires electric brakes, this pin must carry a clean 12-volt signal when the brake controller activates. Avoid splicing into the truck’s existing circuits–Ford’s OEM harness provides a dedicated 30-amp breaker for the blue wire, preventing overload on the truck’s main harness.
For trouble-shooting intermittent shorts, inspect the in-line fuse behind the kick panel–Ford installs a 25-amp fuse for the lighting circuit. Replace any blown fuse with the exact amperage rating; upsizing risks melting connector blocks. After verifying continuity, seal connections with dielectric grease to block moisture. Test the hookup with all trailer lamps activated to confirm consistent voltage across each lead–drop below 11.8 volts indicates a weak ground or corroded terminal.
Heavy trailers exceeding 10,000 pounds demand more robust wiring. Install a separate seven-terminal junction box beneath the frame rail, wired directly to the truck’s battery via a 4-gauge cable. This bypasses the OEM connector’s limited current capacity and ensures auxiliary components like hydraulic lifts or refrigeration units operate without voltage sag. Always label each wire at both ends to simplify future upgrades or repairs.
Electrical Schematic for Heavy-Duty Towing Setup

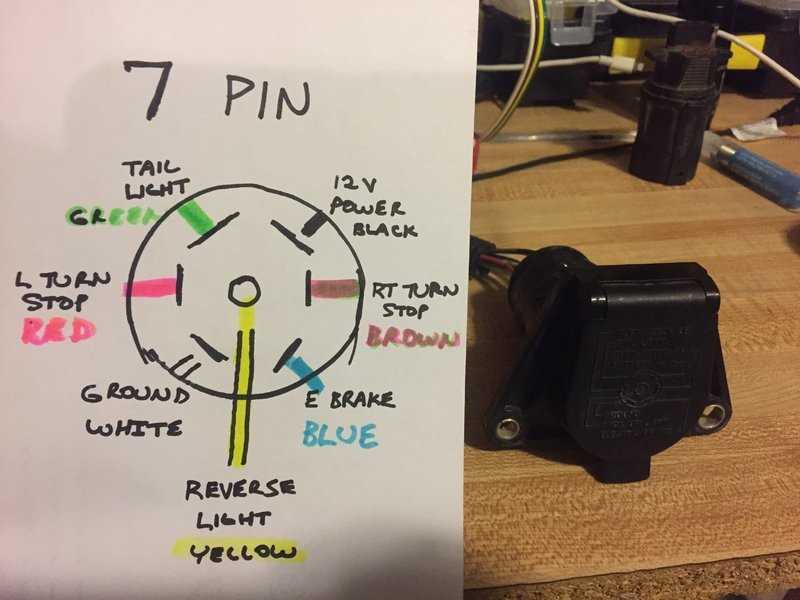

Start by verifying the factory-installed 7-way connector beneath the rear bumper–its pinout configuration follows this sequence: 1 (Ground), 2 (Tail/Running Lights), 3 (Left Turn/Brake), 4 (Right Turn/Brake), 5 (Auxiliary Power), 6 (Brake Control), and 7 (Reverse Lights). Use a multimeter set to 20V DC to confirm all circuits read 12V when activated. If auxiliary power shows inconsistent voltage, inspect the 30A fuse in the under-hood power distribution box labeled “Trailer Tow Battery Charge.”
For aftermarket brake controllers, route the blue wire directly to pin 6 of the 7-way plug–splice it into the existing harness using a 14-gauge marine-grade butt connector. Avoid tapping into the taillight circuits, as this risks voltage drop under load. If integrating a gooseneck or fifth-wheel setup, install a relay between the truck’s brake pedal switch and the trailer’s electric brakes to prevent backfeeding. Here’s the required wire gauge for each circuit:
| Circuit | Wire Gauge (AWG) | Max Current (Amps) |
|---|---|---|
| Ground | 10 | 30 |
| Tail/Running Lights | 16 | 5 |
| Turn/Brake Lights | 14 | 10 |
| Auxiliary Power | 12 | 20 |
| Brake Control | 14 | 15 |
When diagnosing flickering lights, check the ground connection first–corrosion at the frame-mounted stud near the hitch receiver is a common failure point. For LED-compatible systems, bypass the factory flasher module by installing a solid-state relay to handle the pulsed signal; traditional mechanical flashers cause hyper-flashing. Keep the connector weatherproofed with dielectric grease and a snap-on cover to prevent moisture ingress, which degrades the pin terminals over time.
Finding the Factory 7-Way Connector on Your Heavy-Duty Ford Pickup
The connector sits behind the rear bumper, mounted to the driver-side frame rail near the tow hitch receiver. Look for a black plastic cover–Ford typically uses a rectangular snap-on lid labeled “7-Way Trailer” or marked with a small tow symbol. Slide your fingers along the frame just above the spare-tire carrier; the cover is roughly 12 inches forward of the hitch pin hole.
If the plastic lid is missing, shine a flashlight upward into the cavity. The factory harness terminates in a round seven-pin socket with brass contacts. On Super Duty models the socket is usually centered between two 10 mm bolts that secure the bracket to the rail; remove those bolts only if you need to lower the socket for better access to damaged wires.
- Use dielectric grease on each contact point–Ford part YC-4Z is identical to the OEM grease.
- If the socket feels loose, torque the bracket bolts to 22 ft-lbs.
- Never splice into the wires inside this cavity; always use the upstream connector located under the driver-side kick panel.
The upstream breakout is behind a small black panel below the dashboard. Peel back the carpet kick plate; the connector is a 12-cavity rectangular plug coded with yellow tape. Pin assignments follow Ford’s standard color code:
- White (ground)
- Brown (marker/tail)
- Yellow (left turn/stop)
- Green (right turn/stop)
- Blue (brake output)
- Black (aux 12 V)
- Red (backup lamps)
Test each circuit with a multimeter set to 12 VDC before attaching any accessory harness. For models equipped with the integrated trailer brake controller, the blue wire carries brake output voltage only when the controller sends a pulse; verify this signal during a test tow to rule out module faults.
Step-by-Step Guide to Ford Super Duty Plug Color Standards for Towing Hookups
Begin by locating the factory connector beneath the rear bumper, typically a seven-pin round socket. Identify the white cable first–this is your ground link, terminating at the frame rail near the hitch. Verify its continuity with a multimeter before proceeding; a poor connection here will disrupt all other circuits.
Trace the brown wire next–this routes running lights to the rear marker lamps. Confirm its path avoiding sharp edges or moving parts, as chafing here is a common failure point during long hauls. Secure it with loom tubing where exposed to road debris.
The green wire powers the right turn signal and brake light. Splice it only with 12-gauge copper wire rated for 30 amps; smaller gauge risks overheating under trailer loads. Test the blinker function with the vehicle running–voltage drop can cause erratic flashing if connections are corroded.
Find the yellow lead for the left turn and brake circuit–mirroring its green counterpart in function and wiring requirements. Strip only ¼ inch of insulation when joining to blade connectors to maintain a tight seal against moisture. Apply dielectric grease liberally at every splice to prevent oxidation.
Locate the black cable, which is the charging line for trailer batteries. Route this through a dedicated 30-amp breaker installed within 7 inches of the battery terminal. Avoid daisy-chaining this feed to other accessories–excessive current draw will degrade the alternator over time.
The blue wire controls the electric brake output. Connect this directly to the brake controller’s output terminal without intermediate connections–every additional junction increases resistance. Calibrate the controller’s gain setting while driving unloaded to catch any lag in response time.
Leave the red auxiliary wire unused unless your setup includes a cargo box or winch requiring constant 12V power. If activated, protect it with a separate 20-amp fuse mounted within 3 inches of the battery. Label every connection with heat-shrink markers to simplify future diagnostics.

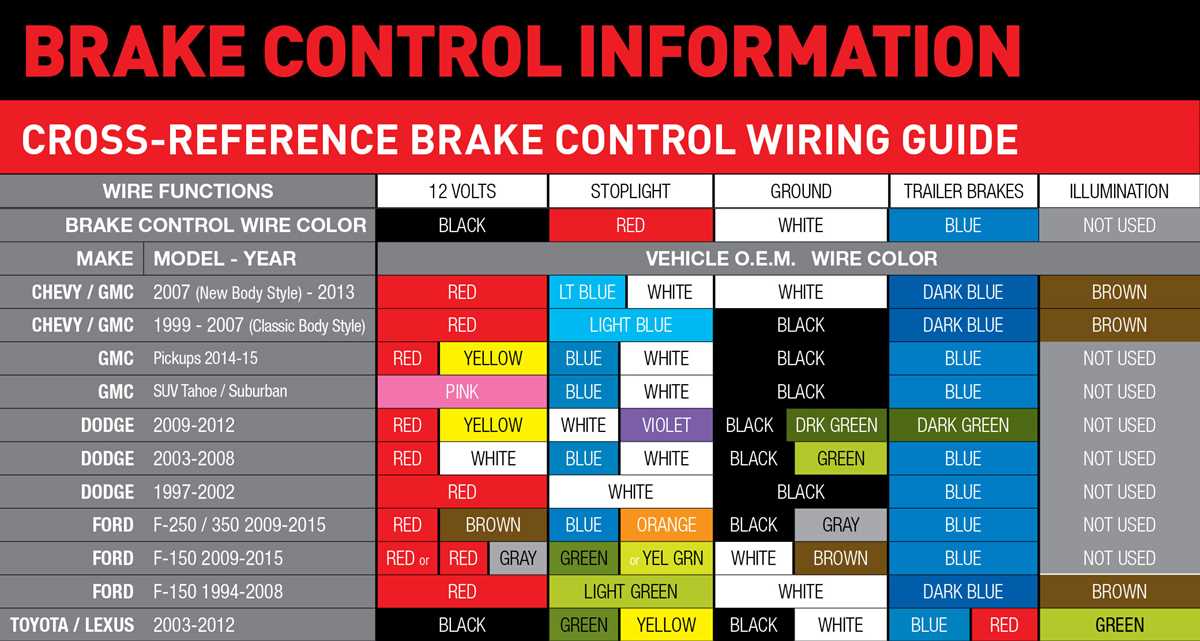

Diagnosing Faults in Heavy-Duty Towing Brake Control Circuits
Start by disconnecting the brake actuator connector beneath the dashboard and measure voltage between the blue lead (typically pin 4) and ground while manually activating the controller. A reading below 10.5V under load signals corroded terminals, undersized conductors, or a failing power relay–trace the circuit back to the fuse panel (IPDM on late-model trucks) using a multimeter in continuity mode to isolate the break. Replace any splices showing resistance above 0.2 ohms, especially near frame grounds where moisture accumulates.
If brakes engage erratically or only at full manual lever pull, inspect the inertia sensor mounted near the cab’s firewall. Remove the sensor (TSB 19-2142 outlines torque specs) and verify the pendulum swings freely; binding occurs when dust enters the sealed unit or the damping fluid leaks–replacement sensors require recalibration via Ford’s FDRS tool to sync with the BCM’s pulse-width modulation. For trucks with integrated TowCommand modules, bypass the OEM harness temporarily with a known-good aftermarket pigtail to rule out internal controller failure before condemning the factory unit.
Ground Loop Interference on Auxiliary Circuits
Attach a digital oscilloscope to the white ground wire at the 7-way connector while toggling turn signals. Voltage spikes exceeding 0.3V peak-to-peak indicate a ground loop, often caused by shared grounds between LED marker lamps and semi-metallic linings–reroute the marker lamp grounds to a dedicated chassis stud spaced at least 18 inches from any brake circuit ground. For trucks equipped with exhaust backpressure sensors, separate the sensor ground from the towing module ground using a 14 AWG jumper wire crimped with a non-insulated ring terminal to the nearest frame rail hole tapped with a M8-1.25 bolt.
The red 12V auxiliary wire (+BATT) at the 7-way must maintain a minimum of 12.2V under cranking load; if voltage sags below this threshold, check the inline 30A fuse (fuse #103 in the BJB) and replace any corroded terminals at the battery junction box–Ford’s wiring schematics label this as circuit #600B. When splicing new wire, use heat-shrink butt connectors filled with dielectric grease, avoiding solder-on repairs near flexing harness sections; crimp-on terminals rated for 20A continuous current prevent cold-solder joints from fracturing under vibration.
