Complete 2012 Jeep Liberty Radio Wiring Diagram and Color Codes Guide

Locate the C2 harness behind the dashboard center panel–pin 12 delivers constant 12V power from the fuse block (30A fuse, position 14). Pin 18 supplies switched ignition power (fuse 22, 10A), critical for memory retention. Ground connections cluster at pin 19, secured to chassis point G302 beneath the driver’s kick panel. Verify these before reconnecting any aftermarket unit to prevent module resets or battery drain.

Speaker outputs follow a balanced impedance layout: front left (pins 1–4), rear left (pins 5–8), front right (pins 9–12), rear right (pins 13–16). Each pair combines positive (white/orange) and negative (white/brown) leads. Use 18-gauge stranded copper wire for replacements–solid core risks vibration-induced failures. Confirm 4-ohm resistance across each channel; deviations indicate shorted voice coils.

Antenn lead (pin 17) requires shielded coaxial cable to prevent AM/FM interference. Trim excess length–coils tighter than 1.5-inch diameter degrade signal strength. For factory navigation retrofit, splice CAN bus wires (pin 20, gray/red; pin 21, gray/black) using mil-spec crimp connectors–solder alone fractures under thermal cycling. Test connections with a multimeter set to 20VDC before reassembly.

Steering wheel controls interface via resistive ladder network: volume up (470 ohms), seek down (820 ohms). Replace faulty switches with OEM-matched components–aftermarket units often misalign voltage ranges, causing erratic behavior. Isolate the parking brake circuit (pin 22) for video-enabled units: bypassing triggers ERROR 4 on infotainment screens.

Avoid t-taps for accessory power–direct splices to the BCM wire (pin 23, dark green/light green) preserve circuit integrity. Document every modification with photographic evidence and wire-labeling sheaths for future diagnostics. Misrouted power feeds can trip P0562 (low system voltage) codes, disabling non-audio systems like HVAC controls.

Vehicle Audio System Connection Guide for Recent Models

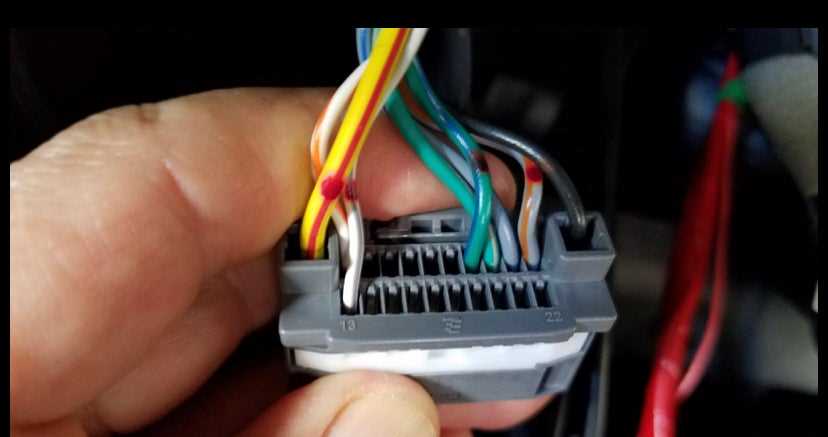

Start by locating the harness behind the infotainment unit–remove the trim panel using a plastic pry tool to avoid scratches. The factory connector will have 12 labeled pins; pin assignments follow this layout:

• A4 (Yellow) – 12V constant power (battery)
• A8 (Red) – Accessory/switched power (ignition)
• A6 (Black) – Ground
• A3 (Blue/White) – Amplifier remote turn-on
• A1 (Gray/Red) & A2 (Gray/Black) – Front left (+/-)
• A5 (Green/Red) & A7 (Green/Black) – Front right (+/-)
• B3 (Purple/White) & B4 (Purple) – Rear left (+/-)
• B1 (White/Orange) & B2 (Brown) – Rear right (+/-)

Use a multimeter to verify voltages before connecting aftermarket hardware. Improper polarity risks blowing fuses or damaging speakers.

For steering wheel control integration, splice the orange/black data wire (A9) into the aftermarket adapter’s SWI input. This wire carries resistive signals for volume, track, and phone functions. Consult the adapter’s documentation–resistance values differ between brands like Metra or iDatalink. If controls fail, check for 5V reference voltage on the wire with the key on; absence indicates a blown fuse or open circuit in the CAN bus.

Install a 10A inline fuse on the yellow (A4) wire within 7 inches of the battery terminal to prevent fire hazards. Solder all connections and seal with heat-shrink tubing–electrical tape degrades over time. For amplified systems, connect the blue/white (A3) wire to the new amp’s remote turn-on terminal, but ensure the factory amp is bypassed if replacing it; daisy-chaining can cause ground loops or excessive draw.

Subwoofer integration requires tapping into the rear speaker wires (purple/white & purple, white/orange & brown) using a line-out converter. Set the converter’s gain to -10dB for factory systems; higher settings introduce distortion. If the system has a factory equalizer (check for pink/light blue wire B6), disable it by cutting the wire–retaining it may cancel bass frequencies.

Test all connections with the vehicle off, then key-on, then running. Listen for pops, static, or imbalanced volumes–these indicate crossed wires or poor grounds. For persistent issues, probe the connectors with a non-contact voltage tester to detect phantom power or shorted pins. Replace the factory harness if corrosion is present; oxidized terminals cause intermittent failures.

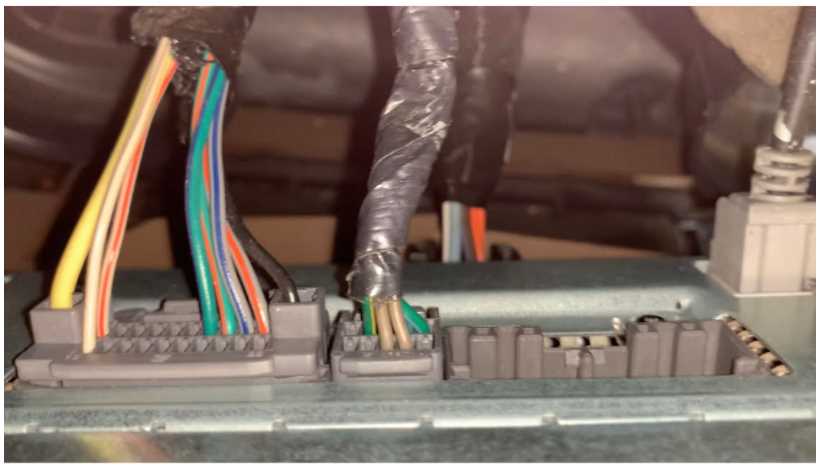

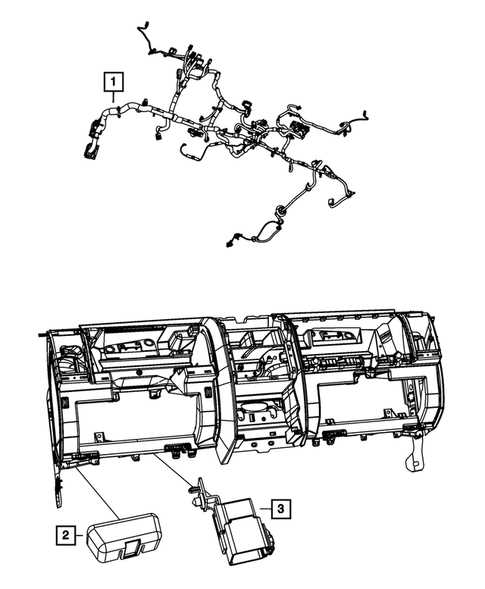

Finding the OEM Audio Connector Behind the Instrument Panel

Begin by removing the upper trim panel beneath the climate controls–secure it with a trim tool to avoid breaking plastic clips. The factory harness typically sits three inches to the left of the HVAC housing, bundled in a black sleeve. Look for a 12-pin rectangular plug with tan, purple, and dark green wires; these correspond to speaker outputs and power feeds.

Disconnect the negative battery terminal before probing any connections to prevent shorts. If the connector isn’t immediately visible, trace the antenna lead downward–it often routes alongside the main harness. The ground wire (usually black or brown) will terminate near a chassis screw; verify continuity with a multimeter before assuming its location.

Key Landmarks for Easier Access

• Lower dashboard reinforcement bracket–harness passes beneath it.
• Fuse box cover hinge–connector may be tucked behind.
• Driver-side kick panel–look for additional bundled wires leading toward the center stack.

For stubborn installations, partially remove the glovebox to gain better rear access to the dash cavity. The connector may be secured with a foam block or zip ties–cut these carefully to avoid damaging adjacent climate control lines. Once located, test each wire’s function with a 12V probe: memory keep-alive (light blue), ignition feed (yellow), and dimmer (orange) should register constant or switched voltage, respectively.

Stock Audio System Wire Color Standards and Terminal Roles

Locate the dark green (DG) with light blue stripe (DG/LB) harness lead for the front right speaker output–this conductor handles the positive signal. Confirm resistance readings between 3.5 and 4.5 ohms when testing continuity to rule out short circuits before soldering connections.

For the left rear channel, trace the gray (GY) with dark blue stripe (GY/DB) wire terminating at pin 12 of the factory harness adapter. This strand carries the negative polarity; ensure proper insulation with heat-shrink tubing to prevent corrosion from road moisture or inconsistent voltage drops.

The solid yellow (YL) constant power feed must maintain 12.3V–14.2V at all times, even after removing the ignition key. Verify battery voltage with a multimeter while probing the harness clip–any dip below 11.8V signals a failing alternator or parasitic drain requiring fuse pull diagnostics.

Ground connections utilize the black with tan stripe (BK/TN) lead, typically attached to a chassis bolt near the dash frame. Scrape off paint or oxidation from the mounting point with a wire brush before securing the terminal to avoid voltage fluctuations that cause audio distortion or amplifier cutoff.

Navigate the dimmer-controlled illumination circuit via the orange (OR) wire feeding the backlighting panel. This leg delivers adjustable voltage spanning 0V–11V, synced with the instrument cluster brightness dial. If backlighting flickers, inspect the headlight switch for carbon track wear or a failing rheostat.

Detect the pink (PK) with violet stripe (PK/VT) ignition-controlled power source activating only during accessory or run modes. Substitute this lead with a fused relay if retrofitting aftermarket navigation units requiring sustained current beyond OEM trip thresholds.

Parse the steering wheel control inputs through the white (WT) with brown stripe (WT/BR) and light green (LG) with yellow stripe (LG/YL) wires interfacing with the clockspring assembly. Ensure these circuits exhibit

When bypassing the factory amplifier, redirect the purple (PPL) antenna trigger wire directly to the head unit’s 12V switched source to prevent voltage sag that disables the automatic antenna mast extension sequence.

Step-by-Step Guide to Safely Disconnecting the Factory Unit

Disconnect the negative battery terminal first to prevent short circuits. Use a 10mm socket to loosen the clamp and set the cable aside. Failing to do this risks damaging the vehicle’s electrical system or triggering airbag errors.

Removing Dash Panels

Pry off the trim surrounding the entertainment system using a plastic trim tool. Start at the bottom vents, sliding the tool upward to release clips. Avoid metal tools–these can scratch surfaces. Locate screws hidden behind the climate control knobs and remove them with a T20 Torx driver. Pull the center console outward gently to expose the rear harness connections.

Press the release tabs on the factory head unit’s mounting brackets while pulling it forward. If resistance occurs, check for overlooked screws near the lower air vents. Once free, disconnect the antenna cable (thin coaxial wire) by twisting the collar counterclockwise and pulling straight out. For power and speaker leads, squeeze the plastic locks before wiggling the connectors loose–never tug wires directly.

Final Checks Before Installation

Inspect all wires for fraying or corrosion before reconnecting a new unit. Label each harness with masking tape to avoid confusion during reassembly. Reattach the battery terminal last, then test dashboard functionality (gauges, lights) before securing panels back in place. Misaligned connections can cause warning lights or intermittent failures.
