Complete 2012 Ram 2500 Radio Wiring Diagram Guide for Owners

Start by locating the fuse box under the dashboard–model years near the turn of the decade often place it on the driver’s side, behind a snap-off panel. Remove the panel to expose the wiring harness connector marked C1 (16-pin, gray). This is the main interface for the audio head unit. Use a multimeter set to 12V DC to probe pins A4 (constant power) and A6 (switched power)–both should register near battery voltage when the ignition is on. If either reads zero, trace the circuit back to the fuse labeled RADIO (10A) in the fuse box diagram.

Next, identify the speaker outputs. The factory harness uses eight discrete wires: front left (+/-), front right (+/-), rear left (+/-), and rear right (+/-). Color codes typically follow dark green/light green (LF+/-), dark blue/light blue (RF+/-), gray/light gray (LR+/-), and violet/yellow (RR+/-). Avoid splicing directly into these–use a Metra 70-5602 adapter harness to preserve factory amplifier integration. The adapter’s OEM-style plug mates to the vehicle-side connector, while its bare wires allow clean aftermarket unit installation.

For units requiring serial data (e.g., steering wheel controls), pin C1-D3 (pink/black) carries the CAN bus signal. Verify continuity between this pin and the spliced interface module (Axxess ASWC-1 or equivalent). If resistance exceeds 1 ohm, inspect for corroded contacts–clean with DeoxIT D5 applied via a 22-gauge probe. Ground connections should terminate at the chassis stud near the firewall grommet; use a star washer to prevent voltage drops during bass-heavy playback.

Aftermarket amplifiers will need the remote turn-on lead (purple) from the harness. Connect this to pin A6 of the OEM connector or the head unit’s blue/white antenna output. Confine all wiring to existing loom paths–route behind the glove box and along the passenger-side kick panel to avoid interference with pedal mechanisms. Secure bundles with Tesa 51608 fabric tape (not vinyl), which resists heat and won’t degrade over time.

Before finalizing connections, disconnect the battery’s negative terminal. Wait five minutes to allow modules to reset. Reconnect systematically, testing each component–power up the system, verify all speakers, then recheck steering wheel functions. If the display shows “No SYNC”, the CAN bus requires a resistance termination (120 ohm) between pins C1-D3 and C1-D4 (white/black).

Electrical Schematic for Heavy-Duty Pickup Sound System Integration

Locate the C1 harness connector behind the dashboard’s lower trim panel–pin 12 delivers constant 12V (orange wire) from the vehicle’s main fuse box, while pin 8 (yellow wire) supplies ignition-switched power. Ground connections should route directly to chassis point G302, marked on the firewall near the brake booster, avoiding daisy-chaining through factory bolt-ons. Aftermarket amplifiers require a dedicated fused lead from the battery; use 8-gauge cable with a 40-amp ANL fuse within 18 inches of the terminal.

Harness Pinout Verification

Factory speaker outputs follow this pinout on the 16-pin ISO connector: front left (+) purple/black stripe (pin 2), front left (-) purple (pin 6); front right (+) dark green/black stripe (pin 3), front right (-) dark green (pin 7). Rear channels mirror this with gray/black (pin 1) and gray (pin 5) for the right, and light green/black (pin 11) and light green (pin 15) for the left. Confirmed resistance across factory tweeters measures 2-3 ohms; deviations indicate damaged voice coils or corroded door wiring.

For steering wheel control retention, splice the resistor-ladder network into the gray/white wire (pin 13) using a 1.8kΩ resistor for volume up and 680Ω for seek. Verify signal integrity with a multimeter at 200mV AC range before connecting the interface module. If static persists, bypass the antenna amplifier by linking the brown/white wire (pin 16) directly to the aftermarket head unit’s antenna input–this eliminates RF noise from the vehicle’s CAN bus.

Finding the Audio System Connector Interface Points

Begin by removing the center dashboard trim panel–locate the two screws beneath the climate control vents and gently pry the plastic clips along the edges. The harness interface for the head unit sits directly behind this assembly, secured by a metal bracket.

Primary connection cluster appears at the rear of the factory audio module, consisting of an 8-pin rectangular plug (black) for power and speaker outputs, alongside a separate 12-pin harness (gray) handling auxiliary inputs, antenna signal, and steering wheel controls. Label each connector before detaching to avoid misalignment during reassembly.

Trace the vehicle’s main electrical harness upward from the fuse block–it runs behind the glove compartment liner and intersects with the audio module’s wiring approximately 18 inches above the pedal assembly. The constant 12V supply wire (yellow with a thin red stripe) and accessory power (red with a dark stripe) are bundled here, often tied with zip ties to the chassis brace.

For vehicles equipped with navigation, an additional gray 6-pin mini harness sits adjacent to the primary connectors, providing data links to the GPS antenna mounted on the roof. This harness is fragile; apply controlled pressure when unplugging to avoid snapping the retention tabs.

Verifying Harness Integrity Before Modification

Check continuity on each wire with a multimeter before splicing–particularly the left-front speaker pair (gray and gray/black) and the right-front pair (purple and purple/black), which frequently degrade near the firewall grommet due to engine bay heat. Replace any corroded terminals immediately.

The rear speaker leads (light green, light green/black, dark green, dark green/black) converge into a secondary harness that splits behind the driver’s seat. Follow this harness downward–it terminates near the rear axle in a junction box secured to the frame rail. Ensure all ground wires (black) maintain a direct path to the chassis without intermediary connections.

Aftermarket integration requires matching impedance levels; the factory system operates at 4 ohms. Use a resistor inline if installing high-power amplifiers to prevent damage to the original connectors, which are not rated for aftermarket current loads.

Decoding Factory Harness Wire Colors for Heavy-Duty Pickup Audio Systems

Trace the orange with light green stripe wire–this delivers constant 12V power from the fuse block, bypassing ignition cycles. Cutting or splicing here risks permanent head unit bricking; always verify voltage with a multimeter before connecting aftermarket amplifiers. The dark green with orange stripe carries switched power, activating only when the key reaches the “on” position, and tolerates no more than 10A draw; exceed this and the dash fuse (typically #15) will blow.

• Yellow with purple stripe: left front speaker positive (+), 4 ohms impedance, max 20W RMS.
• Brown with yellow stripe: left front speaker negative (-), twisted pair with the previous wire to minimize noise.
• Dark blue with white stripe: right rear speaker positive (+), same 4-ohm rating.
• Gray with red stripe: antenna trigger output, 12V when the audio system initializes–useful for powering motorized antennas.
• Pink with black stripe: illumination feed, dims proportional to headlight switch, max 50mA load.
• White with violet stripe: ground wire for chassis reference–sand off paint and use star washers for corrosion-free contact.

Label every wire with pharmacy tape immediately after disconnecting the factory harness to prevent misrouting during reinstallation. Use crimp connectors only on speaker wires; solder and heat-shrink all power and ground connections to eliminate voltage drop under heavy bass loads.

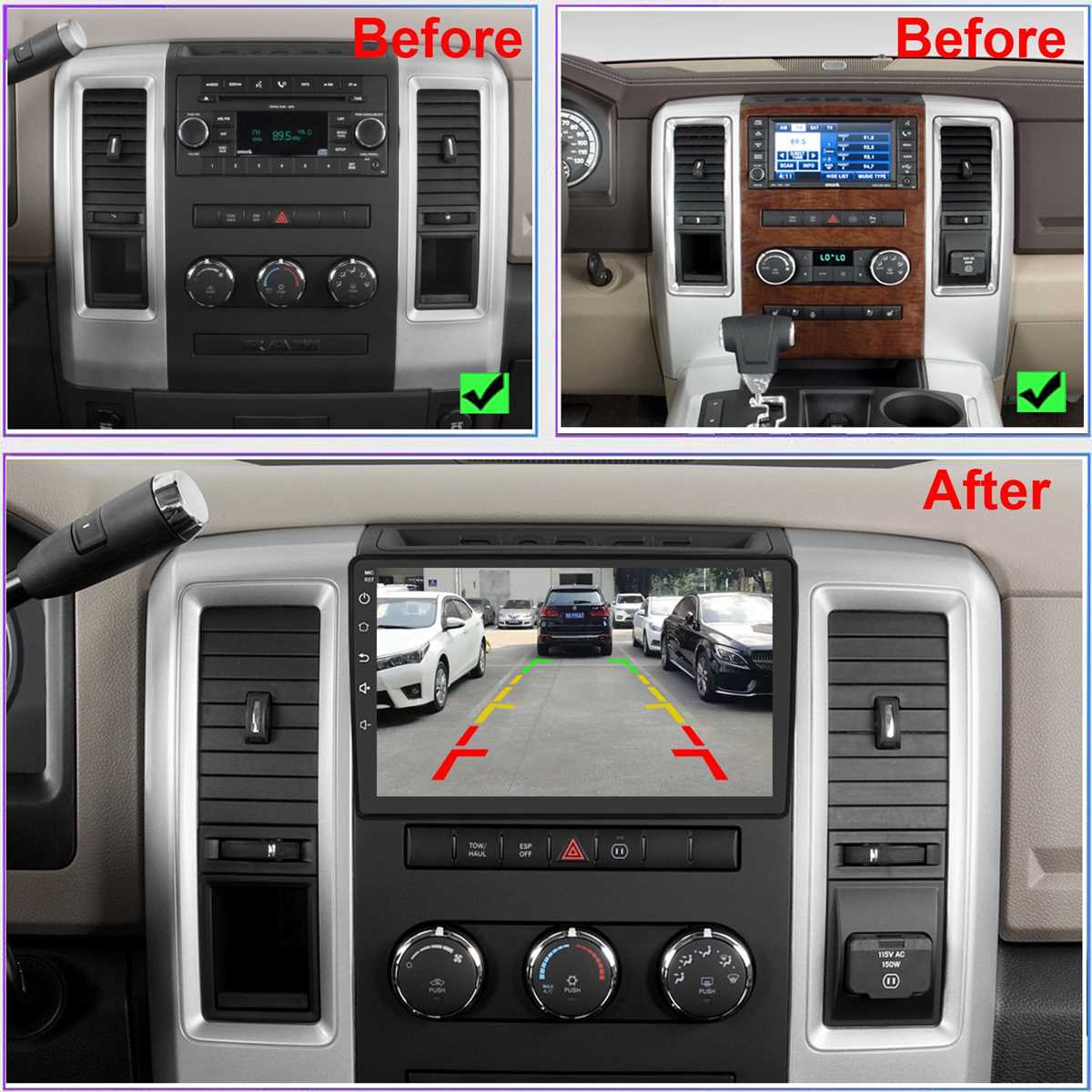

Step-by-Step Guide to Removing the Factory Head Unit for Access

Disconnect the vehicle’s negative battery terminal before touching any interior panels. Use a 10mm socket to loosen the clamp and slide the cable free–this prevents accidental shorts or airbag deployment during disassembly. Wait at least 10 minutes after disconnecting to allow residual power in the system to dissipate fully.

Pry off the trim panel surrounding the climate controls using a plastic trim removal tool. Work from the bottom edge upward, applying steady pressure to release the plastic clips without breaking them. These clips are brittle–store them in a magnetic tray to avoid losing small pieces. For models with integrated hazard switches, carefully unplug the wiring connector before fully removing the panel.

Required Tools

Tool	Purpose
Plastic trim removal tool	Prevents scratches on interior surfaces
10mm socket wrench	Disconnecting battery terminal
Torx T20 driver	Removing mounting screws
Ratcheting screwdriver	Faster screw removal in tight spaces

Remove the four Torx T20 screws securing the head unit’s mounting cage–two at the top, two at the bottom. Slide the cage outward 2-3 inches, then tilt it downward to access the rear wiring harness and antenna connectors. Squeeze the release tabs on the harness connectors simultaneously while pulling gently to avoid damaging the pins. For the antenna, twist the collar counterclockwise until it detaches from the coaxial port.

Press the spring-loaded retaining clips on the sides of the head unit to release it from the cage. Some models require sliding a DIN removal key into the slots on either side if clips are not accessible. Once freed, pull the unit straight out and rest it on a soft cloth to prevent scratches. If upgrading, compare the new unit’s mounting brackets with the old one–adapters may be needed for proper fitment.

Troubleshooting Tips

If the head unit refuses to power on after reinstallation, verify the 12V constant and switched power leads using a multimeter–readings should show 12V and 0V respectively with the ignition off. Check fuse #22 in the under-hood box if no power is detected. For no audio output, confirm the amplifier wiring harness is securely connected; a loose ground wire is a common culprit.
