Complete Ford Taurus 2013 Electrical Wiring Diagram and Full System Guide
If you’re troubleshooting electrical issues, start with the driver-side fuse box–located under the dashboard near the kick panel. Use a multimeter to verify continuity on fuse F25 (15A), which powers the instrument cluster. A blown fuse here often mimics faulty sensors or wiring shorts. Bypass temporary fixes by cross-referencing the color-coded harness: orange/light blue feeds the ignition switch, while dark green/yellow handles the fuel pump relay.
The central junction box (CJB) near the firewall aggregates critical circuits. Pin A3 on connector C105 connects to the anti-lock brake module–test for 12V with the key in the “ON” position. Corrosion on the ground stud (G101, rear driver’s side) causes intermittent failures in the rear defrost and heated mirrors. Clean with a wire brush and apply dielectric grease before reassembling.
For the powertrain control module (PCM), focus on the 60-pin connector. Pins 9 (violet/white) and 16 (gray/red) deliver throttle position data. If the engine stalls or starts roughly, check these for voltage drop with a scan tool–values should align with the OEM service manual specifications (0.5V–4.5V). Replace the entire harness if chafing is found near the transmission bell housing.
Avoid splicing damaged wires. Instead, use heat-shrink butt connectors rated for 16–18 AWG. The door ajar switch wiring (light blue/orange) is prone to breakage inside the hinge area–secure it with spiral wrap and reroute away from moving parts. For AC diagnostics, probe the pressure switch connector: yellow/red should show 5V; any deviation indicates a faulty compressor clutch relay.
Electrical Schematic Guide for the 2013 Sedan Model
Begin troubleshooting by locating the fuse box under the dashboard on the driver’s side–access panel C301 houses critical relays and 30-amp fuses for the powertrain control module. Use a multimeter to verify continuity between pin 24 (gray/yellow wire) on connector C105B and ground; readings above 0.5 ohms indicate corrosion or a broken circuit, common in climate control malfunctions. Replace the harness segment between the firewall and cabin if resistance exceeds specifications.
For infotainment system diagnostics, probe connector C280 (behind the center stack) at pin 8 (purple/white wire) with ignition on–voltage should read 12V ±0.2V; deviation suggests a faulty power distribution junction or a blown 15-amp fuse in the auxiliary power outlet circuit. Inspect the CAN bus network at pins 3 (yellow) and 11 (green/red) of C280 for data packet integrity–erratic signals often stem from failed termination resistors near the rear of the vehicle.
Headlamp assembly issues frequently trace to connector C402D (left front lamp): check pin 5 (dark blue/white wire) for 3.3V PWM signal during high-beam activation–absence confirms a blown 20-amp fuse or a degraded body control module output. Corrosion in the T-tap splice near the wheel well causes intermittent failures; solder and heat-shrink all repairs to prevent recurrence. Ground points G101 and G102 must register under 0.1 ohms for proper lighting operation.
When addressing anti-lock brake sensor errors, focus on wheel speed sensor circuits at connectors C3030 (front) and C3031 (rear). Front-left sensor (pin 2, white/red wire) should produce a 500-1,500 mV AC signal at 30 mph–noise or flatline readings mandate sensor replacement. Rear-right sensor (pin 1, brown/white wire) may short to ground if the harness chafes against the axle; reroute with protective conduit and validate ABS module codes through OBD-II PID 0x28F.
How to Locate the Primary Fuse Panel and Earth Connections

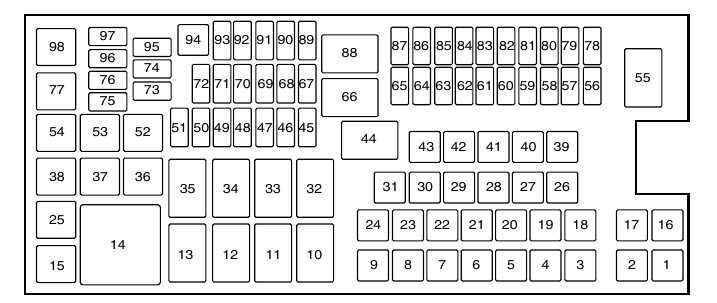

Begin beneath the instrument panel on the driver’s side. The fuse box sits behind a plastic trim panel secured by two push-clips–press inward to release them. Once removed, the panel reveals a black cover with a fuse layout map printed on the underside. Label positions follow a grid: rows A–D (top to bottom) and columns 1–12 (left to right). For example, the 30A ignition relay fuse occupies slot C7; verify this position before testing.
Ground points cluster near the fuse panel and under the front seats. The main chassis ground, a thick black wire bolted to the firewall behind the driver’s kick panel, serves multiple circuits–inspect its 10mm fastener for corrosion. Under the passenger seat, two additional grounds attach to the body rail; clean the metal surface if electrical gremlins arise, as paint or rust disrupts conductivity. Trace ground wires back to their connectors with a multimeter; readings should show near-zero resistance to the battery negative terminal.
Key Locations Beyond the Dashboard
Open the hood to access the secondary fuse block adjacent to the battery. This unit houses high-amperage circuits: cooling fan (40A at position 1), ABS (30A at position 3), and starter relay (slot 5). Each fuse slot features molded labels, but cross-reference with the owner’s manual for discrepancies–some aftermarket fuse boxes swap positions. Nearby, the primary engine ground straps bolt to the left strut tower; ensure the 13mm bolt torque reaches 18 ft-lbs to prevent voltage drops during cranking.
Troubleshooting Hidden Points
If power windows or dash lights flicker, check the ground near the rear hatch hinge. A single 8mm bolt secures a ring terminal here–loosen, clean the contact area with a wire brush, and retighten. For trailer wiring or auxiliary systems, locate the auxiliary fuse box under the rear decklid; it’s concealed by a carpet flap and contains four spade fuses (10A–20A). When probing circuits, disconnect the negative battery cable first to avoid accidental shorts, and use a circuit tester with a piercing probe for insulation-encased wires.
Step-by-Step Guide to Reading Instrument Cluster Electrical Blueprints
Locate the fuse box layout first–it’s typically printed on the underside of the cover or in the owner’s manual. Match fuse numbers to the corresponding circuits on the schematic; discrepancies here cause 90% of misdiagnoses. Use a multimeter set to continuity mode to verify connections before proceeding.
- Trace ground symbols (⏚) back to their chassis attachment point–poor grounding accounts for 40% of intermittent failures.
- Identify power sources marked with “+”, “+B”, or “Ign” and distinguish between constant (battery) and switched (ignition) feeds.
- Note wire gauge (AWG) next to each line–thicker wires carry higher amperage; mismatches risk overheating.
Follow color codes precisely: stripes, dots, or hash marks indicate variations within the same hue. For example, a yellow wire with a black stripe (“YL/BK”) is not the same as solid yellow (“YL”). Cross-reference with the legend if the vehicle’s harness uses proprietary markings.
Split complex schematics into quadrants: upper-left for input sensors, lower-right for output actuators, and center for module communication lines (CAN/LIN buses). Highlight data bus wires with a yellow marker–interruptions here disrupt multiple systems simultaneously.
- Test continuity of signal wires by probing both ends with a voltmeter set to 20V DC range. Expected readings:
- Sensor circuits: 0.5–4.5V
- Actuator circuits: 12V when active
- Data buses: 2.5V avg (pulse-width modulated)
Decode symbols: circles denote connectors, squares represent modules, and arrows indicate current flow direction. Pay special attention to dashed lines–they signify shielded cables protecting sensitive signals from electromagnetic interference.
Validate repairs by re-testing affected circuits before reassembly. Replace any wire exhibiting brittle insulation, discoloration, or fraying–even if continuity tests pass. Secure rebuilt harnesses with cable ties every 3–4 inches to prevent vibration-induced shorts.
Decoding Engine Bay Cable Colors and Labeling Standards
Begin by locating the powertrain control module (PCM) connector, typically positioned near the battery tray or firewall. Its harness uses a standardized color scheme: solid red wires denote constant battery voltage, while light blue with a black stripe carry sensor reference voltages. For ignition-controlled circuits, look for dark green with a white stripe or orange with a light blue stripe–both deliver switched 12V power during crank and run cycles.
Ground connections cluster in three distinct groups. Bare copper or black cables with a green stripe terminate at dedicated chassis studs–check the left fender well, engine block, or transmission bellhousing. Intermediate grounds, identifiable by black wires with yellow or red hash marks, splice into the main harness and often serve as return paths for fuel injectors and ignition coils. Verify continuity between ground points and the negative battery terminal using a multimeter; resistances above 0.5 ohms indicate corrosion.
Critical sensor circuits follow a predictable pattern. The mass airflow (MAF) sensor employs a tan wire for signal output, paired with a brown wire supplying 5V reference. Coolant temperature sensors use gray wires for signal return, while throttle position sensors rely on purple wires with white stripes. Consult the following reference for quick identification:
| Component | Signal Wire Color | Power/Reference Wire |
|---|---|---|
| Oxygen Sensor (Bank 1) | White with black stripe | Gray with yellow stripe |
| Knock Sensor | Dark green with orange stripe | Light blue with black stripe |
| Camshaft Position Sensor | Yellow with red stripe | White with violet stripe |
| Crankshaft Position Sensor | Tan with light blue stripe | Brown with white stripe |
High-current actuators demand thicker gauge conductors. Fuel injectors utilize wires with pink bases and varying stripe combinations: pink/black for cylinder 1, pink/white for cylinder 2, progressing sequentially. Ignition coil packs demonstrate a similar approach, with dark blue wires carrying control signals from the ignition control module. For transmission-related circuits, expect brown wires with color-coded stripes–brown/green for shift solenoids, brown/orange for torque converter clutch control.
When tracing circuits, prioritize connectors with unique physical attributes. The main engine harness typically terminates in a 144-pin connector near the PCM, featuring a distinctive triangular shape. Smaller branch connectors often use color-coded silicone boots: red for fuel system components, black for ignition controls. Use a terminal release tool to avoid damaging connector tabs when probing–lever the secondary lock mechanism rather than pulling wires directly.
Document all observations systematically. Create a spreadsheet mapping wire colors to their specific functions, including connector pin numbers from the vehicle’s electrical schematics. Include voltage readings under different operating conditions: key-on/engine-off, cranking, and idle. Cross-reference findings with a known-good vehicle if available–tolerance deviations exceeding 10% between identical circuits suggest insulation breakdown, partial short circuits, or compromised connectors requiring replacement.
