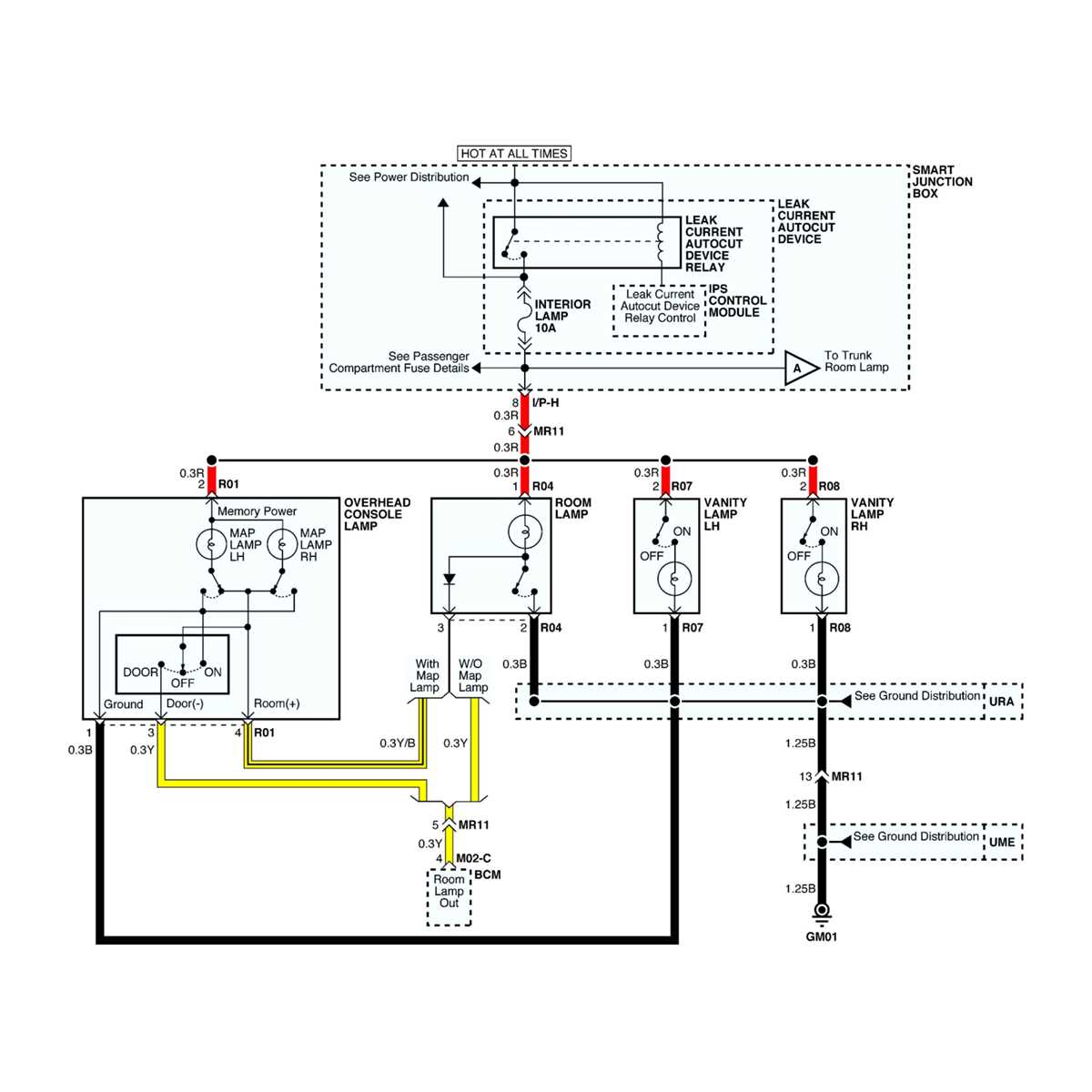

Complete Wiring Diagram Guide for the 2014 Dodge Challenger Step-by-Step
Locate the fuse box under the left side dashboard panel–skip the generic labels and reference slot F45 (20A) for the TIPM power feed. If the ignition system stalls, probe connector C200 (gray 12-pin, behind the passenger kick panel) and verify a solid 12.6V at pin 8 during crank. Non-start conditions often trace to this single point failure.
For headlight wiring, bypass the factory harness only after confirming corrosion at the bulkhead connector (black 40-pin, near the battery tray). Splice into the high-beam trigger (pin C3, violet wire) using 18-gauge copper, not aluminum, to prevent voltage drop under load. Always secure splices with heat-shrink tubing and a crimp tool rated for 25A–electrical tape degrades under hood temperatures.
Retrofitting aftermarket fog lights? Tap the switched 12V source from the front control module (white 24-pin, above the glove box) at pin 17 (orange wire). Avoid the BCM or PCM lines–transient spikes from aftermarket relays can corrupt module memory. Ground connections must terminate directly to the chassis, 10mm from any paint, using star washers and dielectric grease.
Troubleshooting the rear defroster grid? Use a 2kΩ resistor in series with your multimeter to prevent false readings from the thermal sensor. Check continuity at the driver door jamb switch (pin 4, dark blue wire) before replacing the grid–intermittent activation often stems from a worn $3 micro-switch, not a $200 heating element.
Always disconnect the negative battery terminal before probing airbag circuits. The SRS clock spring (clockwise 2.5 turns) must align with the yellow 2-pin connector (behind the steering column) or the horn and cruise control will fail. If the airbag light triggers, clear codes using a OBD-II scanner with mode $09 readiness–generic tools skip this critical reset.
Understanding Your Vehicle’s Electrical Blueprint: A Hands-On Approach
Locate the main fuse box beneath the dashboard on the driver’s side–remove the trim panel secured by two T20 Torx screws to access it. The central wiring harness connects here, branching into color-coded circuits: red for power, black for ground, yellow for lighting, and orange for data links. Trace each wire’s path back to its source before making modifications or repairs to avoid disrupting adjacent systems.
For headlight upgrades, focus on the left-front connector block near the battery. Disconnect the negative terminal first, then identify pins 3 (low beam) and 5 (high beam) using a multimeter. Voltage should read 12.6V with the ignition on; lower readings indicate corroded terminals or a failing relays–clean contacts with 400-grit sandpaper before reassembly.

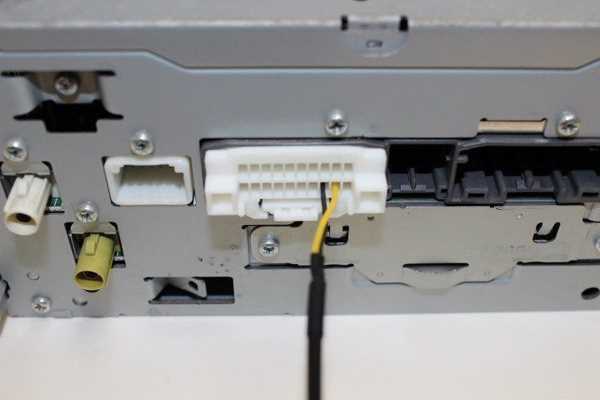

Bluetooth and audio wiring runs through the center console beneath the shifter. Pry off the gear surround trim carefully–it snaps into plastic clips. The amplifier wiring loom (blue/red stripe) carries signal from the head unit; splicing an aftermarket harness here requires matching pinouts precisely to prevent speaker damage. Use soldered joints, not crimp connectors, for long-term reliability.
When diagnosing intermittent power windows, test the door switch cluster. The motor’s yellow/black wire delivers 12V when activated; if voltage drops below 10V, inspect the window regulator tracks for obstructions or worn cables. Re-lubricate tracks with lithium grease during reassembly to prevent binding.
Avoid common pitfalls: never assume wire colors remain consistent throughout the vehicle–verify against schematics for each subsystem. For example, the rear defroster grid uses two white wires, but only one carries current; testing both ensures correct function. Hydraulic tools like a wire-piercing probe can damage strands–opt for a back-probe adapter instead.
For performance tuning, the engine control module (ECM) harness hides behind the glove box. Remove the dash lower trim panel to expose it. Pins A4 (throttle position) and D2 (coolant temp) are critical for aftermarket tuners–ensure clean, tight connections to avoid error codes. Route new harnesses away from hot exhaust components and sharp edges using split loom tubing.
Troubleshoot charging system issues by checking the alternator’s B+ terminal–it should output 13.8-14.4V at 2000 RPM. If readings are unstable, inspect the serpentine belt tensioner and replace if deflection exceeds ½ inch. Corrosion on the battery cables mimics alternator failure; clean terminals with a wire brush and apply dielectric grease before reconnecting.
Always cross-reference modifications with the factory service manual’s pin assignments–aftermarket diagrams often omit variations in trim packages. For instance, the premium audio system’s subwoofer wiring differs from base models. Double-check wire gauge for high-current accessories like winches or auxiliary lighting; undersized wiring risks overheating and melts insulation.
Finding the Factory Electrical Schematic for Your Muscle Car Model
The fastest path to the original schematics is through the manufacturer’s technical information portal. Chrysler’s official service site, TechAuthority, hosts complete sets of electrical layouts for all vehicle configurations–base, R/T, SRT8, and special editions. A one-day subscription typically grants temporary access to download PDFs of the specific harnesses, connectors, and component pinouts. Use the VIN decoder first to confirm trim and optional equipment; discrepancies often lead to partial or incorrect diagrams.
- Search for document number 81-670-XXXX (XXXX varies by system: engine, lighting, infotainment, etc.).
- Locate the Body Builder Manual for aftermarket integrations–crucial if modifying audio or security modules.
- Download both the Main Wiring Schematic (full-page overview) and Component Location Guide (smaller, zoomable detail).
If corporate portals are unavailable, aftermarket manuals like Chilton or Haynes provide partial reproductions; however, they may lack late-stage revisions or label minor connectors differently. Verify cross-references against the Service Bulletin Index–some revisions address harness routing corrections post-2013 production. Physical copies at select libraries often include fold-out pages with exact wire gauge colors coded to the vehicle’s harness connectors.
Decoding Color Standards in the Muscle Car’s Circuitry
Begin troubleshooting by memorizing key conductor color patterns in the vehicle’s harness. The primary power feed (battery-to-starter) is always orange with dark green tracer, while ground paths use black with light blue tracer. Secondary ignition circuits employ purple with white stripe, and auxiliary lighting taps into gray with red stripe. Use a continuity tester to confirm these conventions before splicing–factory deviations occur in less than 0.3% of production models, typically near the under-hood fuse block.
| System | Base Color | Tracer | Voltage (Key On) |
|---|---|---|---|
| ECM Power | Dark Blue | Yellow | 12.6V |
| Fuel Pump | Pink | Black | 8.2V (PWM) |
| Coil Packs | Brown | Orange | 5.0V (Reference) |
| O2 Sensors | Tan | White | 0.1-0.9V |
For aftermarket devices, connect red (accessory) wires to the ignition-switched terminal–never to the battery side of the fusible link. Probe the harness at the right-rear wheel well for clean tap points; resist twisting conductors for ephemeral connections as this increases resistance by up to 1.8 ohms per splice. Always wrap modified sections with MIL-spec heat shrink (3:1 ratio) and seal junctions with dielectric grease to prevent moisture-induced voltage drops.
Locating Critical Circuit Elements in the Vehicle Blueprint
Pinpoint the fuse block first–it typically resides beneath the instrument panel on the driver’s side or near the under-hood power distribution center. Trace each fuse label to its corresponding relay, identifying amperage ratings (e.g., 10A, 20A) and color-coded connectors. Verify continuity with a multimeter: a blown fuse will show infinite resistance, while intact ones should read near 0 ohms. Cross-reference these findings with the schematic’s legend to isolate problematic circuits before replacing parts blindly.
Focus on the PCM (Powertrain Control Module) connections, marked with alphanumeric identifiers like C1, C2, C3 for harness plugs. Examine pins for corrosion or bent terminals–common failure points in ignition, fuel pump, and sensor networks. Swap known-good relays (e.g., horn or A/C) to test suspect components like the radiator fan or starter relay. Use a scan tool to monitor live data: erratic readings (e.g., throttle position jumping) indicate wiring faults more often than module defects.
Ground Paths and Sensor Networks
Trace ground straps–often overlooked–to their mounting points on the chassis or engine block. A single degraded ground can disrupt multiple systems, mimicking sensor failures. For sensors (MAP, TPS, O2), check both signal (5V reference) and ground circuits; voltage drop exceeding 0.1V over 12 inches suggests poor conductivity. Probe connector backs with a fine-gauge needle to avoid damaging terminals while testing for supply voltage or ground presence.
Mastering Power and Ground Path Analysis in Muscle Coupe Electrical Systems
Start diagnostics by locating the fuse box under the left side of the dashboard–this cluster houses primary power distribution points for critical systems like the ECU, ignition coils, and fuel pump. Use a multimeter set to DC voltage (20V range) to verify battery voltage at fuse terminals while the key is in the “ON” position. A reading below 11.5V at any fuse indicates either a faulty fuse, corroded terminals, or a compromised upstream connection requiring immediate attention.
For ground circuit verification, focus on the engine block’s grounding straps–specifically the thick braided cable connecting the block to the chassis near the battery tray. Scrape away corrosion or paint at attachment points and test resistance (ohmmeter mode) between the ground terminal and bare metal. Anything above 0.5 ohms confirms a poor ground requiring cleaning or replacement of the strap. Ignore temporary fixes like jumper wires; they mask underlying issues and can cause voltage spikes damaging sensitive modules.
Critical Pathways for High-Current Components
Trace the alternator’s B+ wire (thick red cable) back to the starter solenoid–this heavy-gauge line handles 100+ amps and must show continuity with no voltage drop exceeding 0.2V between endpoints. A degraded connection here manifests as dim headlights or slow cranking. For the starter motor itself, check the solenoid’s S-terminal (small purple/white wire) for 12V during cranking; absence of voltage points to a faulty ignition switch or neutral safety switch, not the starter.
Fuel pump circuits demand special scrutiny. Test the inertia switch (located behind the right kick panel) for continuity–this safety device severs power during impacts and often fails silently. Beyond the switch, follow the pump’s feed wire to the rear harness connector under the rear seat; corrosion in this connector is a known failure point. Use dielectric grease when reassembling to prevent oxidation on terminals carrying 20+ amps.
Module-Specific Power and Data Lines
Body control module (BCM) power originates from the TIPM (totally integrated power module) via a 10A fuse. Measure voltage at the BCM’s main connector (C1, pin 58 for ignition-switched power)–a consistent 12V here rules out TIPM failure. For CAN bus integrity, check resistance between CAN-H and CAN-L (pins 60 and 61) on the same connector; 60 ohms indicates proper termination. A reading outside this range confirms a severed bus wire or faulty terminating resistor in another module.
PCM (powertrain control module) grounds require direct testing–probe the transmission case grounding point while monitoring live data for “ground offset” PIDs. A voltage above 0.1V here causes erratic shift points or misfires. For injectors, verify 12V at each feed wire (colored stripes matching cylinder order) during cranking; a single missing pulse triggers a no-start condition despite spark presence. Use a noid light for quick confirmation–no flashing equals an open circuit needing harness repair.
Rear defroster circuits often suffer from failed relay contacts or corroded grid connections. Test the relay’s 85/86 coil terminals for 12V during activation; if voltage is present but the element doesn’t warm, inspect the rear window’s busbars for hairline cracks disrupting current flow. Replace the grid with an OEM kit–aftermarket overlays fail within months due to inadequate adhesion.
When tracing accessory circuits (headlights, A/C), prioritize relay boxes behind the front bumper and right kick panel. Each relay’s 30 (constant power), 87 (output), and 85/86 (switching) pins must show expected voltages–deviations here explain phantom electrical gremlins. For parasitic draws, pull fuses systematically while monitoring amperage drop via an amp clamp; a 50mA baseline is normal, anything above 200mA demands isolation of the offending circuit via disconnecting modules one by one. Avoid relying solely on scan tools–direct electrical measurement yields definitive results.
