Complete 2014 Jeep Grand Cherokee Headlight Wiring Diagram Guide

Start by locating the fusebox under the dashboard on the driver’s side–label F62 controls the low beam circuit. Use a multimeter set to 12V DC continuity mode to verify power at the harness connector behind the housing assembly. The wiring harness splits into three key wires: a dark green with orange stripe (low beam), light green with black stripe (ground), and violet with white stripe (high beam). If voltage drops below 11V at the connector, inspect the fuse and relay R6 for corrosion or overheating.

Disconnect the negative battery terminal before probing any live circuits to prevent shorting. Check the wiring loom for chafing near the front subframe, especially where it passes behind the bumper support. Replace damaged segments with 18-gauge cross-linked polyethylene wire to match OEM specifications. Secure new connections with heat-shrink tubing rated for 125°C–avoid standard electrical tape, which degrades under engine bay temperatures.

For adaptive variants, the cornering module requires an additional light blue with yellow stripe signal wire. This links to the steering angle sensor; a faulty connection triggers warning codes U0100 or C1030. Clean the connector pins with contact cleaner, then apply dielectric grease before reassembly. If the issue persists, test resistance across the sensor–values above 10 ohms indicate internal corrosion requiring replacement.

The daytime running lamp feed (dark blue with orange stripe) taps into the main harness near the radiator support. Verify this circuit independently if the lamps flicker at idle or fail to illuminate. For HID setups, confirm the ballast input voltage sits at 85V AC–deviations suggest a failing igniter or degraded bulb. Always use a load-rated tester when diagnosing high-voltage components.

Understanding Your SUV’s Front Lamp Electrical Layout

Begin troubleshooting by locating fuse #15 in the under-hood power distribution center–this 20A mini fuse protects the entire low-beam circuit. If blown, replace with identical rating; mismatched amperage risks damaging the multifunction switch or TIPM.

Refer to pinout data below for the headlamp connector (16-way C1 harness):

Pin	Wire Color	Function	Voltage (Key ON)
3	Dark Green/Orange	Left Low Beam	12V
5	Dark Blue/Yellow	Right Low Beam	12V
10	Dark Green/White	Left High Beam	0V (active ground)
12	Dark Blue/White	Right High Beam	0V (active ground)

Deviations from these readings indicate either a faulty switch, corroded connector, or broken wire between TIPM and lamp assembly.

Inspect the bulb sockets for melted plastic or discolored terminals–common failure points on H13 halogen units. Run a continuity test on the ground wire (pin 8, black/light blue) to chassis; resistance above 0.5Ω suggests poor grounding, often traced to rusted frame tabs near the front fascia.

For vehicles with adaptive lighting, the auto-leveling module (mounted above the radiator support) requires separate calibration via a diagnostic scan tool. Ignoring this may trigger false DTCs like C1575 or C1570, permanently disabling dynamic cornering.

Check the multifunction switch harness for frayed insulation, particularly where it bends behind the steering column. A broken red/white wire (pin A1) disrupts the entire signal chain–confirm 5V reference signal at the switch connector before condemning the TIPM.

Daytime running lamps share circuitry with the front park lamps (pin 4, dark green/red). If both systems fail simultaneously, suspect an open at splice S123 under the driver’s side dashboard.

Aftermarket LED retrofits often omit load resistors, causing hyper-flashing or “bulb out” warnings. Insert a 6Ω 50W resistor inline with each relay coil circuit (dealer part #05094972AA) to restore proper current draw.

For persistent high-beam failures, probe the BCM connector C2 (pin 30, violet/white) for a 12V pulse when toggling the lever. No signal suggests a bad BCM or CAN bus corruption–erase codes and retest after clearing history.

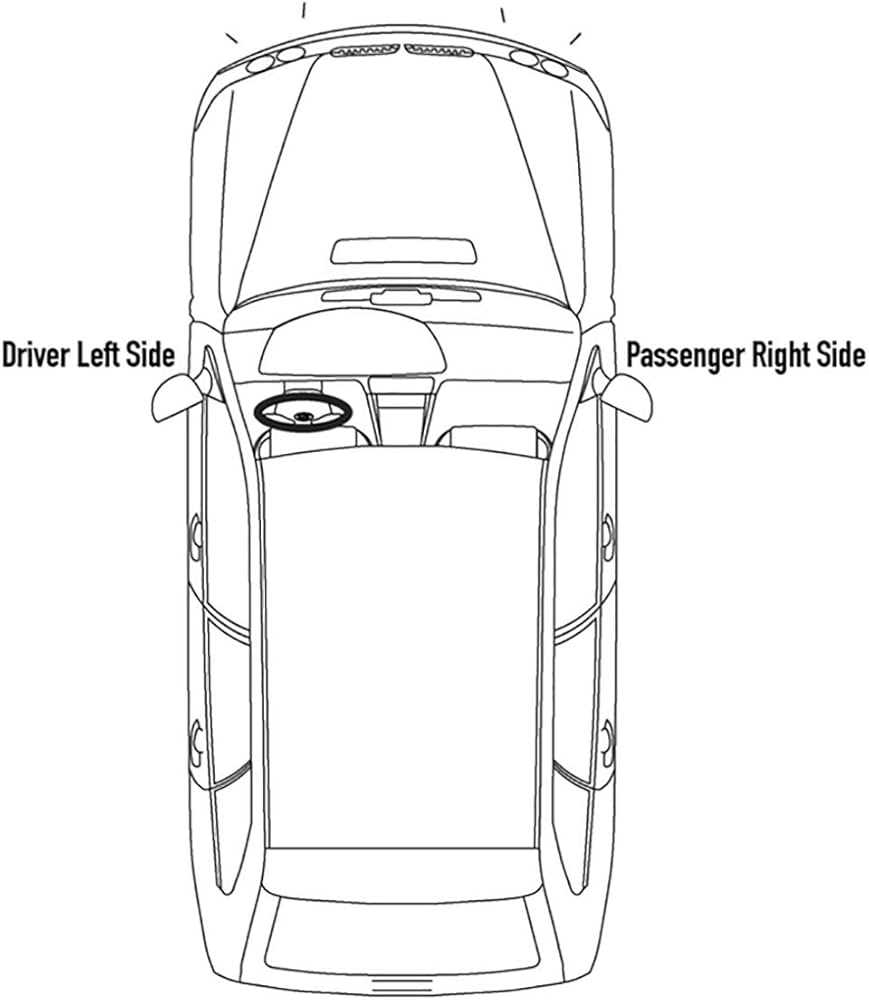

Finding Front Lamp Connector Points in the Engine Bay

Begin at the driver-side front corner of the engine compartment. The primary harness plug for the left-side illumination unit sits just behind the plastic underhood fuse box, tucked near the strut tower. Use a flashlight to spot the gray or black multi-pin connector marked with a yellow stripe–this indicates the high-beam circuit. Pull the retaining clip straight out without twisting, then wiggle the plug gently to disengage.

On the passenger side, follow the same approach but locate the plug beneath the air intake duct. The right-side harness connector is smaller, often white or tan, and secured with a single latch. Patience is critical here–force can damage the pins, leading to erratic light behavior or false bulb failure warnings on the dashboard.

• Check for corrosion before disconnecting. A greenish residue signals moisture ingress; clean contacts with a wire brush and dielectric grease to prevent future resistance issues.
• Label each connector with masking tape to avoid swapping low-beam and directional circuits during reassembly.
• Trace the harness backward if connectors are hidden–bundles often route behind the radiator support or along the hood latch mechanism.

If working near the battery, disconnect the negative terminal first to prevent short circuits. The harness splits close to the battery tray, with sub-harnesses branching to the fog lamps and daytime running lights. Identify each branch by following the wires visually–no shortcuts or assumptions, as misrouting can trigger error codes.

For late-model variants with adaptive LEDs, note the additional thin wiring harness attached to the main connector. This secondary plug controls the motorized shutter and requires precise alignment during reconnection. Misalignment here will cause the shutter to malfunction, resulting in uneven light distribution.

1. Verify locking mechanisms before separation–some connectors use a slide-lock, others a twist mechanism. Incorrect handling can break tabs.
2. Use needle-nose pliers for stubborn clips, but grip only the base to avoid bending the metal latch.
3. Inspect rubber grommets where the harness passes through the inner fender–cracks or gaps allow dirt and moisture to degrade connections.

Hidden connectors may be found behind the front grille removal panel. To access these, remove two 10mm bolts securing the upper grille section, then gently pry the retaining clips with a flathead screwdriver. The lower illumination circuit connectors sit directly behind the grille support, often paired with the horn wiring–separate them by color (illumination circuits are typically yellow or light blue).

After locating all connectors, test each circuit before reassembly. Reconnect the battery, then use a multimeter set to DC voltage across the pins–expect 12V signals for active circuits. If readings fluctuate, recheck the connector seals and consider replacing the harness pigtail if corrosion or melted plastic is evident.

Locating Electrical Pathways in Front Lamp Assemblies

Begin by isolating the low-beam feed with a multimeter set to DC voltage. Probe the connector’s cavity C1-8 (typically a 2.0mm pin) while activating the switch–expect 12V+ on ignition. If absent, trace backward to the TIPM module via fuse M34 (20A). Ground references cluster near the passenger-side strut tower; verify zero resistance between chassis and pin C1-4 when engaging the circuit. Signal wires for the adaptive module pulse 0-5V square waves–use an oscilloscope at C1-12, confirming 100Hz repetition with high/low transitions synchronized to steering angle.

Color Codes and Pin Assignments

Solid yellow (power) splits into two paths: one to the bulb filament (C1-5), the other branching to the daytime runner relay (C2-3). Brown-striped wires (C1-2, C1-6) share chassis return but split into discrete grounds–measure continuity between C1-2 and the strut bolt;

Install an inline fuse holder upstream of any splice–30A for main feeds, 10A for signals–to prevent fire hazards during transient surges. When testing PWM lines, disable the CAN bus with a diagnostic scan tool to avoid erratic readings. For halogen variants, disregard LED temp-sensor wires (white-striped, C1-10)–these terminate at the bulb’s thermal cutoff without external connection.

Troubleshooting Flow

Start with the headlamp switch connector: disconnect it, clean terminals with electrical contact cleaner, and reconnect while monitoring waveform integrity. If flickering persists, swap in a known-good bulb to isolate filament vs. circuit failure. For intermittent faults, flex wiring harness sections incrementally–focus on the hinge area where chafing against the fender liner is common. Replace splice connectors with solder-and-heat-shrink joints if corrosion is visible under the insulation.

Use a non-contact voltage tester to quickly map live feeds before meter probing; this avoids shorting adjacent pins. Always label disconnected wires with masking tape–identifiers like “LB+,” “HB ground,” and “CAN-H” prevent reassembly errors. For LED clusters, verify the driver module’s output at both 350mA (low-beam) and 700mA (high-beam) with an amp clamp; deviations suggest module failure or bulk capacitor degradation.

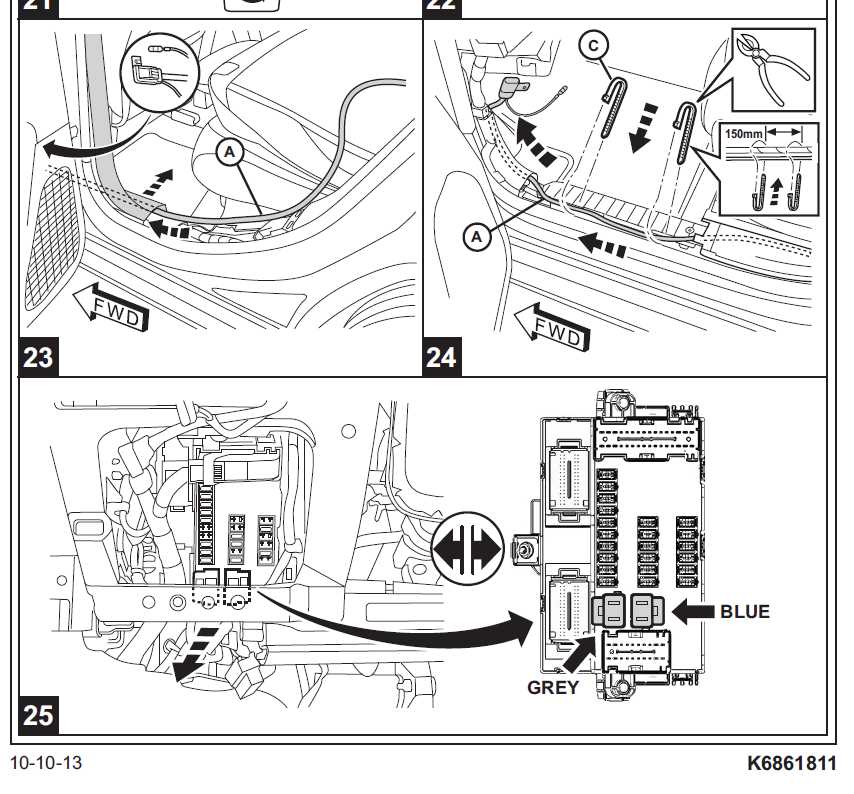

Mapping the Electrical Route from the Power Distribution Center to the Front Lamp Unit

Locate the vehicle’s primary power hub beneath the driver-side dashboard–labelled “Cavity A3” on fuse layout references. Confirm the 20A mini fuse (position F53) designated for front illumination feed; probe both terminals with a multimeter to verify active 12V supply before proceeding. If absent, inspect the fuse integrity or upstream connections at the Totally Integrated Power Module (TIPM), where corrosion or loose terminals often disrupt current flow.

Follow the orange/light blue tracer cable from the fuse output–this wire exits the distribution box via a sealed grommet and routes along the driver-side frame rail. Approximately 18 inches from the firewall, it merges with the main harness bundle; separate the loom’s outer sleeve carefully using a blunt pick to avoid damaging adjacent signals (e.g., horn circuit). Use a tone generator on the traced conductor to pinpoint its continuation past the brake master cylinder, where it enters the engine bay through a dedicated bulkhead connector (pin C2-6).

Critical Junctions and Common Failure Points

• Bulkhead passthrough: Check for frayed insulation where the cable bends sharply; apply dielectric grease to repel moisture if minor abrasion is present.
• A-pillar connector: Disassemble the plastic shroud to access terminal C3-12–oxidation here mimics bulb failure symptoms.
• Passenger-side splice: Near the upper radiator support, a waterproof crimp joins the circuit; corrosion here reduces voltage by 1-2V, causing dim operation.
• Driver-side module: If equipped with adaptive units, the cornering lamp sub-harness (gray/black) may detach at the retaining clip, requiring re-seating.

Once the cable reaches the lamp housing, it terminates at a three-pin weatherproof connector. Measure voltage at the connector’s retention tab: the center pin (low beam) should read 12V during activation, while the outer pins (positioning/drl) toggle based on ignition state. If readings are inconsistent, backtrack 6 inches to the inline splice where factory tape often conceals broken strands–strip the wire, solder with 16-gauge heat-shrink, and reseal using adhesive-lined tubing for long-term protection.

For high-beam validation, trace the violet conductor from the steering column multifunction switch. This circuit bypasses the body control module on base trims but merges at relay R2-11 on equipped models–test relay switching by jumping the 85/86 terminals while monitoring pin C1-3 at the lamp-side connector. Replace the relay if clicks are absent or voltage drops below 11.5V during operation, indicating internal contact pitting.
