Chevrolet Silverado 2014 Radio Wiring Schematic and Color Codes Guide

For quick installation, match the purple wire (right rear speaker positive) to its light purple counterpart (negative) in the factory harness. The gray wire handles left front positive output, requiring a direct link to the dark gray wire for proper signal return. Locate the yellow cable–this carries constant 12V power; connect it to a dependable battery source with a minimum 15-amp fuse for safety.

Use a multimeter to verify voltages before finalizing connections. Set the tool to DC 20V and probe the orange wire–expect ~12V when the ignition is turned to ACC/ON. If readings drop below 11V, inspect the red cable (switched power) and ensure it’s securely joined to the vehicle’s ignition circuit. Avoid tapping into existing fuses; instead, splice at the fuse box under the dashboard for cleaner integration.

Grounding inadequacies cause audible distortion–attach the black wire to a bare metal surface within 18 inches of the head unit. Remove paint or corrosion from the contact point to prevent resistance buildup. For amplified systems, route dedicated power cables away from RCA signal wires to eliminate interference. Twist pairs of speaker wires every 6 inches for noise reduction.

Refer to the GM LAN bus schematic if retaining steering wheel controls. The brown and white striped cable transmits CAN signals–bridging it incorrectly disables vital vehicle functions. For aftermarket interfaces, use an ASWC-1 module with the included adapter harness. Confirm compatibility with the specific trim level (e.g., LT vs. LTZ) as connector pinouts vary.

Chevy 1500 Audio System Wire Connections Guide

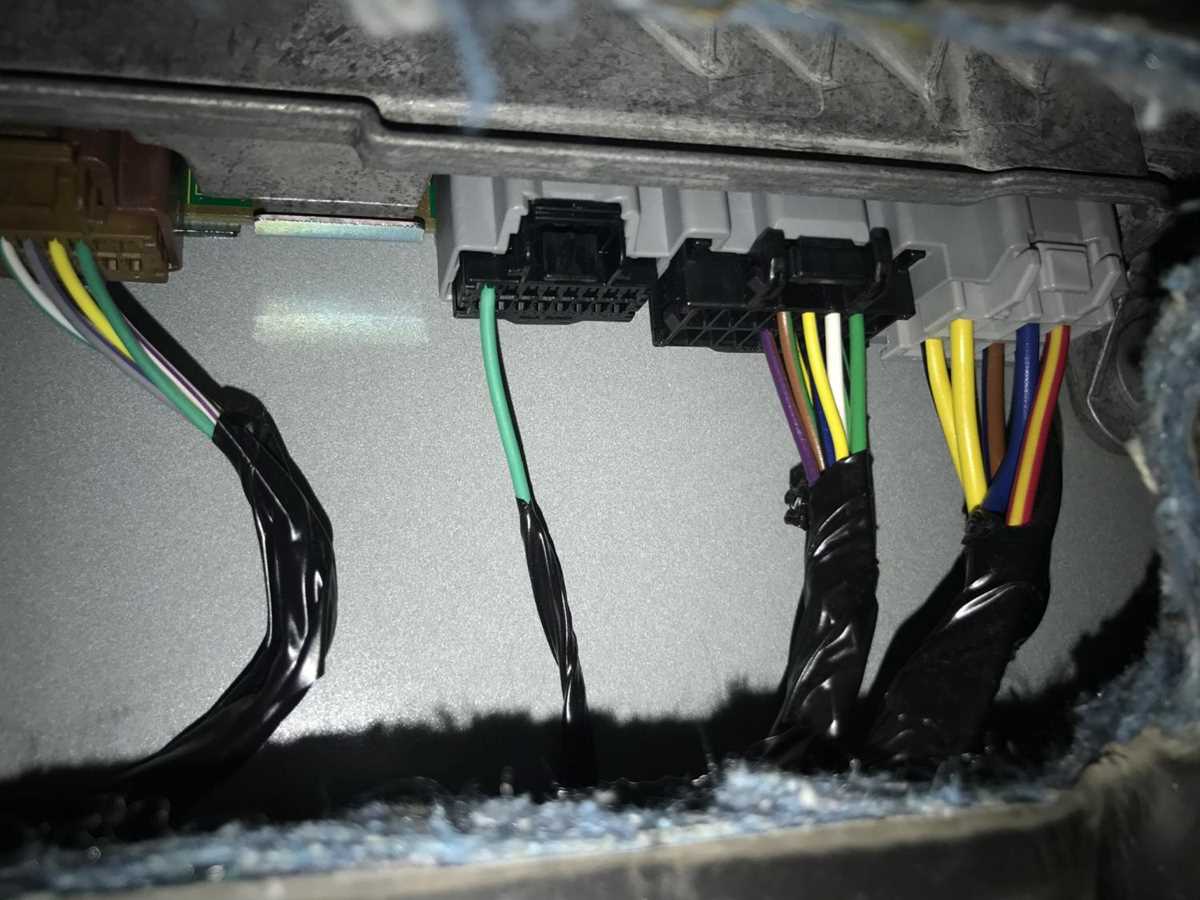

Locate the vehicle’s harness behind the factory radio unit–pin 16 (yellow) carries constant 12V, pin 4 (red) delivers switched power, and pin 5 (black) grounds the system. For aftermarket integration, splice these leads directly to the new head unit’s corresponding wires using crimp connectors or solder for permanent reliability. Retain the OEM amplifier by pairing pin 1 (dark blue/white) to the remote turn-on input if your replacement lacks high-level outputs.

Critical Color Codes and Their Functions

Speaker Wires: Front left positive (light green), front right positive (gray), rear left positive (brown), rear right positive (purple). Negative leads share matching solid colors with a black stripe. Avoid bridging speaker wires to ground–even a brief short risks frying the amplifier or blowing fuses. Verify continuity with a multimeter before powering up; resistance between positive and negative pairs should read 4 ohms for factory speakers.

Finding the OEM Audio Cable Connection in Your Truck

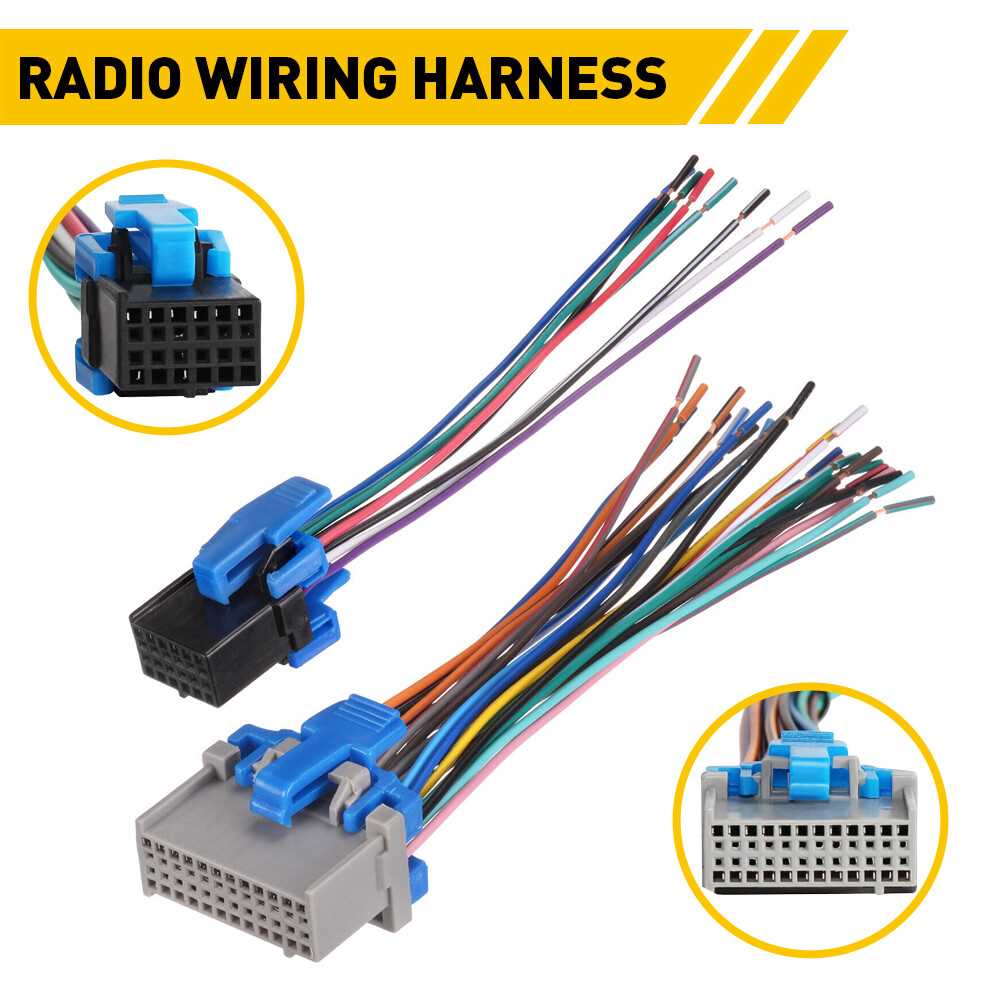

Begin by removing the lower dashboard panel on the driver’s side–it’s secured with three 7mm screws and two plastic clips near the steering column. Once detached, locate the central fuse box; the target connector hides directly behind it, positioned vertically against the firewall. The harness will be a 24-pin plug with a gray or black locking tab–mistaking it for the nearby HVAC or BCM connections is common, so verify by tracing the bundle to the original head unit’s mounting bracket.

For double-cab models, accessing this linkage requires sliding the driver’s seat fully back and pivoting the pedals upward–the harness runs along the transmission tunnel, anchored by a single 10mm bolt. The socket’s pinout matches the aftermarket adapter’s color-coding (yellow for constant 12V, red for ignition-switched, blue/white for amp turn-on), but confirm continuity with a multimeter before splicing, as misaligned taps risk fusing the fuse block’s 20A circuit.

Precise Wire Color Matching for Custom Audio Upgrades

Locate the 12-pin harness connector behind the factory radio unit–the pink wire delivers switched 12V power, critical for retaining memory settings on amplifiers or equalizers. Pair it directly to the ignition-controlled red cable on the aftermarket harness; verify continuity with a multimeter before making permanent connections. Ignoring this risks draining the vehicle’s battery or causing intermittent reset errors in settings.

The tan/brown stripe wire carries the left rear speaker signal, while the dark green/brown stripe handles the right rear–both require soldering to the corresponding violet/gray and green/orange leads on the replacement head unit’s 24-inch pigtail. For balanced impedance, use 18-gauge oxygen-free copper wiring; cheaper alternatives risk signal degradation at higher volumes. Secure joints with adhesive-lined heat shrink tubing instead of electrical tape to prevent corrosion from road moisture.

Ground the black/white stripe wire to an unpainted metal surface within 18 inches of the factory harness–a dedicated bolt near the transmission tunnel works best. Avoid attaching to painted or coated surfaces, as poor grounding causes engine noise interference through the subwoofer. For amplified systems, route the remote turn-on (blue/white stripe) separately from power wires to minimize electromagnetic interference.

Double-check polarity before finalizing connections: swap yellow (+) and brown (-) wires on non-JBL systems, or risk reversed audio phase, which muffles midrange frequencies. Test each channel individually before reassembling the dash; use pink noise at 85dB for accurate sound staging. If static persists, relocate the antenna lead (light blue) away from the power amplifier’s input wires by at least 4 inches to prevent radio frequency bleed.

Key Wire Groups in Vehicle Audio System Schematics

Locate the constant 12V supply first–it’s typically attached to a yellow-colored lead and remains energized regardless of ignition state. Trace this back to its fuse in the under-dash panel; the fuse rating (commonly 10A or 15A) will confirm the correct circuit. If absent, inspect adjacent red-hot wires; these often serve as switched power sources, active only when the key is turned to ACC or ON.

Ground identification begins with black wires, grouped in clusters near chassis bolts or the firewall. Scrape any paint or corrosion from potential attachment points, then test continuity to the battery’s negative terminal–zero ohms indicates a valid path. Avoid shared grounds with high-current devices like cooling fans or electric pumps; these can introduce interference. If doubtful, run a dedicated 12-gauge strand directly to the battery’s negative post.

• Left-front speaker: white (+), white/black (-) or white/orange (-), impedance usually 4Ω.
• Right-front speaker: gray (+), gray/black (-) or gray/orange (-), same impedance.
• Left-rear speaker: green (+), green/black (-) or green/orange (-), wire gauge 18-20AWG.
• Right-rear speaker: purple (+), purple/black (-) or purple/orange (-), identical gauge.

Twist pairs tightly during routing to minimize hum. Use a multimeter’s diode check mode for polarity verification: instant tone equals correct phase, delayed tone means reversed connections.

Accessory circuits (steering-wheel controls, USB hubs, backup cameras) branch from pink, light blue, or tan leads. Confirm these by toggling each feature while monitoring voltage drops–typically 5V for digital signals, 12V for analog switches. Label every lead immediately with heat-shrink tubing or vinyl tape; misplacement risks module resets or blown fuses. For aftermarket integration, splice only with solder and adhesive-lined heat-shrink to prevent oxidation.

Common Mistakes When Connecting Audio System Cables Without a Guide

Skipping polarity checks on speaker leads guarantees distorted sound or blown fuses within minutes of powering up. Standard 18-gauge wire often hides colored stripes–typically white or gray–for ground connections, while solid hues mark positive terminals. Swapping these causes immediate phase cancellation, eliminating bass frequencies entirely. Test each pair with a 9V battery before final connections; proper polarity produces a clear click from the speaker, while reversed wires generate a weak buzz.

Ignoring fuse ratings on aftermarket harnesses risks overheating the entire circuit. Factory-installed harnesses usually include 10A or 15A fuses for accessory circuits, but third-party units often ship with 20A or higher fuses that bypass built-in protections. Match the original rating precisely–use a multimeter to verify resistance before splicing. A 0.5-ohm difference between old and new fuses indicates a short, requiring immediate tracing with a tone generator to locate exposed wires behind the dash panel.

Errors in Grounding Methods

Choosing a painted bolt as a ground point introduces resistance that manifests as engine noise through the speakers. Bare metal surfaces near the kick panel or firewall provide the cleanest grounding; scrape away any corrosion and apply dielectric grease to prevent oxidation. Common ground loops occur when connecting multiple components–amplifiers, subwoofers, and head units–to a single bolt. Dedicate separate 8-gauge ground wires for each device, routed away from engine modules to avoid interference.

Component	Recommended Wire Gauge	Max Current Draw (Amps)
Head unit	16 AWG	5
Amplifier	12 AWG	30
Subwoofer	10 AWG	50
Remote turn-on	18 AWG	1

Incorrect Tap-In Points

Tapping accessory power from the cigarette lighter circuit overloads the fuse box and dims dashboard lights during bass hits. Locate the fused ignition wire–usually a pink or orange/white stripe–behind the instrument cluster; splice here for stable voltage. Confusing constant power (yellow) with switched power (red) leaves the system draining the battery overnight. Labels on plugs rarely match actual wiring–probe every wire with a test light while cycling the key to confirm function.

Using crimp connectors without soldering causes intermittent connections after temperature shifts. Heat-shrink tubing alone fails to prevent corrosion; apply rosin flux before soldering, then cover with adhesive-lined tubing. Twisting wires together without mechanical strain relief pulls apart within weeks–secure all joints with electrical tape wrapped clockwise around the bundle, followed by zip ties every 3 inches along the harness. Avoid twist-on wire nuts; they loosen under vibration and create hazardous short circuits near metal chassis points.
