Complete Wiring Diagram for 2014 Volkswagen Jetta Headlights StepbyStep Guide
Start by locating pin 15 (T16b) on the vehicle’s BCM module–this terminal supplies power to the low-beam circuit via a 10A fuse (F46) rated at 12V DC. The positive lead runs through a brown-green wire (code B-GR) to the left bulb connector, while the right side follows a symmetrical path with a brown-white (B-W) conductor. Ground connections terminate at chassis points G201 (left) and G202 (right), ensuring stable voltage return under 0.5Ω resistance.
For high-beam activation, trace pin 10 (T16b)–this output engages relay J104, which bridges the high-power line to the bulbs through a 20A fuse (F47). The circuit uses a thin amber-black (A-BL) wire for the left lamp and amber-blue (A-B) for the right, handling up to 15A transient loads during switching. Overcurrent protection is critical here–verify the relay’s coil resistance stays within 50-80Ω to prevent premature failure.
Daytime running lights (DRL) share the low-beam circuit but engage via a separate PWM signal from the instrument cluster. Check pin 30 (T32a) on the cluster connector–this output toggles a 5V square wave to modulate brightness. Incorrect waveforms (e.g., sine or clipped pulses) indicate a faulty driver IC, often requiring cluster replacement. Use an oscilloscope to confirm 85-95% duty cycle at 200Hz for proper illumination.
Turn signals integrate directly into the lamp assembly through a dedicated flasher unit. Pin 5 (T16b) on the BCM delivers pulsed 12V to amber-orange (A-OR) wires, controlled by the vehicle’s hazard logic. If rapid flashing occurs, inspect the load resistors (typically 2.1Ω, 25W) mounted near the front bumper–these compensate for LED retrofits to prevent hyperflash. Standard 3157 bulbs should draw 2.1A nominal; deviations suggest poor contact or internal filament degradation.
Fog lamps, if equipped, bypass the main lamp harness and connect to a standalone 15A fuse (F5). Trace the grey-red (GR-R) wire from the switch to the left fog lamp, verifying continuity through the bulb socket’s center pin (should measure ~12V key-on). The right side mirrors this with a grey-violet (GR-V) conductor. Note: European-spec models include a relay (J5) for automatic beam cutoff; North American variants omit this feature, relying solely on switch actuation.
Understanding Your Volkswagen Sedan’s Front Lamp Electrical Layout
Begin by locating the fuse box behind the dashboard on the driver’s side; fuse #23 (10A) controls the low-beam circuit while fuse #24 (10A) handles high beams. Verify continuity with a multimeter before proceeding–resistance above 0.5 ohms indicates corrosion or a break in the harness. Replace fuses only with identical amperage ratings to prevent damage to the BCM.
Connector Pin Assignments
- T32/15: High-beam input (yellow/red stripe, +12V when activated)
- T32/26: Low-beam input (green/black stripe, switched power)
- T32/10: Ground (brown), critical for stable voltage; clean connections with contact cleaner if flickering occurs
- T32/23: Daytime running light signal (white/violet stripe), tied to the headlamp control module
Disconnect the battery’s negative terminal before probing connectors to avoid short circuits. Use a non-conductive pick to separate wires from the harness bundle–force can fracture brittle insulation near the chassis mount.
The adaptive front lighting system (AFS) adds complexity: motor wires (gray/blue and gray/orange) pivot the reflector assembly based on steering angle. If AFS fails, check the sensors (G474, G475) behind the bumper–misalignment causes erratic beam patterns. Sensor resistance should read 2–5 kΩ at room temperature; deviations suggest internal faults.
Troubleshooting Steps
- Inspect the headlamp housing for moisture; condensation disrupts electrical integrity. Remove the lens and dry with compressed air, then reseal with butyl tape (3M #08568).
- Test the bulb sockets for voltage droop. With the ignition on and lamps enabled, measure between the socket’s power terminal and chassis ground–expect 11.5–14V. Values below 10V indicate a corroded harness splice near the strut tower.
- For LED-equipped models, verify the driver module’s output (black box behind the housing). PWM frequency should range 150–300 Hz; stray pulses cause flickering. Replace the module if the oscilloscope trace shows irregular waveforms.
Harness damage often occurs at chassis flex points–inspect the wire loom near the hood latch and fender for chafing. Repair breaks with solder and heat-shrink tubing (3:1 ratio); avoid electrical tape, which traps moisture. For aftermarket upgrades, match wire gauge (18 AWG minimum) and use waterproof connectors (TE Connectivity #1-1634649-0) to prevent future failures.
Finding the Front Lamp Circuit Plug Pin Configuration

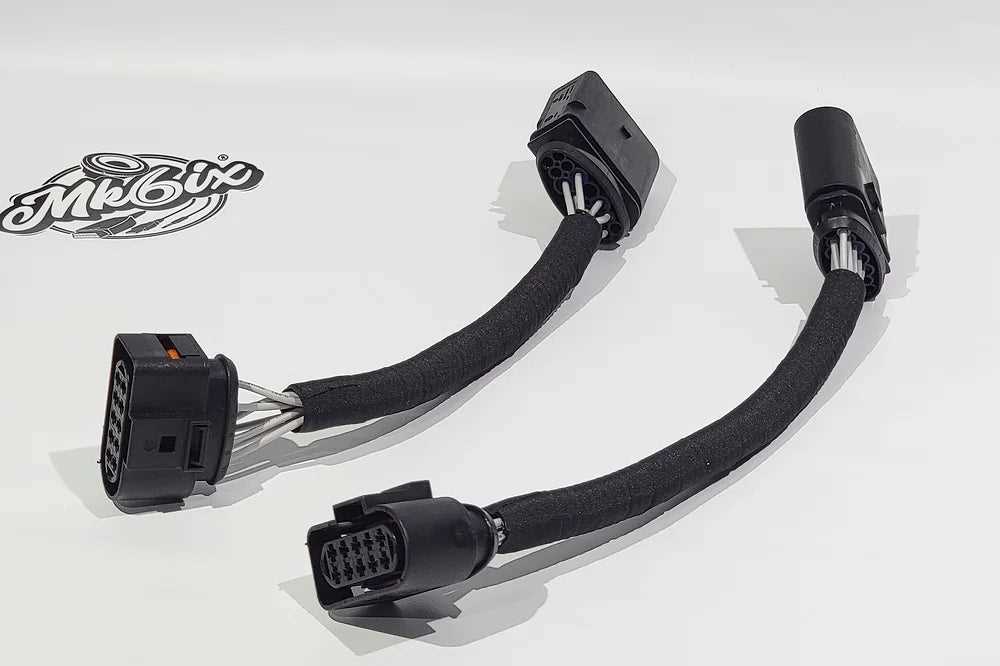

Begin by accessing the rear of the left-side assembly–this unit houses the primary connection block for illumination controls. Remove the protective cover (typically secured with two 8mm bolts) to expose the multi-pin plug. Pin assignments follow a standardized pattern: ground occupies the lower-left terminal (marked “GND” on the casing), while power inputs for high/low beams split across adjacent slots–check for +12V labels on the harness side.
Identify the color-coded wires before tracing: yellow (high beam), white (low beam), brown (ground), and blue (turn signal) are consistent across Volkswagen Group A-platform models. Verify continuity with a multimeter; resistance should read below 0.5 ohms for intact circuits. If readings fluctuate, inspect the firewall grommet–corrosion often disrupts this junction.
For the right-side assembly, repeat the process but note the mirrored layout. The auxiliary daytime running lamp circuit terminates in a separate two-pin connector (usually gray/black insulation) near the fender liner. Disconnect the battery negative terminal before probing to avoid shorting integrated modules like the BCM.
Common Pitfalls in Connector Identification
Misaligning pins during reassembly risks damaging the female sockets–ensure the plug clicks into the locked position. Dodge aftermarket harnesses that re-route signals; OEM connectors use a unique keyed design preventing reversed insertion. If the vehicle has adaptive systems, locate the three additional pins (often purple/red striped) linking to the sensor cluster.
When troubleshooting intermittent failures, focus on the pin tension–bent terminals inside the plug may create poor contact. Straighten them with needle-nose pliers, then apply dielectric grease to prevent future oxidation. For vehicles equipped with fog lamps, their circuit branches from the same main harness but diverges at a T-joint beneath the radiator support.
Step-by-Step Guide to Testing Front Light Fuses and Relays

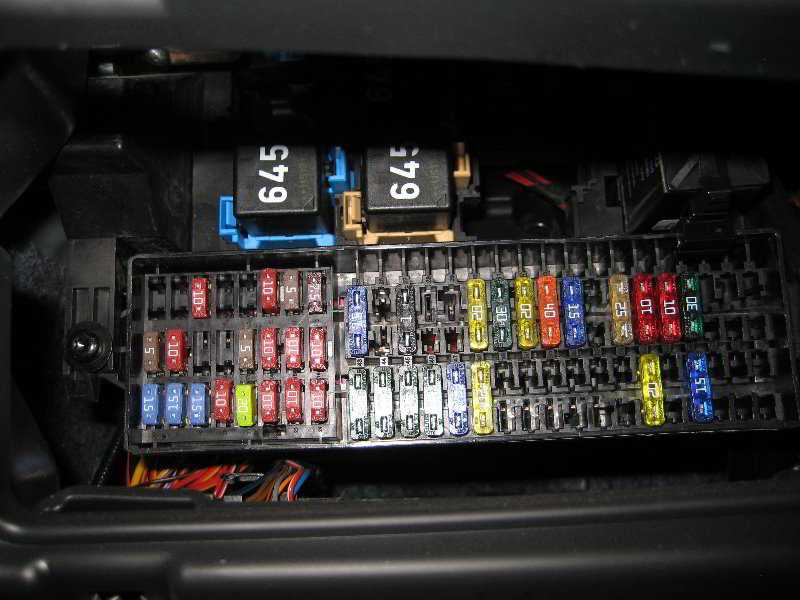

Locate the fuse box under the dashboard on the driver’s side or in the engine compartment. Refer to the owner’s manual for the exact position–most VW models label fuse panels with a diagram on the cover.
Identify the fuse corresponding to the lighting circuit. Use a multimeter set to continuity mode or a fuse tester. Remove the fuse and probe both metal prongs. A reading of zero ohms or a lit tester confirms the fuse is intact; infinite resistance means it’s blown.
Check relay sockets if fuses test fine. Most relays follow a standard pinout: 85 and 86 for the coil, 30 for power input, and 87 for the switched output. Swap the suspect relay with a known-good one of the same type (e.g., horn or A/C relay) to isolate the issue.
Test relay function with a 12V power source. Apply voltage directly to pins 85 and 86–listen for a click. If absent, the relay is faulty. If present, probe pin 30 for battery voltage and pin 87 for output while energized. No voltage at 87 indicates internal failure.
Inspect the fuse box for corroded terminals if relays or fuses fail repeatedly. Use contact cleaner and a small wire brush to remove oxidation. Bent pins or melted plastic require box replacement–common in high-current circuits.
Advanced Troubleshooting
Measure voltage at the bulb socket with the switch on. Use a multimeter in DC volts mode: one probe to ground, the other to the socket’s power terminal. Battery voltage (12-14V) confirms power delivery; lower readings suggest wiring or switch faults.
Trace the circuit back to the switch if voltage is missing. Disconnect the harness and check for short circuits with an ohmmeter. Ground readings (
Replace components based on failure modes: silver-tinned fuses for intermittent issues, gold-plated relays for frequent cycling. Label all connectors during disassembly to avoid miswiring–critical for pulsed circuits like daytime running lights.
Color Coding and Wire Gauge for Low and High Beam Circuits
Begin by identifying the main power feed for the frontal illumination system: a red or red/white striped cable with a cross-sectional area of at least 1.5 mm² (16 AWG) for low-draw configurations. This conductor must connect directly to the fuse box via a 15A fuse to prevent voltage drop under full load. Verify continuity with a multimeter before securing connections–resistance should not exceed 0.5 ohms per meter.
Low-beam filaments typically route through a brown or black/yellow conductor, sized at 1.0 mm² (18 AWG) minimum, though vehicles with LED assemblies may use 0.75 mm² (20 AWG). High-beam circuits differentiate with a blue or white/blue stripe, often paired with a 1.25 mm² (16 AWG) wire to handle the increased current draw of halogen or Xenon bulbs. Confirm compatibility by cross-referencing the bulb wattage (55W–120W) with the wire’s ampacity:
| Wire Gauge (mm²) | AWG Equivalent | Max Current (A) | Recommended Usage |
|---|---|---|---|
| 0.75 | 20 | 10 | LED daytime running lights |
| 1.0 | 18 | 14 | Low-beam halogen |
| 1.25 | 16 | 18 | High-beam halogen/Xenon |
| 1.5 | 15 | 22 | Primary power feed |
Ground pathways are universally black but may include a green/yellow stripe near the chassis connection. Ensure the grounding point is corrosion-free and secured with a 6mm or larger bolt–loose grounds cause intermittent flickering or complete failure. For adaptive systems (e.g., cornering lamps), an additional 0.5 mm² (22 AWG) gray or purple wire carries signal data; splices here require soldering, not crimp connectors, to avoid signal degradation.
For voltage-sensitive components like HID ballasts, use relay-controlled circuits. The relay’s 85/86 terminals (trigger side) accept 0.5 mm² wire, while the 30/87 terminals (load side) demand 1.5 mm² for stability. Misrouting these can overload the switchgear, leading to premature wear. Test for voltage drop across the relay: input should match battery voltage, output no lower than 11.8V under load.
Twisted-pair wiring reduces electromagnetic interference in HID or LED systems. Maintain a twist pitch of 20–30 mm and shield critical segments with heat-shrink tubing containing a grounding wire. Avoid routing near high-current cables (e.g., starter motor) to prevent induced noise. For aftermarket upgrades, bypass the factory harness only if replacing with Teflon-insulated wire rated for 150°C–standard PVC degrades at sustained temperatures above 80°C.
Troubleshooting Color Code Anomalies
European variants may substitute white/green for low-beam instead of brown, while North American models often lack the yellow stripe on ground cables. Always cross-check with a wiring schematic specific to the production date. If retrofitting, document new color codes to simplify future repairs. Use spade connectors for bulb sockets but discard any with oxidation–clean contact surfaces with 1000-grit sandpaper followed by dielectric grease.
Final validation involves a cold-start test: measure voltage at the bulb terminals with the system activated. Low beams should register 12.2V–13.8V, high beams 11.5V–14.2V (accounting for alternator output). Deviations below 11V indicate undersized wire, poor ground, or parasitic resistance. Replace any wire showing discoloration or brittleness–preventive action costs less than diagnosing melted insulation later.
