How to Wire a Backup Camera on 2015 Ford F150 Step-by-Step Guide

To resolve reverse signal display issues, start by inspecting the purple wire at pin 11 of the tailgate’s 14-pin connector–this carries the composite video feed. If the screen remains dark, probe the black/white ground line (pin 9) for continuity, as a corroded or loose connection disrupts the entire circuit. For vehicles with trailer prep packages, verify the auxiliary power lead (pin 14) supplies 12V; a missing signal here disables dynamic guidelines.

Trace the harness from the tailgate toward the head unit: the bundle runs along the driver-side frame rail, secured with plastic clips near the fuel tank access panel. Cut insulation-resistant sheathing at connection points only–excessive stripping weakens stranded conductors. The reverse trigger wire (light green, pin 12) energizes the display when the transmission shifts to park; test with a multimeter–voltage should spike to 12V momentarily.

For aftermarket integrations, splice into the yellow RCA signal line before it terminates at the factory module. Use crimp connectors rated for 18-gauge wire to avoid voltage drops that cause pixelation. If retrofitting a third-party screen, match impedance: the OEM system outputs 75 ohms. Deviations above 100 ohms distort image quality during low-light conditions.

Isolate interference by toggling the infotainment system’s Bluetooth antennas–RF noise from poorly shielded cables can bleed into the video feed, producing horizontal lines. Replace any damaged sections of the harness with TWP-16 wire (temperature-rated to 105°C) to prevent melting near exhaust heat shields. Label each lead before disassembly: factory color codes slightly deviate for models with sonic parking sensors.

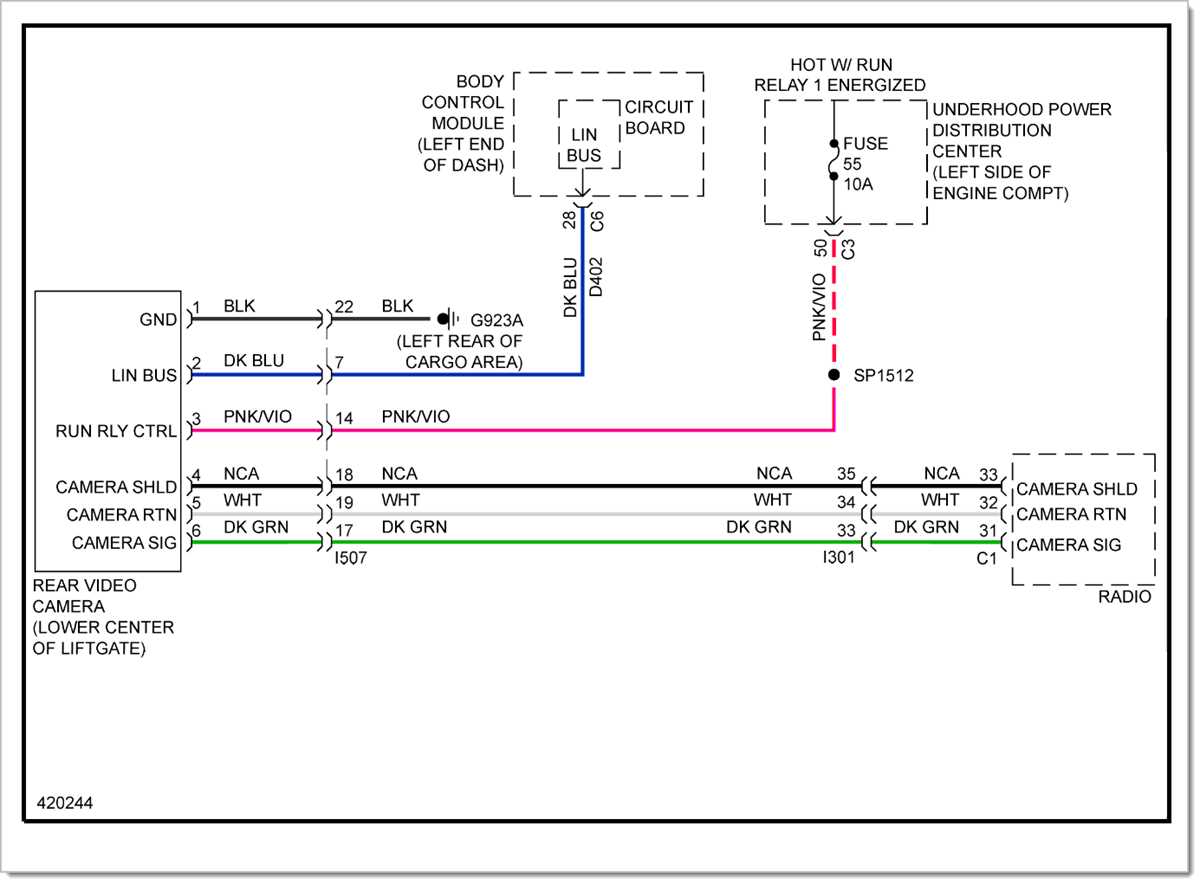

Rear View System Electrical Schematic for Pickup Trucks

Start by locating the reverse light signal wire beneath the dashboard near the brake pedal assembly–it’s typically the light green/yellow striped conductor on pin 21 of the OEM harness connector. Splice this line using a sealed butt connector rated for 20-30 amps to feed power exclusively to the video module when the vehicle shifts into reverse.

Identify the coaxial cable harness behind the tailgate latch panel: the white RCA plug with a black woven shield connects directly to the display’s input port on the infotainment screen. Route this cable through the factory loom alongside the existing harness bundle, securing it every 12 inches with nylon zip ties to prevent chafing against the frame rails.

Grounding and Video Signal Integrity

Attach the module’s ground wire to a bare metal point on the chassis near the rear bumper support, scraping off any paint or corrosion for optimal conductivity. Avoid the exhaust hanger bolts or suspension mounts, as these can introduce electrical noise into the video feed, causing intermittent distortions.

The power supply for auxiliary devices should derive from the fuse box behind the passenger kick panel–insert a 10-amp mini fuse into slot 42 (labeled “RVCS”) using a fuse tap adapter. Verify voltage output with a multimeter set to DC 20V range before connecting to the module’s red input wire to prevent damage to sensitive components.

For aftermarket units, match the resolution settings in the display menu to 720p PAL/NTSC output to align with the original system’s video format. Incorrect settings may result in a blank screen or stretched images, requiring a factory reset via the infotainment system’s diagnostic menu.

Examine the wiring insulation for cracks or exposed copper strands before final assembly–use dielectric grease on all connections to prevent moisture infiltration, especially in regions with high humidity or road salt exposure. Test functionality with the ignition on and gear engaged in reverse, ensuring the rear view feed appears within 2 seconds of activation.

Locating the Right Connection Module for the Rear View Sensor System

For the 2015 MY pickup’s tailgate-mounted vision aid, select harness part #HL3Z-19G490-A. This OEM assembly includes an 8-pin black plug with pre-crimped leads–yellow/light-blue for video feed, brown/white for power, and solid black for ground. Aftermarket substitutes often omit shielded coax or mislabel wires; verify continuity between the central conductor and pin 5 on the instrument panel connector before installation. Factory documentation labels pins as follows:

• Pin 1 – +12V ignition-switched
• Pin 2 – Reverse signal input
• Pin 3 – Chassis return
• Pin 4 – Right-side auxiliary sensor
• Pin 5 – Composite video center
• Pin 6 – Left-side auxiliary sensor
• Pin 7 – Illumination control
• Pin 8 – Shield drain

Trim levels from XL through Platinum share this layout, but trailer tow packages add a secondary harness (part #HL3Z-19H426-B) with an extra 4-pin connector for dynamic hitch lines. Avoid splicing into the tail light circuit–use the dedicated rear body loom that terminates near the roof spoiler mounting bracket instead.

Step-by-Step Connection Process for Factory Rear View System Harness

Begin by disconnecting the vehicle’s negative battery terminal to prevent electrical shorts while handling connectors. Locate the OEM tailgate connector, typically a 12-pin plug near the rear liftgate hinge, and separate it by releasing the locking tab. Identify the signal feed pin (usually labeled “CAM+” or “Video Out”) using a multimeter in continuity mode while activating the reverse gear–this wire will carry a 5-7V pulse. Attach a T-tap connector to this wire, ensuring the splice is crimped and soldered for corrosion resistance. Route the new lead through the existing harness channel along the driver-side frame rail, securing it with nylon zip ties every 6 inches to prevent chafing against sharp edges.

Finalizing the Power and Ground Points

Connect the video signal lead to the monitor’s yellow RCA input or the dedicated input port if using an aftermarket head unit. For power, tap into the reverse light circuit (white/purple striped wire in most trim levels) at the fuse box under the dash–use a relay if current exceeds 3 amps. Ground the camera module to a bare metal surface near the tailgate latch, sanding the contact point to remove paint or oxidation. Reconnect the battery, then test the system by engaging reverse gear–verify the display shows a stable image without flicker or interference.

Diagnosing Rear Vision System Electrical Faults in the 2015 Pickup

Check the fuse linked to the reverse signal circuit first. Locate fuse #37 in the central junction box–labeled “REVERSING LAMPS”–using a multimeter to verify continuity. If blown, replace with a 10A fuse; persistent failure indicates a short in the harness near the tailgate hinge or trailer plug.

Inspect the ground connection at G203, found beneath the left rear quarter panel. Corrosion or loose terminals disrupt the video feed; clean with a wire brush and secure with a 10mm bolt. If symptoms persist, probe the ground path with a voltmeter–voltage drop above 0.2V suggests an inadequate earth.

• Test the reverse light switch by backprobing the connector (T32, pin 2) while shifting into reverse. Expected voltage: 12V; absence points to a faulty switch or open in circuit S356.
• Examine the coaxial cable between the display and sensor for kinks or abrasions. Damaged shielding introduces interference, visible as static or delayed imaging. Replace the entire cable run if nicked.

Measure the voltage at the sensor’s power pin (T6, pin 1) with the ignition on and transmission in reverse. A reading below 9V confirms voltage drop; trace the red/blue wire through splice S282 to identify resistance sources.

Isolating Signal Loss in the Display Module

Disconnect the head unit and probe the video input connector (C3455, pin 8) for a 1V peak-to-peak composite signal while in reverse. No signal? Retrace the yellow/light blue wire to splice S203 near the B-pillar–look for pinched sections under the carpet.

1. With the sensor unplugged, check for 5V at pin 4 of T6. Missing voltage? The control module may be damaged; reflash firmware before replacement.
2. If the image flickers, swap the display module with a known-good unit. Recurring issues confirm a faulty screen–verify touch responsiveness before condemning hardware.

Re-seat the rearview assembly’s wiring harness connector (C3460). Oxidation here mimics cable failure; clean contacts with electrical cleaner and apply dielectric grease. If the problem recurs, bypass the factory harness with a direct 18-gauge jumper between the sensor and display.

Inspect the trailer tow wiring adapter (if equipped). The brown wire often carries reverse signal current; a short here disables both trailer lights and sensor feed. Use a relay to isolate circuits if frequent trailer use is suspected.

Pinpointing Rear Vision System Power and Ground Leads on Schematics

Scan the electrical schematic for the C280B connector–this 12-pin interface handles both energy delivery and signal return for the reverse monitor. The yellow/light blue tracer lead (pin 6) supplies 12V upon shift lever engagement, while the black/orange tracer (pin 8) provides a dedicated chassis reference. Verify continuity from these pins to the harness splice labeled S304 near the tailgate; resistance should read <0.5 ohms. If values exceed this threshold, inspect the G305 inline fuse (10A) and K200 relay for degradation. Corrosion at the J50 grounding stud beneath the rear fascia is a frequent culprit–clean with 400-grit sandpaper and apply dielectric grease.

Connector	Pin	Wire Color	Function	Voltage (Key On, Reverse)	Resistance to Ground
C280B	6	YL/LB	Switched +12V	11.8–12.4V	OL
C280B	8	BK/OR	Chassis Return	0V	<0.5Ω
C280B	9	WH/LB	Composite Video	0.8–1.2V (peak-to-peak)	75Ω ±5%

For models equipped with trailer tow wiring, locate the TBC module (left D-pillar) and cross-reference its C155 connector. The reverse sensor feed originates from pin 3 (PK/BK), branching to the monitor via splice S203. Use a non-contact voltage probe to confirm pulsation on the YL/LB line during gear selection–absence indicates a faulty P28 park/neutral switch or open in the K70 harness section between the transmission control module and rear junction block.
