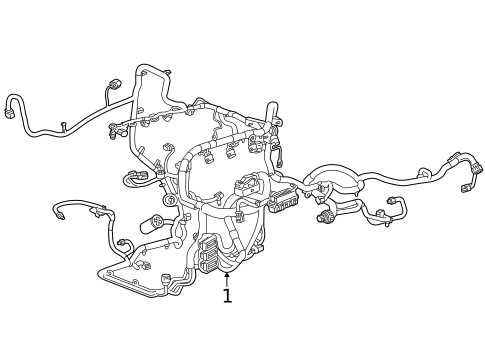

Detailed Wiring Harness Diagram for the 2015 Chevrolet Silverado 1500 and 2500HD

Start with the under-hood conduit map. The main fuse block connects to three primary trunks: a 10-pin gray plug for powertrain controls, an 8-pin red plug for lighting and sensors, and a 6-pin white plug feeding the cabin relay box. Trace the thickest cable–typically the 8-gauge purple wire–to locate the alternator output node; cross-reference this junction with the service manual’s page 5-22 to verify torque specs (12–14 Nm) before disconnecting.

Focus next on the engine bay’s right-side firewall pass-through. A 12-way black connector carries signals from five critical circuits: throttle body position feedback, fuel injector triggering, oxygen sensor heaters, knock sensor detection, and the EVAP purge solenoid. Each pin’s voltage ranges are listed below–confirm readings with a multimeter set to 20 VDC before attempting repairs:

Pin A (Crankshaft Position): 0.5–4.8 V square wave

Pin B (Camshaft Position): 0–5 V analog ramp

Pin C (Fuel Pump Relay): 12 V switched

Pin D (VSS Signal): 0–12 V pulsed

Pin E (Ignition Coil Feedback): 0–200 mV AC

Skip猜测 common trouble spots: the left rear quarter panel ground strap and the trailer tow adapter loom. Instead, remove the driver-side kick panel to expose the BCM harness splice. Incorrect routing here often mimics faulty ABS modules–test continuity between pin 37 on the BCM and terminal F on the ABS pump with a 1 kΩ resistor to rule out parasitic drains before replacing components.

For rear light clusters, follow the ground wire (black with a thin white tracer) from the tailgate hinge conduit. This wire splits into four branches: reversing lamps, stop lamps, turn signals, and license plate illumination. Each branch should maintain less than 0.3 Ω resistance to chassis; higher values indicate corrosion at the T-tap under the spare tire well–clean connections with dielectric grease after verifying circuit integrity.

Chevy Truck Electrical Layout Reference

Start by locating fuse block X50 under the driver’s side dashboard–pins 30 and 31 control the trailer tow lighting relay. Use a multimeter set to 12V DC to verify continuity between the brown/white stripe wire (pin 30) and chassis ground before attaching any aftermarket components. Mismatched ground paths can fry the BCM without triggering diagnostic codes. Always disconnect the negative battery terminal when probing circuits to prevent shorting sensitive modules.

Color-Coded Circuit Paths

Purple/yellow stripe runs from the underhood junction box J2 to the left front park lamp–interruption here kills both parking and turn signals on that side. For trailer brake controllers, splice into the dark blue wire (pin 29 at connector C1) at the rear frame rail; it carries a 12V output verified at 5.5A max. Avoid soldering near plastic clips–they melt at 180°F; use crimp connectors rated for 90°C minimum instead.

Finding Primary Powertrain Connector Points on GM’s Full-Size Pickup

Begin beneath the driver-side dashboard near the firewall’s lower edge–remove the plastic kick panel to expose the central electrical junction. The largest 104-pin block (black housing) handles ECM, TCM, and fuel system signals; a smaller 32-pin gray connector links sensor loops for MAP, IAT, and throttle position. Mark each plug with painter’s tape before disconnecting to prevent cross-threading during reassembly.

Connector Color	Pin Count	Primary Systems	Access Difficulty (1-5)
Black	104	Engine control, transmission shift solenoids	3
Gray	32	Pressure sensors, temperature inputs	2
Blue	24	Ignition coils, camshaft position	4
Red	16	Fuel injectors, O2 sensors	5

Trace the main loom from the fuse box toward the engine bay–follow the bulkhead grommet where the bundle exits the cab. Two additional connectors (blue 24-pin, red 16-pin) sit behind the intake manifold; relieve fuel rail pressure and remove the decorative cover to reach them. Torx T20 fasteners secure the loom clips along the valve cover–replace with stainless screws if corrosion is present.

Step-by-Step Color Coding for the Instrument Cluster Cable Assembly

Locate the black wiring connector behind the gauge cluster–pin A12 carries the orange (ORG) circuit for the ignition-switched power source. Confirm continuity with a multimeter before proceeding, as voltage fluctuations in this trace frequently cause intermittent gauge failures.

Trace the light blue (LT BLU) lead from pin C5 to the fuel level sender; splice resistance should measure 32-240 ohms across the sensor’s full sweep. Replace the sender if readings stabilize outside this range, as corroded contacts distort readings.

Follow the dark green/white (DK GRN/WHT) wire from pin B10 to the speedometer’s VSS input–ensure no chafing near the transmission tailshaft. Signal integrity checks require an oscilloscope: waveform should peak at 5V with consistent frequency matching drive speed.

Voltage Reference and Ground Paths

Verify the yellow (YEL) circuit at pin A3 provides 12V reference from the fuse block; test with a voltmeter while cycling the key to catch dropouts. If voltage dips below 11.5V, inspect the 10A IGN fuse and associated relay for arcing.

Attach a brown/white (BRN/WHT) ground strap at pin D9 directly to chassis metal–paint penetration ensures conductivity. Poor grounding introduces phantom errors in tachometer readings and dimmed backlighting.

The purple (PPL) data link connector at pin C3 transmits CAN bus signals; bypassing it with a 120-ohm termination resistor may restore communication if the network is silent. Check harness routing near the steering column for pinched segments disrupting low-speed CAN.

Diagnostic Overrides and Sensor Bypasses

Jumper the tan/black (TAN/BLK) wire at pin A7 to the gray (GRY) constant power lead at pin D4 to force full-scale brightness on all displays–if illumination works, replace the headlight switch or BCM module.

How to Trace and Repair Ground Wire Connections Under the Dashboard

Locate the primary grounding stud near the driver’s side kick panel–typically secured to the firewall or chassis rail. Use a multimeter set to continuity mode to verify the connection between the stud and the vehicle’s negative battery terminal. A reading below 0.5 ohms confirms a solid path; anything higher indicates corrosion or a loose fastener. Clean the stud and mating surface with a wire brush and dielectric grease before reattaching any terminals.

Disconnect the battery first–this prevents sparks when probing live circuits. Identify auxiliary ground points by following the thickest black cables branching from the main bundle; these often terminate behind the instrument cluster or under the steering column. Label each wire with masking tape as you trace it to avoid confusion during reassembly. Use a flashlight and inspection mirror to spot hidden connections without removing the dashboard entirely.

Inspect corroded terminals by gently prying apart crimped connectors with a small flathead screwdriver. If insulation appears brittle or wire strands are frayed, strip 3/8″ of the jacket and solder a new crimp connector, heat-shrinking it for protection. For intermittent failures, wiggle-test the wire while monitoring voltage drops–chafed sections often hide near sharp edges or moving components like the pedal assembly. Replace any zip ties pinching wires against metal.

Testing and Securing Loose Grounds

Attach a temporary jumper cable from a known good ground (like the battery negative) to suspect terminals while the engine runs. If symptoms disappear–like dim lights or erratic gauges–the original ground path is compromised. Secure replacement grounds with star washers between the terminal and mounting surface to prevent loosening from vibration. Torque fasteners to 8-10 ft-lbs; overtightening can strip threads.

For hard-to-reach areas, use an extendable magnetic pick-up tool to retrieve dropped fasteners or terminals. Apply corrosion inhibitor spray to all cleaned connections before reassembly. Recheck continuity after reinstalling panels–interior trim clips often dislodge wires during removal if not handled carefully. Document each step with photos to simplify future diagnostics.

Identifying Fuse Panel Circuit Routing and Terminal Pinouts

Locate the under-dash distribution block and trace each colored lead from the entrance grommet to its mating terminal. Map every red stripe, blue stripe, and solid yellow conductor using a multimeter set to continuity mode: probe the fuse holder socket contact and follow the wire back to its crimp connection. Note the cavity number on the back of each fuse slot–these IDs correlate to specific circuits listed in the repair manual’s legend. Inspect the weather-pack connectors for the anti-corrosion gel coating; degraded seals cause voltage drop and intermittent faults.

• Black 18-gauge wires with silver stripe link ground bolts to chassis rails–verify resistance under 0.5 ohms.
• Green sockets with a single tab lock indicate Metri-Pack 150 series terminals; orange retainer clips secure the latch.
• Purple push-on connectors use a tang release; disengage by squeezing the release ridge before pulling.
• Twist-lock Deutsch connectors require a quarter-turn to unlock; store removed terminals in labeled ziplock bags.
• Check T-tap splices for cracked insulation; wrap new joins with adhesive-lined heat shrink tubing and apply 12-inch pounds torque to securing screws.

Common Terminal Pinouts and Tool Selection

Remove dash trim with a screwdriver wrapped in painter’s tape to avoid scratching surfaces. Disconnect battery negative terminal first to prevent short circuits–use a ratcheting 10mm socket, not pliers, to prevent rounding hex heads. For blade-type connectors, a terminal pick lifts the secondary lock while a small flat-blade screwdriver pries the male tab. Mini-blade terminals (0.64 mm) require specialized extraction tools; generic picks damage plastic housings.

1. Metri-Pack 280: matches gold female blades to male cavity numbers–align the index notch before seating.
2. Weather-pack: applies dielectric grease to seals; torque terminal screws to 3–5 inch-pounds.
3. JST connectors: use the correct crimp profile (red for 22–18 AWG, blue for 20–16 AWG).
4. Verify micro-relay pin assignments with a test light–85 and 86 coils, 30 supply, 87 output.
5. Locate hidden junctions beneath carpet; lift floor mats and drill 3/8″ pilot holes to access splice joints.
