Ford F150 2017 Stereo Wiring Guide and Color Code Breakdown
For precise integration, connect the aftermarket head unit to the vehicle’s factory harness using the metra 70-1770 adapter. This kit aligns with the 16-pin connector behind the stock radio, preserving steering wheel controls, amplifier triggers, and reverse signal retention. Cutting or splicing original wires risks loss of functionality–use the provided pigtails instead.
Locate the blue (antenna), orange (illumination), and pink/black (amplifier turn-on) leads; these must match the new unit’s harness exactly. A 12V test light verifies constant power on the yellow (battery) and red (accessory) wires before finalizing connections. Ground the black wire to a bare metal chassis point–paint or corrosion will cause intermittent failure.
If retaining the Ford Sync system, retain the white (CAN bus high) and green (CAN bus low) wires to maintain voice command and climate control feedback. Failure to do so may trigger dashboard error codes. For safety disconnect, remove the negative battery terminal before handling any harness to prevent short circuits or module damage.
Install a microphone for hands-free by routing the two-wire lead from the head unit to the overhead console; secure with zip ties to avoid rattling. Test all functions–volume, tuning, Bluetooth pairing, and rearview camera display–before reassembling the dash trim. Use a plastic pry tool to avoid scratching panels during removal and reinstallation.
Ford F-Series Audio System Wire Connection Reference

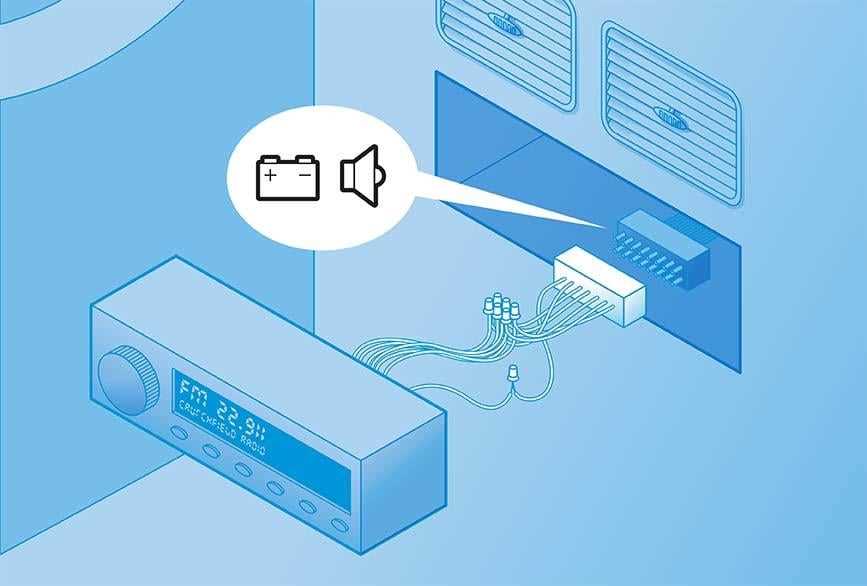

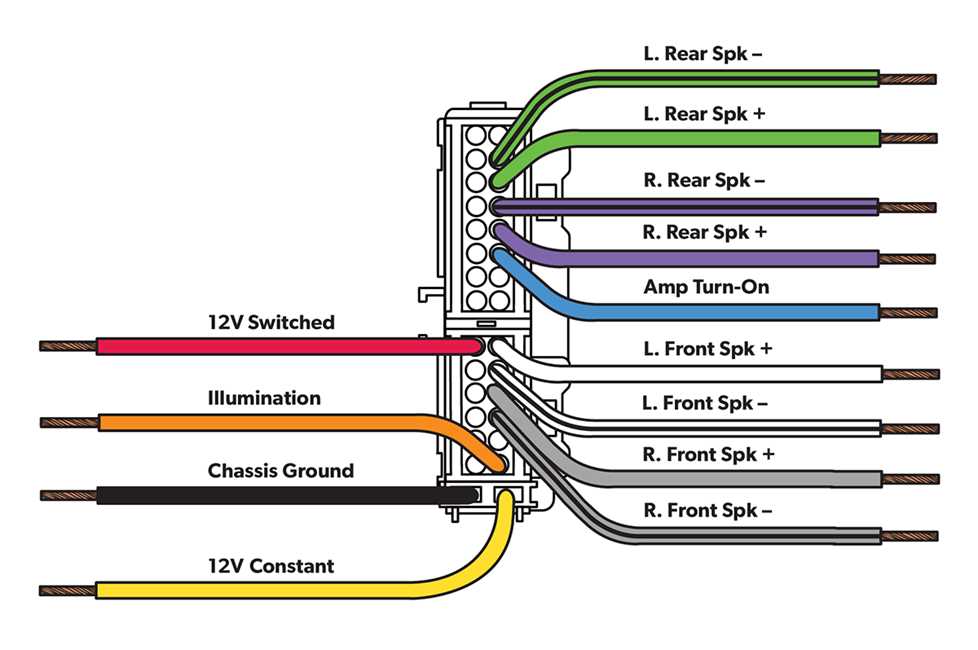

Locate the factory harness behind the dash panel on the driver’s side by removing the lower kick panel. Match the aftermarket head unit wires to these colors:
- Red/light blue stripe – 12V switched power (acc).
- Black – Ground connection (ensure direct chassis contact).
- White/red stripe – Left front speaker (+).
- White/brown stripe – Left front speaker (–).
- Gray/red stripe – Right front speaker (+).
- Gray/brown stripe – Right front speaker (–).
- Purple/white stripe – Rear left speaker (+).
- Purple/brown stripe – Rear left speaker (–).
- Green/white stripe – Rear right speaker (+).
- Green/brown stripe – Rear right speaker (–).
Trim excess wire length to prevent interference with the climate control module–use crimp connectors or solder joints for reliability. Verify connections with a multimeter before reassembly; a missing ground results in distorted audio or no power.
For amplified systems, the blue wire (remote turn-on) triggers the external amp. Connect it directly to the aftermarket unit’s corresponding lead–failure here mutes output even if speakers receive signal. If retaining SYNC, splice the teal/yellow wire (data bus) to the aftermarket harness using a T-tap; cutting it disables voice commands.
Override factory settings by accessing the fuse box (fuse #27, 10A) and temporarily removing it during installation. This prevents the vehicle’s computer from detecting unauthorized changes, which can trigger error codes. Tuck connectors neatly against the firewall to avoid rattling–secure with zip ties every 6 inches.
Finding Audio System Cable Connections in a 2017-Model Ford Pickup
Begin by removing the lower dashboard trim panel beneath the climate controls–this is secured by three 7mm bolts and two plastic clips. The primary harness plug for the head unit sits directly behind this panel, identifiable by its 16-pin rectangular connector with a purple latch. Avoid forcing the clip; depress the latch fully before separation to prevent damage.
For speaker leads, focus on the driver-side kick panel. Pry back the carpet edge near the door sill to reveal a bundle of six twisted pairs: front door woofer (gray/red and gray/black), tweeter (orange/light blue and orange/white), and subwoofer (green/violet and green/orange). Each pair is color-coded and twisted individually–match striped wires to positive terminals.
The amplifier is mounted behind the rear seat, accessed by folding the backrest forward. Its harness includes four RCA-style connectors (gray, purple, green, white) and a 12-pin plug for power (yellow/red) and ground (black). Label each wire before disconnecting–reassembly errors can trigger fault codes in the SYNC module.
Door speakers connect via weatherproof connectors tucked behind the interior handle. The front doors use a three-pin plug (yellow, white, brown), while rear doors employ a four-pin variant. Test continuity with a multimeter–open circuits often indicate corroded contacts requiring dielectric grease reapplication.
Auxiliary inputs and USB ports route through a secondary harness near the center console storage bin. The connector is a small 8-pin square plug (silver housing) with lighting blue (Bluetooth), brown (USB power), and purple (aux-in) wires. Missing pins signal a factory short-cut–replace the entire pigtail if insulation is brittle.
Blower motor resistor and climate control harnesses overlap near the firewall. Mistaking the stereo harness here risks cross-wiring to HVAC components–verify resistance values: amplifier power should read 12V; climate sensors show 5V. Use a non-contact probe to distinguish live feeds from data lines.
T-taps for aftermarket integration should be installed upstream, at the fuse block (position 29, 20A) for accessory power. Avoid splicing into OEM harnesses mid-run–exposed copper corrodes within 18 months, even under shrink tubing. Instead, use crimp connectors with heat-activated adhesive for long-term stability.
Decoding OEM Cable Hues and Roles for Premium Audio Retrofits
Locate the constant 12V power lead (typically solid yellow or orange with a stripe) beneath the dash cluster–not the ignition-switched wire (red or red/white). Verify with a multimeter: voltage must persist after engine shutdown. Misidentifying this feed risks draining the battery or frying the amplifier during off cycles.
Ground and Speaker Pathways
The chassis ground (black, often braided) attaches to unpainted metal near the original head unit; sand paint if corrosion exists. For front door tweeters, trace violet/violet-white (right channel) and gray/gray-white (left) wires–polarity reversals cause phase cancellation. Rear coaxial sets use green/green-white and purple/purple-white; confirm with a 9V battery: cone movement should push on +, pull on –.
Harness adapters in aftermarket kits frequently mislabel the remote turn-on (blue or blue/white). Connect this only to the factory amplifier trigger (not antenna) to prevent overheating the new unit’s internal amp. If integrating a subwoofer, splice into the purple/light purple wires at the rear harness–never tap the front speaker lines, as this reduces clarity and risks overload.
Installation Guide for Aftermarket Receiver in Ford Pickup
Disconnect the negative terminal from the vehicle’s battery before handling any electrical connections. Use a 10mm socket to loosen the terminal clamp–this prevents accidental short circuits during the process. The factory harness behind the dash contains color-coded wires that match the aftermarket unit’s connectors; a direct splice isn’t required if using a compatible adapter (Part #METRA 70-1751). Verify the adapter’s pinout against the new receiver’s manual to avoid mismatched signals.
Remove the trim panel around the existing entertainment system by prying gently with a plastic trim tool–start at the bottom edge and work upward to release the clips without breaking them. The panel is secured by six plastic tabs and two screws near the climate controls; keep track of these fasteners. For power, connect the new unit’s constant 12V (yellow) and ignition-switched 12V (red) wires to the corresponding adapter leads. The blue/white remote turn-on wire must link to the amplifier’s trigger input–failure here disables external audio components.
| Wire Color (Factory) | Function | Aftermarket Connector | Notes |
|---|---|---|---|
| Yellow/Black | Battery Constant (+) | Yellow | Must fuse with 15A inline |
| Red | Ignition (+) | Red | Requires switched circuit |
| Black | Ground (-) | Black | Scrape chassis paint for solid connection |
| Blue/White | Remote AMP turn-on | Blue/White | Verify 12V output during key-on test |
| Gray/Brown | Front Right Speaker (+) | Gray | Polarity critical; reverse = phase cancellation |
Secure all connections with solder and heat-shrink tubing or crimp connectors–twist-and-tape methods risk corrosion over time. Route wires away from moving parts (e.g., steering column) and heat sources (e.g., heater core). Reattach the dash panel by aligning the tabs and pressing firmly until seated, then reinstall the screws. Reconnect the battery and test the unit before final reassembly; verify all speakers, volume controls, and steering-wheel audio buttons function correctly. If static persists, recheck ground connections–ensure direct metal-to-metal contact with the chassis.
For vehicles equipped with SYNC, the data bus (orange/white) carries steering-wheel control signals and preset configurations. Use an ADS-MRR or PAC SWI-RU interface to retain factory functionality; bypassing this step disables voice commands and media presets. The parking brake and reverse signal wires (light green/violet, violet/yellow) must remain connected to avoid triggering video-in-motion restrictions on navigation units. Double-check all splices for exposed copper–even a single stray strand can cause intermittent faults.
Common Troubleshooting Tips for Audio System Electrical Problems in Ford Trucks
Check the fuse for the sound unit first. On the 2017 model, fuse #29 (10A) protects the audio system circuit. A blown fuse often mimics a wiring failure–replace it with one of identical amperage. If the new fuse blows immediately, inspect the harness near the rear door speakers; frayed insulation here frequently grounds the circuit.
Test speaker connections at the amplifier behind the glove box. Unplug the harness and probe each terminal with a multimeter set to resistance mode. Expected values should be 4 ohms for factory setups–readings above 8 ohms or infinite resistance indicate broken coils or severed cables inside the door panel.
Grounding and Signal Disruptions
Locate the main ground point near the emergency brake assembly. Corrosion at this stud causes intermittent sound drops. Sand the metal surface to bare steel, apply dielectric grease, and secure the ring terminal with a stainless-steel bolt. If issues persist, inspect the CAN bus wires–yellow and green conductors–where they splice at the BCM; chafing against the firewall triggers random mute faults.
Verify power delivery to the head unit’s red and yellow wires. The red (switched) wire should show battery voltage when the ignition is on, while the yellow (constant) wire must maintain 12V even when the truck is off. A dead yellow wire suggests a corroded connection under the driver’s footwell, where the main harness exits the cab.
Advanced Diagnostics for Persistent Problems
Use a tone generator to trace signal paths. Inject a 1 kHz sine wave at the amplifier’s line-level inputs. If the tone distorts or cuts out at high volumes, suspect a failing amplifier or overloaded circuit–common with aftermarket subwoofers pulling excessive current. For no-sound conditions, check the pink “data” wire at the OBD-II port; a short here disables the entire entertainment module.
Examine the steering wheel control wires–white and brown conductors–if button functions fail. These wires terminate at the clockspring; broken strands here prevent volume adjustments. For rear-seat audio issues, pull the backrest panel and test the orange/white wire feeding the auxiliary jack–oxidation at this junction kills all rear outputs.
