Complete Ford F150 Brake Light Wiring Diagram Guide for 2017 Model
If troubleshooting the rear signal wiring on your full-size truck, begin by locating fuse F42 in the under-dash panel–rated 10A–which feeds the tail lamp relay. Trace the OR/PK (orange/pink) wire from pin 87 of the relay socket to the C242 connector behind the left taillight assembly. This bypasses common failure points in the trailer module; resistance above 0.5 ohms here indicates corrosion or a severed strand.
For precise tracing, disconnect the negative battery terminal first to prevent accidental shorts. Probe the YE/BK (yellow/black) wire at the C100B connector near the trailer harness junction–voltage should read 12.5V with the pedal pressed. If absent, inspect the stop lamp switch (mounted on the pedal bracket) and its WH/RD (white/red) supply wire for continuity. Replace the switch if resistance exceeds 2 ohms when activated.
Ground integrity is critical: test the BK/W (black/white) wire at the rear frame rail near the left shock tower. A weak ground (above 0.1 ohms) causes intermittent operation. Use a star washer when reattaching to bare metal to prevent future oxidation. For vehicles with LED upgrades, ensure the load equalizer is inline to prevent hyperflash–standard halogen filaments draw 2.1A, while LEDs pull only 0.3A, requiring a 6-ohm, 50W resistor.
When splicing into the circuit, avoid the WH/YE wire–it carries 12V constant from the integrated module and powers additional functions. Use solder and heat-shrink instead of crimp connectors for reliability. Label each wire with 3mm heat-shrink tubing marked with a permanent marker to simplify future diagnostics.
Wiring Layout for Rear Signal Lamps on the 2016–2018 F-Series Pickup
Start troubleshooting by disconnecting the C2280B 16-pin connector at the rear harness splice near the left frame rail; probe pin 12 (white/orange stripe) with a 12 V test lamp while the pedal is depressed–failure to illuminate indicates an open in the feed circuit back to fuse F54 (10 A) under the dash panel.
The BCM outputs a 12 V PWM signal on pin 10 (gray/red) of the same connector; capture the waveform with a scope set to 2 V/div, 10 ms/div–verify 40–60 Hz, 75–85% duty cycle during steady pedal apply. Any deviation suggests a BCM reset (disconnect negative battery terminal for 10 min) or module replacement.
Trace the tail lamp feed–light green stripe–from the C1047 8-pin tail lamp socket to the R143 ground stud on the left frame; resistance across any joint above 0.2 Ω mandates cleaning with a stainless brush and securing with a new #10 star washer torqued to 8–10 Nm.
Inspect the trailer tow module if additional lamps are wired; T-connector pin assignments mirror the factory splice–pin 2 (dark blue/yellow) delivers switched output for trailer brakes, fused separately at F4 (25 A)–confirm continuity before connecting trailer harness to prevent back-feeding the main circuit.
For LED retrofits, remove the factory ballast resistor (R101, 1 kΩ, 1/4 W) found behind the left tail lamp housing; replace with a 2.2 kΩ, 1 W resistor to maintain proper BCM load sensing. Retain the original bulb filaments as a redundant load signal to prevent error codes C1155/C1156.

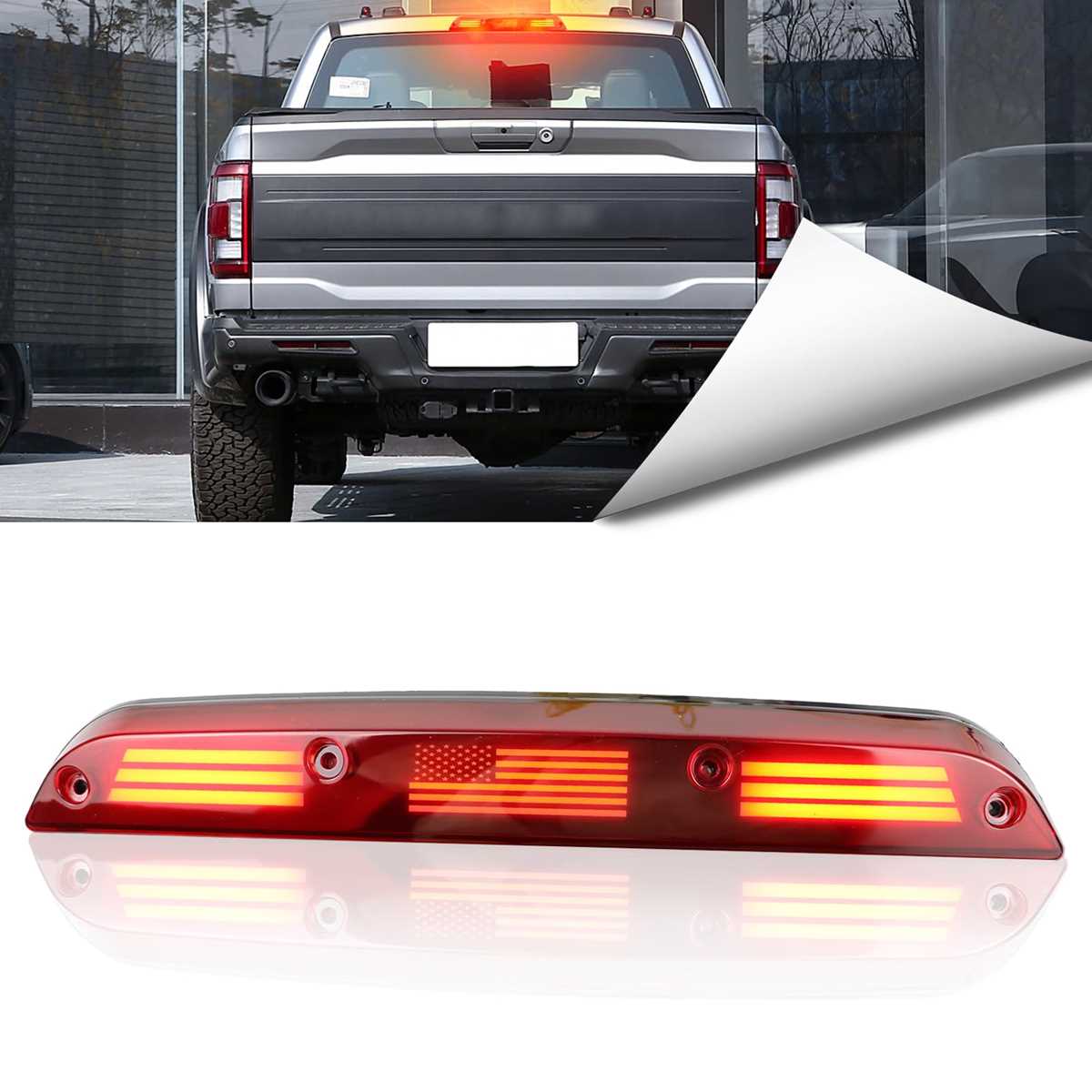

Lift the spare tire carrier to access the rear junction box; check splice J1 (under black tape) for corrosion–apply dielectric grease and heat-shrink tubing when re-terminating. The splice carries both high-mount stop lamp and turn signal feeds; separate misrouted wires to avoid ghost signals.
Programming updates via IDS are required if the instrument cluster displays “STOP LAMP FAULT” without bulb failure–perform Module Initialization for the IPC, then verify communication with the BCM using PIDs B212 (Stop Lamp Relay) and B213 (Brake Switch). Clear all DTCs before road testing.
Accessing Electrical Wiring References in the Official Pickup Repair Guide
Open the manufacturer’s PDF for the model year in question and navigate to section 8W-100. This portion contains the full wiring layouts for exterior illumination circuits. Look for the subheading labeled “Stop Lamp Circuit“–it directly corresponds to the rear signal network you need. The wiring codes follow standard color conventions: red with a white stripe (RD/WH) for the primary feed, brown with a light blue stripe (BN/LB) for ground, and violet (VT) for the load side. Cross-reference these with the fuse box legend on page 8W-102 to pinpoint the exact 30-amp fuse protecting this path.
- Locate Figure 8W-105-5–it isolates the stop signal tail assembly, including the pigtail connectors at the chassis junction (C2013).
- Verify continuity at the rear bulkhead connector using a multimeter; pin assignments are documented in 8W-106.
- If tracing from the pedal switch, follow the RD/YE wire to the under-dash relay, then to the rear harness splice at S107.

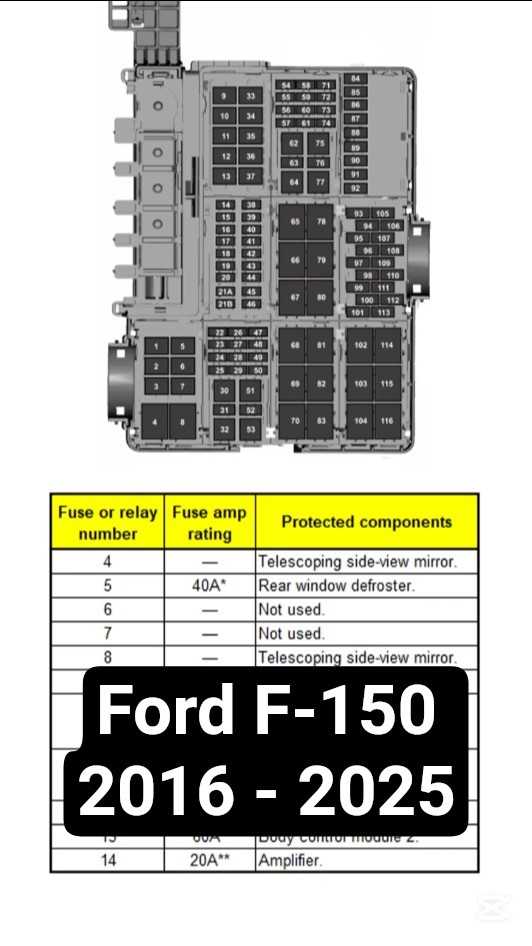

Locating Stop Signal Fuse and Power Relay on the 2016-2018 XL Trim
Start by opening the integrated power distribution box beneath the instrument panel on the driver side–remove the cover labeled “Fuse Box” in the owner’s reference guide (page 8-23). The primary circuit protection for rear lamps is fuse F54, rated at 15A, positioned two rows down from the top edge, third slot from the left. Confirm its state with a multimeter set to continuity mode; expect zero resistance if intact, infinite resistance if blown.
- F54 (15A): Handles tailgate and side marker filament circuits
- R07 (30A relay): Manages high-load input to the lamp assemblies
- F69 (10A): Dedicated to trailer wiring harness, often overlooked during bulb failures
Trace the relay labeled R07–located adjacent to F54–using the fuse block layout embossed on the underside of the lid. Labeling reads “Stoplamp Relay” but supports both reverse and hazard signals. Swap with an identical relay from the box (R12, marked “Horn,” is a compatible substitute) to isolate intermittent failures. Avoid probing relay sockets with powered test lights; induced voltage can corrupt the body control module.
Inspect connector C2940B behind the left kick panel–blue 18-gauge wire with a gray stripe delivers voltage from the relay output. Disconnect the harness, clean terminal 3C with electrical contact cleaner, and verify 12.4V DC against chassis ground while a helper depresses the pedal. Absence of voltage suggests an upstream issue: check the brake switch (part 3L1Z13480AA) or the wiring pigtail at the pedal bracket for chafing against the steering column tilt lever.
- Depress pedal fully, measure voltage at switch connector–spec range 11.8–14.5V
- Release pedal, voltage should drop below 0.2V
- Repeat test at lamp sockets with a non-powered probe to prevent false bulb filament failures
Tracing the Stop Signal Circuit: Wire Colors and Key Junctions
Locate the central switch module beneath the dashboard–pin 1 carries a red wire with a violet stripe (R/V) delivering 12V power from the fuse panel. This wire branches at connector C2280 (white 12-pin) into two paths: one feeds the trailer tow relay coil via a red wire with a pink stripe (R/PK), while the other continues as a solid red wire (R) to the left rear lamp assembly. Verify continuity at splice S184 near the passenger-side kick panel, where corrosion often disrupts signal flow to both taillamp clusters.
The ground return path varies by position: right-side lamps terminate at G401 (black wire with orange stripe, BK/O), whereas left-side units connect to G402 (black wire only, BK). Use a multimeter to measure voltage drop across these grounds–readings above 0.1V indicate high resistance, requiring cleaning or replacement of the chassis connection near the frame rail. For vehicles equipped with LED assemblies, note the additional brown wire with a white stripe (BN/W) that bridges the bulb-outage module, bypassing the standard hardwired circuit if a filament fails.
Common Failure Points and Diagnostic Steps
| Wire Color | Component | Typical Fault | Test Procedure |
|---|---|---|---|
| R/V | Stop switch | Switch internal corrosion | Backprobe pin 1 at C2280 with ignition on |
| R/PK | Trailer relay coil | Open coil windings | Apply 12V directly to pin 86 with relay removed |
| BN/W | Bulb-outage module | Module overheating | Check for 9.8V pulse with oscilloscope |
| BK/O | Right lamp ground | Diamond-shaped crimp failure | Replace crimp with soldered joint |
When inspecting the harness at the trailer plug, focus on the dark green wire with a yellow stripe (DG/Y)–this carries the switched signal from the main circuit to the trailer connector, often chafing against the spare tire mount. Isolate the wire by removing the rear bumper cover insert, then pull back the convolute tubing to inspect for insulation damage. Replace damaged sections with 18-gauge automotive wire, ensuring splices are sealed with adhesive-lined heat shrink.
For vehicles with integrated trailer brake controllers, the purple wire (P) feeds a dedicated power source from the underhood fuse block; confirm this line maintains 12.6V with the ignition off but drops to zero when the pedal is depressed if the controller includes a “power-on” feature. Test for parasitic draw by disconnecting the controller ground (typically a gray wire, GY) and monitoring current flow–readings above 50mA require further isolation of the controller’s internal circuits.
Key Failure Points in Stop Signal Circuits and How to Troubleshoot
Check the pedal switch first–its contacts corrode or seize after 60,000 miles, cutting power to the rear lamps even when the plunger depresses. Probe terminals 1 and 3 with a multimeter set to 12V DC; reading should toggle from 0V to battery voltage when pressed. If static, replace the switch–torque to 8 Nm to avoid fracturing the mounting ears.
Inspect the tail assembly wiring harness for chafing where it passes through the frame rails; vibration wears the insulation at the pinch points near the leaf spring hangers. Unwrap the loom, look for exposed copper strands rubbing against the steel, and solder a new section of 18-gauge GXL wire if damage exceeds 5 mm. Secure with adhesive-lined heat shrink to prevent future abrasion.
Ground Path Integrity
Trace the ground wire from the lamp socket to its chassis stud, typically bolted behind the rear bumper bracket. Remove the nut, clean both surfaces with a wire brush, then apply dielectric grease before reattaching. A voltage drop above 0.2V between the socket base and the stud indicates corrosion–drill a new hole if the original stud threads are stripped.
Examine the fuse block under the dash: label row C, slot 5 houses the stop signal feed, rated 15A. Pull the fuse, insert a continuity tester; if the filament stays cold, suspect a hairline crack in the ceramic body–swap for a micro-blade fuse, not glass. Parallel fuses risk overheating the harness, so always match the amperage.
Bulb Socket Corrosion
Remove the lens assembly–twist counter-clockwise on vehicles with amber turn signals–to access the dual-filament socket. Green or white crust on the brass contacts means oxidation; scrape clean with a fiberglass pen, then apply contact enhancer spray. Replace sockets showing melting or plastic deformation–aftermarket units often use thinner-gauge brass, leading to intermittent illumination.
