Complete 2017 Kia Sorento Radio Wiring Harness Color Code Guide

Start by securing the factory electrical blueprint for your SUV’s infotainment setup. Automotive manufacturers like this Korean brand embed color-coded conductors in their harnesses, and the EX diagram (often labeled “Premium Audio”) will reveal the exact pin assignments for each wire. Look for the illumination circuit–usually a thin orange or yellow stripe–because mismatching it can trip the CAN bus error codes. A multimeter set to 200 Ω continuity mode helps verify terminals without powering on the head unit.

Remove the center console fascia carefully; plastic clips on the sides snap with 8-10 lbs of outward pressure. Underneath, the 16-pin ISO connector hides the antenna feed–labeled ANT+–and the B+ constant line (thick red, 12 AWG). Cross-reference the splice points with the aftermarket harness adapter you’ll pair; Metra 70-5601 or Scosche KIA8 adapters align with the factory layout precisely, saving soldering time.

Ground loops are the silent saboteurs. Identify chassis bolts within 12 inches of the unit and scrape off paint for a clean, corrosion-free surface. Bolt a 14-gauge ring terminal directly against bare metal; avoid the thin factory grounding straps as they introduce resistance. For amplified systems, revert to the schematic’s remote turn-on line (blue/white stripe), ensuring it connects to a relay or ignition-switched source to prevent parasitic drain.

Complete Electrical Guide for Your Vehicle’s Audio System

Locate the factory harness behind the dash panel on the driver’s side, typically secured near the kick panel. The primary connector features a 16-pin plug with color-coded wires: yellow (constant 12V), red (switched 12V), black (ground), blue/white (antenna control), and orange (illumination). Verify these connections before proceeding to avoid blown fuses or short circuits.

For aftermarket upgrades, match the vehicle’s original harness to the new unit’s adapter. Brands like Metra or Scosche provide pre-assembled interfaces compatible with most models. Check the adapter’s pinout against the original system–mismatched wires may damage amplifiers or the head unit. Use a multimeter to confirm each wire’s function, setting it to DC voltage and probing the terminals while the ignition is on.

Speaker outputs follow a standard pattern: front left (gray), front right (white), rear left (green), and rear right (purple). Negative leads are striped. Ensure correct polarity–reversing positive and negative wires will distort sound. If the vehicle has a factory amplifier, additional harnesses may be required; bypassing it without proper adapters can result in weak or no audio output.

For parking sensors or reverse camera integration, identify the pink wire (reverse signal) in the harness. This triggers the display when shifting into reverse. If the camera or sensors fail, test this connection first–it’s a common point of failure. Use a 12V test light to confirm the signal activates when the gear is engaged.

Ground connections demand particular attention. Poor grounding causes static, erratic volume adjustments, or system shutdowns. Attach the ground wire (black) to a bare metal surface, sanded clean to ensure conductivity. Avoid grounding near moving parts or areas prone to moisture. If issues persist, relocate the ground point to a different chassis section.

Steering wheel controls require a dedicated adapter, typically sold separately. The adapter plugs into the vehicle’s control harness (often labeled SWC) and translates signals to the new unit. Without this, button functions like volume, track skip, or voice commands won’t work. Consult the adapter’s manual for programming steps–some require holding specific buttons during setup.

Fuse protection is critical. The original system uses a 10A fuse for the audio circuit, located in the interior fuse box. Replace it with an equivalent rating if upgrading power requirements. Never exceed the manufacturer’s recommended fuse amperage–higher values risk electrical fires. For custom installations, add an inline fuse near the battery for added safety.

Finding the OEM Audio System Connector Terminals for Your Vehicle

Begin by removing the center dashboard panel using a trim removal tool–pry gently from the lower right corner to avoid snapping the clips. The factory harness connector hides behind the climate control module, secured by a single 10mm bolt. Disconnect the battery negative terminal before handling any electrical connections to prevent shorts or accidental airbag deployment.

Pin Identification Without a Schematic

Label each wire by function using masking tape: constant 12V (usually red or yellow), switched power (often purple or orange), ground (black or brown), and speaker outputs (pairs matching polarity–white/green for front left, gray/violet for front right, etc.). A multimeter set to DC voltage helps verify–probe the suspected power wires against chassis ground; constant power should read ~12.6V regardless of ignition state, while switched power drops to 0V when the key is off.

Aftermarket adapters often misalign pin assignments–double-check using the vehicle’s service manual (section 4.6 “Entertainment System Harness”). The 24-pin connector’s top row typically carries audio signals, while the bottom row delivers power and illumination control. Avoid splicing into the CAN bus wires (solid colors with thin stripes), as interference can trigger false error codes in the instrument cluster.

Route new connectors through the existing harness path, securing with zip ties every 10cm to prevent vibration damage. Reinstall the climate control module first, ensuring all clips engage fully before refastening the dashboard panel. Power on the system and confirm all functions–if illumination flickers, recheck the dimmer wire connection at pin 18.

Understanding Audio System Cable Colors and Roles in Your Vehicle

Locate the harness connector behind the head unit first–it’s a 16-pin plug with color-coded leads. Match each wire to its purpose below before making any modifications to avoid signal loss or damage.

• Yellow (B+): Constant 12V power from the battery. This lead maintains memory settings for presets, clock, and equalizer profiles. Disconnecting it resets stored data.
• Red (Accessory): Switched 12V, energized when the ignition is on. Powers the stereo’s active functions–amplifiers, displays, and audio output require this feed. Weak voltage here causes intermittent shutdowns.
• Black (Ground): Chassis ground, typically bolted to the vehicle’s frame near the unit. A loose or corroded connection introduces noise–scratchy audio, static, or complete silence. Clean contact points with a wire brush before reattaching.
• Blue/White (Power Antenna/Amplifier Turn-On): Sends a 12V signal to activate external equipment–aftermarket amps, subwoofers, or motorized antennas. If your system lacks these, cap this wire to prevent short circuits.
• Orange (Illumination): Dims the display when headlights are active. Some models use this for dashboard brightness synchronization. Test with a multimeter–voltage should drop from ~12V to ~4V when headlights engage.
• Gray, Green, Purple, White (Speaker Outputs):
  • Gray (+/-): Front right door speaker.
  • Green (+/-): Rear right speaker.
  • Purple (+/-): Rear left speaker.
  • White (+/-): Front left door speaker.

  Striped wires are negative; solid are positive. Reversing polarity flips sound phase–check for muffled bass or hollow treble.

• Pink/Black (Data Bus or Mute): Handles CAN communication or mutes audio during calls. Splicing into this wire without a resistor can trigger error codes–use an inline adapter if integrating Bluetooth or navigation.

Verify each wire’s function with a test light or multimeter before splicing. Probe the red and yellow wires by turning the key–red should show 12V only when ignition is on; yellow remains live. Ground issues often mimic power failures–check for continuity between the black wire and bare metal.

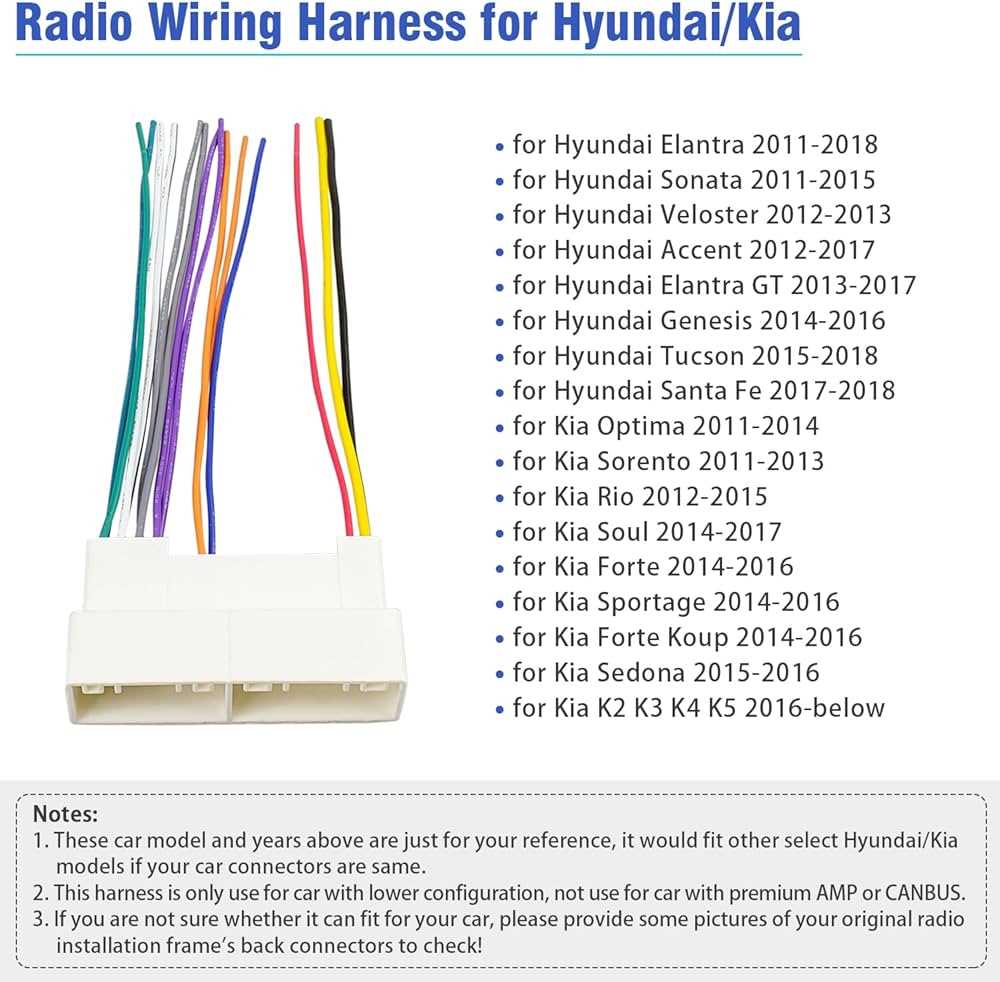

For aftermarket upgrades, use a harness adapter to avoid cutting OEM wires. Brands like Metra or Scosche offer plugs matching this vehicle’s pinout, including color-coded extensions. If wiring an amplifier, run new 12-gauge cables directly from the battery, fused within 18 inches, to prevent voltage drop.

Subwoofer installations require low-pass filtering–tap into the purple (rear left) and green (rear right) speaker wires, not the blue/white lead. Use a line-output converter if connecting to RCA inputs, adjusting gain to match factory sound levels. Incorrect settings cause distortion or blown speakers.

Static or interference often stems from poor grounding or wire routing near alternators, spark plugs, or modules. Route audio cables away from power wires, using split-loom tubing for protection. Twist speaker pairs together to reduce signal crosstalk.

If replacing the unit, note that some premium models include separate tweeters in the A-pillars–identify their wiring (typically thin gauge, gray or beige) to retain full-range sound. Disconnecting the battery before starting prevents accidental shorts and resets the ECU, which may require radio code re-entry afterward.

Step-by-Step Guide to Removing the Dashboard Trim for Head Unit Access

Disconnect the vehicle’s battery before starting. Use a 10mm socket to loosen the negative terminal–this prevents short circuits while handling interior components. Wait at least 10 minutes to allow residual power to dissipate from the system.

Locate the trim panel surrounding the infotainment display. Insert a plastic pry tool between the panel’s edge and the dash. Gently twist the tool to release the first clip–apply steady pressure to avoid snapping the plastic retainers. Work clockwise around the panel, releasing each clip one at a time. The clips are spaced approximately 2.5 inches apart.

• Start at the bottom-left corner where the trim meets the center console.
• Slide the pry tool along the seam, popping each clip without lifting the panel sharply.
• If resistance increases, stop–hidden screws (usually T20 Torx) may secure the lower section. Check beneath any small covers or grilles with a flashlight.

Once the clips are released, pull the trim panel forward carefully. Disconnect any electrical connectors attached to climate controls, hazard lights, or USB ports. Label each connector with masking tape to simplify reassembly. For connectors with locking tabs, press the tab with a flathead screwdriver before pulling apart.

Set the trim panel aside on a soft surface to avoid scratches. Examine the metal mounting bracket behind it–some models require removing two 7mm bolts holding the head unit in place. If the bracket obstructs access, remove it entirely after noting the screw positions for reinstallation.

To reinstall, align the trim’s clips first at the top edge, then press firmly around the perimeter until each snap audibly engages. Reconnect all electrical connectors, ensuring locking tabs click into place. Reattach the negative battery terminal, then test all functions–volume controls, AC, and power outlets–before finalizing the dash assembly.
