Step-by-Step Toyota Camry 2017 Radio Wiring Harness Color Code Guide
Start by identifying the harness connector behind the infotainment unit–it’s the black 24-pin plug labeled C in the factory schematics. Pin assignments vary by trim, but pins 1–4 (constant 12V), 5–8 (ignition-switched power), and 9–12 (ground) are consistent across configurations. Use a multimeter to verify continuity before disconnecting any wires; resistance readings above 0.5 ohms indicate corrosion or a break that requires splicing.
The speaker wiring follows a dual-phase layout: front left/right outputs are on pins 13–16, while rear channels occupy 17–20. Each pair splits into positive (solid color) and negative (striped) leads–crossing these will invert polarity, causing noticeable phase cancellation. For aftermarket upgrades, match impedance exactly; factory speakers run at 4 ohms, while third-party units often require 2–8 ohms.
Locate the antenna amplifier (a small module near the A-pillar) and trace its coaxial feed back to the head unit’s pin 21. Poor reception typically stems from a fractured ground at the amplifier’s pin 22–clean the chassis contact with 600-grit sandpaper and apply dielectric grease to prevent oxidation. If integrating Bluetooth, splice the CAN bus wires (pins 23–24) only after backing up the module’s firmware; incorrect connections can trigger immobilizer faults.
For USB retrofits, the accessory power line (pin 7) must handle 2.1A continuous draw–upgrade the inline fuse to 10A if adding high-current devices. The steering wheel controls operate via a resistor ladder on pin 10; each button press sends a distinct voltage (0.5V–4.5V) that must be calibrated in the new unit’s software settings. Skip generic harness adapters–they often misalign data protocols, leading to erratic volume control.
Connecting Aftermarket Audio Systems in the LE Sedan Trim
Start with the main 12-pin harness connector–identify the red power wire, typically marked as “B+” or “constant 12V.” This supplies steady current to memory functions and must be fused at 15 amps within 7 inches of the battery terminal. Pair it with the black ground cable, designated “GND,” which should terminate directly to bare metal using a #10 or #8 ring terminal, avoiding painted or coated surfaces for optimal conductivity.
Locate the illumination control line (usually pink or orange) feeding from the dash dimmer switch; this adjusts display brightness synchronously with vehicle lighting. Connect it directly to the aftermarket unit’s dimming input, ensuring polarity matches factory specs–reversing it may disable night-time visibility or cause flickering.
The front speaker harness uses four wires: solid color leads for positive polarity and striped counterparts for negative. Left front positive is solid white, while the negative pairs with white-striped; right front follows the same pattern with gray and gray-striped. Impedance mismatch above 4 ohms risks damaging OEM amplifier modules–verify aftermarket speaker ratings before installation.
For steering-wheel control integration, isolate the light blue/yellow (SW+) and light green/red (SW-) wires in the 6-pin auxiliary connector. These carry resistive signals decoded by aftermarket interfaces like Metra ASWC-1 or PAC RP5-GM54. Failure to bridge these correctly results in non-functional volume or track skip buttons–test each button press with a multimeter set to 200-ohm range before finalizing connections.
Bluetooth microphone and backup camera inputs, if applicable, reside in the 16-pin connector behind the climate controls. The mic line is solid purple, while the reverse trigger wire (pink with a white stripe) activates dashboard-mounted displays. Shield these with twisted-pair wiring to minimize interference from ignition coils or alternator whine–wrap both in aluminum foil grounded at a single point near the head unit.
Finalize by securing all splices with solder and heat-shrink tubing rated to 125°C minimum. Avoid crimp connectors; vibrations over time loosen them, causing intermittent failures. Route cables away from moving components like gearshift linkages or HVAC actuators, and tie wraps at 4-inch intervals using twist-release mounts for serviceability. Retain all original connectors to preserve resale value and diagnostic port functionality.
Finding the Audio System Connector Behind the Sedan’s Front Panel
Disconnect the negative battery terminal first to prevent short circuits. The harness sits behind the lower dashboard trim, adjacent to the climate controls. Remove the trim panel by unsnapping the plastic clips–use a thin pry tool to avoid damaging the fascia. The connector is typically bundled with other vehicle-specific plugs, identifiable by its multi-pin design and color-coded wires.
Trace the conduit from the sound unit receptacle downward. On most models, the bundle routes through a metal bracket secured by a 10mm bolt. Release the cable ties to gain better access. The primary harness, distinguished by orange, pink, and gray conductors, interfaces directly with the factory-installed receiver. Avoid tugging on individual strands; excess force can dislodge internal connections.
Locate the auxiliary ground wire–usually a black or brown strand–attached to the chassis near the pedal assembly. Verify continuity with a multimeter before proceeding. The illumination wire, often yellow, links to the dimmer circuit. Ensure compatibility with aftermarket upgrades by matching pin configurations documented in the vehicle’s technical manuals.
Key Precautions During Disassembly
Label each connector before detaching–skipping this risks miswiring the amplifier or triggering error codes. The steering column cover may require partial removal if the harness extends upward. Work in sections, organizing tools on a clean surface. Reinstall all fasteners tightly to prevent rattles or electrical interference.
Decoder Ring: Unmasking Speaker Wire Colors and Roles
Start by locating the harness connector behind the infotainment system’s mounting sleeve–this is where all audio signal paths converge. The pairings follow a strict polarity convention: solid hues carry the positive signal, while the same color with a stripe denotes the negative return. For front door drivers, a white wire (left channel) and a gray wire (right channel) exit the harness; rear speakers mirror this with violet (left) and green (right) leads. Treble units use thinner-gauge variants of the same colors, ensuring phase alignment with the main woofers.
Refer to the table below–it eliminates ambiguity by cross-referencing each wire’s physical pin on the connector with its speaker assignment. Note that accessory harnesses may transpose pin assignments, so always probe with a multimeter set to continuity mode before soldering.
| Wire Color (Solid) | Wire Color (Striped) | Speaker Location | Typical Pin |
|---|---|---|---|
| White | White/Black | Front Left | 12 |
| Gray | Gray/Black | Front Right | 11 |
| Violet | Violet/Black | Rear Left | 14 |
| Green | Green/Black | Rear Right | 13 |
If the connector’s locking tab obstructs visibility, gently depress it with a trim tool while pulling the harness free–never brute-force disassembly. Aftermarket amplifiers often require bridging the pin labeled “remote turn-on”; this is a blue wire with a white stripe tucked behind the main harness. Connecting this wire triggers the amplifier only when the head unit powers up, preventing parasitic battery drain.
Dual-voice coil setups necessitate splitting each speaker’s signal into parallel runs. Route the solid-color lead to the amplifier’s positive terminal first, then daisy-chain the striped return to the same speaker’s negative terminal before grounding it at the chassis. This preserves impedance integrity when combining tweeters and mid-woofers on the same channel.
For vehicles equipped with factory tweeters, tiny piggyback connectors branch off the main wires–white solid feeds the front-left tweeter, gray solid feeds front-right, violet and green variants serve the rear. Clip-on butt connectors accommodate these without requiring solder, but heat-shrink tubing should still be applied to insulate against moisture ingress.
Test each connection with a 1 kHz sine wave at moderate volume before reassembling the dash. If a channel exhibits static or dropout, immediately recheck the striped wire’s continuity; intermittent breaks often occur at the crimp point behind door panels. An inline fuse holder rated at 15 amps spliced into the amplifier’s power lead prevents fire hazards if a short develops.
Keep a roll of Teflon tape handy–wrap it three times around any spliced joint exposed to vibration, such as door-hinge areas. Avoid twisting dissimilar metals; copper-aluminum junctions corrode rapidly under fluctuating temperatures, introducing noise that no ground loop isolator can fix. Labeling each end with shrink tubing color-coded to the table above ensures future serviceability without guesswork.
Step-by-Step Guide to Removing the OEM Sound System for Third-Party Upgrades
First, disconnect the vehicle’s battery terminal to eliminate electrical risks. Use a 10mm socket wrench to loosen the negative clamp on the battery post, then set the cable aside. Allow at least five minutes for residual power to dissipate from the head unit’s capacitors before proceeding.
Locate the trim panels surrounding the stereo fascia. These are typically secured by hidden clips and may require a trim removal tool for prying. Insert the tool at the edges and apply gentle, even pressure–avoid forcing to prevent cracking. Work around the panel’s perimeter to release all clips before lifting it away. Some models include screws behind small access covers; remove these using a Phillips screwdriver if present.

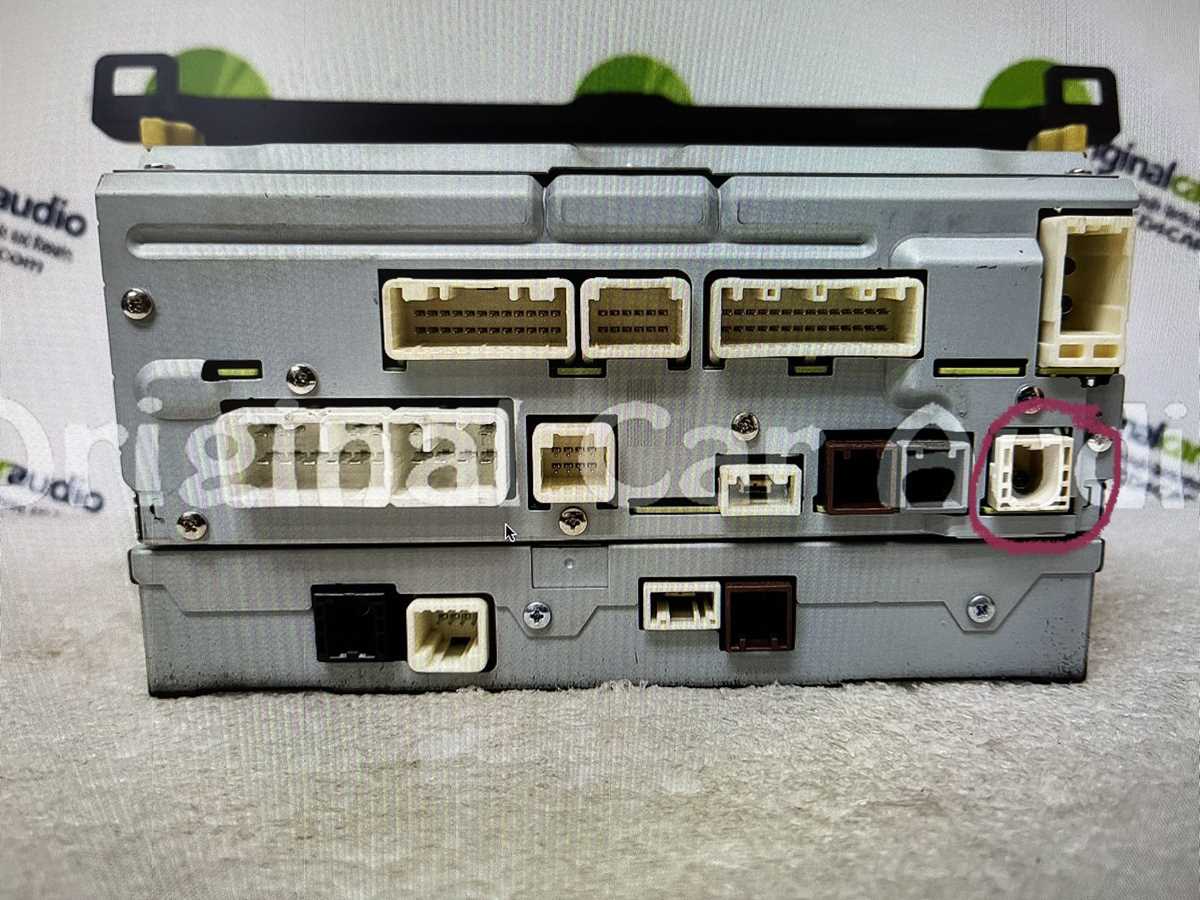

Once the fascia is removed, expose the mounting brackets securing the stock audio unit. Most factory setups use four bolts or screws–two at the top and two at the bottom. Remove these with an appropriate driver, then carefully slide the unit forward to access the wiring harness and antenna plug at the rear. Handle the chassis carefully; some rear connectors may have latches requiring depression to release.
Identify the primary connections: the main wiring harness, speaker leads, and power feeds. Separate the harness by pressing the release tab on the plug and pulling straight out–do not twist or angle. For vehicles with amplified speaker outputs, note the color-coding or label each wire before detaching. Use a small flathead screwdriver to depress retention clips on the antenna cable and disconnect it from the stock unit.
- Label all connectors with masking tape to prevent misalignment during reinstallation.
- Check for auxiliary modules behind the unit, such as satellite tuners or vehicle settings interfaces, and document their locations.
- Store removed hardware in a magnetic tray to avoid loss.
Before final removal, verify no additional mounting brackets or ground wires remain attached. Slide the factory device completely free, ensuring no cables are snagged. If planning a direct replacement, align the new head unit’s mounting kit with the dash opening and test-fit before securing–some aftermarket kits require minor trimming of plastic guides for proper alignment.
