Complete Honda Civic 2018 Electrical System Schematics Guide
Locate the official manufacturer wiring schematics through authorized service portals–avoid third-party scans unless verified by a certified repair database. The tenth-generation variant maintains a modular fuse layout under the dashboard panel on the driver’s side, consolidating primary circuits within a single 24-pin connector labeled “A.” Secondary harnesses branch into the engine bay through a firewall grommet near the brake master cylinder, identifiable by its 16-gauge orange wire for constant 12V power.
For diagnostics, trace the body control module connections using the vehicle’s VIN-specific schematic–deviations exist between sedan and coupe trims, particularly in lighting relay placements. The radio harness, often overlooked, integrates a CAN bus line requiring termination resistors; bypassing them risks intermittent communication faults. Ground points cluster beneath the rear seat area; corrosion here mimics faulty alternator symptoms.
Repair manuals from OEM sources include color-coded illustrations distinguishing signal wires from power feeds–yellow denotes switched ignition, while red indicates battery direct input. Aftermarket reverse-engineered diagrams often mislabel sensor pins; cross-reference with a multimeter set to continuity mode. The anti-theft immobilizer wiring, if disturbed, demands reprogramming via dealership-grade tools to restore ECM synchronization.
For troubleshooting, isolate circuits by removing the 10A ACC fuse; this disables accessory systems while preserving critical functions. The under-hood junction box houses relays for the cooling fan (two-speed) and horn, arranged in a grid–pin 30 typically supplies input voltage. Document all modifications; splicing into the main harness without soldered connections accelerates insulation breakdown in high-vibration zones like the steering column.
Practical Electrical Blueprint for the Contemporary Compact Sedan
Locate the fuse box beneath the dashboard on the driver’s side–panel removal requires a flathead screwdriver, twisting the clips counterclockwise. Pinpoint relay R22 (horn) and fuse 15 (50A main) using the legend printed inside the cover; verify continuity with a multimeter set to 200Ω. If resistance exceeds 0.5Ω, replace the fuse immediately–corrosion on terminals 8D1 (red/green) and 8D2 (black) often disrupts audio unit power.
Critical Circuit Connections
| Component | Wire Gauge (AWG) | Color Code | Terminal ID | Voltage (Key ON) |
|---|---|---|---|---|
| ECM Power | 18 | White/Black | C307-1 | 12.3V ±0.2V |
| Fuel Pump | 16 | Yellow/Black | G401 (Ground) | 11.8–13.5V (Pulse) |
| O2 Sensor (Pre-Cat) | 20 | White | A12-1 | 0.1–0.9V (Heated) |
Strip 5mm of insulation on splices using a calibrated wire stripper–avoid nicking conductors. For rear defogger grids, trace grid lines with a test light: dim illumination indicates a break; repair with conductive epoxy (part #08747-0010000) and cure at 25°C for 2 hours.
Disconnect the battery negative terminal before probing airbag connectors J8 and J9–mistakes trigger the SRS warning. Use a back-probe technique on the TCM connector: insert a needle into terminal 1 (blue/white) while maintaining ignition OFF; expected voltage drop is ≤0.03V with a 10A load. Store schematics on a USB drive formatted as FAT32 for offline access during roadside repairs.
Finding the Primary Powertrain Connector Schematic for Your Model
Begin by accessing the vehicle’s official service manual, available through authorized repair platforms. The main engine harness layout is typically found in section 17 (Electrical Distribution) or a similarly labeled chapter focusing on under-hood circuits.
Key identifiers for the primary harness include:
- Connector C101 (fuse box side)
- Connector C301 (ECU connection)
- Wire color codes: white/black (WHT/BLK), red/black (RED/BLK), and yellow/blue (YEL/BLU)
Locate the under-dash fuse panel diagram first–it serves as the anchor for tracing the main harness. The printed color chart adjacent to the panel lists each circuit’s origin, simplifying cross-referencing with the full schematic.
For precise pinout details, search the manual’s appendix for “Powertrain Control Module (PCM) Connector Views.” This subsection isolates the harness routes feeding the engine bay, including critical sensors and actuators.
If the paper manual lacks clarity, retrieve the digital PDF version from the manufacturer’s portal. Use the search function (Ctrl+F) with terms like “main harness,” “engine harness,” or “PCM wiring” to bypass irrelevant sections.

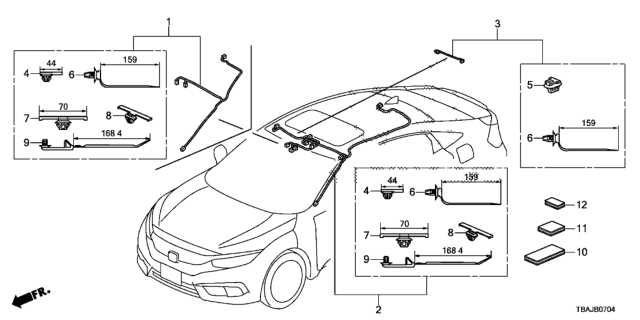

Alternative sources include OEM parts catalogs, where exploded views of harness assemblies often include wire-path labels. Third-party repair databases may offer interactive schematics–verify compatibility with your trim level (e.g., LX, EX) before relying on them.
Avoid aftermarket “universal” diagrams; discrepancies in wire gauge, fuse ratings, or sensor placement can lead to short circuits. Instead, cross-check with the vehicle identification number (VIN) to ensure alignment with factory specifications.
For on-site repairs, use a multimeter in continuity mode to confirm wire integrity between connectors. Probe pins at both ends while referencing the schematic to identify opens, shorts, or incorrect splicing–common failure points in high-mileage models.
Decoding Wire Colors and Connector Layouts in Compact Sedans
Start by isolating the main fuse box under the dashboard–locate the white or yellow 12-pin connector labeled “A” or “B.” Pin 1 typically carries the battery positive (red/black stripe), while Pin 3 grounds the circuit (black/white stripe). Verify voltage with a multimeter: 12V on Pin 1 confirms power delivery; 0V on Pin 3 ensures proper grounding. For lighting circuits, headlight wiring often follows a yellow/black (high beam) or blue/red (low beam) pattern, but double-check against the harness label to avoid misidentification.
Key Connector Pinouts and Their Functions
ECU connectors (usually a 31- or 52-pin layout) split into subgroups: Powertrain (A), Instrumentation (B), and Body Control (C). Pin A12 (green/yellow) relays throttle position sensor data, while A23 (gray/black) handles oxygen sensor input. For audio systems, the 16-pin radio harness follows a consistent scheme: Pin 2 (blue/white) triggers antenna motor activation, and Pin 7 (orange) carries illumination power. Always cross-reference pin numbers with harness labels–manufacturers occasionally shift color codes between model years.
Front fog light connectors typically use a two-wire setup: solid green delivers power, while green/black grounds the circuit. Rear defroster grids connect via a red/blue wire (power) and black/red (ground), but check for a 20-amp fuse in the under-hood box before testing. Door lock actuators rely on a five-wire system–white/black (lock), blue/black (unlock), and three yellow/red wires for motor feedback. Swap leads carefully; reversed polarity can fry the module.
For ABS diagnostics, focus on the 10-pin wheel sensor connectors. Each wheel uses a distinct pair: front-left (gray/green and gray/blue), front-right (gray/yellow and gray/black), rear-left (black/yellow and black/white), and rear-right (black/red and black/green). Resistance readings should fall between 800–1400 ohms–values outside this range indicate faulty sensors or damaged wiring. Use a service manual’s pinout tables as a final authority; visual inspection alone risks misinterpretation of stripped or faded insulation.
Mapping Front and Side Illumination Pathways in Compact Sedans
Begin by locating the under-hood fuse box in the driver-side front corner–reference the lid decal for positions marked “HEADLMP LH” and “HEADLMP RH,” each rated 15A. Remove the fuse and test continuity across its terminals; a multimeter reading above 0.5 ohms signals a compromised circuit requiring further inspection downstream.
Unclip the steering column shrouds to access the multiplex control unit (MCU). Probe connector C212, pin 1 (left headlamp low beam) and pin 17 (right headlamp low beam), verifying 12V during switch engagement. Absence of voltage mandates tracing back to the lighting relay cluster within the under-dash panel.
- Disconnect the battery negative terminal before handling harness connectors.
- Label each wire before separation–use masking tape and fine-tip markers.
- Check for brittle insulation near suspension strut towers; rodents target these zones.
Side marker circuits follow a thinner gauge routing, typically 18-20 AWG, branching from the main harness near the A-pillar base. Expose the kick panel trim to inspect connections at the body control module (BCM)–pin assignments diverge between models equipped with LED versus halogen assemblies, so cross-reference with service manual schematics.
High beam activation routes through the combination switch stalk, transitioning to the MCM via terminal TCM07. Measure resistance between this pin and ground–values exceeding 5 ohms indicate corroded contacts within the switch assembly, necessitating disassembly and cleaning of internal slider tracks.
- Inspect ground strap termination points beneath rear seats–often overlooked corrosion sites.
- For adaptive illumination variants, verify radar sensor module intake vents remain unobstructed.
- When rewrapping harness sections, use 3M Super 33+ vinyl tape with 50% overlap.
Fog lamp circuits incorporate an ambient temperature sensor bypass within the front bumper harness. Probe the dual-lock connector adjacent to the left fog housing–expect 12V during low-beam activation only. Failure to meet this condition suggests a defective relay or misaligned sensor calibration, retrievable via OBD-II scanner command.
Door ajar switches contribute phantom loads to exterior lighting systems; isolate these by removing the interior sill trim and disconnecting the wire harness multi-pin connector. Test for parasitic draw across terminal 6 (green/yellow trace) during door cycling–persistent current confirms a failing door jamb switch requiring bench testing with a 9V battery.
