Complete Nissan Versa 2018 Radio Wiring Harness Color Codes Guide

Start by locating the fuse box under the dashboard on the driver’s side–typically behind a small access panel. Use a 10mm socket to remove the bolt securing the panel, then pull it downward to reveal the wiring harness. The audio connector here carries 12-pin and 16-pin plugs; trace the wires by color to avoid misconnections. Yellow (constant power) and red (switched ignition) must link to a 10-amp fuse or risk damaging the head unit’s memory.

For aftermarket installations, splice the illumination wire (orange, often with a white stripe) directly to the dimmer circuit–this ensures dashboard lights sync with the stereo display. Ground connections (black) require a clean metal surface; sand off paint and attach with a self-tapping screw for minimal resistance. Verify voltage with a multimeter: 12.6V at full charge, dropping no lower than 11.8V during tests.

Speaker wires follow a standard color pattern: front left (grey/tan), front right (white/purple), rear left (green/black), rear right (violet/orange). Check impedance–most factory systems run 4Ω but aftermarket units may need 2Ω tweeters. Use crimp connectors or solder joints; avoid twist-and-tape methods for long-term reliability. If static occurs, reroute antenna wires (blue) away from power cables to prevent signal interference.

Refer to the ISO 10487 standard for pin assignments–this applies to most vehicles built after 2000. For steering wheel controls, integrate a PAC RP4-NIS11 adapter; map functions via the unit’s settings menu. Always disconnect the battery’s negative terminal before handling wires to prevent short circuits or airbag deployment.

Guide to Audio System Electrical Connections for the 2017–2019 Subcompact Sedan

Start by locating the harness behind the head unit’s mounting bracket. The factory connector uses a 16-pin plug with the following color codes and functions:

• Light green/red stripe – +12V constant power (10A fuse, position 15 on the under-dash box)
• Yellow/black stripe – Switched ignition input (pulls from fuse 32, 10A)
• White/blue stripe – Left-front positive (4 Ω, max 50W RMS)
• Gray/red stripe – Right-front positive (matching specs)
• Black – Chassis ground (secure to bare metal with 12 mm ring terminal)
• Red/white stripe – Illumination dimmer reference (connect to vehicle’s lighting circuit)
• Pink/black stripe – Antenna trigger (activates power mast)

Use a crimp tool rated for 18-20 AWG wire and heat-shrink tubing to prevent corrosion.

Pinout Verification Steps

1. Set multimeter to DC voltage, 20V range.
2. Back-probe the light green/red stripe wire while key is off; reading must hold at 12.0–12.6V.
3. Cycle key to accessory; yellow/black stripe must toggle from 0V to battery voltage.
4. Test gray/red and white/blue wires with continuity to ground; open circuit confirms intact speaker leads.
5. Measure pink/black wire during radio power-on; expect 6–8V pulse.

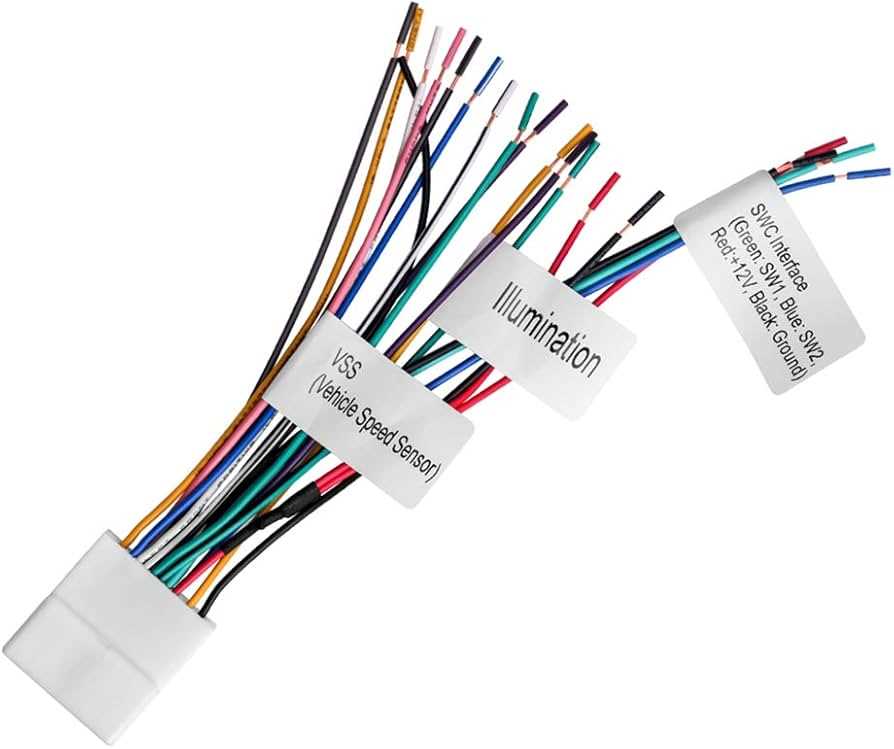

Aftermarket adapters labeled “Metra 70-1761” or “Scosche NS02B” include pre-terminated harnesses that map directly to the above color scheme. Avoid splicing into illumination wires if integrating a non-OEM display; use a PAC RP4-NI11 interface instead.

Secure excess harness length with nylon ties every 3 inches behind the climate control module–avoid touching the evaporator refrigerant lines which operate at -30°F and can cause instant frostbite.

Finding the Audio System Connector in Your Compact Sedan

Start by removing the lower trim panel beneath the climate controls. A 10mm socket will release the two bolts securing it, while plastic trim clips require a gentle pry with a panel removal tool–work from the edges inward to avoid cracking the fascia. Once detached, the primary electrical bundle appears at the seven o’clock position relative to the ashtray cavity, bundled in black split-loom tubing.

Trace the loom upward toward the rear of the instrument cluster. The bundle splits near the firewall grommet, where a secondary eight-pin connector–color-coded for aftermarket integration–branches off to the left. This accessory port is often overlooked, yet it carries switched power and illumination circuits essential for retrofit compatibility. Use a multimeter to verify pin assignments: yellow (+12V constant), red (+12V ignition), black (ground), and blue/white (amplifier trigger).

The main harness terminates behind the factory head unit, concealed by a snap-in dash bezel. Release the bezel by pressing inward on the top clips while pulling outward–no screws are involved. Behind it, a 16-pin ISO connector sits recessed, surrounded by a foam dust cover. Label each wire before disconnecting, as the color codes differ from standard aftermarket schemes:

Wire Color	Function	Voltage (Key ON)
White/Black stripe	Left front speaker (+)	4.8V
Gray/Black stripe	Right front speaker (+)	4.8V
Green/Black stripe	Left rear speaker (+)	2.1V
Purple/Black stripe	Right rear speaker (+)	2.1V
Pink/Blue stripe	Illumination	–
Orange	Memory power	12.2V

For base trim models without steering wheel controls, a separate two-pin sub-connector lurks behind the glove box. Access it by removing the glove compartment–squeeze the sides to release the stops, then pull downward. This connector carries the data bus for hands-free phone integration and must be adapted using a PAC RP4-NI21 interface if retaining original functionality.

Dash-mounted microphones (if equipped) route through a three-wire harness bundled with the HVAC ducts. Locate the module by following the loom from the headliner–it terminates near the rearview mirror base. Splicing into this harness requires soldering and heat-shrink tubing; crimp connections risk intermittent failures due to vibration.

When reinstalling trim, ensure all wiring looms sit above the metal dashboard brace. Pinching or compressing bundles beneath panels will generate false ground loops, manifesting as alternator whine or erratic display behavior. Test all speaker outputs with a 1kHz sine wave before final assembly–rear channels often exhibit phase reversal if polarity was misinterpreted during splicing.

Decoding Harness Wire Colors and Their Purposes in Original Audio Systems

Locate the yellow cable first–it carries constant 12V power from the battery, ensuring memory retention for presets and clock settings even when the ignition is off. Verify this connection with a multimeter before proceeding, as accidental shorts can drain the battery within hours. The red line delivers switched power, activating only when the key is in the “on” or “accessory” position, preventing parasitic draw.

Ground connections typically use a black or black with white stripe conductor, often clustered with other negative leads. Secure this to a bare metal chassis point, sanding away paint or corrosion for optimal conductivity. Speakers follow a standardized color scheme: front-left positive (gray), front-right positive (white), rear-left positive (green), and rear-right positive (purple). Their corresponding negative leads add a stripe (e.g., gray/black for front-left negative).

Specialized Wires for Amplifier and Antenna Control

The blue or blue/white cable enables remote turn-on for amplifiers or power antennas, delivering 12V when the stereo powers up. Avoid substituting it with the red switched power line, as this can cause delayed amplifier activation or excessive current draw. A pink lead may handle speed-sensitive volume adjustments or muting functions–consult the service manual for exact application, as this varies by trim level.

Step-by-Step Guide to Removing the Factory Audio System

Disconnect the negative terminal of the vehicle’s battery first to prevent electrical shorts. Wait at least 10 minutes before proceeding to allow residual power to dissipate from capacitors in the head unit.

Locate the trim panel surrounding the audio console. Gently pry the edges using a plastic trim removal tool, starting from the bottom left corner. Work clockwise to avoid cracking the plastic clips, which are positioned every 7 cm along the perimeter. If resistance is felt, check for hidden screws–commonly found behind the climate control knobs or the hazard light button.

Once the trim is removed, identify the mounting screws securing the head unit. Most models use four 10mm bolts, two at the top and two at the bottom. Insert a T20 Torx driver and turn counterclockwise. If bolts refuse to loosen, apply penetrating oil and wait 5 minutes before retrying.

• Upper-left bolt: Often obscured by the dash wiring harness.
• Upper-right bolt: May require a 90-degree extension for access.
• Lower bolts: Typically visible but tighten with additional torque.

Slide the unit outward carefully. Behind it, you’ll find a bundle of connector plugs and an antenna lead. Press the release tabs on each plug–usually marked in yellow (power), red (constant 12V), blue (amplifier), and black (ground). The antenna connector clicks when disengaged; pull it straight out without twisting.

For stubborn plugs, use needle-nose pliers to squeeze the release tab while wiggling the connector side to side. Avoid tugging wires directly–damage risks breaking internal solder joints, which are nearly impossible to repair without specialized tools. If the unit is stuck, check for a secondary retaining bracket screwed into the chassis frame; remove it with a 7mm socket.

Once free, place the removed system on a static-safe surface. Reconnect the battery and briefly turn the ignition to verify dash lights and warning signals operate normally before installing a new unit. Retain the original mounting bracket if reusing factory integration kits; discard only if upgrading to an aftermarket harness.
