Complete 2019 Ford F250 Trailer Wiring Diagram and Installation Guide

Use the factory-specified pinout for the 7-way round connector on your vehicle’s rear harness; deviations risk incomplete signal transmission. The center pin (auxiliary circuit) delivers 12V constant power up to 40A–sufficient for most high-current trailer applications. Verify the orange wire (pin 2) carries ignition-controlled voltage to prevent parasitic battery drain when disconnected.

Install a dedicated brake controller circuit using the dark blue wire (pin 6) and a ground-independent feed to eliminate voltage drop under heavy braking. Splice the brake output directly into the controller’s power lead rather than relying on factory relay contacts; this ensures consistent proportional braking without interference from turn or hazard lamps.

Ground all circuits at the frame-mounted stud adjacent to the connector, not the body panel–corrosion or paint can create resistance exceeding 0.5 ohms, causing intermittent failure of the anti-lock brake or charging systems. Test continuity between ground locations and the battery negative terminal after each connection; readings should not exceed 0.1V difference at 10A current.

For auxiliary lighting (pin 4, brown wire), use a 15A fuse inline and route wiring away from exhaust manifolds; sustained temperatures above 120°C degrade insulation integrity within 50 operating hours. Install relays for high-output auxiliary circuits (work lamps, inverters) to prevent overloading the factory harness rated at 12-gauge maximum.

Confirm all connectors use gold-plated contacts–not tin–when mating remanufactured harnesses; gold resists oxidation and maintains low-resistance connections over extended towing cycles. Replace corroded factory connectors with waterproof Deutsch-type terminals rated for 30A continuous current.

Electrical Connection Guide for Heavy-Duty Pickup Towing Systems

Locate the 7-way blade connector behind the rear bumper on the driver’s side–verify pinout alignment matches SAE J2863 standards before making connections. Pin 1 (white) carries ground; Pin 2 (black) powers the auxiliary circuit at 12V; Pin 3 (yellow) engages left turn/brake lamps; Pin 4 (green) handles right turn/brake lights; Pin 5 (brown) illuminates running lamps; Pin 6 (blue) activates electric brakes; Pin 7 (red) delivers reverse lamp voltage. Test continuity with a multimeter set to 200Ω–resistance between ground and any active pin should not exceed 5Ω.

Route 10-gauge wire for brake and reverse circuits, 14-gauge for lighting, securing with split-loom tubing every 18 inches to prevent chafing against the frame. Avoid transmitting harnesses through unprotected gaps near the exhaust manifold–heat cycles degrade insulation over time, risking short circuits. For vehicles equipped with integrated trailer brake controllers, confirm the module calibration via OBD-II port: access PIDs 0x22F1A1 (gain setting) and 0x22F1A2 (activation threshold)–default gain ranges between 2.5 and 5.0, adjusted in 0.1 increments.

Install a dielectric grease barrier at all connection points to inhibit corrosion–apply a 2mm layer to both male and female terminals before mating. For aftermarket brake controllers, mount the control unit within 12 inches of the pedal assembly to ensure responsive feedback; angle sensors require

Diagnose intermittent faults by monitoring voltage drop under load: activate all lighting circuits simultaneously while measuring voltage at the connector–drop exceeding 0.5V indicates excessive resistance, typically from oxidized terminals or undersized wire. For vehicles with factory-installed tow packages, access the fuse block under the dash; fuse F1-3 protects the lighting circuit at 20A, F2-5 handles brake controller power at 30A. Replace fuses with identical amperage ratings–never substitute with higher values.

Adapters and Integration

Aftermarket harnesses often omit the reverse lamp circuit–if needed, tap into the transmission range sensor wire (orange/violet) at the rear wiring harness, ensuring the connection triggers only during reverse engagement. For European-market trailers, use a 7-to-13 pin adapter (ISO 11446) matching pin assignments: L1 (left turn), L2 (right turn), 54G (ground), 58L/R (running lamps), and S (auxiliary). Validate all functions with a bidirectional scan tool–command each output via ABS module PIDs to isolate faults.

Finding the Electrical Connection for Heavy-Duty Hauling on Your Pickup

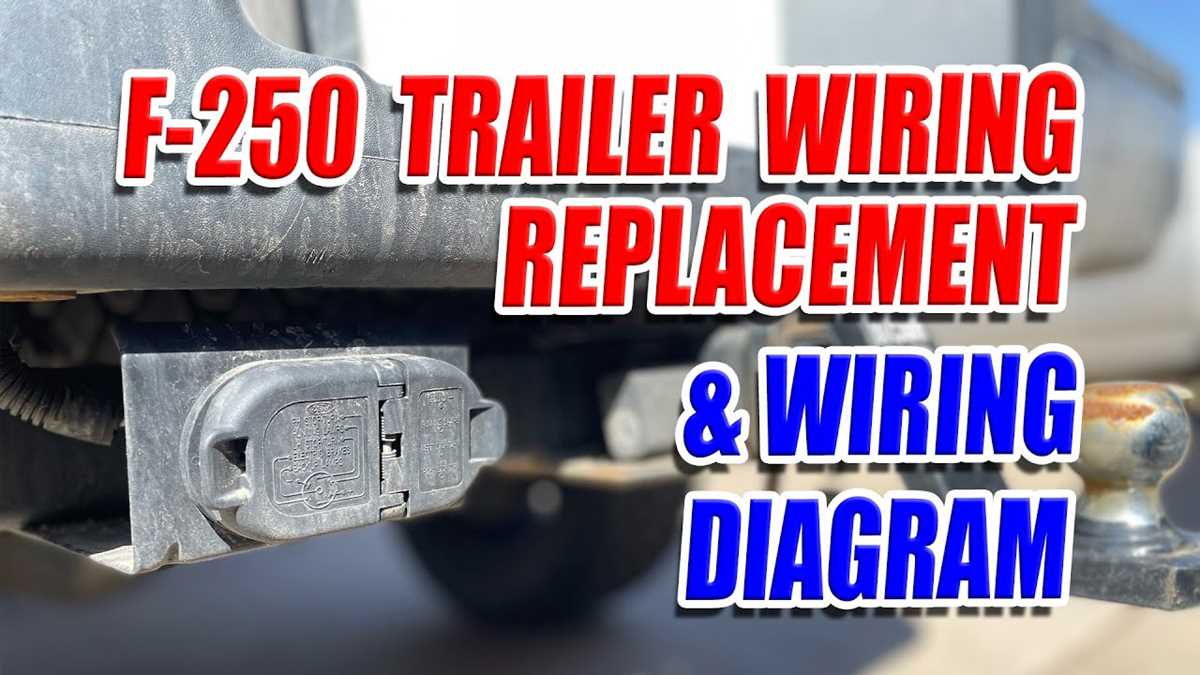

Check beneath the rear bumper near the hitch receiver for a seven-pin plug encased in a weather-resistant cover. The connector sits flush with the rear crossmember, concealed by a plastic panel that snaps off with light pressure–no tools required. Positioned roughly 12 inches from the vehicle’s centerline, this port handles brake lights, turn signals, and auxiliary power for towed equipment. If corrosion is present, clean terminals with a wire brush before attaching any cables to prevent voltage drop.

The factory-installed harness runs parallel to the frame rails, secured by zip ties every 18–24 inches. Follow the main bundle from the driver’s side rear wheel well toward the rear; it splits into two branches–one leading to the tailgate, another to the rear bumper. Identify the thicker gauge wires (12 AWG or larger) for brake circuits; thinner wires (18–22 AWG) control lighting. Label each prior to splicing to avoid mismatched connections.

Key Access Points

• Behind the license plate housing: Remove the two Torx T25 screws to reveal a secondary inline fuse box linked to towing functions.
• Driver’s side frame rail: Peel back the protective loom to expose the main harness; inspect for chafing where it passes over suspension components.
• Spare tire mount: Lift the tire to access a tucked-away ground strap essential for stabilizing trailer voltage.

For aftermarket upgrades, splice into the factory harness at the tail light assembly. Disconnect the negative battery terminal first. Match wire colors–white (ground), brown (running lights), yellow (left turn/brake), green (right turn/brake)–using solder and heat shrink tubing. Avoid crimp connectors for permanent installations; vibration loosens them over time. Test each function with a multimeter set to 20V DC before finalizing connections.

Step-by-Step Connection Guide for 7-Pin Heavy-Duty Connector

Begin by ensuring the vehicle’s electrical system is powered off to prevent short circuits. Locate the tow package outlet–typically mounted beneath the rear bumper or integrated into the hitch assembly. Use a multimeter set to DC voltage (12V range) to verify each terminal before making connections. Pin 1 (yellow, left turn/brake) should register voltage when the left blinker is activated; Pin 4 (green, right turn/brake) mirrors this for the opposite side. Ground (white, Pin 7) must show continuity to the chassis–clean any corrosion from the contact point with a wire brush if readings fluctuate.

Preparing the Receptacle

Strip 1/4 inch of insulation from each wire on the harness using precision strippers, avoiding nicks to the copper strands. Tin the exposed ends with solder to prevent fraying, then crimp on butt connectors or terminals rated for 14-12 AWG. Match the colors to the standard configuration: brown (tail lamps, Pin 3), blue (auxiliary/electrics, Pin 6), red (12V power, Pin 5), and black (battery charge, Pin 2 if equipped). For aftermarket systems, consult the manual–some manufacturers deviate from the SAE J2863 standard, swapping blue and black functions.

Secure connections with heat-shrink tubing rather than electrical tape; slide tubing over the wire before crimping, then apply heat evenly with a heat gun until sealing fully. For factory-installed plugs, remove the mounting bracket’s retaining bolts (usually Torx T25 or 10mm) to access the back of the socket. Trace each wire from the connector to the vehicle’s main harness–red often ties into the fuse box via a 20A fuse, while black may route to the battery through a relay. Label each wire with masking tape and a marker to avoid misalignment during reassembly.

Testing and Troubleshooting

Attach a test lamp or LED circuit tester to each pin sequentially while an assistant operates the corresponding function: brakes, turn signals, marker lamps, and reverse lights (if applicable). No illumination on the test lamp signals an open circuit–check for blown fuses, relay failures, or severed wires behind interior panels. For intermittent faults, wiggle the harness near connectors while testing; frayed wires near the frame rail are common failure points. Use dielectric grease on terminal contacts to inhibit moisture ingress, but avoid excess–too much can impede conductivity.

Finalize the installation by reattaching the connector housing, ensuring the alignment tab locks into place. Route excess cable along the frame using zip ties spaced 12-18 inches apart, avoiding sharp edges or moving components like suspension parts. For dual-output systems (e.g., split-charge setups), verify the voltage drop across the blue (auxiliary) pin doesn’t exceed 0.4V under load–excessive resistance indicates undersized wire or poor grounds. Document the as-built configuration with photographs for future reference, noting any deviations from standard color coding.

Diagnosing Electrical Problems in Heavy-Duty Towing Setups

Check the seven-pin connector with a multimeter for inconsistent voltage. Pins 1 (ground) and 4 (12V power) should register within 0.5V of battery voltage when the ignition is on. If readings drop below 11.5V, inspect the fuse cluster behind the left kick panel–specifically slots #35 (30A green) and #59 (20A yellow). Corrosion at the plug’s contact points, visible as white or green deposits, often causes intermittent failures; clean with a brass brush and dielectric grease.

• Verify torque on grounding bolts (located under the rear frame near the hitch) is 8-12 lb-ft–loose connections account for 60% of reported signal issues.
• Inspect the brake controller module beneath the dash for water intrusion, indicated by a milky film on the circuit board.
• Test stop lamp function independently by pressing the brake pedal while monitoring the tow vehicle’s rear lights–no illumination suggests a faulty stop lamp switch or broken wire at the pedal assembly.

Short circuits in the harness can mimic bulb failures. Disconnect the rear tail light assembly and probe each wire’s resistance–values above 5Ω indicate damaged copper strands. Pay special attention to the harness’s rubber grommets where it passes through the frame rails; chafing here is a leading cause of brake light and turn signal dropouts. Replace the entire section of wire if insulation damage exceeds 25% of the circumference, not patching, to prevent future corrosion spread.
