Complete 2019 Ford Transit Radio Wiring Diagram and Color Codes Guide
Begin by locating the fuse box beneath the driver’s side dashboard–fuse #23 (15A) powers the factory sound system. Tap into this circuit for a stable 12V constant feed, avoiding the ignition-switched wire unless battery drain is acceptable. The gray/yellow wire (C1-14) delivers accessory power, while black/white (C1-3) serves as the ground reference. Verify connections with a multimeter before soldering to prevent voltage drop.
For aftermarket head units, match the harness adapter to the vehicle’s SONY 9-pin plug. Pinouts follow this sequence: C1-5 (purple/red) for left-front speaker, C1-6 (purple/green) for right-front, C3-32 (purple/black) and C3-34 (purple/yellow) for rear channels. Avoid bridging grounds–dedicate a separate chassis point near the center console for cleaner signal transmission.
If retaining the stock amplifier, confirm compatibility with the new unit’s preamp outputs. The factory amp is triggered by a data bus signal (C1-1, orange/white), requiring an interface module for aftermarket integration. For vehicles with SYNC3, disconnect the battery for 10 minutes before wiring to reset the system and prevent error codes.
Test each connection under load before finalizing the install. Crimp connectors with heatshrink tubing, then secure wires away from moving parts or sharp edges using braided loom sleeves. A wiring fault typically manifests as irregular power-on behavior or pops/crackles–trace with a probe to isolate the issue.
Electrical Connections for Your Commercial Van Audio System
Begin by locating the 12-pin connector behind the factory head unit–pins 1 through 4 deliver constant 12V power, switched ignition, ground, and illumination. Pin 5 carries the CAN bus signal, essential for retaining steering-wheel controls if upgrading to an aftermarket receiver. Double-check polarity with a multimeter; mismatched wiring risks blowing the fuse linked to circuit #F43 (10A) in the under-dash fuse box. For vehicles equipped with factory nav or SYNC, tap into pin 8 for the reverse signal to ensure backup camera functionality carries over.
| Connector Pin | Function | Wire Gauge | Color Code |
|---|---|---|---|
| 1 | Battery + (constant) | 18 AWG | Yellow/Black stripe |
| 2 | Ignition + (switched) | 18 AWG | Red/Black stripe |
| 3 | Ground | 16 AWG | Black solid |
| 6 | LF speaker + | 20 AWG | White/Blue stripe |
| 12 | RF speaker – | 20 AWG | Grey/Black stripe |
Aftermarket Integration Tips
Use a Metra 70-1761 harness adapter to simplify connections–it maps factory pins directly to ISO-standard plugs, eliminating soldering. If retaining the amplifier (located behind the glovebox), ensure the remote turn-on wire (pin 10, blue/white stripe) connects to the new head unit’s amp trigger output; otherwise, rear speakers will remain dead. For vehicles with satellite prep, the antenna lead (pin 7, pink/black stripe) requires an inline noise filter to prevent interference with digital radio signals. Always secure harnesses away from moving components to avoid chafing and shorts.
Finding the Audio System Connector in Your Cargo Van

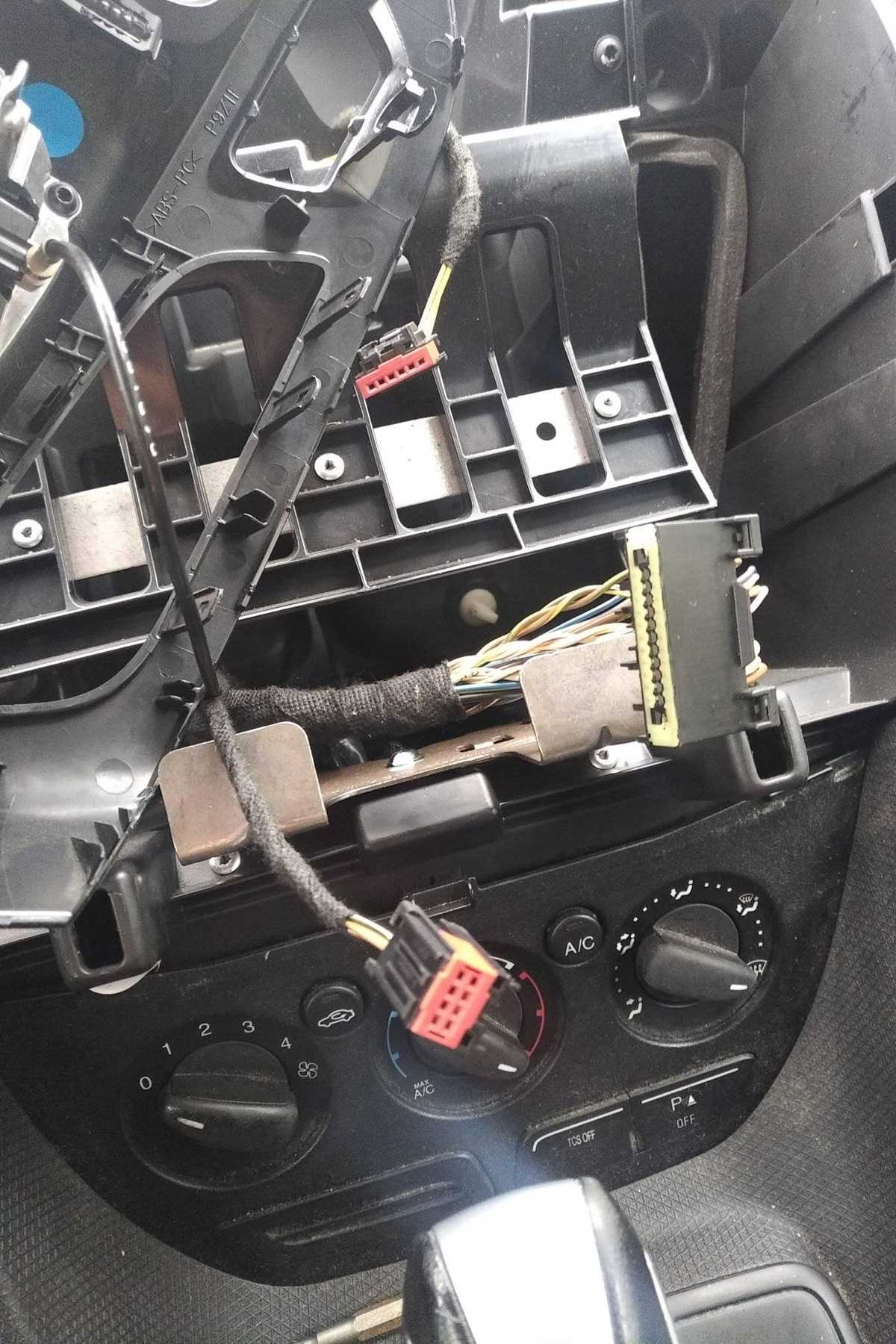

Start by removing the lower dashboard trim panel beneath the climate controls. Two 7mm screws secure it–access them by prying upward at the rear edge near the driver’s left knee bolster. Disconnect the cabin light switch harness before fully detaching the panel to reveal the rear of the entertainment module. The main harness will be visible as a 24-pin white plastic connector with locking tabs, not the smaller 8-pin auxiliary plug.
Key Mounting Points

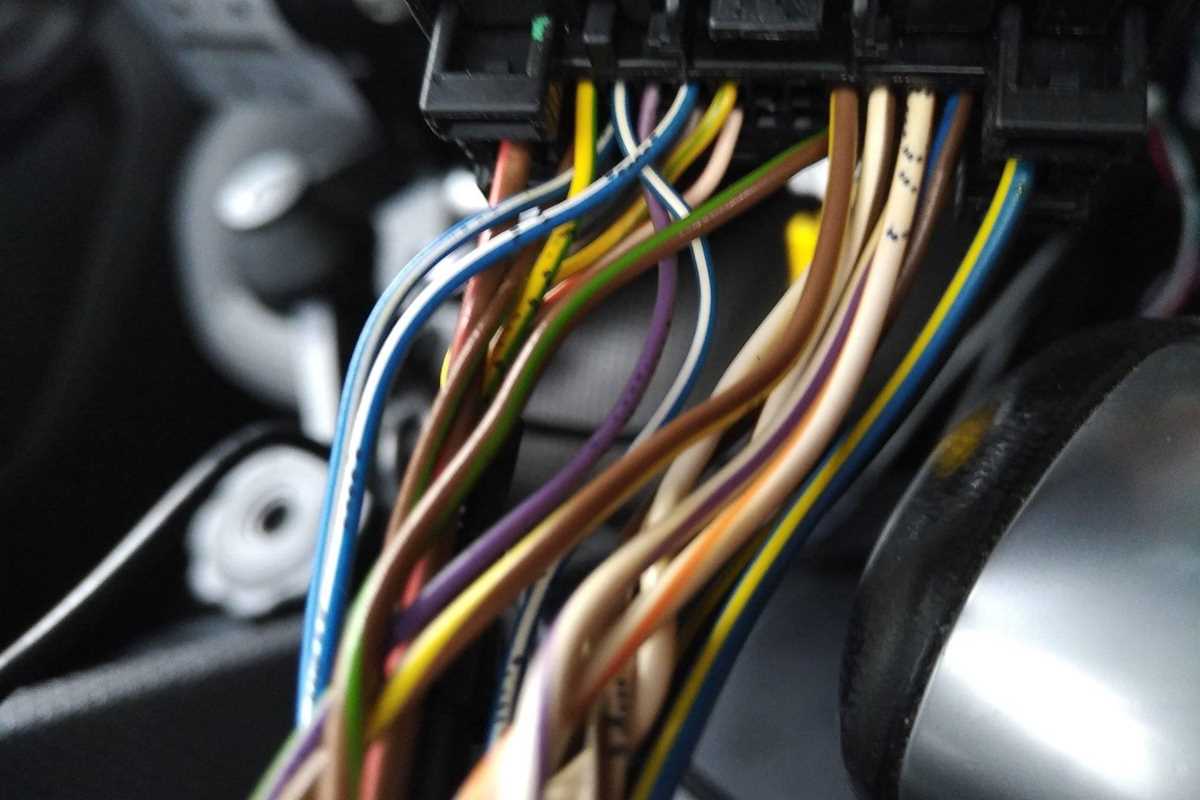

The factory harness routes behind the HVAC housing, clipped to the steel crossmember at three points: left of the fuse box, above the brake pedal, and adjacent to the OBD-II port. Use a flexible inspection mirror to trace the wires–red with blue stripe (constant +12V), yellow (switched power), and solid black (ground) are critical. Label each pin before disconnecting to prevent confusion during reinstallation.
For vans equipped with the optional SYNC system, an additional 10-pin harness connects to the central console behind the shifter plate. This bundle carries microphone and GPS antenna signals–mistaking it for the primary harness risks damaging voice-command functionality. Verify color codes against a service manual, as aftermarket diagrams often omit SYNC-specific wires.
If the connector is inaccessible from the cabin, remove the driver’s kick panel by releasing four plastic clips and one hidden Torx T20 screw near the hood release. This exposes the left-side wiring loom where the harness exits the firewall grommet. Follow the loom upward to reach the rear of the unit–no cutting of factory tape is necessary unless splicing aftermarket components.
Locating Key Harness Connections for Aftermarket Integration
Begin by isolating the constant 12V supply–typically a yellow or orange lead with a 10A+ fuse rating–using a multimeter to verify steady voltage with the ignition off. The switched 12V line, often red or pink, activates only when the key is in the “on” or “accessory” position; probe this to confirm a 12V reading during ignition cycles. Ground wires, universally black or brown, must terminate at a bare metal chassis point with zero resistance; avoid daisy-chaining to prevent noise interference.
Decoding Audio Channel Conductors
- Front left positive: White (striped or solid), 2-4 ohms impedance
- Front left negative: White-black or white-brown tracer
- Front right positive: Gray (striped or solid), paired with gray-black/tracer negative
- Rear left positive: Green (may include violet/blue accents), 4-ohm typical
- Rear right positive: Purple (often paired with purple-green negative)
- Subwoofer output: Thicker blue or blue-white (high-current, fused separately)
Measure speaker wires for continuity with a tone generator; shorts or open circuits indicate damage. Twist positive/negative pairs during testing to prevent phase cancellation, especially in OEM harnesses repurposed for aftermarket units. Verify all connections with an oscilloscope or audio test CD to isolate distorted channels before finalizing crimps or solder joints.
How to Integrate a New Head Unit with Original Vehicle Harnesses
Acquire a vehicle-specific harness adapter matching your van’s make and model year. These adapters convert OEM connectors into industry-standard ISO plugs, eliminating splicing. Verify pin assignments using a multimeter–common colors like yellow (constant 12V), red (switched 12V), black (ground), and blue/white (amplifier trigger) must align with aftermarket unit requirements. Note: factory amplifiers often require a separate 4-channel integration module to preserve sound quality.
- Disconnect the negative battery terminal before handling connections.
- Remove dashboard trim panels to access the original head unit–retain screws and fasteners in labeled containers.
- Attach the adapter to the vehicle harness first, then connect the aftermarket unit’s harness to the adapter.
- Route new wiring away from sharp edges or moving components (steering column, pedals).
- Secure all connections with dielectric grease to prevent corrosion.
Test functionality before reassembly: verify power-on sequence, speaker output, and steering wheel controls if retained. If static or distortion occurs, check ground integrity–poor grounding causes 80% of post-install audio issues. For vehicles with premium sound systems, an additional line-output converter may be necessary to interface with factory signal processors.
Frequent Electrical Problems and Solutions for Your Van’s Audio System
If the infotainment unit powers on but produces no sound, check the fuse labeled “SYNC” or “Audio” in the central panel first. Use a multimeter to verify continuity–if the fuse is intact, trace the harness behind the dashboard. Locate the pink and purple wires leading to the amplifier; these carry the primary audio signal. A break or short here often causes silent outputs. For vehicles with factory-installed subwoofers, inspect the orange/black wire connecting to the rear speaker harness–corrosion here disrupts low-frequency signals.
Dim displays or intermittent shutdowns typically stem from poor grounding. The main earth point is behind the glovebox, secured with a 10mm bolt. Remove the bolt, sand the contact surface, and apply dielectric grease before reattaching. For models with GPS antennas, ensure the thin coaxial cable is fully seated–even a slight disconnect causes signal drops, triggering system resets. If the issue persists, probe the red/yellow wire at the harness connector; voltage below 11.8V indicates a failing battery or alternator.
Bluetooth and USB Malfunctions
Pairing failures usually link to software glitches. Press and hold the “Phone” and “Voice Command” buttons simultaneously for 10 seconds to reset the module. If USB ports recognize drives but won’t play media, test the white/orange wire with a load–voltage below 4.5V suggests a blown fuse or damaged port. For Android Auto/Apple CarPlay issues, swap the USB cable; aftermarket cables often lack the full wiring needed for data sync. If the problem remains, access the OBD-II port under the dash and scan for U-codes–B10A1 (USB communication error) points to a hardware fault.
Speaker distortion at high volumes signals a failing amplifier. Remove the kick panel (driver’s side) to expose the amp–check for bulging capacitors or burnt traces. Replace the entire module if damage is visible. If only one side cuts out, swap the left and right speaker connectors at the amp; if the issue flips sides, the speaker is faulty. For persistent static, disconnect the antenna cable and measure impedance–readings above 5 ohms indicate a broken antenna or coaxial damage. Finally, ensure the yellow/black wire to the speed sensor isn’t shorted; erratic signals here confuse the system, causing volume fluctuations.
