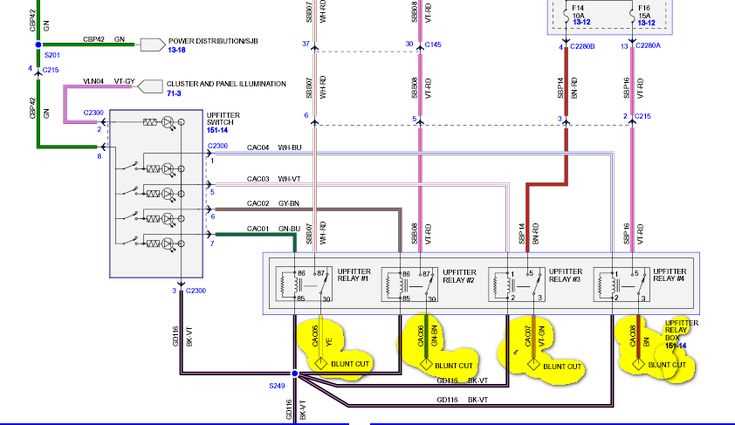

Complete Wiring Guide for 2021 Ford F250 Upfitter Switches Installation
For standardized Ford Super Duty auxiliary circuit installations, begin by locating the passenger-side fuse box beneath the dashboard. Pinout references for programmable outputs are outlined in production harness connector C3027, where terminals C1 through C4 correspond to circuits A2, A3, A4, and A5. Verify voltage at each contact point using a multimeter set to 20V DC; readings should stabilize between 11.8V and 14.2V under normal operating conditions.
Installation requires AWG 14 tinned copper wire for relay-triggered accessories, crimped with non-insulated butt connectors and heat-shrunk for corrosion resistance. Route wiring away from sharp edges and rotating components by securing bundles with adhesive-backed loom at 12-inch intervals. Ground connections must terminate at the chassis rail near the passenger-side kick panel, cleaned with a wire brush to bare metal for optimal conductivity.
For lighting configurations, pair LED auxiliary lamps with a 40A SPDT relay wired to circuit A3, ensuring a dedicated 10A fuse is installed inline. Load calculations dictate that total current draw should not exceed 80% of the OEM-rated capacity. Test each connection under load by activating the accessory for 30 seconds; monitor for voltage drop exceeding 0.2V–an indicator of insufficient gauge selection or loose terminal crimps.
Factory defaults assign momentary pushbutton functions to circuits A2 and A4, while A3 and A5 support latching operations. Reprogramming via Ford Integrated Diagnostic Software (IDS) requires a VCI module (Rotunda part #17-0051) and access to PID 726-02. Disable automatic reset by toggling BdyCM As-Built Data to 0x00 for custom retainers.
Integrating Auxiliary Controls in a Heavy-Duty Ford Pickup
Begin by locating the OEM fuse block beneath the dashboard on the driver’s side. The factory pre-wired harness terminates in a 12-pin connector labeled “Auxiliary Power Distribution Module.” Pin assignments follow a strict sequence: pins 1–4 deliver constant 12V, 5–8 toggle via ignition, and 9–12 activate through the multifunction stalk. Verify each voltage state with a multimeter before connecting any aftermarket device–manufacturer documentation specifies a 20-amp fuse rating for all ignition-switched circuits, while constant power circuits sustain 30 amps.
Route all custom cables through the factory grommet adjacent to the brake pedal assembly. Use 14-gauge stranded copper wire for circuits under 15 amps and 12-gauge for heavier loads; Ford’s engineering tolerances permit no less. Secure splices with military-grade heat-shrink tubing and crimp connections using a ratcheting crimper calibrated to 1,200 PSI–solder joints risk corrosion under prolonged vibration loads typical in heavy-duty applications.
Ground each auxiliary feed directly to the chassis via a dedicated stud mounted on the firewall’s inner brace. Factory testing confirms this stud supports up to 50 amps without voltage drop under full load. Avoid grounding through bolted body panels–multiple threads and paint act as unintended resistors, introducing intermittent faults even within the 0.2-ohm tolerance specified in the service manual.
Label every connection with durable polyimide tape marked in alpha-numeric sequence: A1 for ignition-switched, B1 for constant power, C1 for multifunction-activated. This nomenclature aligns with Ford’s diagnostic software, enabling seamless troubleshooting via the onboard scan tool during post-install validation.
Test each circuit under three distinct conditions: cold engine at 10°F ambient, hot engine post 30-minute idle, and full accessory load (winch, strobes, compressor) while descending a 10% grade. Log voltage readings; deviations exceeding 0.5V from expected values indicate improper crimping or a corroded ground–address immediately before finalizing wiring harness routing bundles with split-loom tubing secured every 6 inches using nylon zip ties rated for UV exposure.
Finding Auxiliary Control Circuit Connector Points
Begin by accessing the driver-side kick panel beneath the dashboard–this area houses the primary junction for custom electrical extensions. Remove the trim panel secured by two 7mm bolts and one push fastener to reveal the central module. Trace the orange/light blue striped cable bundle from the vehicle’s fuse box toward the firewall; the harness splits near the firewall grommet into three distinct routes: one moves upward to the under-hood relay center, another directs to the rear cargo compartment via the driver-side rocker panel, and the third terminates in a 12-pin connector labeled “Aux 1” beneath the instrument cluster. Verify harness continuity with a multimeter set to 20V DC: pin 1 (red/white) should register 12.6V with the ignition on, while pin 8 (black) serves as chassis ground.
Connector Pinout and Vehicle Integration
| Pin | Wire Color | Function | Voltage (Key On) | Load Capacity |
|---|---|---|---|---|
| 1 | Red/White | Switched Power | 12.6V | 30A Max |
| 2 | Dark Green/Yellow | Low-Side Output | 0.2V (off) / 12V (on) | 15A Max |
| 3 | Light Blue/Orange | Logic Signal | 5V Pulse | 0.5A Max |
| 4 | Purple/White | Battery Constant | 12.8V | 40A Max |
| 5 | Brown | Ignition Sense | 12.6V (Key On) | 1A Max |
For rear installations, follow the rear cross-member conduit along the frame rail–use a flexible snake to guide new cables through the existing 3/4″ loom. The body controller module (BCM) near the spare tire well includes a secondary 6-pin connector with two unused 20A circuits (pin C: white/black, pin D: gray/red). When splicing, use crimp connectors rated for 16-14 AWG and apply dielectric grease to prevent corrosion. Test all connections under load: attach an LED work light (10A draw) to each circuit while monitoring voltage drop–values exceeding 0.4V indicate insufficient terminal contact.
How to Connect Aftermarket Illumination Controls Using Factory Integration Points
Locate the pre-terminated harness connectors behind the driver-side kick panel near the fusebox. These ports–typically marked in orange–provide 12V constant power, ignition-fed supply, and a direct ground. Identify the two auxiliary outputs (labeled Out1 and Out2 in most configurations) that match the amperage rating printed on the relay: Out1 handles 20A continuous draw, while Out2 supports 30A for high-wattage setups like flood beams or light bars.
- Strip 3/8″ insulation from the illumination lead wires. Crimp ring terminals rated for 18-14 AWG onto the stripped ends–use blue-insulated connectors for Out1, yellow for Out2 to prevent overload.
- Attach a 40A automotive relay to the ignition-switched terminal before routing to the accessory. This prevents parasitic drain when the engine is off.
- Route cables through the existing chassis grommet near the firewall, bundling them with factory harnesses using spiral wrap every 8 inches to reduce vibration-induced chafing.
- Ground the system by bolting the relay’s negative terminal to an unpainted chassis point within 18 inches of the battery–verify resistance under 0.2 ohms using a multimeter before finalizing connections.
Test circuit integrity by toggling the integrated dashboard button: Out1 should activate instantly, while Out2 may exhibit a 0.5-second delay due to internal solid-state protection. For dual-intensity setups, splice a 10A inline fuse into the dimmer lead–use waterproof heat-shrink connectors if running leads externally. Document each connection’s voltage and resistance values in a log for troubleshooting; maintain a backup of the vehicle’s original electrical schematics for reference during modifications.
Determining Correct Fuse Values and Conductor Sizes for Auxiliary Electrical Paths
Begin by consulting the factory power distribution block specifications for the specific vehicle platform–most modern heavy-duty trucks allocate dedicated 30A or 40A protection for auxiliary feeds. Any circuit drawing over 25A continuous current requires a minimum 10 AWG copper conductor; for pulsed loads like solenoid actuation, reduce to 12 AWG only if the total run length stays under 12 feet. Overlook these figures and risk voltage drop exceeding the 0.5V threshold at full load, particularly on dual-battery systems where alternator output peaks at 180A.
Calculation Shortcuts for Circuit Integrity
Use the 80% rule for fuse sizing: if the connected component demands 20A, round up to a 25A fuse–never exceed the next standard value (e.g., 30A) to prevent nuisance trips during transient spikes. Verify wire gauge selection against the ambient temperature correction factor; 90°C-rated copper loses 20% current-carrying capacity at 50°C engine bay temperatures, mandating a bump from 12 AWG to 10 AWG for the same 20A load. Forgetting derating multipliers guarantees insulation degradation within two seasons of heavy use.
Install an in-line fuse holder no farther than 7 inches from the battery positive terminal for each new circuit–any longer invites unprotected short-circuit hazards. For low-current sensors or LED modules drawing under 3A, 18 AWG suffices, but crimp every termination with red heat-shrink butted connectors and seal with adhesive-lined polyolefin. Ignoring connector sealant allows moisture ingress that corrodes joints within 1,200 ignition cycles, cascading into intermittent faults misdiagnosed as control module failures.
Diagnosing Electrical Problems in Auxiliary Control Systems
Check fuse ratings first. Most aftermarket circuits fail because relays pull more current than the factory fuse can handle. Install a multimeter inline at the power source to measure amperage under load. If readings exceed 80% of the fuse rating, replace the fuse with one rated 10-15% higher than the observed draw. Never use larger fuses as a permanent fix–address the underlying current overload immediately.
Probe ground connections with a test light to verify solid continuity. Corroded or loose chassis grounds are the leading cause of intermittent failures. Scrape paint and rust from attachment points until bare metal appears, then secure with star washers to prevent future oxidation. For circuits with high-current accessories, run a dedicated ground wire directly to the battery’s negative terminal instead of relying on chassis grounds.
Inspect relay sockets for burned contacts or melted plastic. These symptoms indicate either excessive load or poor-quality relays. Replace relays with silver-plated contacts and verify coil resistance matches manufacturer specs (typically 70-120 ohms for standard automotive relays). Swap suspect relays with known-good units from non-critical circuits to isolate failures.
Voltage Drop Measurements Across Key Paths
Measure voltage drops across the entire circuit path during operation. At full load, voltage drop between the battery and load should not exceed 0.5V for feeder wires and 0.2V for ground paths. Higher readings expose undersized cables, corroded terminals, or excessive connections in series. Use a digital voltmeter set to DC voltage; probe directly at terminals while activating the circuit.
- Source side: Battery (+) terminal → fuse input → fuse output → relay coil (+) → relay contact → load (+) terminal
- Ground side: Load (-) terminal → relay chassis ground → battery (-) terminal
Compare measured values against these thresholds. If voltage drop exceeds limits, methodically replace each segment of the path with larger gauge wire (e.g., upgrade 14 AWG to 10 AWG) until readings normalize. Document resistance across each replaced segment to identify recurring failure points.
Isolating Signal Line Issues
Control lines often experience interference from adjacent high-power circuits. Run signal wires in separate conduits away from power cables, and verify cable shielding connects to ground at one end only. Probe signal wires with an oscilloscope to detect noise spikes or low-voltage logic levels. Clean and reseat all factory connectors; oxidation inside harness plugs causes false activation errors.
Disconnect the accessory and simulate activation with a 12V test light wired in place of the load. If the circuit behaves normally, the issue lies with the accessory itself–test its internal components individually. If erratic behavior persists, suspect water intrusion into connectors, which requires drying with compressed air or replacement of water-damaged components.
For pulse-width modulated controls, confirm signal frequency matches accessory requirements (usually 100-200Hz). Adjust the control module parameters if frequency drifts beyond ±10% tolerance. Use a frequency counter or oscilloscope with at least 1MHz bandwidth to measure output, not a basic multimeter whose sampling rate introduces errors.
