Complete Wiring Diagram Guide for 2024 Chevrolet Silverado Models

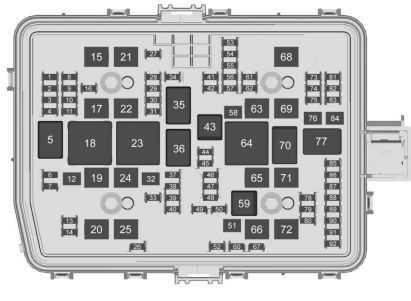

Begin troubleshooting or modifications by locating the underhood fuse block diagram–printed directly on the inside cover of the compartment near the driver’s side. This schematic identifies all primary circuits, including the BCM (Body Control Module) connections, trailer brake controller outputs, and onboard charger feeds for hybrid variants. Use a multimeter set to 200-ohm resistance to verify continuity between pin A3 (battery positive) and G14 (ground) before proceeding–deviations above 0.5 ohms indicate corrosion or frayed wiring requiring replacement.

For aftermarket installations (winches, auxiliary lights), tap into circuit X400, rated for 40 amps, found behind the instrument cluster. Disconnect the negative terminal before splicing–use crimp connectors with heat shrink (not twist-and-tape) to prevent voltage drop under load. Label every splice with heavy-duty wire tags marking gauge and destination; misrouted wires can cause BCM faults triggering false DTCs like U0100 (lost communication) or B1472 (fuse integrity error).

The powertrain control module (PCM) wiring harness branches into three sub-harnesses: engine, transmission, and exhaust. If diagnosing misfires or transmission limp mode, check pin T62 (CAN bus high) and T63 (CAN bus low) for 2.5V swing on an oscilloscope–flatline signals confirm a broken CAN loop, often caused by failed termination resistors in the OBD-II port or rear bumper trailer module. Replace the affected section with TXL automotive-grade wire (not generic THHN) to withstand -40°C to 125°C temperature cycles.

Rear camera and park assist sensors share a common twisted-pair wiring loom. If the camera feed flickers or sensors trigger false obstacles, probe connector C204 (behind the rear bumper) for 5V reference at pin 4 and data signal at pin 6. Values outside 2.5V–3.3V suggest water ingress–seal the connector with dielectric grease and waterproof heat shrink. For trailer wiring retrofits, parallel the 7-way trailer socket to circuit X50 (reverse lamp) and X60 (trailer battery charge) using 12-gauge wire; undersized wiring melts under 30A+ loads, fusing the connector terminals.

Avoid using universal wiring kits from online marketplaces–they often substitute GPT wire (rated for 8A continuous) where SXL (40A) is required. Instead, source the original equipment manufacturer (OEM) part number stamped on the factory harness for exact replacements. If splicing is unavoidable, strip 1/4 inch of insulation, tin the copper strands with rosin flux, and crimp using ratcheting crimpers calibrated for the wire gauge. Inspect all modifications with a thermal imaging camera after a 10-minute load test–hotspots above 60°C indicate poor connections.

Electrical Schematics for the Latest Full-Size Pickup: A Hands-On Reference

Locate the under-hood fuse box first–it sits near the driver-side strut tower, secured by a black plastic latch. This central junction houses relays for the cooling fans, starter solenoid, and electronic throttle control. Use a multimeter set to 20V DC to verify continuity on terminals 30 and 87; low or inconsistent voltage here often mimics fuel delivery issues.

Tracing the trailer wiring harness requires unclipping the rear bumper cover. Look for three bundled wires–brown (left brake/running), green (right brake/running), and white (ground)–terminating at the 7-way connector. Exposed connections collect road debris; wrapping joints with dielectric grease prevents corrosion that falsely trips the trailer module’s error codes.

Ground Points Demystified

Primary chassis grounds cluster behind the left kick panel (G111) and beneath the driver seat (G301). Scrape paint off attachment surfaces until bare metal shows; torque bolts to 12 Nm. A single corroded ground causes cascading faults: flickering dash lights, erratic idle, or accessories cutting out. Secondary grounds for the infotainment system anchor to the rear seatbelt bracket–check for frayed strands during every cabin air filter swap.

Power windows rely on a dedicated loom tucked inside the door jamb. Access it by removing the inner trim panel–no clips need prying; slide the cover upward then out. Look for the yellow/black wire feeding the motor; voltage drops below 10.5V here trigger slow or stalled operation. Replace the inline fuse link before condemning the regulator–it’s a standard 30A strip hidden behind the speaker grille.

Modify the factory trailer brake controller circuit only after isolating battery negative. The purple wire (brake signal) carries PWM pulses; splice interference from aftermarket accessories disrupts the module’s calibration. Use a load-proportional controller rated for 10A continuous draw; generic units burn the OEM trace that shares ground with the ABS pump.

Locating the Official Electrical Blueprint for Your Full-Size Truck at Zero Cost

The manufacturer’s dedicated owner portal remains the most reliable starting point. Visit my.gm.com, register with vehicle specifics, then navigate to the “Resources” tab. Select “Manuals & Guides” to reveal the comprehensive harness schematics, typically embedded within the complete repair handbook. Update notifications push directly if the automaker refines connector pinouts or circuit paths.

Certified service platforms host identical documents without restrictions. ACDelco Service & Repair archives every model year schematic under “Electrical System,” organized by subsystem–powertrain, lighting, infotainment. Bookmark the VIN-specific URL; it persists across browser sessions. Regional dealership intranets mirror these files; request a dealer login if resolving intermittent faults requires on-site scrutiny.

Community Repositories & Crowd-Sourced Accuracy Checks

• GM-Trucks.com forums curate verified uploads–threads tagged “2500HD Electrical” collate engineering updates, while moderators flag discrepancies from aftermarket adaptations.
• GitHub repositories from automotive OEM developers periodically leak internal service bulletins; grep “E3500” or “Duramax harness” for direct PDF matches. Forks sync nightly.
• YouTube technicians screen-record diagnostic menus from dealer-grade scan tools–pause frame-by-frame to extract CAN bus maps or fuse block cross-references.

For immediate troubleshooting, open-source scan tools like FORScan or HP Tuners decode network topology during live drives. Export CSV logs to isolate voltage drops or erratic sensors; cross-index anomalies against the pin assignment appendix in the bundled software manual. Physical connectors documented in TE Connectivity’s catalog align precisely with OEM part numbers–useful when splicing foam-sealed junctions.

Printed aftermarket guides supplement gaps but embed errors in Chinese knockoff clones. Stick to Haynes Pro or Mitchell1 digital subscriptions–both sync monthly with GM’s cloud revisions. Local libraries often license these databases for public terminals; flash drives bypass paywalls. When absence risks misrouting tow-haul sensors or trailer brake circuits, corroborate fuse ratings across three independent sources before cutting harness ties.

Decoding Color Codes in Truck Electrical Blueprints

Locate the legend in the top-right corner of the schematic–this maps each color to its standard function. Solid blue (B) always signifies constant 12V power, while blue with a white stripe (B/W) denotes a switched ignition feed. Red (R) carries battery voltage for critical systems like fuel injection, whereas red with a black trace (R/BK) is a secondary power source for modules like the body control unit. Yellow (Y) typically routes ground paths, but yellow with a green stripe (Y/G) indicates a chassis ground, not a signal return. Mistaking these can fry components.

Critical Exceptions and Cross-References

Orange (O) wires split into two roles: solid orange handles high-voltage hybrid circuits (if equipped), while orange with a brown stripe (O/BN) routes CAN bus data. Purple (P) often denotes sensor signals–e.g., throttle position–but purple with a gray stripe (P/GY) is reserved for the 4×4 shift motor. Always cross-reference the pinout table before splicing. For example, a gray wire (GY) might seem like a neutral signal, but in the transfer case diagram, it’s the encoder’s feedback line–confusing it with a ground (Y) will trigger diagnostic codes C0562 or U0100.

Installation Guide: Trailer Brake Controller Electrical Schematic

Locate the factory-installed connector beneath the dashboard near the steering column. This port, often a 4-pin receptacle, provides direct access to the brake signal, power, and ground circuits required for the controller.

Identify the pin assignments using a multimeter set to DC voltage. Probe each terminal while an assistant depresses the brake pedal to confirm:

• Pin 1: 12V battery positive (constant)
• Pin 2: Brake signal (momentary 12V when pedal pressed)
• Pin 3: Ground (0V)
• Pin 4: Brake switch output (optional, varies by model)

Failure to verify these before connection risks damaging the vehicle’s electrical system.

Route the controller’s harness from the rear of the cab to the connector. Trim excess length to prevent interference with pedals or trim panels, leaving 6-8 inches of slack for servicing. Secure with zip ties every 12 inches to avoid abrasion against sharp edges.

Match the harness wires to the connector pins:

• Red wire → Pin 1 (constant power)
• Blue wire → Pin 2 (brake signal)
• White wire → Pin 3 (ground)
• Black wire → Pin 4 (optional, if used for advanced features)

Use crimp connectors with heat-shrink tubing for corrosion resistance. Avoid soldering near plastic components to prevent melting.

Mount the controller within 18 inches of the driver’s seat, angled for visibility without obstructing the view. Use the provided bracket or a custom 3/16-inch aluminum plate drilled into the firewall if factory mounting points are unavailable. Test the controller’s manual override before securing it permanently.

Connect the trailer-side plug at the vehicle’s rear using the following schematic:

• Yellow wire → Left turn/stop lamp
• Green wire → Right turn/stop lamp
• Brown wire → Tail lamps
• White wire → Ground
• Blue wire → Brake controller output (to trailer brakes)

Verify continuity with a circuit tester before attaching the trailer to ensure no shorts exist.

Adjust the controller settings:

1. Set gain to 50% initially, then fine-tune based on trailer load (increase for heavier loads, decrease for lighter trailers).
2. Enable proportional braking if the unit supports it–this varies braking force relative to vehicle deceleration.
3. Disable “boost” unless towing in mountainous terrain, as it applies maximum trailer braking from the first pedal press.

Refer to the controller’s manual for specific calibration procedures, as interfaces differ between models.

Final testing requires a road test at 25 mph on a flat, empty surface. Apply brakes progressively, ensuring the trailer slows smoothly without jackknifing or wheel lockup. If pulsation occurs, reduce gain by 10% increments. Document the optimal settings for future reference.
