Step-by-Step 3-Phase Motor 220V Wiring Diagram Guide for Electricians

Use the delta configuration (Δ) for direct 208–230V mains input across North America or industrial setups with 400V line-to-line supply. This layout eliminates the need for a neutral conductor, simplifies termination, and delivers full torque at startup. Label terminals U1-U2, V1-V2, W1-W2 clearly before connecting–trace each lead’s continuity with a multimeter to confirm internal winding matches manufacturer data. Miswiring a single pair drops efficiency by 30% and risks uneven current draw, leading to overheating in one winding.

Always verify source voltage tolerances. A 230V delta drive tolerates ±10% fluctuation, but sustained overvoltage above 242V degrades insulation over 1,000 hours–monitor with a true RMS meter at the disconnect. For dual-voltage drives (e.g., 230/460V), reconfigure link jumpers on the terminal block: remove the center bar and bridge outer taps diagonally for high range, or connect all three inner posts for low range. Skipping this step causes immediate winding burnout or tripped breakers.

Grounding must follow NEC 430.14–bond the drive’s frame to a dedicated grounding conductor (minimum 10 AWG copper) back to the panel. Avoid relying on conduit alone, as corrosion in 10+ year setups reduces fault current path integrity. Torque terminal screws to 10 lb-in with a calibrated screwdriver–loose connections produce localized heat spots, detectable via thermal scanning at ≥75°C within 30 minutes of startup.

After energizing, confirm rotation direction by pulsing the circuit: an incorrect phase sequence (L1-L2-L3 swapped) reverses rotation, potentially damaging coupled loads like pumps or fans. Correct this by swapping any two input leads–no need to touch motor terminals. Record final amperage readings on each line; unbalanced currents >10% signal voltage asymmetry or internal short. Use a clamp-on ammeter for non-invasive measurement.

Connecting a Tri-Voltage Industrial Drive at 208-240 AC

For delta configuration, link terminals U1 to L1, V1 to L2, and W1 to L3–verify the nameplate specifies this arrangement before energizing. If ambiguity exists, measure line-to-line voltage across L1-L2; readings below 216V suggest wye connection instead. Use crimp lugs rated for 125% of full load current; tin-plated copper lugs prevent corrosion under 60Hz vibration.

Overload Protection Selection

Install thermal overload relays matched to the motor’s service factor; 1.15SF demands a relay setting at 95% of the full-load amperage draw, while 1.0SF motors require exact matching. Size contactors for IEC AC-3 category–minimum 3TE frame for 7.5kW drives–and confirm coil voltage aligns with control circuit (typically 110V or 230V AC). Bypass contactors during testing to isolate nuisance trips.

Ground the frame to a dedicated earth rod via 6AWG green-yellow conductor; resistance below 25Ω ensures fault clearing within 0.2 seconds. Route all conductors through EMT conduit, maintaining a 1-inch separation from power lines to reduce induced noise–critical for variable frequency drives operating above 30Hz. Label each lead with heat-shrink sleeves marked “U,” “V,” “W” for future maintenance.

Test rotation direction using a phase rotation meter before coupling the load; incorrect sequencing risks mechanical damage to pumps or conveyors. If reversing rotation, swap any two supply leads–U and V produce clockwise rotation, U and W yield counter-clockwise. Record final torque settings in the maintenance log, measured at 75% of rated voltage to prevent inrush current distortion.

Key Elements of a Three-Line Industrial Power Connection Setup at 208–240 Volts

Start by identifying the main power source terminals in your electrical panel. For a balanced load, each of the three live conductors must carry an equal voltage–typically 208–240V line-to-line in North American or 220V in European configurations. Ensure the breaker matches the load requirements; a 30A breaker suffices for most 5–10 HP industrial units, while larger models may need 40–60A protection. Use copper wire sized at 10 AWG for 30A circuits, upgrading to 8 AWG for heavier loads to prevent voltage drop over extended runs exceeding 50 feet.

Overload Protection and Starter Selection

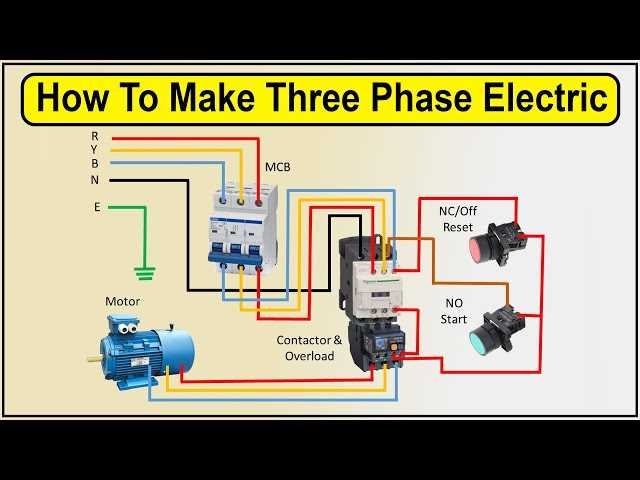

Integrate a magnetic contactor with thermal overload relays to safeguard against current surges and overheating. For direct-on-line starts, select a relay with a trip class of 10 for general-purpose machinery, while Class 20 suits heavy-duty cycles like pumps or compressors. Ensure the relay’s current rating aligns with the equipment’s nameplate FLA (full-load amps). When using soft starters or VFDs, omit standalone overload relays, as these devices include built-in protection mechanisms calibrated to the specific power curve.

Grounding is non-negotiable: connect the neutral point (if available) or a dedicated grounding conductor to the motor’s frame and the system’s earth bus. In delta configurations, ground one terminal to prevent floating voltages; in wye setups, bond the star point directly. Use green or green-yellow striped 10–12 AWG wire for grounding paths, ensuring zero resistance at all connection points. Verify continuity with a multimeter–readings should not exceed 0.1 ohms between the frame and ground bus.

Label every conductor at both ends: L1, L2, L3 for incoming power, T1–T3 (or U, V, W) for motor leads. Mismatched connections cause reverse rotation or phase imbalance, detectable by uneven humming or excessive heat. For reversible setups, swap any two leads (e.g., L1↔L2) at the contactor–never modify internal motor connections. Secure all terminals with star washers to prevent loosening under vibration, torquing to manufacturer specs (typically 12–15 in-lbs for 10 AWG, 20–25 in-lbs for 8 AWG).

Test each leg’s voltage before energizing: measure line-to-line for a delta system (should match supply voltage) or line-to-neutral in wye (≈120V per leg in split-phase U.S. systems). Use a true RMS meter to confirm balanced voltages within 3% tolerance. If readings deviate, check for loose terminals, undersized wiring, or faulty breakers. Record all measurements in a log for troubleshooting; discrepancies often precede insulation failure or bearing wear in high-cycle applications.

How to Wire a Triple-Voltage Industrial Drive in Delta Setup

Verify the equipment’s nameplate specifies 380VAC (or equivalent line voltage) and a delta connection before proceeding. Using a multimeter, confirm each conductor’s continuity to rule out breaks or shorts–this prevents imbalance during operation.

Label the supply conductors L1, L2, and L3. Connect each directly to the corresponding terminal on the drive: L1 to U, L2 to V, L3 to W. Avoid twisting wires; use crimp lugs or ring terminals rated for at least 25A to ensure secure mechanical and electrical contact.

Ground the casing via a dedicated PE terminal. Use a wire gauge matching the largest conductor–typically 10 AWG for 10HP units. Failure to ground correctly risks voltage leakage and violates NEC Article 430.

• Inspect insulation on all joints with a megohmmeter; resistance should exceed 1MΩ.
• Tighten terminals to 12-15 Nm torque–over-torquing damages threads, under-torquing causes arcing.
• Cap unused auxiliary terminals with insulating boots to prevent accidental contact.

Energize the circuit in stages: first, apply line voltage without load, monitoring for irregular hum or vibration. If the device rotates backward, swap any two conductors–this reverses rotation instantly. Monitor amperage draw; it should stabilize within 5% of nameplate current within 30 seconds.

For overload protection, select a thermal relay sized at 105%-110% of full-load current. Set the trip class to Class 10 for continuous-duty applications. Integrate a contactor with a locked-rotor current rating ≥600% of the running current to handle startup surges.

Troubleshooting checklist:

1. If the device trips immediately: recheck all connections for reversed polarity or ground faults.
2. If overheating occurs: verify airflow clearance–minimum 50mm on all sides–and clean ventilation slots.
3. If performance is erratic: measure line-to-line voltage–acceptable range is ±5% of nominal; deviations indicate supply issues.

Connecting a Three-Line 380V System in Star Pattern

First, verify the supply voltage matches the equipment’s nameplate–star connections suit systems rated at 380–415V between lines. Locate the terminal box and identify the six terminals labeled U1, V1, W1 for incoming lines and U2, V2, W2 for coil ends. Group U2, V2, and W2 together using a conductive jumper bar or copper link rated for the current load.

Ensure the jumper connection is secure–use a torque wrench set to the manufacturer’s specification, typically 3–5 Nm for M6 bolts. Loose connections create resistance, leading to localized heating. Inspect the jumper for oxidation; clean with contact cleaner if discoloration is present. Replace corroded jumpers immediately.

Attach the incoming power lines to U1, V1, and W1 in sequence. Use crimped ring terminals with insulated sleeves; avoid twisted strands or untinned copper. Tighten bolts with the same torque values used earlier. Cross-check polarity with a multimeter–line-to-line readings should show 380–415V, while each line to the jumper point should read ~220–240V.

Common mistakes include mislabeling terminals or reversing lines. If rotation is incorrect after energizing, swap any two of the three lines (U1–V1, V1–W1, or U1–W1) at the source. Do not alter jumper configurations post-installation. Test with a phase rotation meter before finalizing connections to avoid mechanical stress.

Isolate the circuit before connecting. Use a dedicated disconnect switch with overload protection sized at 125% of the full-load current. For a 10A load, select a 13A breaker. Verify the switch is in the OFF position before attaching any conductors. Label the disconnect clearly with “380V Star Supply” to prevent accidental energization during maintenance.

• Before energizing, inspect for short circuits using a megohmmeter. Minimum insulation resistance should exceed 1MΩ between each line and ground, and between lines.
• If resistance readings drop below 500kΩ, investigate moisture ingress, damaged insulation, or incorrect terminal grouping.
• Star configurations reduce starting current to ~2x full load, but soft starters or VFDs may still be needed for high-inertia loads.

Ground the chassis via a separate terminal, not the jumper point. Use green-yellow stranded copper wire sized per IEC 60364–minimum 2.5mm² for currents under 25A. Attach securely to a ground busbar or metallic conduit. Verify continuity from the chassis to the earth electrode with a continuity tester.

After energizing, monitor temperatures at terminals and connections for 30 minutes. Use an infrared thermometer; readings above 60°C indicate excessive resistance. If overheating occurs, de-energize immediately, re-torque connections, and check for undersized conductors. Re-test insulation resistance and line voltages before resuming operation.
