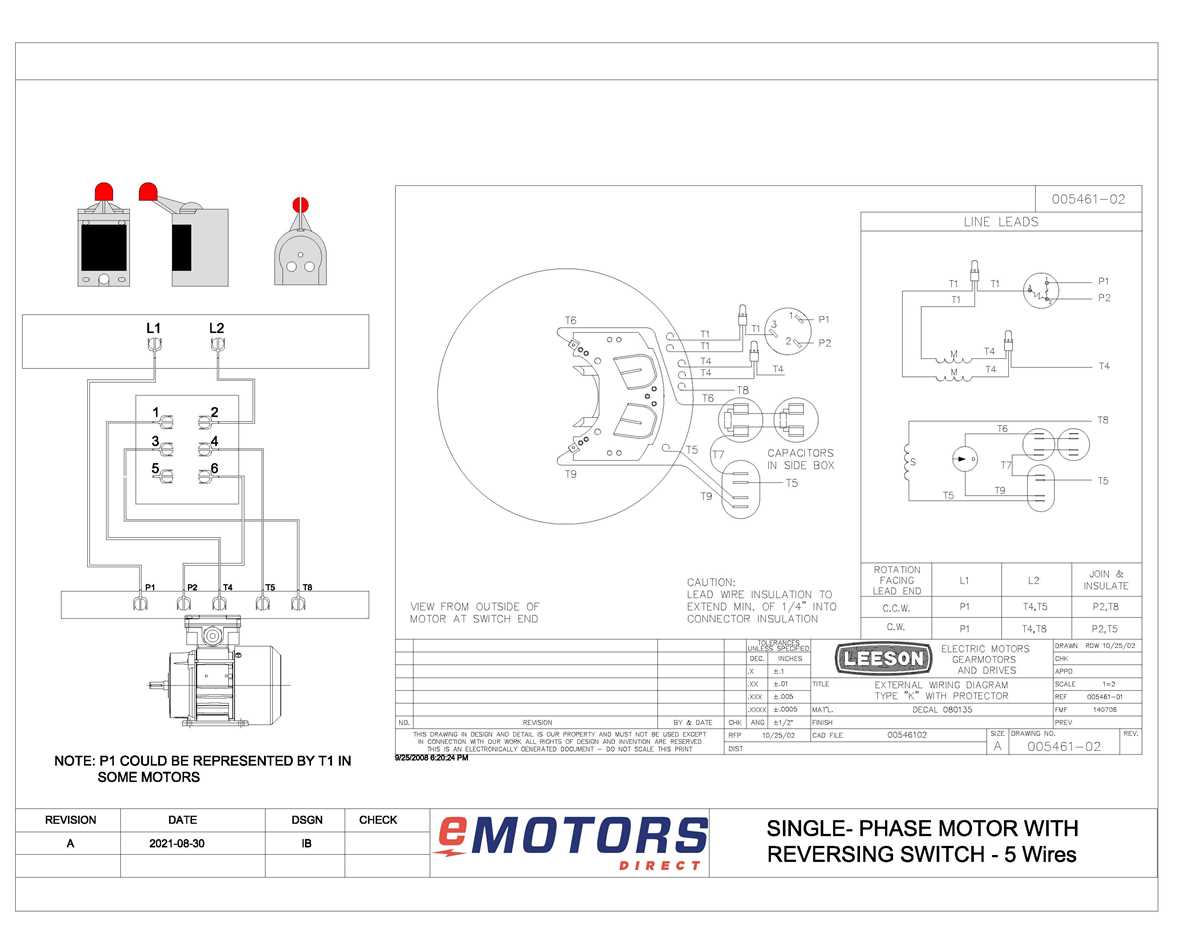

Complete 230V Leeson Single Phase Motor Wiring Guide with Diagram
For standard capacitor-start configurations, connect the brown lead to the run capacitor’s common terminal. The purple wire links to the start capacitor’s dedicated post, while the black input ties into the main line (L1) via a 10-amp circuit breaker. Verify torque specs–12-15 in-lbs on spade terminals–to prevent vibration-induced loosening at 3500 RPM.
Miswiring a permanent-split-capacitor model risks irreversible centrifugal switch damage. Keep the white neutral wire isolated from the frame–ground fault readings above 0.3 mA trip UL-listed Class II breakers. Auxiliary windings tolerate 1.5x nameplate amperage for 30 seconds during locked-rotor tests; sustained overload melts varnish-coated coils at 180°C.
Use a 14-gauge stranded copper conductor for ambient temps under 30°C; upsize to 12-gauge if conduit runs exceed 30 meters or ambient surpasses 40°C. Bypass capacitors on dual-voltage units require dielectric strength of 1000V RMS–substituting 440V X-rated parts causes arcing at switch-on transients. Confirm direction: reverse black and purple if rotation opposes nameplate arrow.
Thermal overload protection must match service factor; Class 10 relays trip in 10 seconds at 600% load, Class 20 tolerate 12 seconds. Torque motors above 1/2 HP demand separate metallic conduit–non-metallic flex induces eddy currents that lower efficiency by 7%. Always disconnect both line conductors simultaneously; residual voltage in start capacitors can exceed 400V for several minutes post-power-down.
Electrical Connection Guide for 1HP Capacitor-Start Induction Units
For a 240-volt capacitor-start induction unit with a centrifugal switch, connect the main windings (L1 and L2) directly to the power terminals–one to the live input, the other to the neutral. The auxiliary winding pairs with a run capacitor (typically 10–30 µF) in series; this branch splits from L1 before rejoining L2 after the switch opens at ~75% speed. Verify the manufacturer’s nameplate: Leeson’s color codes (red = start, blue = run) or terminal labels (U1-U2 for main, Z1-Z2 for auxiliary) match most schematics, but cross-check with an ohmmeter–main windings should read 2–5 ohms, auxiliary 5–20 ohms.
- Safety disconnect: Install a DPST switch rated 250V/10A or higher within 6 feet of the unit.
- Capacitor polarity: Non-polarized types suffice; ensure 370VAC minimum rating.
- Thermal overload: Wire a bimetallic protector (1.5–3A trip) in series with L1 if the unit lacks internal protection.
- Grounding: Bond the frame to a dedicated ground rod via 10AWG bare copper.
Fault diagnosis: Spin the shaft freely; stiff resistance indicates bearing seizure. With power applied, measure voltages at U1/U2 (240V expected), Z1/Z2 (120–180V during start). If auxiliary voltage persists after 3 seconds, replace the centrifugal switch–common failure point in units older than 1500 hours. Fuses or breakers sized 125% of FLA (full load amps, typically 5–8A for 1HP) prevent nuisance trips without sacrificing protection.
Replacement parts: Use identical capacitance–deviations beyond ±5% alter torque curves unpredictably. For variable loads, add a start relay (potential-type, 240V coil) to engage the capacitor only during acceleration. Reversing rotation requires swapping Z1 and Z2 leads–never attempt while powered. Document all terminal changes with a permanent marker on the unit’s housing.
How to Pinpoint Terminal Leads on an Electric 1HP AC Induction Rotor
Locate the data plate first–it typically lists terminal designations like L1, L2, T1, T2 or U1, U2, Z1, Z2. Match these identifiers directly to the brass studs protruding from the junction box. If the plate is missing, note the physical arrangement: thicker leads usually correspond to windings, thinner leads are often auxiliary or capacitor connections.
- L1 & L2 (U1 & U2): Main power inputs; connect to supply lines.
- T1 & T2 (Z1 & Z2): Secondary winding outputs; link to run capacitor if present.
- Yellow/Red leads: Start capacitor terminals; verify against resistance readings.
Use a multimeter set to ohms. Probe pairs systematically: main windings should read 2–10 ohms, start windings 5–20 ohms. Cross-reference findings with a schematic if available–most 1HP rotors follow NEMA standards where T1–T2 denotes run winding and T5–T8 indicates starting circuit.
Label every terminal immediately after measurement. Remove power, discharge capacitors, and tape leads with colored markers (red for L1, black for L2, blue for aux). Mislabeling risks reversing rotation or damaging the centrifugal switch. For dual-voltage units, always confirm which set of leads corresponds to high or low taps before energizing.
Inspect the centrifugal switch if present–it typically interrupts the start winding circuit. Trace leads from the switch housing to their terminals; they often bifurcate beneath insulation sleeves. Verify continuity changes when manually actuating the switch; failure to open risks prolonged auxiliary winding current and overheating.
Step-by-Step Hookup Instructions for Standard 1HP AC Induction Setups
Verify terminal markings on the housing before making connections. For a permanent split capacitor arrangement, identify the L1, L2, T1, and T2 posts along with the capacitor leads. Connect the main winding (T1 to T2) directly to the power source–no startup switch is required. Attach the capacitor between the auxiliary winding (T3 to T5) and T1, ensuring polarity matches the datasheet. Tighten all fasteners to 12-15 in-lbs to prevent vibration-induced loosening.
For capacitor-start models, locate the centrifugal switch mounted internally–it will disconnect the auxiliary coil once reaching 75-80% of full speed. Wire the main coil across L1 and L2, then join the auxiliary coil to the capacitor leg and the switch terminals. Confirm the switch’s trip speed aligns with the nameplate RPM; deviations often indicate mechanical binding. Test resistance across each coil–main should read 3-8 ohms, auxiliary 5-15 ohms–to validate integrity before energizing.
When configuring dual-voltage units, prioritize the high-torque connection. Link the run capacitor (typically 10-50 μF) between the auxiliary lead and T1, then bridge the startup capacitor (often 150-300 μF) in series with the centrifugal switch. For reverse rotation, swap the auxiliary coil leads–never the main winding–as this risks damaging the internal centrifugal mechanism. Secure all conductors with ring terminals and apply silicone dielectric grease to terminals in humid environments.
After completing connections, perform a megohm test using a 500V insulation tester between windings and the frame. Readings below 1 MΩ indicate moisture ingress–dry the unit at 200°F for 4 hours before retesting. Energize the setup via a dedicated 20A circuit with class T fuses to guard against locked-rotor conditions. Monitor the initial startup: excessive humming suggests miswired capacitors, while rapid overheating typically points to shorted turns in the main coil.
Document each step in a logbook, noting torque settings, capacitor values, and test readings. For troubleshooting, isolate the power and discharge capacitors using a 20 kΩ bleed resistor–never short terminals directly. If vibration persists, check shaft alignment with a dial indicator, ensuring runout stays under 0.002 in. Replace any worn bearings with C3 clearance units, and re-grease using NLGI #2 lithium-based lubricant per the nameplate interval.
Diagnosing Voltage Irregularities in a 220-240V AC Power Assembly
Check the incoming supply at the disconnect switch with a calibrated multimeter. Readings outside 210–245V AC at the terminals indicate either utility fluctuations or incorrect transformer taps upstream. If taps are misconfigured, adjust the secondary winding ratio–commonly 240:240 or 220:240–to match the nameplate specification. For models with a dual-voltage option, verify the jumper links between L1, L2, and U are positioned for the intended input range.
Measure across the run capacitor terminals while the system is energized. A defective capacitor shows voltage readings 15–30% below the expected line potential. Replace any capacitor where the voltage drops below 200V AC during operation–typical failure symptoms include inconsistent torque, excessive humming, or thermal runaway within 10–15 minutes of startup. Use the following reference for capacitor ratings:
| Motor HP | Capacitor µF (Min-Max) | Voltage Rating (AC) |
|---|---|---|
| 0.25–0.5 | 5–10 | 370 |
| 0.75–1 | 15–25 | 370 |
| 1.5–2 | 30–50 | 370/440 |
| 3–5 | 70–100 | 440 |
Inspect the centrifugal switch contacts for pitting or carbon deposits. Arcing at these points causes voltage sags of 20–60V between the start and run windings during transition phases. Clean contacts with 400-grit abrasive paper and apply a non-conductive lubricant if oxidation is present. For hermetically sealed units, bypass the switch temporarily and monitor performance–a persistent undervoltage condition confirms switch failure.
Examine the stator winding connections for loose terminals or cold solder joints. A 5–10Ω resistance imbalance between any winding pair suggests partial short circuits or degraded insulation. Use a megohmmeter to test winding-to-ground resistance; readings below 1MΩ at 500V DC indicate compromised dielectric strength. Rewind or replace the assembly if insulation resistance fails to stabilize above 1.5MΩ after drying at 120°C for 24 hours.
Load-Dependent Volt Drop Analysis
Attach a true-RMS multimeter at the motor terminals while varying the mechanical load. A 10% or greater voltage drop under load–with stable supply voltage–points to internal resistance losses. Calculate winding resistance using the formula R=V/I derived from voltage and current measurements at full load. Compare results to the following tolerance bands:
| Frame Size | Max Winding Resistance (Ω) |
|---|---|
| 42 | 12.5–14.2 |
| 48 | 8.7–9.8 |
| 56 | 5.1–5.9 |
| 66 | 3.4–3.9 |
Values exceeding these ranges necessitate winding repairs or thermal imaging to identify hotspots. Isolate the unit from the driven equipment–persistent undervoltage under no-load conditions confirms internal degradation rather than external circuit faults.
