How to Wire a 240 Volt Outlet Step-by-Step Guide with Diagram
Install a two-pole breaker rated for 30 amps or higher before running any heavy-duty equipment circuit. Use 10 AWG copper conductors for 30-amp setups–thicker 8 AWG is mandatory if the length exceeds 50 feet to prevent voltage drop. Mark both hot wires with contrasting colors (commonly red and black) to eliminate confusion during termination.
Neutral is not interchangeable in split-phase configurations. Connect it only if the appliance requires 120V secondary loads; otherwise cap it with a wire nut inside the box. Ground must terminate directly to the metal enclosure–do not loop it through the neutral bar. Verify torque values with a calibrated screwdriver: 15–18 lb-in for 10 AWG, 20–25 lb-in for 8 AWG.
Color conventions differ outside North America–brown (L1), blue (L2) and gray (N) comply with IEC standards. Test continuity between conductors and ground with a megohmmeter set to 500V after installation; readings below 1 megohm require replacement of faulty insulation. Label the cover plate with the breaker number and circuit purpose.
Load calculations must include startup surges: a 4.5 kW compressor draws 18.75 amps at 240V but spikes to 45 amps momentarily. If the panel is more than 70 feet away, upsize conductors by one gauge size–voltage drop should not exceed 3% under full load. For outdoor receptacles, apply dielectric grease to all connections and use in-use covers rated NEMA 3R minimum.
GFCI protection is unnecessary unless local codes enforce it–standard circuit breakers suffice for fixed equipment. When pairing with subpanels, run an independent grounding conductor back to the main panel; shared neutrals violate NEC 250.140. Terminate aluminum conductors with approved anti-oxidant compounds and torque to 40 lb-in.
Dual-Voltage Receptacle Installation Manual
Secure a 30-amp breaker for standard air conditioners, electric ranges use 50-amp circuits. Match wire gauge to the breaker: 10 AWG for 30 amps, 6 AWG for 50 amps. Verify local codes–NEC requires copper conductors for branch circuits exceeding 30 amps in residential settings.
Identify terminal types before connecting: brass screws accommodate hot wires (black and red), silver screws are neutral (white), green screws or bare wires ground the system. Use torque settings–NEC 2020 mandates 18 lb-in for #10 AWG on 20-amp connections.
Test polarity with a multimeter before energizing. Voltage between hot terminals should read 220-240V AC; neutral to ground should be 0V. Troubleshoot mismatched readings by verifying continuity at the breaker and checking for loose connections under terminals.
Common Circuit Configurations

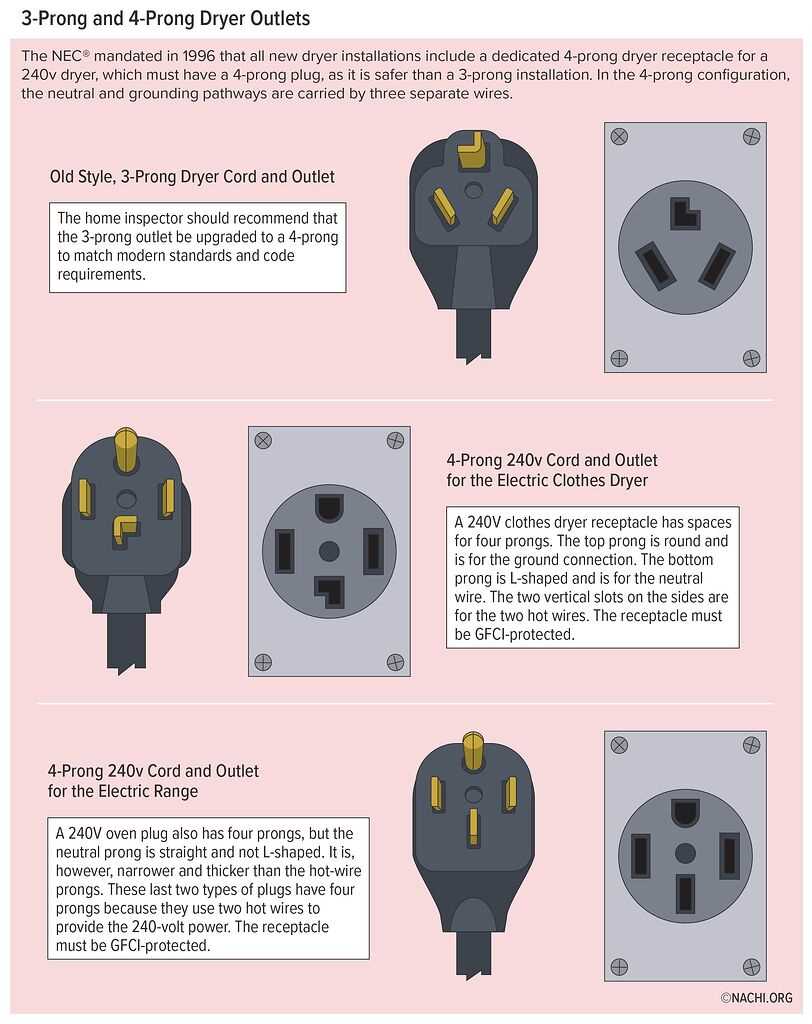

| Appliance | Breaker Rating | Wire Gauge | Receptacle Type | Neutral Required |
|---|---|---|---|---|

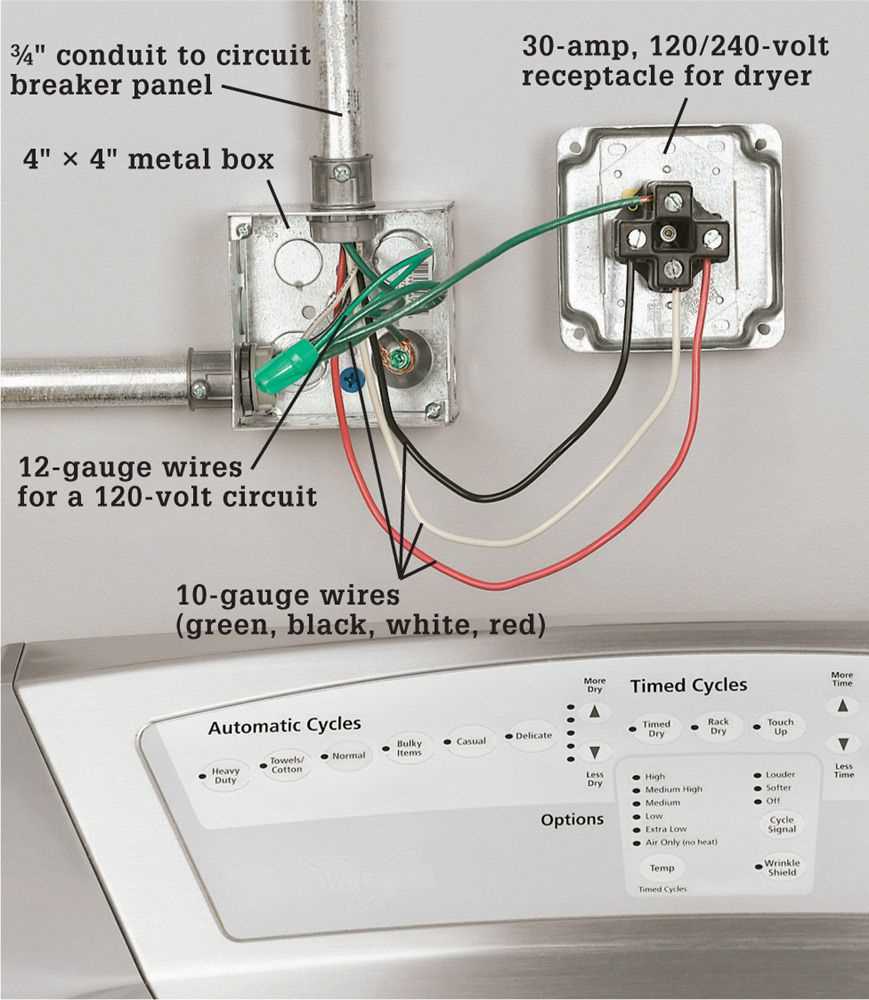

| Clothes Dryer | 30A | 10 AWG | NEMA 14-30 | Yes |
| Electric Range | 50A | 6 AWG | NEMA 14-50 | Yes |
| Welder | 40A | 8 AWG | NEMA 6-40 | No |
For split-phase systems, connect one hot wire to each busbar in the panel, ensuring the red conductor lands on a breaker adjacent to the black. Maintain color consistency: red-right, black-left when facing the receptacle. Ground rods must comply with NEC 250.53–use 8-foot copper-clad steel, bury 8 inches deep, bond to the panel with 6 AWG or larger.
Safety Checks
Before finalizing connections, perform these steps:
- Inspect stripped wires for nicked insulation–damaged conductors create fire hazards.
- Confirm all terminals accept the correct wire gauge–#10 AWG shouldn’t be forced into 50-amp connectors.
- Apply anti-oxidant paste to aluminum conductors–stranded aluminum requires Purple AlumaSeal.
- Cap unused conductors individually–never bundle capped wires.
Label the circuit at the panel–use permanent markers, specify “40A – AC Unit” or similar. Keep a reference diagram taped inside the panel door for future maintenance.
Essential Gear for Installing High-Voltage Receptacles
Start with a digital multimeter (CAT III 600V minimum) to verify power disconnection and test conductor continuity. Avoid cheaper models–faulty readings risk arc flashes. Look for one with true RMS for accurate AC measurements and a non-contact voltage detector for quick checks.
Use 10-gauge (or thicker) copper wire for circuits up to 30 amps and 8-gauge for 40-50 amps. Romex NM-B works for indoor dry areas, but THHN/THWN wire in conduit is mandatory for exposed runs or damp locations. Never substitute aluminum–oxidation causes loose connections and overheating.
Specialized Installation Hardware
A double-pole circuit breaker matching the wire amperage is non-negotiable. Square D QO and Siemens QP series offer reliable trip mechanisms, but ensure compatibility with your panel brand. For subpanels, use a 30-50 amp breaker paired with feeders sized per NEC Table 310.16.
Select a NEMA receptacle based on appliance requirements: NEMA 6-20 for 20A, 6-30 for 30A, 6-50 for welders/RVs. Heavy-duty industrial-grade units resist corrosion; Leviton or Hubbell models last longer than budget options. Secure the device with #8-32 machine screws–drywall anchors fail under repeated plug cycles.
Conduit (if used) demands galvanized steel EMT or rigid PVC Schedule 80. EMT requires a dielectric coupling when connecting to non-threaded boxes. For elbows, pre-threaded sweeps prevent wire damage–avoid sharp bends. Use conduit straps every 4.5 feet for EMT and 3 feet for PVC to meet code.
Safety gear includes arc-rated gloves (ASTM F2675), face shield with UV protection, and fire-resistant clothing (NFPA 70E PPE Category 2 minimum). A fiberglass ladder (non-conductive) is critical when working near live service drop connections. Store tools in a non-metallic tool belt–steel components create stray conduction paths.
Finish with UL-listed wire connectors: red or blue twist-on nuts (or lever-style Wago 221) for branch circuits, aluminum split bolts for ground bonds, and heat-shrink tubing for exposed splices. Validate all connections with a torque screwdriver set to manufacturer specs–underversus overtightening both cause failures.
Step-by-Step Installation of a NEMA 6-20 Receptacle
Before handling conductors, shut off the panel’s main breaker and verify absence of current with a non-contact voltage tester. Strip ⅝” of insulation from each conductor–black (hot), red (hot), and green (ground)–using wire strippers calibrated for 10 AWG copper. Twist the exposed strands tightly to prevent frayed ends from causing shorts during termination.
Align the receptacle’s terminal screws: brass for hot wires (black to upper, red to lower), green for ground. Loop each conductor clockwise around its respective screw, tightening to 12–15 in-lbs with a torque screwdriver to meet NEC 2023 torque requirements. Fold excess wire neatly into the junction box, ensuring no bare strands contact the box or other terminals.
For circuits with a neutral (if present, though NEMA 6-20 lacks one), secure it to the silver terminal but cap it with a wire nut if unused. Snap the faceplate onto the receptacle, then restore power. Test with a multimeter: 208–240V across hots, 0V to ground. If readings deviate, recheck connections before closing the panel.
Critical Errors in High-Voltage Circuit Installation
Always match the conductor gauge to the breaker amperage–#6 AWG copper is insufficient for a 50-amp dual-pole setup, despite what outdated manuals suggest. Modern codes mandate #8 for 40-amp, #6 only up to 60-amp under specific derating rules. Overloaded cables risk heat buildup, insulation failure, and potential arc faults within hours of activation.
Wire Termination Pitfalls
- Never reuse stripped ends–even if the copper appears undamaged, microscopic corrosion reduces contact surface by 30%.
- Tighten terminal screws to 12-15 lb-ft torque with a calibrated driver; under-torqued connections loosen under thermal cycling.
- Reverse polarity on NEMA 6-15/6-20 plugs causes immediate equipment damage; verify hot-neutral-ground configuration with a multimeter before energizing.
Skipping ground continuity checks is reckless. A missing or improperly bonded ground turns metal appliance enclosures into lethal shock hazards. Test with a circuit analyzer at 1 kΩ impedance–any reading above 1 Ω indicates faulty connections requiring immediate rework.
Double-check disconnect placement. Installing a 60-amp disconnect 12+ feet from the appliance violates NEC 225.32, forcing lengthy, unsupported runs. Use weatherproof enclosures for outdoor units, ensuring knockouts face downward to prevent water ingress.
- Verify wire length allows 6″ slack at boxes–short conductors stress terminals during device insertion.
- Use strain relief clamps on flexible cords entering boxes; unsecured cables fatigue at termination points.
- Avoid aluminum conductors unless using CO/ALR-rated devices–standard terminals corrode within months.
Lastly, confirm local amendments. Some jurisdictions prohibit backfeeding generators through receptacles, demanding dedicated transfer switches. Ignoring AHJ requirements voids insurance coverage during failure incidents.
Verifying High-Power Receptacle Safety Before Use
Set a multimeter to AC voltage mode, selecting a range above 250V. Insert probes into the two hot slots–terminals must measure 220–240V (±5V). Cross-check by testing each hot slot against the neutral slot; readings should stabilize at 110–125V. If values deviate beyond ±10%, replace conductors immediately–fluctuations indicate loose connections or degraded insulation. Ground continuity requires probing the hot slot to the grounding port; expect potential equal to the neutral test. Absence of voltage or inconsistent readings demands disconnecting power and inspecting for corrosion, stripped threads, or misaligned pins inside the socket housing.
Use a non-contact voltage tester to confirm power cutoff before handling cover plates. Check torque on terminal screws–tighten to 1.2 Nm if resistance exceeds 2 ohms when probed. Scorch marks on terminals or a sulfur odor signal arcing–capable equipment should never exhibit discoloration. Test GFCI functionality (if present) by pressing the “TEST” button; the device must trip within 20 milliseconds. Replace any outlet failing insulation resistance tests below 1 megohm–moisture ingress accelerates conductive paths between live elements and the chassis.
