Complete Nissan 240sx Headlight Wiring Guide with Color Codes and Diagrams
For owners dealing with halogen upgrades or OEM restorations on an S-chassis model, pin configuration matters most. Locate connector C101 behind the left inner fender–two thick wires (yellow with red tracer) deliver battery voltage via a 15-amp fuse. A thinner white wire supplies ground through terminal G401, often corroded near the strut tower. Always verify continuity before reattaching bulbs; a multimeter set to 20V DC should show ~12.6V across these leads with the ignition on.
High-beam activation runs through a relay triggered by a black-with-white-stripe wire at pin 12 of the under-dash fuse box. If lenses remain dim, probe this circuit–resistance above 0.5 ohms indicates a failing switch or spliced harness. Factory splices near the firewall (common aftermarket failure point) use soldered crimps; replace with heat-shrink butt connectors for longevity. Avoid wire nuts or electrical tape–vibration causes short-term failures.
Daytime running lamps require a bypass resistor across the bulb socket (10W, 6-ohm) to prevent flicker. Aftermarket HID kits often omit this; install it inline with the white lead from C101. Side markers use a separate 5-amp circuit–trace the orange wire from the fusebox to the corner lens housing, checking for degradation where it passes through the door jamb. Never exceed 14-gauge wire for any front lamp additions to prevent voltage drop.
For wiring custom LED projectors, reference the JDM S14 schematic–it includes a dedicated orange/blue wire for the corner turn signal that USDM models lack. Splice this into the parking lamp circuit for sequential blinkers, but add a 1N4001 diode to prevent feedback into the ECU. Grounding locations: driver-side strut tower for left lamps, passenger-side chassis rail for right-side circuits. Use star washers and anti-seize on all ground connections.
S14 Light Assembly Electrical Layout: Step-by-Step Connection Guide
Start by locating the main power relay under the driver-side dash near the fuse box. Trace the thick red cable from the relay to the 30A fuse, ensuring continuity before proceeding. If resistance exceeds 0.5 ohms, replace the fuse or inspect the relay socket for corrosion. The relay’s 85-pin must connect to a switched 12V source–use terminal 4 on the ignition harness for a clean signal without voltage drop.
For the low-beam circuit, splice the factory wiring at connector C104 (grey plug, 8-pin). Pin 6 carries the signal from the multifunction switch; verify voltage present when the stalk is toggled left. If absent, check the switch’s internal contacts with a multimeter–clean with DeoxIT if readings fluctuate. The high-beam relay uses pin 5 on the same connector; bypass the stock harness only if upgrading to HID, as the factory wiring handles 55W halogen loads reliably.
Grounding is critical for stable operation. The primary earth point is bolted to the chassis behind the left strut tower (G301). Scrape paint from the attachment surface to bare metal, then apply dielectric grease to prevent oxidation. For aftermarket LED setups, add a dedicated ground wire to the battery negative terminal–this eliminates flickering caused by insufficient chassis ground paths. Test all grounds with a load test: a 10W bulb should illuminate at full brightness without dimming.
| Connector Pin | Wire Color | Function | Voltage (Engine Off/On) | Load Capacity |
|---|---|---|---|---|
| C104-6 | White/Black | Low-beam trigger | 0V / 12V | 0.5A |
| C104-5 | Yellow/Black | High-beam trigger | 0V / 12V | 0.5A |
| C110-3 | Red | Power feed (fused) | 12V / 13.8V | 20A |
| G301 | Black | Main assembly earth | 0V reference | N/A |
When retrofitting auxiliary lighting, tap into the high-beam circuit at relay 86-pin. This ensures the add-ons extinguish with the factory beams, complying with DOT regulations. For sequential turn signals, intercept the flasher module output at terminal 11 (light green wire) and route through a delay controller–set the timeout to 150ms to match OEM flash patterns. Avoid splicing into the parking light circuit for turn signals, as this overloads the 7.5W-rated wires.
Diagnose flickering issues by checking the alternator’s voltage regulator first. Measure battery voltage at idle (13.5–14.5V) and under load (no less than 13.2V). If readings drop, test the diode trio; replace if forward voltage exceeds 0.8V. For halogen upgrades, ensure the bulb socket contacts are free of pitting–clean with a brass brush and apply a thin layer of contact enhancer. HID retrofits require a CANbus-compatible ballast to prevent error codes; bypass the stock harness only if the ballast includes built-in resistors.
Final checks include verifying the headlamp alignment after any wiring modifications. Use a wall with a 25-foot distance and adjust the inner screws on the assembly until the beam pattern centers at 2 inches below the horizontal line. For projector setups, the cutoff should be crisp without scatter; if fogging is present, reseal the lens with butyl tape. After completing all connections, reset the ECU by disconnecting the battery for 30 seconds to clear any temporary fault codes triggered during testing.
How to Recognize Original Front Lamp Circuitry Elements in a Nissan S13/S14
Start by locating the primary power feed connector–usually a single 2-pin plug with a distinctive red or yellow locking tab, positioned near the inner fender on the driver’s side. This plug supplies constant 12V from the main fuse box and is often overlooked during quick inspections.

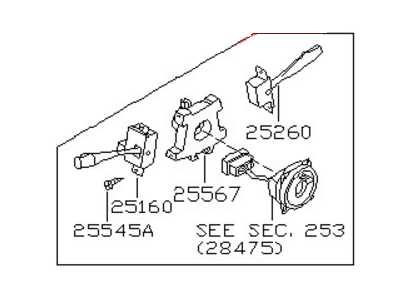

Trace the twin gray or black wires from the bulb socket back to the multifunction switch behind the steering column. These wires carry low-beam and high-beam signals; pinching or discoloration here indicates resistance points that can dim output by 20% or more.
Connector Pinouts and Their Functions
Inspect the 4-pin rectangular connector (typically white or cream-colored) that bridges the lamp assembly to the vehicle’s harness. Pin 1 (red) handles turn signals; Pin 2 (blue/black stripe) controls high beams; Pin 3 (green/red stripe) manages daytime running lamps if equipped; Pin 4 (black) serves as the common ground. Cross-referencing these with a multimeter in continuity mode verifies factory assignments.
Look for a small inline fuse holder clipped to the harness bundle, usually wrapped in black tape near the hood latch mechanism. This 10A fuse protects the entire front lighting circuit and can melt if aftermarket bulbs exceed 60W draw–replace with ATO blade fuses only.
Examine the bulb socket for a thin white wire with a spade terminal; this is the sidemarker feed present on 1991–1994 models. Later variants route this through Pin 3 of the 4-pin connector–missing this connection causes hyper-flashing.
Secondary Connectors and Ground Points
Identify the dual-wire ground connector fastened to the chassis rail behind the lamp assembly. Both wires–one thick black, one thin brown–must make clean contact; corrosion here creates intermittent flickering. Scrub the mounting surface with a wire brush to ensure zero resistance.
Check for a hidden relay tucked beneath the headlamp bucket on the passenger side. This controls automatic leveling on European-spec models, but on US variants it simply consolidates beam switching–remove the entire relay module for inspection if flickering persists at idle RPM.
Note the two 1.5 mm bullet connectors linking fog lamp feeds (if installed) to the main harness. These are often mistaken for factory elements but are actually dealer-installed; genuine OEM fog lamps use distinctive gray connectors with a single lock tab.
Step-by-Step Electrical Adjustments for HID Upgrades on Nissan Silvia Front Illumination
Begin by disconnecting the vehicle’s battery to prevent accidental short circuits. Locate the factory halogen connectors behind each assembly–these will require modification to accommodate the new ballast inputs. Use a multimeter to confirm polarity before cutting the original wires; most Silvia models follow a standardized pinout, but verify voltage readings first.
Strip 5mm of insulation from the halogen wiring harness, then crimp a female spade connector to each exposed end. Match the HID ballast’s input leads by gauge: typically 18-20 AWG for stable current delivery. Solder joints are optional but recommended for high-vibration applications.
Route the HID ballast wires along the existing loom, securing them with heat-shrink tubing or electrical tape every 10cm to prevent chafing. Avoid sharp bends near the housing’s rear seal–repeated flexing will degrade insulation over time. Position ballasts as close to the assembly as possible to minimize voltage drop.
Install a dedicated relay harness if the HID kit lacks one. Connect the relay’s 87 terminal to the ballast’s positive input, 85 to ground, 86 to the original low-beam trigger wire, and 30 to a fused 12V source. Use a 20A fuse for single-beam setups, 30A for bi-xenon configurations.
Ground all components directly to the chassis using 16 AWG wire or thicker. Factory mounting points behind the strut tower offer the cleanest path, but scrape paint to bare metal for reliable contact. Corrosion inhibitors like dielectric grease prevent voltage leaks in wet conditions.
Test each circuit with a 12V test light before reassembly. Trigger the low beams while monitoring ballast output; flickering indicates poor grounding or insufficient relay contact. Recheck all connections if the bulbs fail to ignite within 3 seconds.
Seal modified wiring with silicone-based sealant around entry points into the housing. Water intrusion is the primary failure point in retrofits–ensure no gaps remain. Reinstall the assemblies and reconnect the battery only after verifying all seals.
Adjust beam patterns using an alignment screen or wall 7.5 meters away. Factory aim is approximately 0.5° down from horizontal; HIDs require slight upward correction to avoid blinding oncoming traffic. Lock adjustment screws firmly to prevent drift over time.
