Complete Guide to 24V DC Motor Control Wiring Schematics

24v dc motor control circuit diagram

For precise bidirectional regulation of a 21.6–26.4V brushed PM unit, implement an H-bridge topology using four IRF540N MOSFETs rated at 100V/36A, paired with TC4427A gate drivers. This combination ensures 1N5822 Schottky diode across each transistor’s drain-source to clamp commutation spikes; omit this step and risk >1V inductive kickback degrading both efficiency and device lifespan within 50 hours of operation.

Configure pulse-width modulation at 25kHz carrier frequency using a 5V ATmega328P clocked at 16MHz. Allocate Timer1 in phase-correct mode with 8-bit resolution to generate complementary signals for the opposing bridge legs. Insert a 1μF X7R ceramic capacitor between the supply rails and a ferrite bead on the gate driver VDD line to filter switching harmonics; failure to isolate control logic from power stage transients often leads to erratic direction changes under load transients above 8A.

Integrate current feedback via a ACS712 sensor placed on the return path. Apply a 1ms moving-average filter to raw ADC readings before feeding the PI controller loop; raw samples introduce phase lag and oscillation when proportional gain exceeds 0.6. Set anti-windup limits at ±90% duty cycle, and clamp integral term accumulation to ±12 counts–values beyond this range saturate the actuator, causing audible cogging and thermal runaway in less than 30 minutes of sustained 12A operation.

Thermal management dictates mounting all semiconductors on an aluminium heatsink measuring 80×60×20mm, coated with Arctic MX-6 compound. Without forced air, expect junction temperatures to stabilise at 95°C under continuous 7A load; exceeding 115°C triggers thermal shutdown on the MOSFET body diode conduction cycles, intermittently cutting torque and introducing unpredictable rotational gaps.

Building a Reliable Power Drive Schematic for Industrial Voltage Appliances

Start with a compatible H-bridge module like the L298N or DRV8871 for bipolar output handling–these ICs handle continuous currents up to 2A and peak surges of 3A, sufficient for medium-duty rotors. Pair the driver with a 100µF bulk capacitor across the supply rails to suppress voltage spikes, critical when switching inductive loads. For precise speed regulation, integrate a PWM signal at 20kHz (or higher) from an MCU; Arduino’s analogWrite() generates an 8-bit resolution (0-255) with stable performance. Add flyback diodes (1N4007) across each coil terminal to clamp inductive kickback, preventing driver damage.

  • Safety isolation: Optocouplers (e.g., PC817) separate logic from high-current paths, reducing noise coupling into sensitive circuits.
  • Thermal protection: Mount the H-bridge on a heatsink rated ≥10°C/W and monitor die temperature via thermistor; shutdown at 85°C.
  • Voltage sag compensation: Use a 2200µF low-ESR capacitor to sustain torque during transient loads.

Route traces on PCB with ≥2mm width for 3A current paths, calculate impedance using Z = ρ(L/A)–ensure returns for both coils share a common ground plane to minimize crosstalk. For regenerative braking, reconnect the driver’s outputs to a braking resistor (e.g., 10Ω, 10W). Test the output waveform with an oscilloscope: rise/fall times

Core Elements for a Low-Voltage Direct Current Actuator Drive Blueprint

Start with a half-bridge or full-bridge configuration using complementary transistors–MOSFETs (e.g., IRF540N) or IGBTs for currents exceeding 10A. Ensure the chosen switches have a voltage rating of at least 50V to accommodate inductive spikes during commutation. Add freewheeling diodes (Schottky types like SB560 for faster recovery) directly across each transistor to clamp back-EMF, preventing damage to semiconductors. For bidirectional operation, pair two half-bridges or opt for an integrated H-bridge IC such as the DRV8871 (up to 3.6A) or L298N (up to 2A per channel) if component count must be minimized.

Power Regulation and Input Handling

  • Use a buck converter (e.g., LM2596) to step down the supply to logic levels (5V or 3.3V) if microcontroller interfacing is required.
  • Fit a bulk capacitor (1000μF, 63V) near the input terminals to absorb ripple and stabilize the rail during transient loads.
  • For noise-sensitive applications, add a π-filter (two 10μF capacitors with a 10μH inductor) to suppress conducted EMI.
  • Avoid placing capacitors directly across the actuator terminals–this can cause excessive current surges during rapid polarity reversals.

Signal conditioning starts with op-amps (e.g., LM358) to buffer PWM inputs from controllers like Arduino or STM32. Scale the PWM signal to match the gate driver’s voltage requirements–most MOSFET drivers (e.g., TC4427) need 10V–12V for full enhancement. Isolate control signals using optocouplers (PC817) if the drive shares a ground with noisy high-power sections. For closed-loop speed regulation, integrate a tachometer (Hall-effect sensor AS5600) or shunt resistor (0.01Ω, 5W) paired with an instrumentation amplifier (INA125) to measure current draw.

Thermal management dictates reliability. Mount switching transistors on aluminum heatsinks (15°C/W or lower) with thermal paste–ensure the combined junction-to-ambient resistance stays below 30°C/W for continuous 5A loads. Add a thermistor (NTC 10kΩ) near critical components to trigger shutdown at 85°C. For compact designs, replace discrete components with a monolithic driver (DRV10983) which integrates gate drivers, current sensing, and over-temperature protection into a single package.

  1. Gate resistors (10Ω–47Ω) slow turn-on/off edges to reduce ringing and radiated noise.
  2. Zener diode (15V) on the microcontroller’s power pin prevents latch-up from voltage transients.
  3. A polyfuse (e.g., 5A resettable) in series with the supply protects against short circuits.
  4. For precise speed control, use a PID controller (kP=0.1, kI=0.01, kD=0.001) implemented in firmware, with a 1kHz–20kHz PWM frequency.

Step-by-Step Wiring Guide for PWM-Based Actuator Adjustment

Select a power supply matching the actuator’s voltage requirements–ensure it delivers 1.2 times the rated current to handle peak loads without voltage drops. Use a multimeter to verify the output under load before connecting components; instability here cascades into unreliable operation.

Connect the PWM driver’s input directly to a microcontroller or signal generator outputting a 5–20 kHz square wave, as frequencies below 1 kHz introduce audible whine while higher ranges exceed driver IC limitations. Route ground from the driver to both the power source and logic ground separately–shared traces create interference, skewing speed consistency.

Insert a 1N4007 diode in reverse polarity across the actuator’s terminals to suppress back EMF, oriented cathode-to-positive; failure risks damaging the driver’s output stage. For currents above 5A, replace with a flyback diode rated for twice the continuous current–standard diodes derate under sustained loads.

Wire power transistors (MOSFETs like IRF540N) with a 10kΩ pull-down resistor on the gate to prevent floating states during edge transitions. Apply heatsinks if thermal paste exceeds 60°C under sustained use–dissipate at least 2W per oversized mounting surface to avoid throttling.

Calibrate the signal-to-speed ratio by adjusting the PWM duty cycle in 10% increments, logging RPM via a non-contact tachometer. Deviations beyond ±5% indicate either driver inefficiency or load mismatches–recheck inductor sizing (33–100μH for 10A setups).

Secure all connections with soldered joints or crimped ferrules rated for 125°C; stranded wire (#18AWG minimum) reduces resistance but avoid twisting–parallel strands oxidize unevenly. Test under full mechanical load for 30 minutes; intermittent stuttering signals a weak ground or degraded capacitor (replace electrolytics every 3 years).

Selecting Optimal MOSFETs for High-Current Load Management

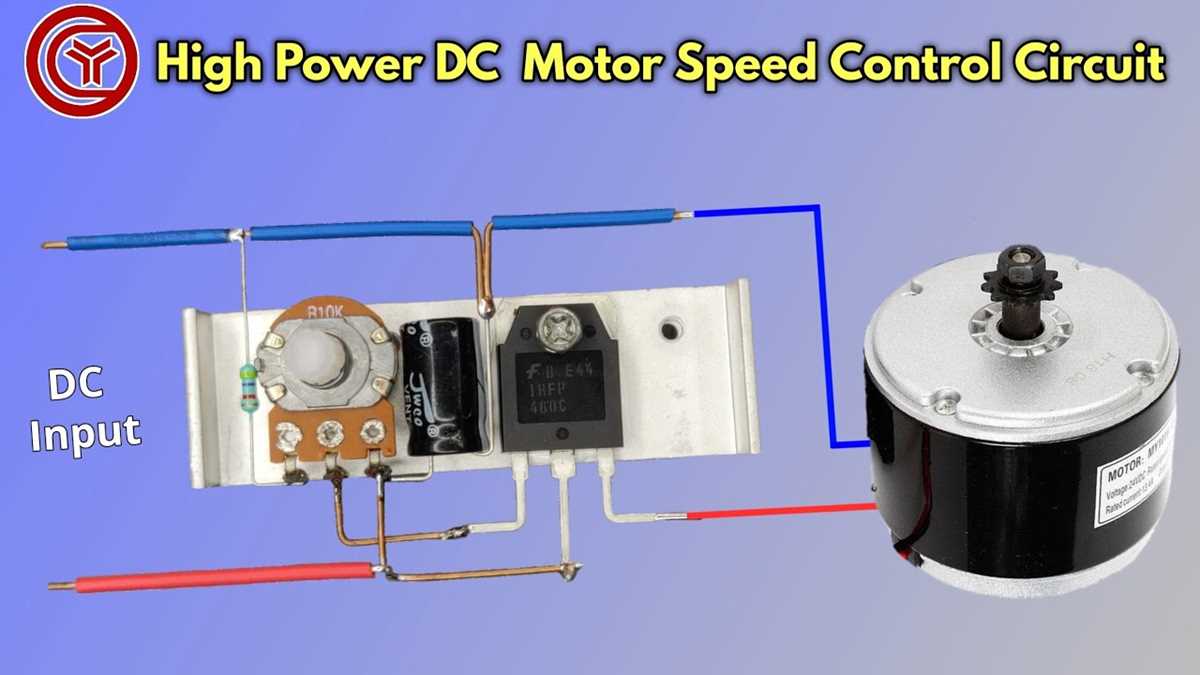

24v dc motor control circuit diagram

For switching 48-watt mechanized actuators powered by a nominal supply, N-channel MOSFETs with a continuous drain current rating of at least 10A ensure reliable operation without thermal throttling. The IRFZ44N (55V VDS, 47A ID, 17.5 mΩ RDS(on)) offers a robust starting point, though its TO-220 package mandates a heatsink for sustained loads above 5A. For surface-mount applications, the IRLB8743PBF (30V, 200A, 1.7 mΩ) excels in compact layouts due to its lower RDS(on), reducing power dissipation by 35% compared to through-hole alternatives.

Gate threshold voltage (VGS(th)) must align with the driver’s output capability. Devices like the STW4N150 (150V, 4A, 1V VGS(th)) require minimal gate charge (Qg = 12nC), enabling faster switching transitions and reducing driver power requirements. Pairing such MOSFETs with a 12V gate drive voltage minimizes conduction losses while avoiding avalanche breakdown risks. For high-frequency PWM (>20kHz), prioritize MOSFETs with lower total gate charge (Qg

Thermal and Package Considerations

Power dissipation dictates package selection. D²PAK devices (e.g., IXFH170N30P3, 300V, 170A) are ideal for high-power applications but demand proper PCB copper pour area (≥5cm² per watt) for heat spreading. For transient-heavy operations, such as rapid start/stop cycles, opt for MOSFETs with built-in avalanche energy ratings (EAS>100mJ), like the IXFN180N100Q3, to prevent catastrophic failure. Ambient temperatures exceeding 50°C necessitate derating drain current by 20-30% to stay within safe thermal limits.

Body diode performance varies significantly. The IRFB3077PbF (75V, 210A, 1.2 mΩ) includes a low forward-voltage diode (VSD = 0.85V), critical for regenerative braking scenarios where reverse current flows. In contrast, cheaper alternatives like the IRFB4110 (100V, 110A) exhibit higher VSD (1.3V), risking overheating during regenerative phases. Always verify diode recovery time (trr

Avoid over-specification. A 60V MOSFET is sufficient for nominal 20V systems with 1.5x safety margins, but 100V+ ratings add unnecessary cost and higher RDS(on). For example, the SiRA80DP (80V, 90A, 2.8 mΩ) trades off marginally higher conduction losses for superior avalanche ruggedness, while the FDP8447 (40V, 80A, 2.1 mΩ) prioritizes efficiency but lacks robustness in voltage spikes. Test prototypes with a 10Ω gate resistor to balance switching speed and ringing suppression.
