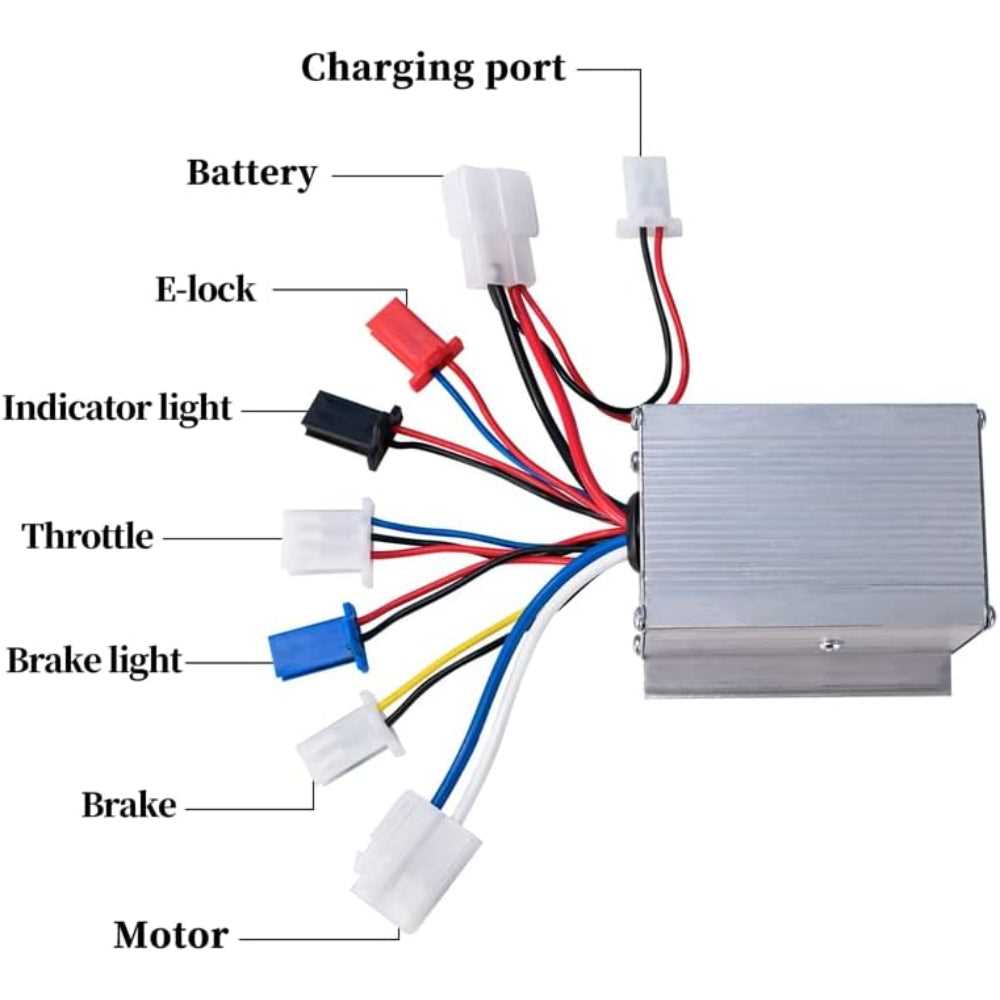

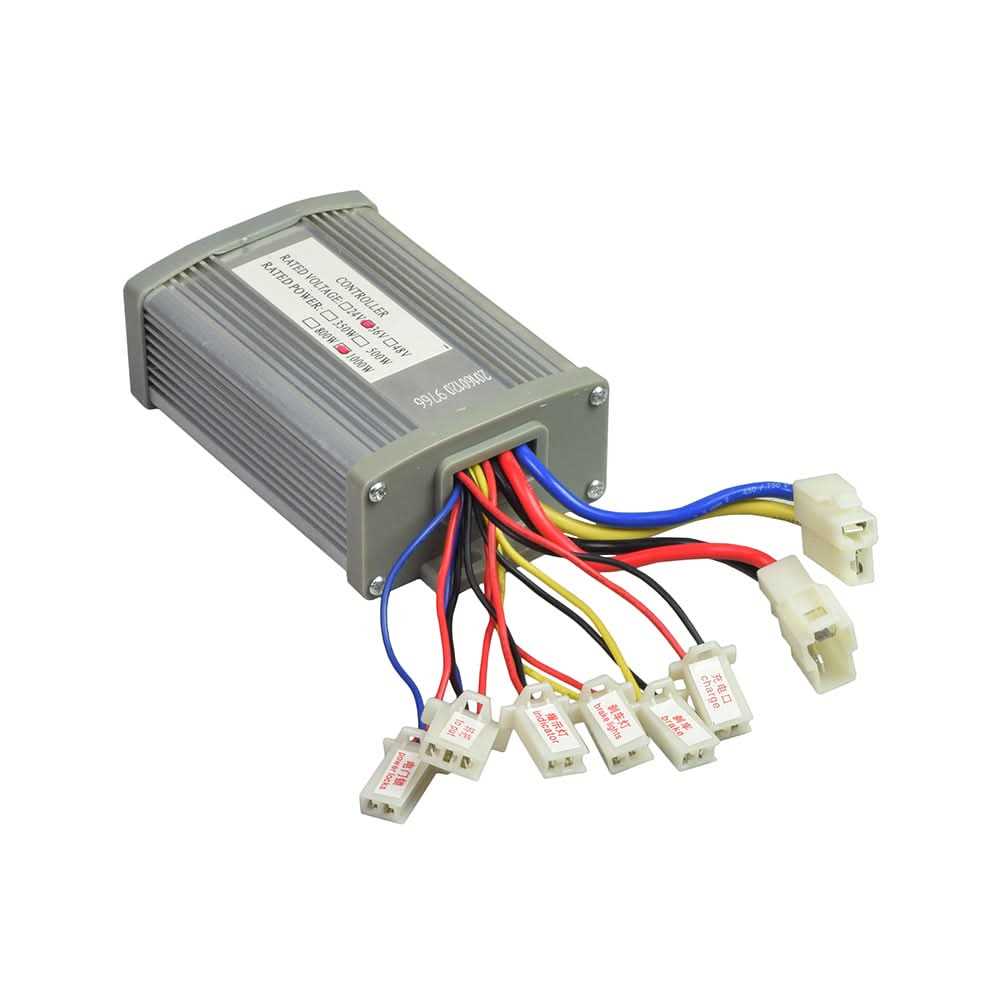

Complete 24V Electric Scooter Controller Wiring Guide with Schematic

Start by identifying the primary input terminals on your speed regulator–these are marked with B+ for power in and B- for ground. A minimum 10 AWG wire is required for these connections to handle current spikes without overheating. Solder or crimp the wires directly to the terminals, ensuring no exposed copper remains to prevent short circuits. For added safety, apply heat-shrink tubing over the joints and use a heat gun to seal.

Avoid daisy-chaining the power supply to other components. Run a dedicated pair of wires from the battery pack’s main output to the regulator. If the battery includes a built-in fuse, verify its rating matches the regulator’s max current draw (typically 20–30 amps for standard setups). For installations without a fuse, add an inline fuse holder between the battery and regulator, selecting a fuse value at 1.2× the controller’s peak current.

The three-phase motor output wires (often colored yellow, blue, green) must connect to the motor’s matching terminals. Use 6 AWG or thicker wires for these connections to minimize resistance. Twist the wires tightly before inserting them into bullet connectors, then cover each connection with dielectric grease to prevent corrosion. For hall sensor variants, match the sensor wires (frequently red, black, white) to the motor’s hall outputs–reversing these will cause erratic behavior.

For throttle integration, locate the signal (green), +5V (red), and ground (black) wires on the handlebar module. Connect these to the regulator’s corresponding throttle input, ensuring no voltage leaks between the +5V and signal lines. If the device exhibits jerky acceleration, swap the signal and ground wires–most brains interpret a low-voltage signal (0.8–4.2V) as throttle input. Test with a multimeter before securing the connections.

After wiring, insulate all exposed conductors with electrical tape or liquid insulation. Secure wires with zip ties every 15 cm to prevent vibrations from loosening connections. Before powering on, verify ground continuity between the battery’s negative terminal and the regulator’s B-–a loose ground can cause overvoltage damage to sensitive components.

Connecting a 24-Volt Personal Transporter Control Unit

Start by matching the battery pack’s positive and negative terminals to the main power input on the speed regulator. Use 12-gauge silicone-insulated wires for all high-current paths; anything thinner risks overheating under load. Mark each connection with heat-shrink tubing color-coded as follows: red for positive supply, black for ground, blue for throttle signal, and yellow for brake cutoff. Secure crimps with a hydraulic terminal crimper rated for 20 A to prevent loose contacts that can cause intermittent failure.

Next, link the throttle lever to the processor via a three-wire harness: 5 V reference (green), signal return (white), and output line (purple). Calibrate the sensor by holding the lever at minimum position while powering on; the logic board should recognize 0.8–1.0 V as idle. If readings deviate, adjust the 5 kΩ potentiometer on the sensor until voltage stabilizes within ±0.1 V. Failure to fine-tune may lead to erratic acceleration or sudden shutdowns.

Safety Circuit Integration

• Attach the left-hand cut-off (orange wire) to a normally-open switch mounted on the handlebar; closing the circuit should instantly disable motor current without latency.
• Route the battery-side fuse holder as close as possible to the positive terminal–use a 30 A blade fuse for sustained 15 A draws and a 50 A fuse for peak bursts.
• Connect the phase wires from the motor to the output mosfets on the logic board; ensure phase order (U-V-W) aligns with factory markings to avoid reverse spin.
• Test continuity across each phase-to-phase path with a multimeter; readings should fall between 0.2–0.5 Ω; higher values indicate faulty windings or loose connections.

Finalize the setup by enclosing all exposed conductors in split-loom tubing and zip-tie harnesses every 10 cm. Secure the logic board against vibration with foam adhesive pads; micro-movements can fracture solder joints over time. Perform a full-speed test on a level surface; monitor the processor’s diagnostic LED–three steady blinks confirm correct calibration, while patterns of rapid flashes point to specific faults per the error-code table.

Core Elements of a 12-Cell Mobility Vehicle Pulse Regulator Schematic

Prioritize a microprocessor unit (MCU) with at least 16 MHz clock speed for responsive throttle mapping. Opt for ARM Cortex-M0 or STM8 variants–these handle PWM generation efficiently without overheating under continuous 5A load. Verify firmware supports regenerative braking protocols; cheap clones often omit this, risking uncontrolled braking locks.

• Avoid 8-bit MCUs for power stages above 150W–they bottleneck feedback loops.
• Select MCUs with built-in op-amps to simplify current sensing, eliminating external ICs.
• Ensure EEPROM capacity for 10+ parameter profiles; wildcard fields cause erratic torque curves.

Gate drivers demand isolated 10V-12V supply rails, not low-dropout regulators. Infineon IRS21864 or ST L6384E prevent shoot-through by enforcing >500ns dead-time. Pair with 20V+ rated bootstrap capacitors–electrolytic types fail within 1000 hours under 3kHz switching.

MOSFET selection hinges on R_DS(on) and recovery time. IRLR8743 handles 80A peaks but needs dual-layer 2oz copper heat sinks on 10cm² footprint. For hills, parallel 4x IRFB4110 (175A total) reduces thermal throttling by 30%. Always verify gate charge (

Current sensing resistors should be four-terminal 0.001Ω manganin for thermal stability. Avoid thin-film types–they drift ±10% at 120°C. Place sensors on high-side for fault protection; low-side configurations miss leakage faults during coasting. Use AD8210 or MAX9934 amplifiers with

Voltage dividers for battery monitoring require 1%-tolerance 0603 SMD resistors. Cheap carbon-film types skew readings by ±0.3V after 6 months. Calculate values for 3.3V MCU input (e.g., 18kΩ + 2kΩ for 26.4V->3.3V). Add 10nF ceramic caps across the lower resistor to filter PWM noise.

Throttle interface must include hardware debounce–software filters introduce 50-150ms lag. Use a 10kΩ pull-up resistor with a 1μF tantalum cap; potentiometer-based throttles last 3x longer than Hall-effect ones in wet conditions. For safety, wire a 10Ω series resistor to prevent microcontroller latch-up during voltage spikes.

Fuses must interrupt short-circuit currents within 5ms. Car blade fuses (e.g., 30A) are inadequate; use littelfuse 0HEK series with sand fill. Locate them 2cm from battery terminals–longer leads drop 0.2V under 50A load. Never substitute with circuit breakers; their tripping curve is too slow for MOS gate failures.

Direct Connections for Throttle and Drive Assembly

Locate the primary voltage regulator output on the speed modulation unit–typically marked as “5V REF” or similar–and connect it to the throttle’s red (or equivalent high-precision input) terminal. Ensure polarity matches exactly; reversing these connections will prevent responsiveness and may damage internal circuitry. Use 0.5mm² silicone-insulated wire for flexibility under vibration.

Attach the throttle’s signal lead (usually black or green) to the modulation board’s “THR” or “SIG” port, securing it with a micro-crimp connector for reliable contact. Confirm the unit’s signal range (commonly 1-4V) aligns with the drive’s expected input; mismatches cause erratic acceleration. Test continuity with a multimeter before finalizing attachments.

Drive Assembly Integration

Connect the two heavy-gauge motor leads (typically 4mm²) to the power stage’s output terminals–marked “M+” and “M-“. Torque terminal screws to 4Nm to prevent loosening under load. Inspect for frayed insulation; even minor exposure risks short circuits during moisture exposure.

Route the Hall sensor wires (smaller gauge, often color-coded) from the drive assembly to the modulation board’s sensor input–usually labeled “HALL” or “U/V/W”. Keep these runs separated from high-current paths to minimize EMI interference. Verify sensor alignment (120° spacing) before securing; misalignment triggers erratic startup behavior.

Use waterproof heat-shrink tubing over all solder joints, especially where wires exit the drive housing. Apply dielectric grease to connectors exposed to weather. Label each connection near its termination point for future reference–prevents diagnostic errors during repairs.

Optimal Power Source and Drive Unit Input Connection Guidelines

Route power cables with a cross-sectional area of 2.5 mm² or larger to minimize voltage drop under peak current loads–typically 30–50 A during acceleration. Secure strain relief at both the battery pack output and drive unit input terminals using nylon clamps positioned within 5 cm of each connection point, preventing conductor fatigue from vibration.

Terminal Tightening and Insulation Protocols

Crimp ring terminals using a ratcheting tool calibrated to 12–15 Nm, then solder the joint for corrosion resistance. Apply heat-shrink sleeves with adhesive lining over exposed terminals, ensuring a sealed barrier against moisture ingress. Separate high-current leads from low-voltage signal wires by a minimum of 10 cm, bundling them in corrugated split tubing to suppress electromagnetic interference.

Diagnosing Faults in Low-Voltage Mobility Power Setups

Start by verifying the battery terminal connections with a multimeter–measurements below 22.8V under load indicate loose or corroded contacts, demanding immediate cleaning with a wire brush and re-tightening to 5-7 Nm torque. If voltage stabilizes but the motor fails to engage, inspect the throttle signal path: a reading outside 1.0-4.2V at the control module input suggests a faulty potentiometer or severed lead.

Open-circuit protection often triggers due to improper grounding. Trace the negative return path from the battery to the motor housing–ensure continuity at

Phase wire misalignment generates erratic motor behavior. Confirm each cable’s routing matches the manufacturer’s pinout: mismatched U-V-W sequences cause violent jerking or overheating. Use heat-shrink tubing on exposed conductors to prevent shorting, especially near the fork assembly where motion stresses the wires.

Thermal cutoffs engage prematurely when airflow is obstructed. Check the heatsink compound on the power stage–dry paste requires reapplication with high-conductivity (3-5 W/mK) silicone. Ventilation slots in the enclosure should remain unblocked; aim for a minimum 30mm clearance from any surface.

Fault Symptom	Likely Cause	Test Method	Corrective Action
Motor stutters at low speed	Hall sensor misalignment	Oscilloscope: 7-15Hz square wave	Adjust air gap to 0.3-0.5mm
Sudden power loss under load	Current limiter tripped	Clamp meter: >30A spikes	Upgrade to 40A fuse or thicker gauge (≤12 AWG)
Display dims intermittently	Low-voltage dropout	Load test:	Replace voltage regulator (LD1117V33)

Battery balancing issues manifest as uneven discharge. Measure cell voltages–any variance exceeding 0.05V requires a balancer circuit installation. For cheap setups, manually discharge cells to equalize, but monitor temperature: >45°C indicates unsafe conditions.

Capacitor failures create high-frequency noise. Replace bulging or leaking electrolytics on the PWM board–use components rated for ≥50V and 105°C. Test new capacitors with an LCR meter: ESR should be

Regenerative braking malfunctions often stem from diode failure. Check the freewheeling diode’s forward voltage–>0.7V suggests replacement. Ensure the diode’s reverse recovery time is

Final system validation involves a full-speed test under controlled conditions. Maintain a 1C discharge rate (e.g., 10Ah battery at 10A) for 10 minutes–any deviation from expected runtime (>15%) warrants a review of parasitic loads, such as LED indicators drawing excess current.
