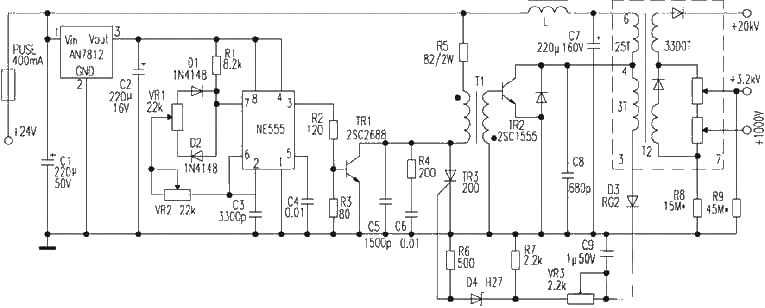

Step-by-Step Guide to Designing a 24V Power Supply Schematic
For stable electronic designs requiring a fixed 24-volt feed, a linear regulator with a step-down transformer remains the most robust choice. Start with a center-tapped transformer rated for 24VAC output at 2A–common models like the Talema 23420 or Hammond 182K24 meet these specs. Pair it with a bridge rectifier (KBPC2510) and a smoothing capacitor (4700µF/50V) to eliminate ripple. A LM7824 regulator stabilizes the output, while a TO-220 heatsink dissipates excess heat under continuous loads.
For low-noise applications, add a post-regulator LC filter: a 10µH inductor in series with a 100µF/35V capacitor. This suppresses high-frequency noise–critical for precision sensors or analog circuits. Use 1N4007 diodes for protection against reverse polarity. If space is constrained, switch to a buck converter module like the MP2307, which achieves 90% efficiency with minimal components but requires careful PCB layout to avoid EMI.
Test the output under load with a 50Ω/50W resistor–voltage should not drop below 23.8V. For industrial use, fuse the input (250V/2A) and add a varistor (14D431K) across the transformer primary to clamp voltage spikes. Mount all high-current traces on the PCB with 2oz copper to prevent overheating. Always verify grounding integrity–a floating ground causes erratic behavior in sensitive equipment.
Designing a Stable Voltage Converter: Key Schematics
Begin with a LM2596 step-down module for efficiency–it handles 3A continuous output with built-in thermal protection. Connect the input to a rectified AC source (30V peak after smoothing) or a lead-acid battery bank (29.4V nominal). Ensure the input capacitor is rated for 50V or higher to prevent voltage spikes.
For fixed-output configurations, replace the adjustable potentiometer with a 1.5kΩ and 4.7kΩ resistor pair–this locks the output at a precise 24-unit level while minimizing drift. The inductor should be 33µH with a saturation current of 4A; lower values increase ripple, while higher ones introduce inefficiency. Verify the feedback loop connects directly to the module’s FB pin without parasitic capacitance.
When driving inductive loads (e.g., DC motors), add a flyback diode (1N4007) across the output terminals to clamp transient voltages. For noise-sensitive applications, a pi-filter (two 100µF capacitors with a 10µH choke) reduces high-frequency interference. Avoid ground loops by tying all returns to a single star-point near the output capacitor.
Thermal and Overcurrent Safeguards
Mount the LM2596 on a heatsink if the ambient temperature exceeds 50°C–thermal shutdown activates at 125°C, but prolonged operation above 80°C degrades longevity. Use a polyfuse (e.g., 0.75A hold, 1.5A trip) in series with the input to prevent short-circuit damage. For redundancy, pair it with a crowbar circuit (SCR + Zener diode) to clamp the output if the main regulator fails.
Dissipate excess energy with a TO-220 MOSFET (IRFZ44N) in linear mode as a pre-regulator for loads beyond 2A. This offloads heat from the switching module, though efficiency drops to 70-80%. Alternatively, parallel two identical converter modules with 1% matched feedback resistors to share the load current evenly.
Test stability by loading the output with a 20Ω resistor while monitoring ripple on an oscilloscope–50mV peak-to-peak is acceptable; above 200mV indicates inadequate input filtering or poor grounding. For dynamic loads, add a soft-start capacitor (22µF) to the EN pin to prevent inrush current spikes. Document all test points and component tolerances for troubleshooting.
Choosing Components for a Stable 23.5-24.5V Output Unit
Opt for a transformer with a secondary winding rated at least 30% above the target voltage if linear regulation is used. For example, a 17V AC output transformer will yield ~23.8V DC after smoothing and dropout allowance, leaving sufficient headroom. Core size should match the current demand: toroidal types offer better efficiency and lower leakage for 3A+ loads, while EI laminations suffice for under 2A.
Smoothing capacitors must handle peak ripple currents. Electrolytic models with low ESR (equivalent series resistance) under 0.05Ω at 100Hz are critical. A 4700µF capacitor rated at 35V or higher ensures ripple below 50mVpp for currents up to 5A. Polypropylene or film capacitors (1µF) in parallel reduce high-frequency noise, acting as bypass elements.
Linear regulators like LM7824 or adjustable variants (LM317) work for low-noise applications but dissipate heat proportional to the voltage drop. For 10W+ loads, switch-mode converters (e.g., XL4016, LM2596) achieve 85-92% efficiency. Ensure inductors have a saturation current 40% above the operating current to prevent core distortion–ferrite cores with minimal winding resistance are ideal.
Rectifier selection impacts efficiency and thermal management. Schottky diodes (SB560) reduce forward voltage drop to 0.3V, improving performance over standard silicon diodes (1N4007). For higher currents, synchronous rectification (e.g., MOSFETs controlled by a dedicated IC) eliminates forward drop entirely but adds complexity–reserve for 15A+ designs.
- Input protection: Fuse (slow-blow) sized at 120% of max current, plus a varistor (e.g., 471K MOV) to absorb transients.
- Output stability: Ceramic capacitors (0.1µF) close to load terminals to dampen high-frequency oscillations.
- Thermal considerations: Heat sinks with thermal resistance ≤2°C/W for TO-220 packages; forced air for exceeding 15W dissipation.
Test under full load for overvoltage conditions. A crowbar circuit (thyristor + Zener diode) clamps output if it exceeds 26.5V, protecting sensitive downstream electronics. Optoisolators (e.g., PC817) isolate feedback loops in switch-mode designs to prevent ground loops and improve noise immunity.
Step-by-Step Wiring Guide for a Linear Voltage Stabilizer
Begin by selecting a low-dropout (LDO) regulator rated for at least 1.5A output current, such as the LM7824 or LT1086, to ensure stable voltage delivery under varying load conditions. Verify the input voltage range–typically 28–32V DC–matches the transformer’s secondary winding after rectification and smoothing. If using a toroidal transformer, calculate the turns ratio to achieve 28V AC RMS at the secondary; a 12V transformer wound for 220V primary will require roughly 2.3 turns per volt.
Wire the input section with a bridge rectifier (e.g., KBPC2510) rated for 25A or higher, followed by a 4700μF electrolytic capacitor to reduce ripple below 0.5V peak-to-peak. Mount the capacitor as close as possible to the rectifier’s output terminals to minimize inductance. For thermal management, attach a 20W heatsink to the LDO regulator using thermal compound–ensuring contact resistance remains below 0.5°C/W–or opt for a TO-220 package with pre-applied thermal interface material.
Critical Component Selection
| Component | Specification | Tolerance/Note |
|---|---|---|
| Transformer | 28V AC RMS @ 2A | ±5% regulation under load |
| Rectifier | KBPC2510 (25A, 1000V) | Forward voltage drop <1.1V per diode |
| Smoothing Capacitor | 4700μF, 50V | ESR <0.1Ω, ripple current >2A |
| Output Capacitor | 100μF, 35V (tantalum) | Low ESR for transient response |
| Protection Diode | 1N4007 | Reverse voltage >100V |

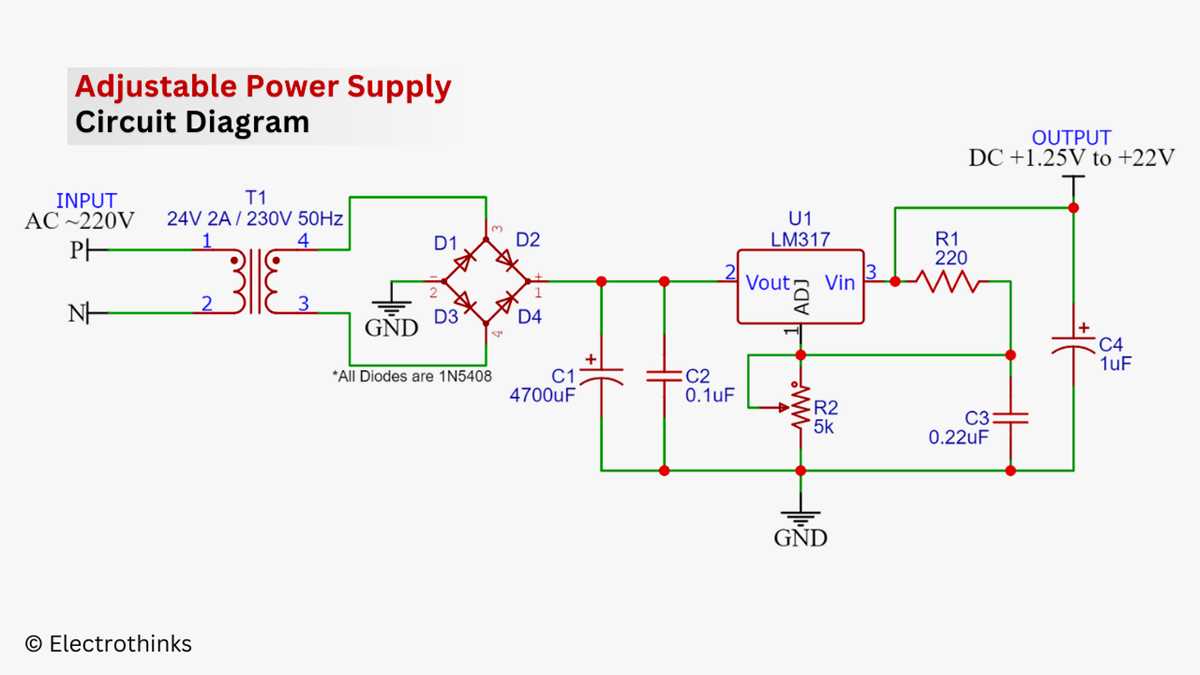

Connect the LDO’s input pin to the smoothed DC rail, ensuring polarity alignment. Attach a 100nF ceramic capacitor across the input and output pins to suppress high-frequency noise, placed within 20mm of the regulator to prevent oscillation. For adjustable variants like the LM317, add a 240Ω resistor between the output and adjust pins, paired with a 5kΩ potentiometer to set precise output levels. Validate the wiring with a multimeter–measure unloaded output voltage first, then apply a 1Ω/25W dummy load to confirm regulation within ±2%.
Terminate the output with a 100μF tantalum capacitor and a flyback diode (e.g., 1N4007) to protect against inductive loads. If driving motors or relays, add a snubber network–a 10Ω resistor in series with a 0.1μF capacitor–across the load terminals to dissipate transients. Test under full load for at least 30 minutes; heatsink temperature should stabilize below 80°C to prevent thermal shutdown. For failsafe redundancy, integrate a resettable fuse (e.g., PTC 3A) in series with the input to prevent overcurrent damage.
Building a Low-Interference 24V DC Converter with Precision
Select a switching regulator with a frequency above 1 MHz to shift noise beyond sensitive analog bands. The LT8640S, for example, operates at 2.2 MHz and reduces conducted emissions by 20 dB compared to 500 kHz alternatives. Pair it with a spread-spectrum feature to disperse energy across a 5% frequency modulation range, lowering peak interference by 12 dB.
Use a two-stage input filter: first, a common-mode choke rated for 3 A with a minimum inductance of 10 µH, followed by differential-mode capacitors–100 nF X7R ceramic for high-frequency rejection and 10 µF electrolytic for low-frequency attenuation. Place the filter within 1 cm of the regulator’s input to prevent reradiation of noise through PCB traces.
Implement a four-layer PCB with dedicated ground and power planes. Route the switching node entirely beneath the top layer, minimizing loop area to under 20 mm². The return path for high-frequency currents should mirror the forward path, reducing inductance by 80%. Stitch vias every 2.5 mm along critical traces to connect the top and bottom ground planes, preventing resonance at harmonics above 10 MHz.
Choose output capacitors with ultra-low ESR: 47 µF 6.3V ceramics (GRM32ER70J476ME20L) in parallel with 220 µF polymer tantalums (TPSV687M010R0080). This combination lowers output ripple to under 15 mVpp at full load while maintaining stability during transient loads up to 3 A/µs. Avoid electrolytic capacitors–their higher ESR degrades performance at frequencies above 100 kHz.
Noise Reduction Techniques for Sensitive Loads
Add a snubber network across the switch node: 1 nF C0G capacitor in series with a 10 Ω resistor, positioned within 5 mm of the switching MOSFET. This dumps energy from the parasitic inductance of the trace, cutting ringing amplitude by 70% at the 100 MHz harmonic. For loads sensitive to microsecond transients, insert a ferrite bead (BLM18PG121SN1L) in series with the output, ensuring its impedance peaks at 100 MHz to block residual high-frequency noise.
Ground the regulator’s feedback pin to a separate analog ground plane, connecting it to the main ground only at a single star point near the output capacitors. This prevents ground bounce from modulating the feedback signal, which can introduce 50 Hz–1 kHz noise. Keep the feedback trace shorter than 10 mm and away from switching nodes–any coupling here degrades load regulation by up to 0.5%.
For medical or audio applications, shield the entire converter using a mu-metal enclosure or a 0.5 mm copper box, grounded at one corner only to avoid ground loops. Leave a 1 mm gap between the shield and high-voltage components to prevent capacitive coupling, which can reinject noise at 5–50 MHz. Test shielding effectiveness with a near-field probe: emissions should drop below 20 dBµV/m at 30 MHz.
Calibrate the feedback loop using a network analyzer. Target a phase margin of 60° to prevent subharmonic oscillations, which manifest as 5–50 kHz noise. Adjust the compensation components–typically a 22 pF capacitor and 100 kΩ resistor–to maintain bandwidth above 50 kHz for transient response while avoiding peaking near the switching frequency. Validate performance with a load step from 10% to 90% of maximum current; overshoot should not exceed 3%.
