How to Wire a 4-Pin 24V Relay Step-by-Step Connection Guide
For precise control in 24-watt DC circuits, use the common normally open (NO) and common (COM) terminals as primary contacts. Apply a direct feed to the coil input marked “+” or “IN+” while grounding the opposing “-” or “IN-” terminal to energize the actuator. This method ensures reliable latching without additional capacitors or resistors.
Check resistance across coil leads before installation–ideal values range between 120Ω and 200Ω. A reading outside this range signals potential damage, requiring immediate replacement to avoid arcing at the contacts during switching. Verify polarity if the module includes internal transient suppression; reverse connection can degrade performance or cause delayed response.
Connect load wires only to switching outputs: attach the positive line to COM and the controlled device to NO. Avoid linking inductive loads like solenoids or motors directly without a flyback diode; place the diode cathode to positive and anode to ground to protect the contacts from voltage spikes.
Test functionality with a multimeter in continuity mode: probe COM and NO while energizing the coil. Audible clicks and closed-circuit readings confirm correct operation. If silence persists, recheck coil polarity or inspect for broken traces on the PCB.
Understanding a 4-Terminal Switching Module Connection Layout
Start by identifying the coil input terminals on the electromechanical actuator – these accept the control voltage to energize the internal circuit. Locate the two smaller contacts typically marked 85 and 86; connect your pilot source across these points for proper actuation. Use 18 AWG minimum gauge wire to prevent voltage drop when triggering the coil. Secure connections with crimp terminals or solder for reliability in high-vibration environments.
For switched outputs, examine terminals 30 and 87 on standard automotive SPDT variants. Terminal 30 serves as the common connection, while 87 connects when the coil is energized. In normally open configurations, these contacts remain apart until activation. Verify continuity with a multimeter before load integration to confirm switching behavior under real operating conditions.
Select diode protection when driving inductive loads like solenoids or small motors. Install a flyback diode across the coil terminals with the cathode toward the positive control polarity. This prevents voltage spikes from damaging sensitive control electronics. For DC-driven coils, use a 1N4007 diode rated for at least 1A current and matching coil voltage requirements.
Observe proper polarity during installation. Reverse polarity on the coil may cause incorrect operation or premature failure. Always verify the manufacturer’s datasheet for exact terminal assignments, as some variants may differ in markings. Incorrect connection risks overheating the coil or damaging connected circuits. For DIN rail-mounted units, confirm orientation matches the intended load path.
Size conductors based on expected current demands. For resistive loads under 10A, 16 AWG wire suffices, while inductive loads may require 14 or 12 AWG depending on inrush current. Account for ambient temperature – derate wire gauges when operating above 30°C. Use terminal blocks or manifold connections for clean load distribution when multiple modules are deployed.
Implement fuse protection on both control and load circuits. Place a fast-acting fuse rated slightly above the coil’s steady-state current draw on the control side. On the load side, match fuse ratings to the appliance’s maximum current draw, rounding up to the next standard value. This prevents overheating wires during fault conditions while allowing proper operation under normal loads.
For low-voltage applications, consider contact protection with RC snubber networks across the output terminals. This suppresses transient arcs during switching, especially with DC loads. Typical values include a 0.1µF capacitor in series with a 100Ω resistor, though values should be adjusted based on load characteristics. Test switching behavior under full load before finalizing protection components.
How to Determine Terminal Functions on a 24VDC Switching Component

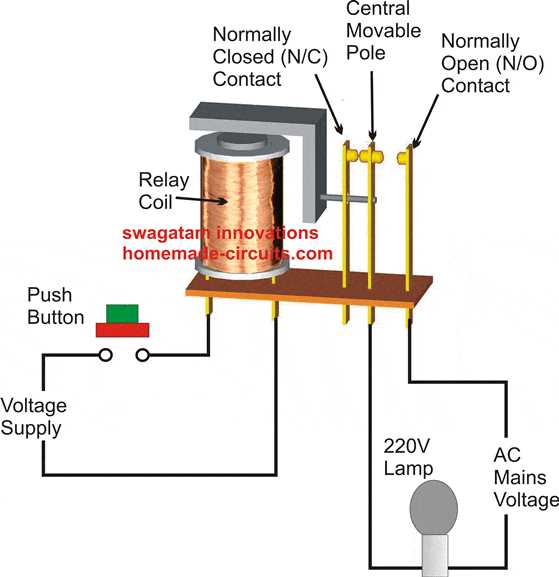

Check for engraved markings near each connection point–most manufacturers label them with numbers (e.g., “85,” “86,” “87,” “30”) or letters (“COIL A,” “COIL B,” “NO,” “COM”). If absent, use a multimeter in continuity mode: probe pairs while activating the device to confirm coil terminals (typically distinct resistance) versus switch contacts.
- Coil terminals: These energize the mechanism–apply control voltage here (e.g., 85/86) to engage the electromagnet. Polarity often irrelevant unless marked “DC+” or “DC–”.
- Common (COM): The bridge between normally closed (NC) and normally open (NO) circuits–this always connects to the load or power source, switching paths upon activation.
- Normally Open (NO): Power flows here only when the coil is energized; connect to the output device (e.g., solenoid, motor).
- Normally Closed (NC): Maintains current until the coil activates, then disconnects. Use for fail-safe circuits (e.g., emergency stops).
For SPDT variants, locate the center pole–this is the COM terminal. Probe adjacent terminals with the coil powered to identify NO (conducts when active) and NC (conducts when inactive). In DPDT configurations, expect two separate COM/NO/NC sets; repeat testing for each independent switch path.
If markings are ambiguous or worn, consult the datasheet–search by part number to find terminal layouts. For non-standard designs (e.g., solid-state or latching), verify behavior with a low-voltage test circuit before final integration. Avoid guessing: miswiring risks damaging the component or connected equipment.
Record terminal assignments immediately after identification. Use wire labels or schematic symbols (e.g., K for coil, L1/L2 for load paths) to prevent errors during installation. For recurring setups, create a template with wire colors matching each function (e.g., red for coil+, black for COM).
How to Connect a 24VDC Auxiliary Switching Module: A Practical Walkthrough
Identify the terminals on the control module first–two for activation (coil) and two for switching. Mark them with tape: red for positive input, black for ground, yellow for load output, and blue for the return path. Use a multimeter in continuity mode to confirm coil resistance (typically 400-1200 ohms for 24VDC models); if readings exceed 2k ohms, the coil may be faulty.
Strip 6mm of insulation from each conductor using wire strippers calibrated for 18-22 AWG solid copper. Twist strands clockwise before inserting them into screw terminals to prevent fraying. Secure connections with a torque screwdriver set to 0.5 Nm–over-tightening risks stripping threads, while under-tightening causes intermittent contact.
Attach the red conductor to the positive supply terminal (usually labeled “+” or “85”), ensuring it originates from a 24VDC power source with at least 1A capacity. Route the black conductor directly to the power supply’s negative terminal (“-” or “86”). Avoid daisy-chaining ground wires to prevent voltage drop during high-current switching.
Load Circuit Configuration
Connect the yellow conductor to the common contact (“COM” or “30”)–this terminal carries the switched current. The blue conductor attaches to the normally open contact (“NO” or “87”). For inductive loads (motors, solenoids), install a flyback diode across the coil terminals (cathode to positive) to suppress voltage spikes exceeding 1kV, which can damage contacts within microseconds.
Test the assembly with a bench power supply set to 24VDC. Activate the circuit–listen for a distinct click, then measure voltage between the yellow and blue terminals. Expect 0V when inactive and full supply voltage when active. If clicking occurs without load switching, check for reversed coil polarity or a shorted NO contact.
For low-signal applications (under 0.5A), use crimp connectors with heat-shrink insulation to minimize corrosion. For currents above 5A, upgrade to ring terminals and apply dielectric grease to screw terminals. Route high-current paths separately from control wires to prevent electromagnetic interference, keeping them at least 10cm apart.
Label all wires immediately after installation–use heat-shrink labels or adhesive tags resistant to temperature swings (-40°C to +85°C). Document each connection in a schematic with terminal numbers, wire colors, and connected devices. Store this record near the installation site for troubleshooting.
Integrating a 24VDC Switching Device with Energy Source and Equipment
Prioritize matching the control module’s coil specifications to the voltage regulator’s output. A mismatched pair–such as a 12VDC solenoid paired with a 24VDC adapter–will either fail to activate or risk permanent damage. Verify the data sheet for exact tolerances; most industrial-grade units accept 20–28VDC without derating.
| Component | Minimum Voltage (VDC) | Maximum Voltage (VDC) | Current Draw (mA) |
|---|---|---|---|
| Standard Coil | 20 | 28 | 35–45 |
| High-Sensitivity Coil | 18 | 30 | 25–30 |
| Heavy-Duty Contacts | 20 | 32 | N/A |
Wire the positive terminal of the power supply directly to the coil’s activation point using 18 AWG or thicker copper conductors. Tin the ends to prevent oxidation, then crimp ring terminals for secure screw-mount connections. Avoid solder-only joints in high-vibration environments; mechanical compression outperforms thermal bonding under cyclic loading.
Insert a flyback diode across the coil terminals–cathode to the positive side–to clamp inductive voltage spikes when de-energizing. A standard 1N4007 diode handles up to 35A transient currents, sufficient for most industrial applications. Omitting this safeguard risks damaging adjacent solid-state components or causing intermittent control failures.
Load-Side Practices
Select contact ratings that exceed the connected machinery’s peak demand by at least 20%. A motor rated for 10A continuous should switch through contacts rated 12A or higher. Factor in inrush currents–inductive loads often surge to 6–10 times steady-state values during startup. Use snubber circuits (RC networks) across contacts switching inductive loads to suppress arcing and extend lifespan.
Route high-current conductors–those carrying over 5A–away from low-level signal paths. Maintain 5mm separation or use shielded cables to prevent electromagnetic coupling. Ground the shield at one end only to avoid ground loops; failure to isolate can introduce intermittent noise that triggers false actuation.
Verify contact alignment with a multimeter set to continuity mode before applying full load. Misaligned contacts create resistive joints, leading to localized heating and premature failure. For silver-nickel contacts, a resistance below 50 milliohms confirms proper mating.
Fault Isolation
Attach fuse holders immediately downstream of the power supply–one per critical branch circuit. A 10A slow-blow fuse protects a 5A load against sustained overloads without nuisance tripping during benign transients. For diagnostic purposes, place test points at the coil input and each contact pole; labeling these points with heat-shrink tubing accelerates troubleshooting under emergency conditions.
