Step-by-Step Guide to Wiring a 3 Button Garage Door Opener

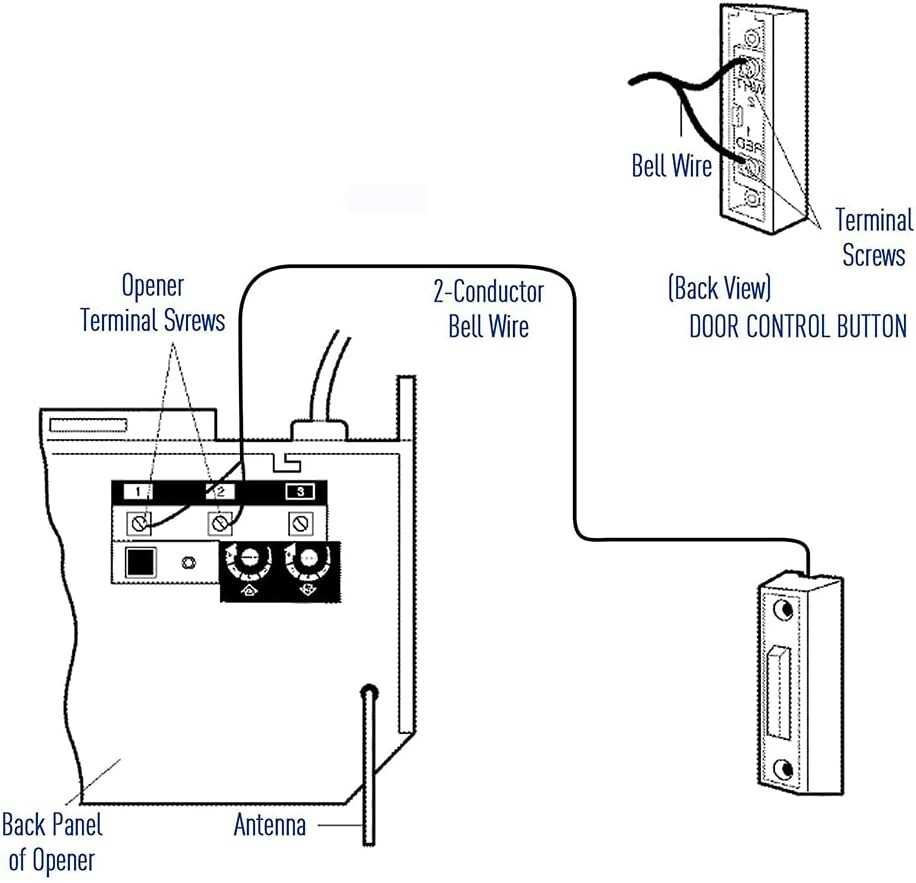

Begin by identifying the terminal blocks on your motor unit. Most modern systems use a three-terminal setup: common, normally open (NO), and normally closed (NC). Connect the first switch to the common and NO terminals–this will trigger the primary open/close function when pressed. The second switch should link to the common and NC contacts to enable partial movement (e.g., half-open or light activation). The third switch typically integrates with an auxiliary circuit, such as a safety sensor override or lock mechanism; wire it to a separate relay if required.
Ensure every connection uses 18-22 AWG stranded copper wire for flexibility and corrosion resistance. Strip 6-8mm of insulation per lead and crimp with insulated spade connectors for secure, vibration-proof joints. If the control panel lacks labeled terminals, consult the manufacturer’s documentation–some models (e.g., LiftMaster 8500 or Chamberlain B730) use proprietary pinouts where the third switch bridges to a logic board input instead of direct motor leads.
Test continuity with a multimeter before finalizing. A short between the common and NO/NC paths should produce 0 ohms when activated and OL (open loop) when idle. For wireless remotes, pair each switch sequentially: press the learn button on the motor, then hold the corresponding remote button until the LED confirms sync. If interference occurs (e.g., erratic operation), relocate the antenna or switch to a rolling-code model to prevent signal clashes.
Avoid daisy-chaining wires–each switch must have a dedicated return path to the power source. For 24V systems, add a flyback diode (1N4007) across motor terminals to suppress voltage spikes. If integrating with smart home hubs (e.g., Home Assistant), use a dry-contact relay module; connect the third switch to the module’s input and configure the hub to recognize its state changes as distinct events (e.g., “hold to lock” vs. “single press”).
Remote Control Panel Connection Guide for Automated Entry Systems
Disconnect the power supply at the circuit breaker before handling any electrical contacts to prevent accidental activation or short circuits. Most residential transmitters with three command switches follow a standardized 24V DC configuration where the central terminal acts as the common ground. Identify the corresponding wires–typically color-coded as white (ground), black (primary function), red (secondary), and blue (tertiary)–using a multimeter to verify voltage between the ground and each lead before proceeding.
Wire the system by attaching the white conductor to the common ground screw on the control board and route the remaining leads to their respective terminals. The black wire usually triggers the main action, while red and blue serve auxiliary functions like locking or lighting. Secure connections with lever-nut connectors, ensuring no exposed copper is visible, then wrap each joint individually with electrical tape rated for 600V to prevent corrosion or accidental disconnection.
Common Troubleshooting Steps for Misconfigured Installations
- Test continuity between the transmitter terminals and receiver board using a multimeter set to ohms (Ω). A reading above 0.5Ω indicates a faulty connection or broken wire.
- Verify the power source delivers consistent 24V DC–fluctuations beyond ±2V may cause erratic behavior or system shutdown.
- Inspect the antenna cable for frays or kinks, as signal degradation can mimic wiring failures.
- Check for interference from nearby electronic devices, particularly those operating on the 300-450 MHz frequencies.
For aftermarket upgrades, match the replacement remote’s frequency to the existing receiver–most North American models operate at 315 MHz or 390 MHz. If reprogramming is required, consult the manufacturer’s manual for the specific sequence; some units use a learn-function that involves holding the primary switch while cycling the main unit’s power three times. Label each wire with heat-shrink tubing before finalizing connections to simplify future maintenance.
How to Connect a Triple-Command Control Panel
Begin by identifying the transmitter’s labeled terminals: typically marked as *Common*, *Light*, *Lock*, and *Motion*. Use a multimeter set to continuity mode to confirm which contact corresponds to each function before proceeding. Mislabeling can cause unintended operations or device failure.
Attach the *Common* terminal to the power supply’s negative lead–ensure this connection is secure with a crimp connector or solder joint, as intermittent contact may disrupt signal transmission. For standard 24V systems, verify the voltage with a tester; deviations outside ±10% require stabilization before proceeding.
Next, link the first command contact (often *Light* or auxiliary function) to a dedicated relay on the receiver board. Check the board’s schematic for polarity–some models use positive-trigger relays, while others require a negative pulse. Reverse polarity will render the feature inoperable.
For the *Lock* function, route the wire through a normally open switch if integrating a wall-mounted switch; otherwise, connect directly to the receiver’s corresponding input. Test the lockout feature immediately–if the system ignores the command, recheck for crossed wires or faulty solder points.
Install the *Motion* (primary activation) lead last, ensuring it bypasses any intermediate modules unless custom sequencing is required. Twist the pairs of wires every 12 inches to reduce electromagnetic interference, particularly in installations near fluorescent lighting or variable-speed drives.
Avoid daisy-chaining multiple transmitters unless the receiver explicitly supports multi-zone addressing. Instead, use a dedicated terminal block for each remote to prevent signal degradation. For units with dual-frequency encryption, synchronize the handset first–skipping this step may cause erratic responses.
After securing all connections, power on the unit and cycle each function five times while monitoring LED indicators or mechanical actuators for consistent behavior. If any feature fails, disconnect power and re-inspect the terminals for cold solder joints or insulation damage–common culprits in new installations.
Essential Instruments and Components for Circuit Configuration
Begin with a multimeter capable of measuring both AC and DC voltages up to 30V, continuity for low-resistance checks, and diode testing. Fluke 17B or Klein MM400 models cover these functions without unnecessary complexity. Ensure the probes are rated for 10A to avoid overload during transient measurements.
For conductor splicing, employ a ratcheting crimp tool with interchangeable dies matching 18-22 AWG terminal sizes. Avoid generic pliers–they cause inconsistent compression leading to cold joints. Combine this with heat-shrink tubing (minimum 3:1 shrink ratio) in dual-wall adhesive-lined style to seal moisture ingress at connection points.
| Component | Specification | Quantity |
|---|---|---|
| Solid-state relay | 10A SPDT, 12VDC coil | 3 |
| Push-to-close switches | NO contacts, 15A resistive rating | 3 |
| Terminal blocks | 12-position, 300V, 20A | 2 |
| Fuse holder | Panel-mount, 5x20mm | 1 |
Select 18 AWG tinned copper wire with PVC insulation rated for 300V–each color-coded conductor must span at least 1.5 meters to allow routing flexibility. Avoid aluminum conductors; they introduce galvanic corrosion risks when interfaced with brass or copper terminals.
A powered screwdriver with torque-limiting clutch set between 0.5-0.8Nm prevents overdriving screws on plastic enclousures. Use magnetic hex bits for M3 and M4 fasteners–standard Phillips heads strip under repeated tightening cycles.
Thermal paste (e.g., Arctic MX-6) applied at 0.2mm thickness ensures proper heat transfer if mounting relays near enclosures with ambient temperatures exceeding 45°C. Skip this step only if derating relay capacity by 30%.
Inspect control boards for silk-screened component values–capacitors should meet 16V or higher voltage ratings, resistors ¼W or greater. Replace any electrolytics showing bulging or discoloration; their ESR degrades rapidly after 8,000 hours of operation.
Position all components according to a 1:1 scale paper template printed from the schematic–mark drill points with a 0.5mm permanent marker before punching through the enclosure. This prevents misalignment that forces rerouting or component repositioning later.

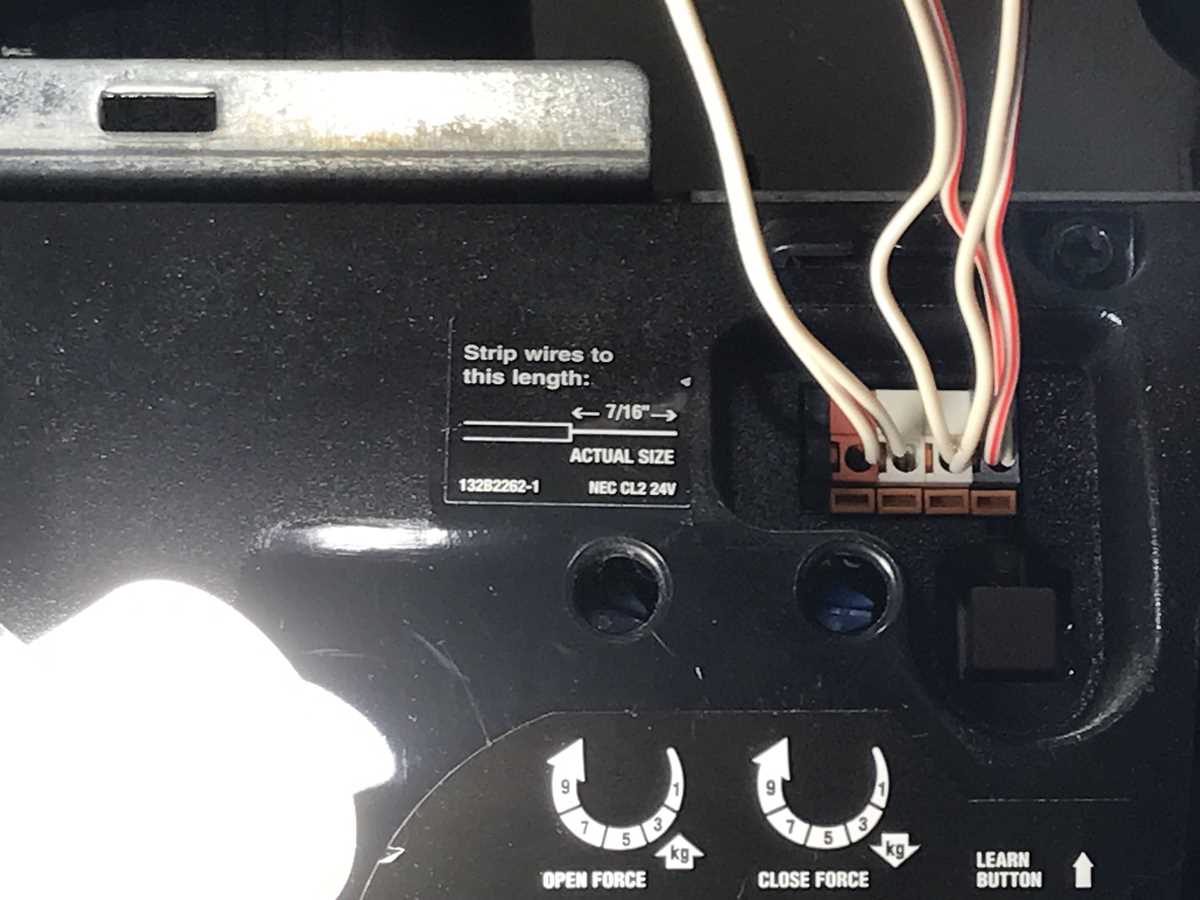

Identifying Terminals on the Motor Control Assembly
Locate the manufacturer’s label on the reverse side of the drive unit–most brands stamp terminal designations directly onto the plastic housing near each screw post. Common markings include C (common), NO (normally open), NC (normally closed), and COM (common return). Cross-reference these letters with the product manual’s terminal map; for instance, Chamberlain models often label the safety sensor inputs as SEN alongside the motor relay outputs.

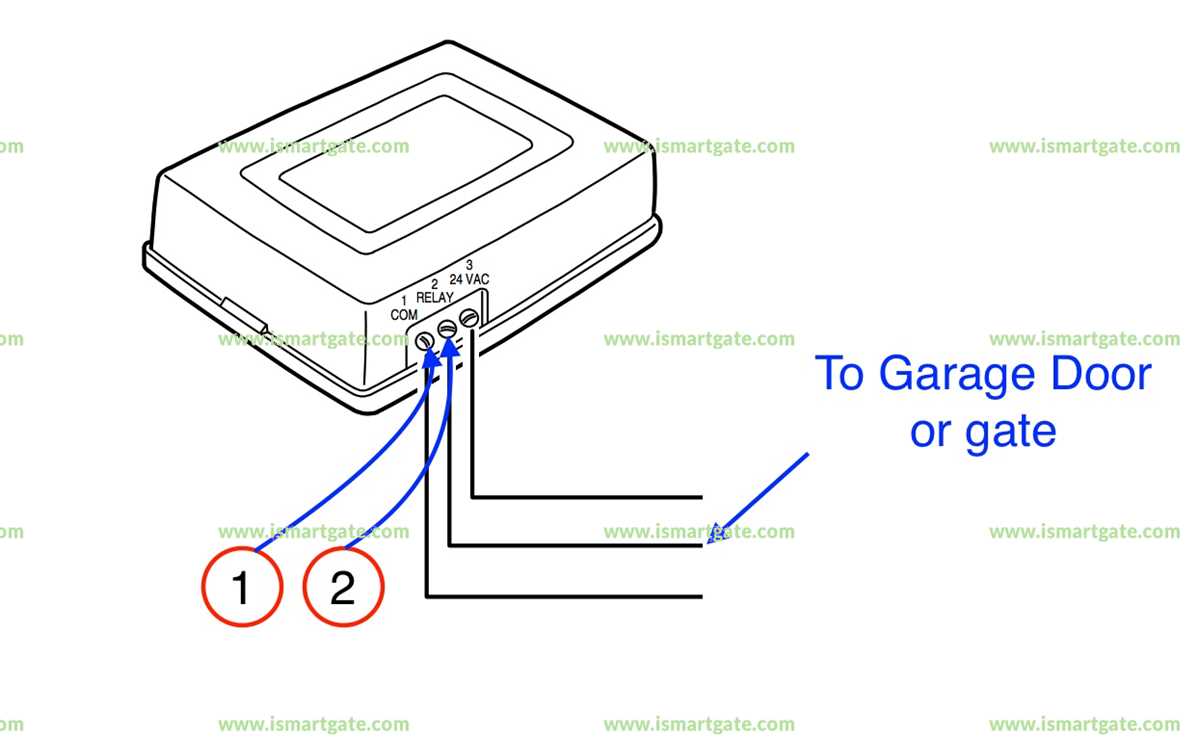

Measure continuity between C and NO using a multimeter set to ohms–activate the manual release lever to confirm a momentary circuit closure, which verifies the switch configuration. LiftMaster units sometimes substitute numerical codes (e.g., 1, 2, 3) for alphanumeric labels, where 1 typically denotes power input at 24V AC. If terminals are unmarked, trace the thin control wires back to their connector block for color-coding clues–standard schemes pair red with C, white with NO, and black with NC.
Inspect the mounting bracket’s stamped steel plate for a secondary diagram; Genie and Craftsman often etch scaled terminal layouts here, showing relative screw positions rather than explicit text. For dual-relay assemblies, note that one set governs start/stop cycles while the second manages light actuation–mistaking these can generate erratic toggling or incomplete sequences. If corrosion obscures markings, clean contacts with a fiberglass pen to restore legibility without damaging the substrate.
Record terminal assignments on a strip of tape affixed to the unit’s underside before disassembly–this prevents misalignment during reassembly. Priority connections like power feed and sensor loops should be isolated using heat-shrink tubing even if the system appears inert; residual capacitance in capacitors can retain voltage for hours, posing shock hazards during troubleshooting.
