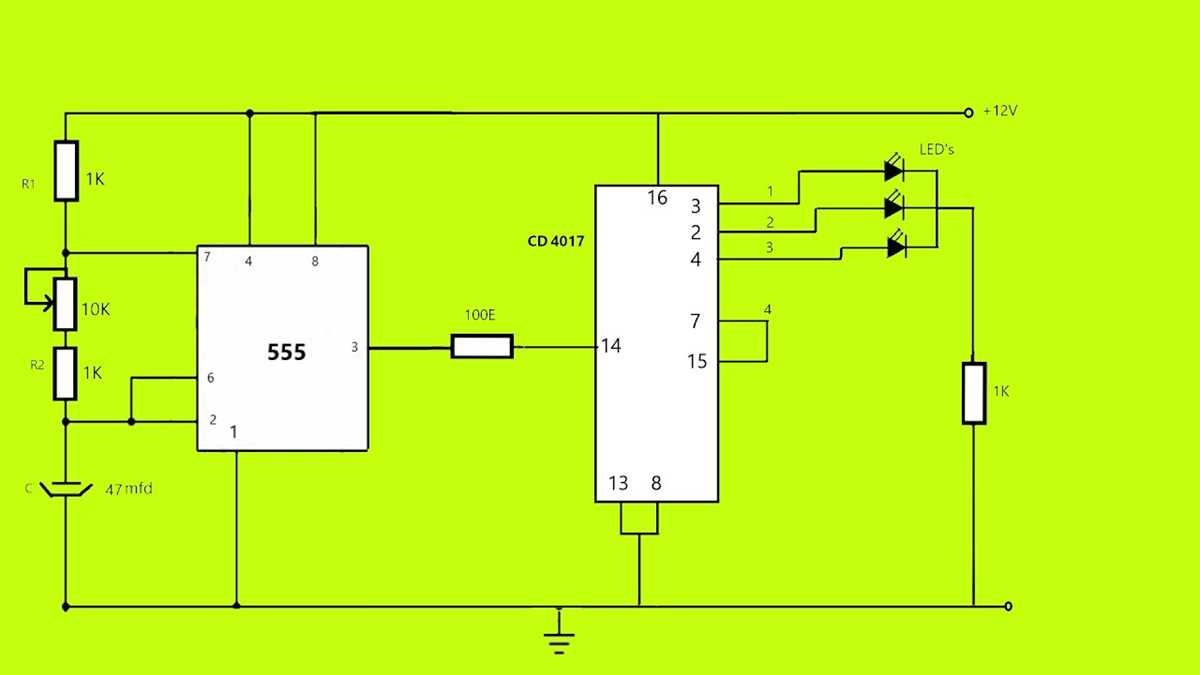

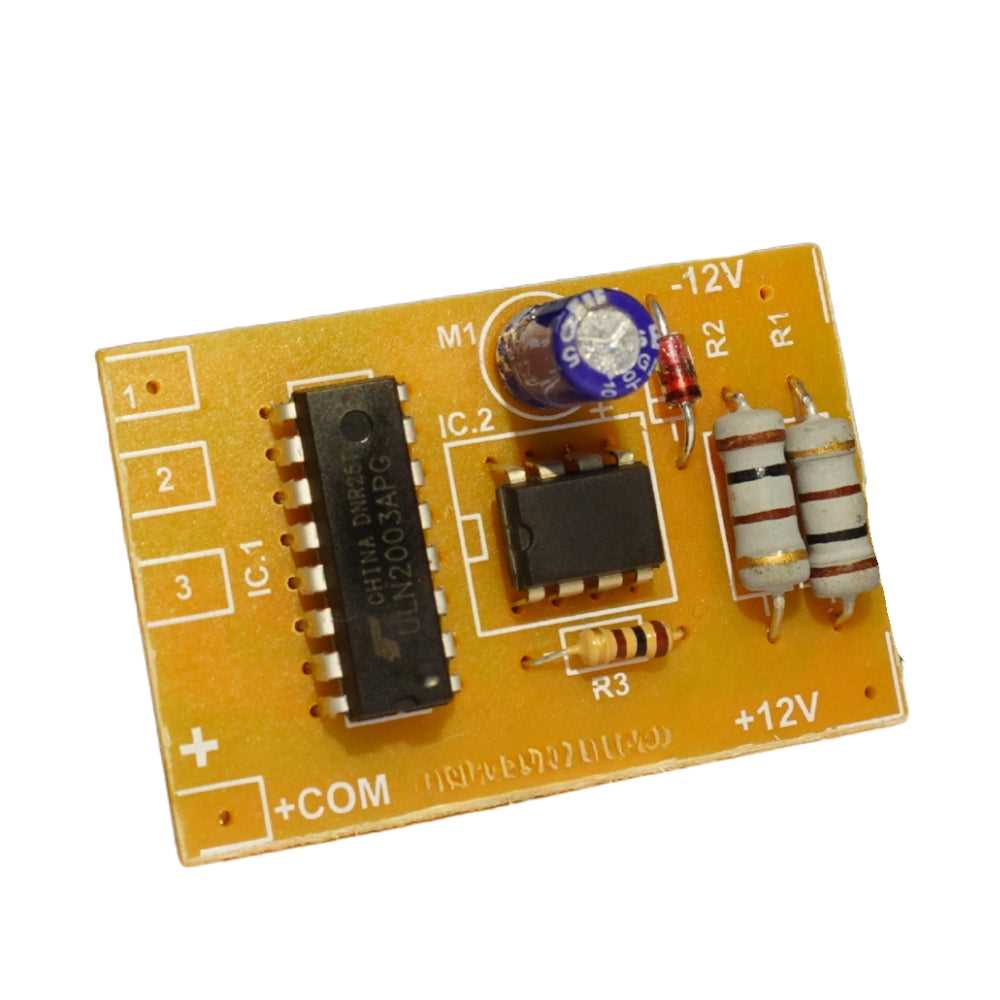

Simple 3 Channel LED Chaser Circuit Design and Wiring Guide
Start with a 555 timer IC configured in astable mode to generate a steady clock pulse. Set the frequency using a 10kΩ resistor and a 10µF capacitor for a slow, visible progression–ideal for signage or decorative patterns. Connect the timer’s output to a decade counter like the CD4017, which simplifies stage sequencing by dividing the pulses into three distinct outputs.
Wire each counter output to a power transistor (e.g., 2N2222 or BC547) acting as a switch for an array of light-emitting components. Three separate strings–each with up to 10 diodes–can run in sequence when driven at 12V. Add a 220Ω current-limiting resistor per strand to prevent burnout.
For smoother transitions, replace the basic resistor-capacitor pairing on the 555 with a potentiometer (e.g., 100kΩ). This allows fine-tuning of the sweep speed from near-instant to several seconds per step. If brightness consistency is critical, substitute the single transistors with MOSFETs (IRFZ44N) to handle higher currents without thermal throttling.
For compact builds, omit the traditional breadboard and etch a custom PCB using toner transfer. Use 1mm traces for the counter lines and 2mm for power rails to minimize voltage drops. Double-check polarity on the diodes and electrolytic capacitors during soldering–reversing these components causes immediate failure.

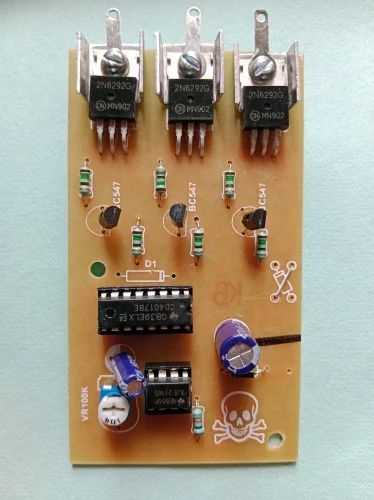

Building a Three-Stage Light Pulsing Sequence: Wiring Guide
Use a 555 timer IC configured in astable mode to generate a reliable clock pulse for driving the sequence. Set the frequency between 1-10 Hz for visible transitions–adjust R1 (10kΩ), R2 (100kΩ potentiometer), and C1 (10µF) to fine-tune timing. The 555’s output pin (3) connects directly to a decade counter (CD4017) clock input to advance stages.
Wire three power transistors (2N2222 or BC547) to the counter’s Q0-Q2 outputs, each triggering a distinct bank of illuminators. Add a 470Ω resistor between each transistor base and counter pin to prevent overload. For current handling, match transistor selection to load–use TIP31C for banks exceeding 200mA. Ground emitter terminals; connect collectors to negative leads of bulbs, with positives tied to a shared supply.
| Component | Specification | Purpose |
|---|---|---|
| 555 Timer | NE555 | Clock pulse generation |
| Decade Counter | CD4017 | Stage sequencing |
| Transistors | 2N2222 / BC547 | Switching current |
| Resistors | 470Ω, 1kΩ | Current limiting, bias |
Introduce a flyback diode (1N4007) across each bulb bank to suppress voltage spikes from inductive loads. For voltage regulation, include a 7805 linear regulator if input exceeds 5V–this stabilizes timing accuracy. Decouple the 555’s power rails with a 0.1µF ceramic capacitor to filter noise.
Test timing intervals by temporarily replacing bulbs with 470Ω resistors and monitoring counter progression with a multimeter or oscilloscope. If uneven sequencing occurs, verify counter reset circuitry–connect Q3 (pin 7) to reset (pin 15) via a 10kΩ pull-up resistor. For extended patterns, link Q9 (pin 11) to an additional CD4017’s clock input, cascading stages.
Power consumption dictates component choices. For low-current applications (≤50mA per bank), direct drive from counter outputs suffices. High-current loads (>500mA) require MOSFETs (IRFZ44N) instead of transistors, with gate resistors reduced to 22Ω. Ensure the power supply delivers adequate current–total load plus 20% overhead–to avoid brownouts.
Troubleshooting Common Issues
If bulbs flicker erratically, check for floating inputs: tie unused CD4017 inputs (inhibit, reset) to ground via 10kΩ resistors. For inconsistent timing, recalculate R2-C1 values using T = 0.693 * (R1 + 2R2) * C1. If stages advance too fast, increase C1 to 22µF or R2 to 500kΩ. Verify ground connections–poor grounding causes false triggers.
Key Components for a Tri-Color Sequential Light Effect
Begin with 555 timer ICs (NE555) in astable mode to generate precise clock pulses–critical for consistent progression. Pair each with 10μF capacitors and 4.7kΩ resistors to fine-tune timing intervals between 0.1Hz and 10Hz. For state retention, integrate CD4017 decade counters; their ten outputs enable smooth transitions across three active stages while the fourth resets the cycle. Use 2N2222 transistors as low-side switches–each handles up to 800mA, sufficient for strings up to 20 standard bulbs (20mA each). Include IN4007 diodes to suppress back-EMF from inductive loads.
Select radiant elements with forward voltages matching the supply–3mm diffused variants (2V red, 3.2V blue) minimize current draw. For power, a 9V DC adapter or 6x AA battery pack provides stable 500mA output; verify regulator dropout if dimming occurs. Mount components on perfboard (0.1″ pitch) and secure connections with solder bridges to prevent vibration-induced failures. Calibrate sequence speed by swapping the 555’s timing resistor with a 10kΩ potentiometer–ideal for adjustable display patterns.
Step-by-Step Assembly of the Sequential Light Setup on a Prototype Board
Position the microcontroller unit in the center of the breadboard, ensuring the notch on its housing aligns with the upper edge of the board to avoid orientation errors. Use IC socket strips if soldering isn’t an option–prevents overheating the controller during transfer. Connect pin 16 (power input) to the positive rail and pin 8 (ground reference) to the negative rail, leaving no gaps between the legs and the sockets for stable contact. Verify the rails are continuous by testing with a multimeter; a broken rail disrupts the entire flow.
Attach the timing capacitor (typically 10μF) between the designated timing pin and ground, observing polarity–longer leg to the positive side. For resistors powering the visual elements, use 470Ω units to limit current without dimming output; place them directly in series with each light-emitting component’s positive lead. Insert the visual elements vertically into the grid, spacing them evenly to prevent thermal interference–minimum 2 holes apart for 5mm types. If using pre-wired components, strip the ends bare and twist strands tightly before inserting to avoid loose connections.
Wiring the Control Sequence
Route the output pins to the resistors first, then bridge each resistor’s free end to the corresponding visual element’s positive terminal. Double-check each link by gently tugging wires–partial insertion causes intermittent operation. For the negative side, connect all cathodes to a shared ground rail on the prototype board, avoiding daisy-chaining to prevent voltage drop down the chain. If the controller lacks built-in sequence management, add a small signal transistor (e.g., 2N2222) between each output and the resistor to handle higher current; base via a 1kΩ resistor to the controller, collector to the resistor, emitter to ground.
Power the setup with a regulated 5V supply–use a bench unit or a USB adapter with stable output. Connect the positive lead to the breadboard’s power rail and the negative to the ground rail, avoiding jumper wire loops that can pick up interference. Before activating, scan the board for accidental shorts between adjacent sockets, especially near crowded areas. If the sequence behaves erratically, probe the voltage at each visual element’s junction with the resistor; a reading below 1.8V suggests a weak connection or undersized resistor.
Adjust the tempo by swapping the timing capacitor–smaller values (e.g., 1μF) speed up transitions, while larger values (e.g., 100μF) slow them. For consistent behavior, keep the capacitor’s legs short and avoid running timing traces parallel to power rails to minimize noise pickup. If incorporating a manual reset option, add a momentary pushbutton between the reset pin and ground, pairing it with a 10kΩ pull-up resistor to the power rail to ensure clean activation.
Secure all components with a light dab of adhesive at their bases once the pattern operates correctly–prevents dislodging during handling. Label wires with miniature flags if multiple paths share a rail to simplify troubleshooting later. For extended runtimes, confirm the supply’s current rating meets the sum of all visual elements at full intensity; exceeding limits causes thermal throttling or erratic behavior.

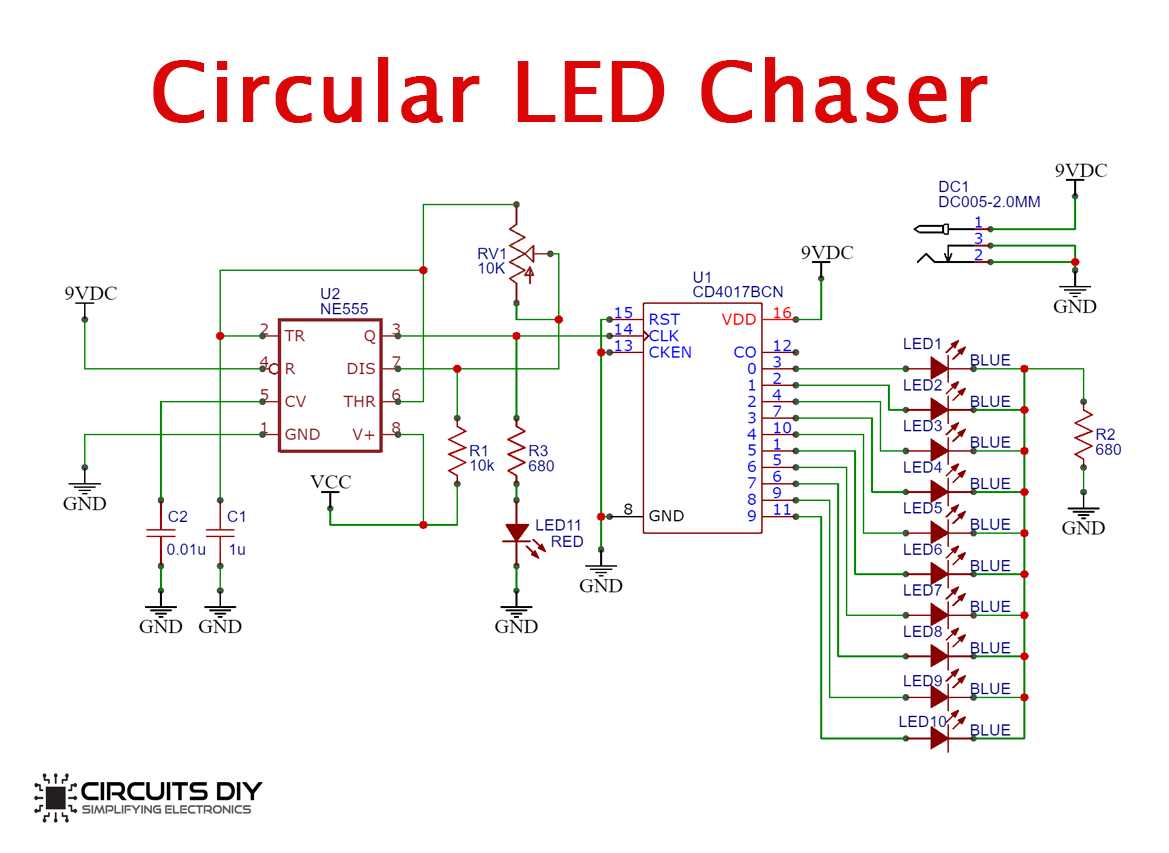

Wiring the 555 Timer IC for Sequential Indicator Animation
Begin by configuring the 555 in astable mode with precise timing components: a 10 kΩ resistor between pins 7 and 8, a 100 kΩ resistor from pin 7 to pin 2, and a 10 μF capacitor from pin 2 to ground. This setup generates a reliable clock pulse at approximately 1 Hz, essential for smooth progression. Connect pin 3 (output) to the clock input of a 4017 decade counter–this cascade ensures sequential activation of up to ten outputs. For compact three-stage operation, link the counter’s reset pin (15) to the fourth output (pin 10), forcing an instant restart after the third stage. Bypass capacitors (0.1 μF) near the ICs’ power pins stabilize performance.
Optimize signal integrity by keeping traces short, particularly between the 555’s discharge pin (7) and timing network, as stray capacitance can distort intervals. Use a low-dropout 5 V regulator if powering from higher voltages; inconsistent supply voltage causes timing drift. The 555’s output (pin 3) delivers sufficient current (~200 mA) to drive most small-signal indicators directly, but add a 220 Ω series resistor to limit current if brightness appears excessive. For visual consistency, match indicator forward voltages–3 mm red types typically drop 1.8 V, while amber requires 2.1 V. Test timing adjustments with a multimeter on pin 3: a 50% duty cycle ensures equal on/off ratios.
