Step-by-Step Guide to Wiring a 3 Phase 220V Electrical System
For industrial motors and large machinery, use a delta (Δ) arrangement when connecting a 208-volt, three-conductor circuit to optimize torque and efficiency. This method distributes load evenly across all three legs, reducing voltage drop under heavy demand. Secure connections with insulated copper lugs rated for 75°C or higher, torqued to manufacturer specifications–typically 25–30 lb-ft for #6 AWG conductors. Avoid star (Y) configurations unless balancing neutral loads; these introduce unnecessary complexity for high-current applications.
Grounding must follow NEC Article 430, with a dedicated equipment grounding conductor sized per Table 250.122. For systems above 100 amps, install a ground fault relay set to trip at 30 milliamps to prevent arcing faults. Verify line-to-line voltages with a true RMS meter before energizing–miswired circuits (e.g., reverse rotation) can damage windings irreversibly. Check phase sequence using a phase rotation tester; correct sequence ensures proper motor rotation direction.
Label each conductor at both ends with heat-shrink tubing marked “L1,” “L2,” and “L3” to prevent misconnections during maintenance. Use color-coded THHN wire (black, red, blue per industry standard) for clarity, though local codes may override this practice. For variable frequency drives (VFDs), add line reactors upstream to minimize harmonic distortion, which can degrade insulation over time. Confirm insulation resistance with a megohmmeter (minimum 1 megohm between conductors) before final commissioning.
For troubleshooting, reference IEC 60204-1 safety standards–isolate power using a lockout/tagout procedure before any inspection. Measure voltage drop under load; excessive drops (>3%) indicate loose connections or undersized conductors. Replace any connectors showing discoloration or pitting immediately; these are early signs of thermal stress. Document all changes in a circuit log, including torque values and test readings, to ensure repeatability during future maintenance.
Power Distribution Guide for Tri-Line 208-240V Configurations
Connect the neutral conductor to the central busbar in the main panel before splitting into branch circuits. Use a minimum of 10 AWG copper for all neutral paths in circuits exceeding 20A to prevent voltage drop under unbalanced loads. Label neutral terminals with green/yellow striped tape to distinguish them from ground wires in mixed installations.
Verify terminal tightness with a torque screwdriver calibrated to 12 in-lbs for 14-12 AWG and 20 in-lbs for 10 AWG conductors. Loose connections at the breaker interface cause localized heating, reducing efficiency by up to 18% before tripping overload protection. Replace aluminum conductor terminations every 3 years if operating in high-humidity environments.
Sequence the live conductors in a clockwise rotation when attaching to three-pole breakers: L1 (black), L2 (red), L3 (blue). Reverse rotation creates circulating currents in motors, increasing no-load consumption by 7%. Use a megohmmeter to test insulation resistance between each live conductor pair–minimum acceptable value is 500 kΩ per 480V of system voltage.
Install surge arrestors between each live conductor and neutral at the service entrance. MOV-based arrestors should have a clamping voltage of 480V for 240 line-to-line systems. For sensitive equipment, add RC snubbers across contactor coils to suppress voltage spikes exceeding 2.5x nominal during switching operations.
Ground the metal enclosure using a 6 AWG bare copper conductor connected to a grounding electrode system with resistance below 25 Ω. Bond all conductive parts–conduit, cabinets, motor frames–to this path to prevent hazardous potential differences. Separate equipment grounding conductors from neutral at subpanels using insulated buses to comply with NEC 250.142(B).
Motor Starter Compatibility Checks
Select overload relays with class 20 trip curves for general-purpose applications and class 10 for torque-sensitive loads like compressors. Set the trip current to 125% of the motor’s full-load amperage, verified via clamp-on ammeter at 75°C ambient temperature. For variable-frequency drives, use reactors with at least 3% impedance to smooth harmonic distortion below 5% THD.
Route auxiliary pilots in 1/2″ liquid-tight conduit separate from power conductors to avoid induced noise. Use twisted shielded pairs (16 AWG minimum) for signals exceeding 10 meters. Terminate shields only at the control panel end to prevent ground loops–verify continuity with a low-resistance meter (
Selecting the Optimal Conductor Size for Triple-Conductor 190-240V Systems
For a 30-amp triple-conductor setup, use 10 AWG copper conductors. This gauge handles the thermal load of 7.2 kW while maintaining voltage drop below 3% over 50 feet. Aluminum requires an 8 AWG equivalent due to higher resistivity.
| Current (A) | Copper (AWG) | Aluminum (AWG) | Max Distance (ft, 3% drop) | Power Capacity (kW) |
|---|---|---|---|---|
| 15 | 12 | 10 | 90 | 3.6 |
| 20 | 10 | 8 | 70 | 4.8 |
| 30 | 8 | 6 | 50 | 7.2 |
| 50 | 6 | 4 | 35 | 12 |
| 70 | 4 | 2 | 25 | 16.8 |
Temperature ratings affect performance: 90°C-rated THHN/THWN-2 allows higher current than 75°C-rated Romex. Ambient conditions above 30°C require derating–reduce capacity by 8% per 5°C increase. Underground installations demand direct burial cables like USE-2 rated for wet locations.
For 100+ foot runs, upsize conductors to counteract voltage drop. A 6 AWG copper setup at 30 amps maintains regulation over 120 feet. Always match breaker size to conductor capacity–never exceed 80% continuous load for safety.
Industrial motors often need surge protection. A 50-amp motor with 6 AWG copper preserves startup torque over 80 feet. Consult NEC Table 430.250 for locked-rotor currents and size accordingly.
Aluminum saves cost at scale but expands more under thermal cycling, risking connection failures. Use anti-oxidant compound on terminals and torque to manufacturer specs. For renewable energy tie-ins, follow IEEE 1547 standards–oversizing conductors by 25% ensures grid compliance.
Step-by-Step Installation of a Triplex 400A Service Panel
Shut off the main power supply at the meter base before touching any conductors. Verify absence of current using a non-contact voltage tester on all incoming lines–wait at least five minutes after disconnecting to confirm residual charge dissipation. Label each conductor with permanent marker: L1 (red), L2 (black), L3 (blue), neutral (white), and ground (green or bare). Install a 200A-400A main breaker rated for 600V dielectric strength, matching the panel’s busbar capacity.
- Mount the enclosure plumb on a fire-resistant backing plate, ensuring 36″ clear working space in front per NEC 110.26.
- Pull 2/0 AWG THHN copper feeders through 1.25″ rigid conduit for 200A service, or 4/0 AWG for 400A; torque lugs to 60 lb-in with a calibrated driver.
- Connect neutral to the isolated busbar first, then ground bar–bond them with a #4 AWG jumper if the panel lacks internal bonding.
- Route each hot conductor to the main breaker terminals, alternating screws clockwise (L1, L2, L3) to balance torque distribution.
Test continuity with a multimeter: resistance between any hot and neutral should read 0.2Ω–0.5Ω; hot-to-ground
Connecting Motors and Machinery to a Tri-Line 190-240V Power Network
Always verify the nameplate data of the equipment before energizing–match line voltage ratings precisely to avoid motor burnout or underperformance. Most industrial three-line setups in North America use 208V derived from wye-connected transformers, while global installations often operate at 230V or 240V delta configurations. A mismatch as small as 10% can reduce torque by nearly 20%, leading to premature bearing wear or overheating.

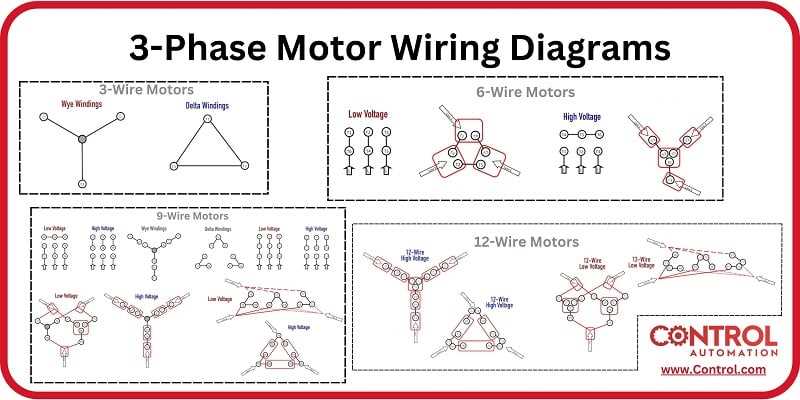

Wire the motor leads according to the manufacturer’s terminal diagram, ensuring the correct rotation sequence to prevent reverse operation that could damage pumps or compressors. Label each conductor at both ends–supply and device terminals–to simplify future maintenance. Use color-coded sleeves: brown, black, gray for live conductors; blue for neutral if present; yellow-green for grounding. Secure connections with crimp terminals rated for 125% of the full-load amperage to handle inrush currents.
Install a properly sized circuit protector–thermal-magnetic breakers or fuses sized at 125% of the motor’s full-load current–to interrupt faults without tripping during normal startup. For motors above 3 HP, consider adding soft-start controllers to reduce peak currents that can stress supply lines. Hard-starting loads like reciprocating compressors benefit from a delta-wye starter, which cuts inrush by 67% compared to direct-on-line methods.
Ground all metallic enclosures and motor frames to the earth bus using 6 AWG copper conductors or larger, depending on breaker size. Floating neutral setups on delta supplies can create hazardous voltages–bond the neutral to ground at the main service panel only. Measure insulation resistance with a 500V megohmmeter before first energizing; readings below 1 MΩ indicate moisture intrusion or damaged windings requiring immediate attention.
Route power cables in separate conduits from control wiring to minimize electromagnetic interference on relays and sensors. Keep live conductors at least 2 inches apart for 240V circuits to prevent arcing. Use shielded cable for variable-frequency drives to protect against high-frequency noise that can corrupt encoder signals. Seal conduit ends entering outdoor enclosures with weatherproof duct seal to prevent condensation buildup.
After installation, perform a rotation test with a phase rotation meter–reverse polarity issues can go unnoticed until the motor struggles under load, causing excessive vibration. For critical applications like elevators or medical equipment, add phase-loss monitors to cut power automatically if a single line drops. Maintain a detailed log of installation parameters: cable lengths, conductor sizes, and torque values for all terminals to ensure consistency during future repairs or expansions.
