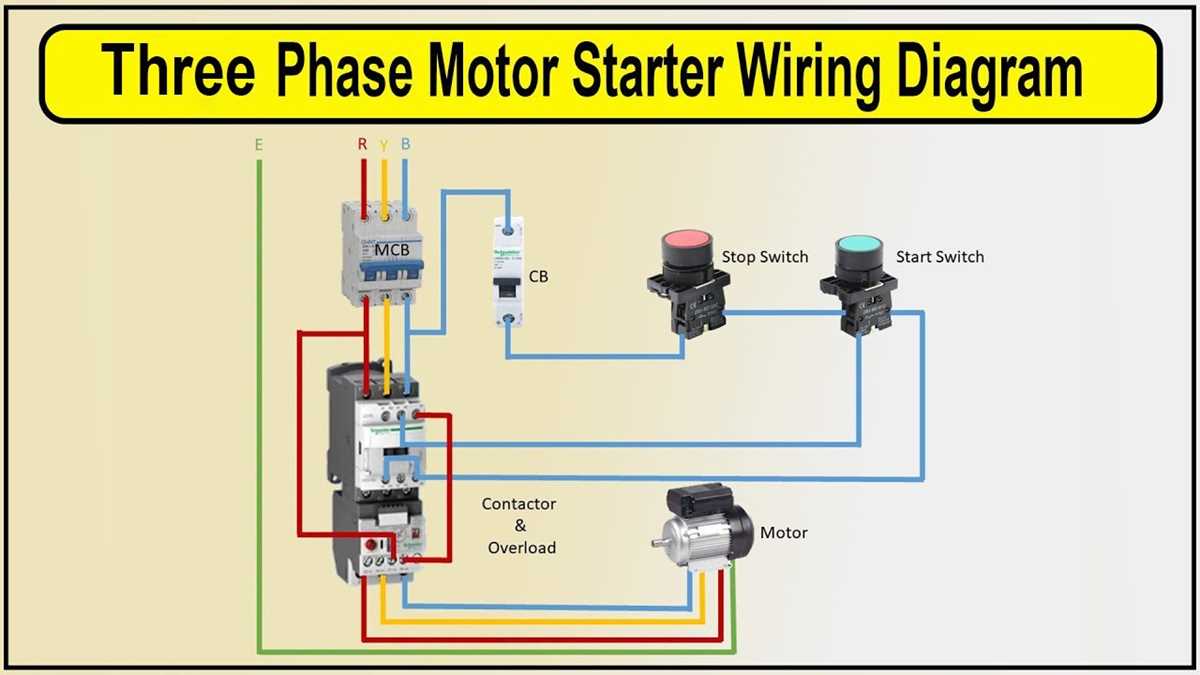

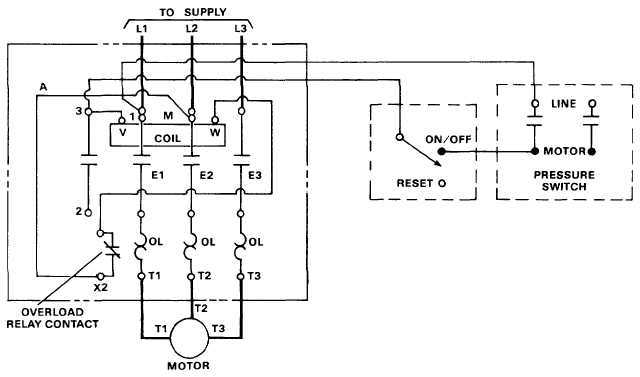

Step-by-Step 3 Phase Motor Starter Wiring Guide with Diagram
For reliable operation, connect the main contactor’s L1, L2, and L3 terminals directly to the corresponding power supply lines. Ensure the incoming conductor gauge matches the load requirements–typically 2.5mm² for 10A-15A circuits or 4mm² for 20A-25A loads. Wire overload protection (OL) in series with the control circuit, placing its normally closed contacts between the start button and the holding coil.
Use a momentary start pushbutton rated for 240VAC or the system voltage, followed by a maintained stop pushbutton or emergency switch. Route the auxiliary holding contact (NO) across the start button to maintain activation once released. Verify coil voltage compatibility (e.g., 24V, 110V, or 220V) with the supply before energizing.
Ground the equipment frame via a dedicated terminal–never omit this step. For reversing setups, add a second contactor with mechanical interlocks to prevent simultaneous engagement. Label all conductors per local codes (e.g., black/brown for line 1, red/black for line 2, blue/gray for line 3). Test continuity and insulation resistance (≥1MΩ) with a megohmmeter before commissioning.
Integrate a thermal relay calibrated to the load’s full-load current (FLA) with a trip class of 10 or 20 for standard industrial applications. Place current transformers (if used) on the line side of the main conductors, ensuring their secondary windings are short-circuited if not connected to protective devices. Confirm all connections with a torque wrench to manufacturer-specified values (e.g., 1.2Nm for M4 terminals).
Avoid using aluminum conductors for control circuits due to oxidation risks–copper is mandatory. Install suppression capacitors (e.g., RC snubbers) across contactor coils to limit voltage spikes. For variable-frequency drives (VFDs), separate control and power wiring by at least 30cm to minimize electromagnetic interference (EMI).
Key Electrical Connections for Industrial Power Drives

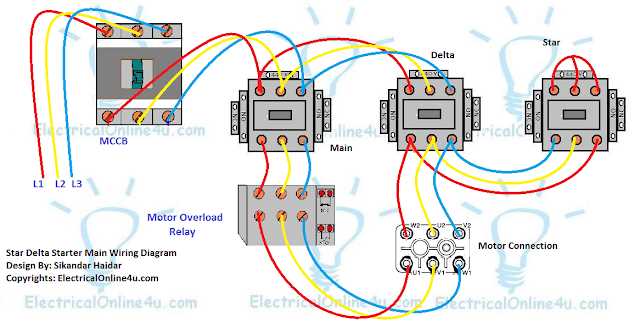

Begin by linking the main supply lines to the contactor’s upper terminals–L1, L2, and L3 must connect directly to the three incoming conductors from the breaker panel. Ensure each wire is crimped with ring terminals rated for at least 20% above the system’s full-load current to prevent overheating. For a 400V setup, use 10 AWG copper wire for currents up to 30A; scales proportionally for larger loads. Label each conductor at both ends to avoid misalignment during troubleshooting.
Attach the overload relay beneath the contactor, matching each output terminal (T1, T2, T3) to the corresponding drive’s input. The relay’s trip class should align with the load’s startup behavior: Class 10 for standard duty, Class 20 for high-inertia loads like pumps or compressors. Connect the control circuit’s neutral to the relay’s common terminal, then route the normally closed contact to the stop button’s input–this ensures immediate power cut on thermal overload.
Wire the auxiliary contacts in series with the start button to maintain coil excitation after release. Use 18 AWG wire for these low-current paths, separated from power conductors to minimize interference. For reversing configurations, add an interlock between forward/reverse contactors–mechanical prevents simultaneous engagement, electrical (via normally closed auxiliaries) safeguards against short circuits. Test coil voltage before energizing; 240V coils cannot substitute for 120V without risking burnout.
Ground the drive’s metallic housing directly to the main panel’s earth bus using a dedicated 6 AWG bare copper conductor, no splices. Verify torque specs on all terminals: 12-15 lb-ft for 10 AWG, 25-30 lb-ft for 6 AWG–loose connections create hotspots, accelerating insulation failure. Add surge protection if the equipment operates near variable frequency drives; MOVs across the coil and snubbers across contacts reduce transient voltages by up to 60%.
After assembly, apply a 500V megohmmeter test between conductors and ground–minimum 1.5 megohms indicates dry, undamaged insulation. Energize with a multimeter monitoring line voltage: imbalance exceeding 3% suggests a faulty breaker or loose line. Label the completed setup with startup date, voltage, and current ratings; revisit every 6 months to re-torque connections and inspect for oxidation on aluminum conductors.

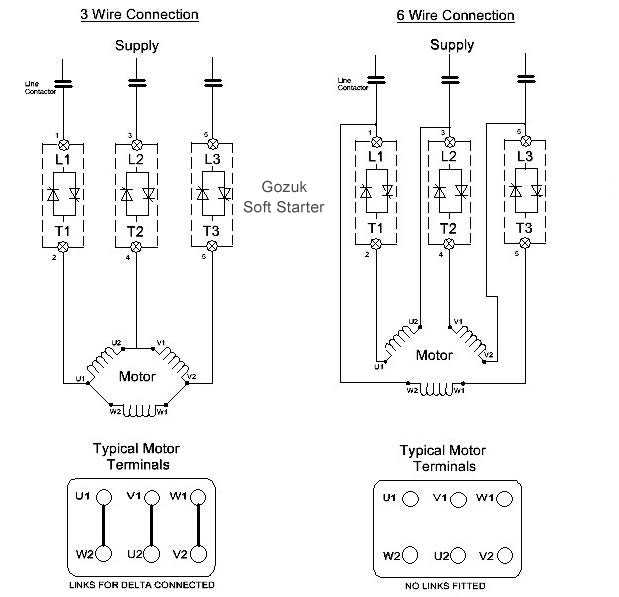

Key Components of a Three-Line Power Initiation System
Select contactors with coil voltage matching the control supply–24VDC, 120VAC, or 230VAC–to prevent overheating or insufficient magnetic force. Verify the contactor’s AC3 rating exceeds the driven load’s full-load current by at least 10% for continuous-duty pumps or compressors, ensuring contact life beyond 1 million operations.
Overload relays demand precise setting: adjust the dial to the nameplate full-load amperage, never exceeding 105% of the nominal value. Use Class 10 relays for high-inertia machinery like conveyors, where locked-rotor conditions last up to 10 seconds; Class 20 for standard applications like fans or lathes.
- Thermal elements should be ambient-compensated if the enclosure exceeds 40°C to prevent nuisance tripping.
- Opt for electronic relays with phase-loss detection for variable-torque equipment like HVAC blowers, where single-phasing risks catastrophic overheating.
- Bimetallic relays require derating by 15% when installed in altitudes above 1000 meters due to reduced cooling capacity.
Fuses or circuit breakers must align with the system’s transient inrush–typically 6 to 8 times the steady-state current for squirrel-cage induction units. Use time-delay fuses (Class RK5) rated at 125% of the full-load current to withstand startup surges without premature interruption. Avoid standard fuses, which may blow during normal acceleration.
Control Circuit Essentials
Pushbuttons require sealed enclosures (IP65 or higher) when exposed to dust or moisture. Momentary-contact start buttons must latch through auxiliary contacts on the main switching device within 50ms to prevent coil dropout. Emergency stops must cut all power via normally closed contacts, breaking both line and control circuits simultaneously.
- Auxiliary contacts: Use early-make/late-break types for sequencing, such as engaging a brake relay 100ms after disconnect to prevent mechanical stress.
- Indicators: LED lamps should operate on 24V or lower to avoid voltage drop over long cable runs; select 3mm LEDs with a forward current of 20mA for visibility in direct sunlight.
- Control transformers: Size for 110% of the combined coil and indicator load; use toroidal types for hum reduction in noise-sensitive environments like laboratories.
Cabling demands attention to derating: THHN conductors in conduit require 12% ampacity reduction per NEC table 310.15(B)(16) when bundled more than three per raceway. Use shielded control cables for runs exceeding 50 meters to suppress EMI from adjacent high-power lines, grounding the shield at one end only to avoid ground loops.
Protection coordination hinges on selective tripping: set upstream breakers at 200% of the downstream device’s trip rating, ensuring faults isolate closest to the origin. For critical loads like elevators, incorporate undervoltage relays (80% of nominal) to prevent contact welding during brownouts, tripping within 100ms via a shunt-release mechanism.

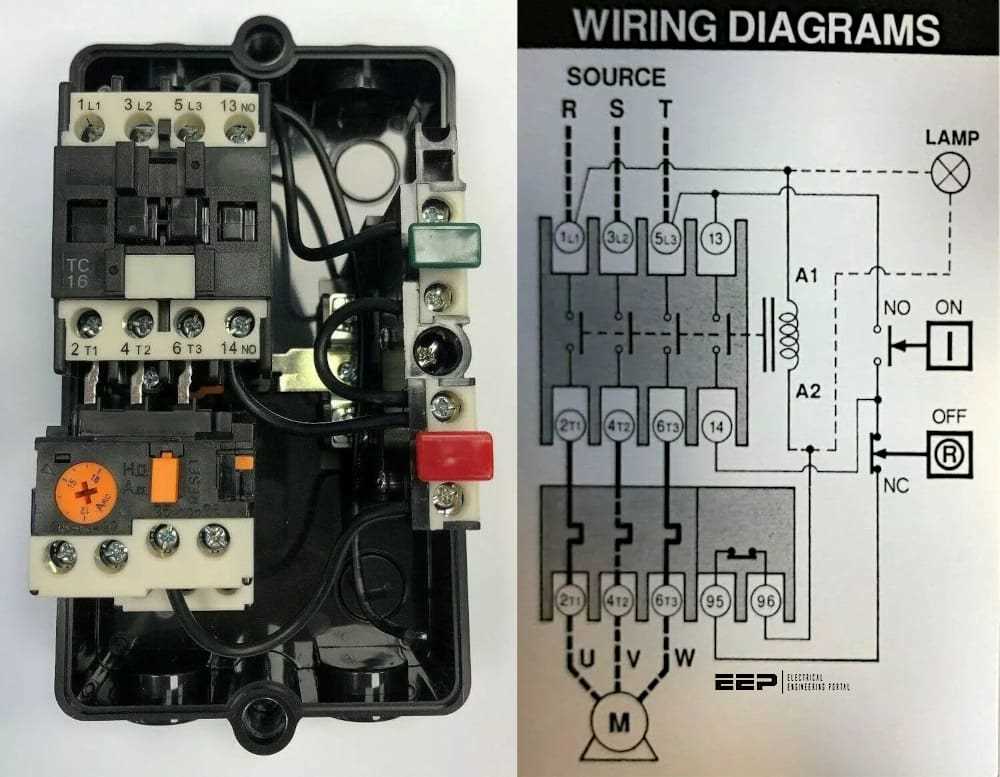

Step-by-Step Connection Guide for Direct-on-Line Activation Assembly
Begin by verifying the power supply matches the equipment’s voltage rating–common values include 230V (delta) or 400V (star) for industrial setups. Use a multimeter to confirm live conductors (L1, L2, L3) are dead before proceeding. Label each conductor at both ends to eliminate cross-connection errors, especially in installations with multiple loads.
| Component | Wire Gauge (mm²) | Terminal Labels |
|---|---|---|
| Main contactor | 6–16 (load-dependent) | L1/T1, L2/T2, L3/T3 |
| Overload relay | Same as main | 95/96 (NC), 97/98 (NO) |
| Pushbutton station | 1.5–2.5 | Start/Stop (NO/NC) |
Connect the supply lines directly to the main switching device’s upper terminals, ensuring correct polarity–L1 to the first pole, L2 to the second, L3 to the third. Route the lower terminals to the protective relay’s input, then link the relay’s output to the rotary drive’s terminals. For auxiliary circuits, wire the start button (normally open) in series with the holding contact and stop button (normally closed) for immediate disconnection.
Verify all connections with a continuity tester before energizing. Set the relay’s trip current to 110–125% of the drive’s full-load amperage–consult the nameplate for exact values. After securing all fasteners, apply power gradually while monitoring for abnormal heating or arcing at joints. If tripping occurs, check for misaligned contacts in the switching device or incorrect relay calibration.
Connecting an Overload Relay in a Three-Line Power Circuit
Locate the thermal overload relay slot in the contactor assembly–typically positioned directly beneath or adjacent to the main switching device. Verify the relay’s current rating matches the load’s full-load amperage; most suppliers offer adjustable versions with dials calibrated in 0.5 A increments. If the unit lacks adjustment, select a fixed relay with a tripping threshold no more than 125% of the maximum draw to prevent nuisance tripping during start-up surges.
Disconnect the three supply conductors entering the main switching device. Route these lines through the overload relay’s input terminals, ensuring each conductor passes through its own dedicated sensing coil. Modern relays often include labeled slots marked L1/L2/L3 or 1/3/5; align the incoming wires accordingly. Tighten each terminal with a torque wrench set to 1.2 Nm for M4 screws and 2.5 Nm for M5 screws to avoid thermal creep.
Connect the relay’s output terminals to the contactor’s main poles using short, identical-length copper straps. Avoid looping excess cable to minimize inductive voltage drops. If the contactor includes auxiliary contacts for control circuits, wire the relay’s normally closed alarm contact (labeled NC, 95-96, or A1-A2) in series with the start pushbutton or PLC output to immediately cut power during an overload event.
Test the relay before energizing the system. Use a multimeter set to ohmmeter mode across terminals 95 and 96; a closed contact confirms proper connectivity. Simulate an overload by manually activating the test lever found on most relays–this should open the alarm contact and trigger the interlock circuit. Reset the device using the red pushbutton or automatic reset selector if required; manual reset types add safety for unattended installations.
Common Mistakes and Prevention
- Omitting torque specifications on terminals leads to loose connections; overheating increases exponentially at just 20% undertorque.
- Mismatched sensing coils with conductor gauge causes inaccurate trip points–refer to the relay datasheet for minimum and maximum wire sizes.
- Installing ambient-compensated relays in enclosures exceeding 40°C without derating–every 10°C above this threshold reduces trip current by 5%.
- Ignoring class designation: Class 10 relays trip in 10 seconds at 6x rated current, Class 20 in 20 seconds; choose based on load inertia.
- Forgetting to link the relay alarm contact to a visual or auditory alarm–silent trips mask underlying issues.
Wiring Auxiliary Circuits
If auxiliary 24 VDC or 110 VAC coils are present, wire them through a separate fuse rated at 1.5x coil current. Run these control wires in separate conduit from power conductors to avoid induced voltage spikes. For remote monitoring, tap the relay’s tripped indicator (labeled 97-98 or B1-B2) into a SCADA input–this contact closes upon fault detection and resets when the main circuit breaker is cycled.
After final inspection, energize the system at reduced voltage if possible; observe the relay’s LED or mechanical flag during start-up. Fully loaded, the device should remain cool–maximum acceptable surface temperature is 70°C for NEMA-rated relays. Document settings on a metal tag attached to the enclosure for future reference; note date, rated current, reset mode, and class for maintenance continuity.
