Step-by-Step 3 Phase Plug Wiring Guide with Circuit Diagrams

For secure power delivery in heavy-duty equipment, a proper setup of a 400V three-conductor interface requires precise terminal alignment. Start by identifying the live pins–typically labeled L1, L2, and L3–on both the male and female units. Match each conductor to its corresponding slot without deviation; reversing even a single wire risks damaging motors or tripping protective relays. Always verify the color coding against local standards–common schemes use brown (line 1), black (line 2), and grey (line 3) for European configurations, while North American systems may follow a different sequence.

Grounding is non-negotiable. Attach the earth conductor–usually green/yellow–to the designated terminal, ensuring a robust connection with the chassis or grounding bus. Use a torque wrench if specified; loose screws cause overheating. Before energizing, test continuity with a multimeter–each live path should show near-zero resistance, while the earth path must register consistent connectivity. If readings fluctuate, re-check crimps and terminal tightness.

Neutral wiring varies by application. In balanced loads (e.g., motors without a neutral return), omit it entirely. For mixed installations (e.g., machinery with single-conductor auxiliary circuits), add a blue wire to the neutral terminal, but confirm it’s rated for the expected current. Overloading the neutral risks voltage imbalance, leading to erratic behavior in sensitive electronics. Always cap or insulate unused terminals to prevent accidental short-circuits.

Label every connection immediately. Use heat-resistant tags or engraving tools–ink fades under vibration and heat. Document the configuration with labeled photos or a schematic and store it on-site. For adjustable-speed drives, consult the manufacturer’s guidelines: some require phase sequence verification (clockwise rotation) before activating the unit. Incorrect rotation damages pumps and fans irreparably.

Final checks include a leakage test with a dedicated tester. No current should flow from conductors to earth when the system is de-energized. If available, use a thermal camera after initial operation: hotspots indicate poor contact or undersized cables. Replace any compromised components before sustained use.

Electrical Connector Layout for Tri-Line Systems

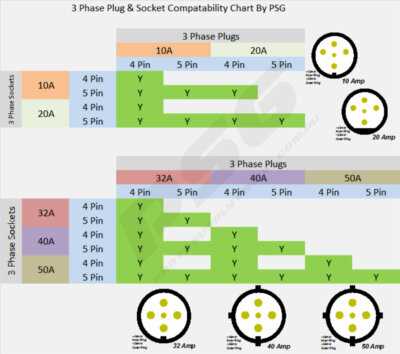

Match terminal order to IEC 60309 standards for industrial sockets: pin L1 (line 1) connects to brown conductor, L2 (line 2) to black, L3 (line 3) to grey, neutral to blue, and earth to green-yellow. Verify polarity with a multi-meter before energizing–incorrect sequencing risks motor reversal or equipment damage. For 400V configurations, confirm the socket’s voltage rating; common variants include 16A, 32A, and 63A models with distinct pin diameters to prevent cross-mating.

Secure conductors with crimp terminals sized for the socket’s current rating–16A sockets require 2.5mm² wires, while 32A sockets demand 6mm². Tighten clamping screws to 2.5Nm torque for 16A units and 3.5Nm for 32A/63A variants. Isolate live parts during installation; even de-energized circuits may retain hazardous charge. For NEMA L21-30 connectors, follow this sequence: X (hot), Y (hot), Z (hot), W (neutral), G (ground). Label each lead at both ends to simplify future maintenance.

Understanding Contact Points in a Three-Conductor Industrial Connector

Locate the terminal marked L1, L2, L3 on the socket or equipment labeling. These designate the primary live conductors in sequence, typically arranged clockwise when viewed from the front. Verify the color coding–brown (L1), black (L2), grey (L3) per IEC 60446–or alternate regional standards like red-blue-white in North American systems. Mismatched colors indicate a modified or non-standard installation requiring resistance testing before engagement.

Pinpoint the neutral terminal, often labeled N and distinguished by a light blue conductor. Though not always present in delta configurations, its absence on a wye-connected setup suggests incorrect disassembly or a mislabeled outlet. Use a multimeter to confirm voltage between N and each live terminal–expect 230V nominal in balanced wye systems; deviations signal load imbalance or neutral corruption.

Identify the protective earth contact, universally marked PE or with a green-yellow striped conductor. This terminal connects to the chassis and grounding rod, ensuring fault diversion. Cross-check continuity between PE and exposed metal surfaces–resistance above 1 ohm demands electrode inspection. Note that some industrial connectors combine PE and N (PEN) in older installations, a hazardous practice violating modern safety codes.

Inspect the terminal block for auxiliary contacts, often denoted U, V, W or A, B, C. These may carry control signals, harmonic filters, or braking resistors in motor drives. Measure voltage between these and live terminals–unexpected potentials indicate backfeeding, requiring isolation before servicing. Trace connections to the attached device’s nameplate for correct pairing; reversed assignments can damage frequency converters.

Examine the socket’s retention mechanism–bayonet twist-lock, threaded collar, or latch–based on the form factor. IEC 60309 connectors use a keyed design preventing misalignment; ensure the alignment groove matches the equipment’s polarization. For plugs lacking keys, record terminal positions before disconnection to prevent cross-connection during reconnection.

Check contact integrity using a flashlight–pitted or oxidized terminals require abrasive cleaning with a non-metallic tool (e.g., fiberglass brush) followed by contact cleaner. Tighten connections to manufacturer torque specifications (typically 1.5–2.5 Nm for M10 terminals), using a calibrated torque screwdriver to avoid cold flow deformation.

Verify phase sequencing with a dedicated tester or oscilloscope. Connect L1 to the test tool’s reference; correct rotation produces a rising sawtooth pattern (L1→L2→L3). Reversed rotation risks motor burnout or inverter overload–swap any two live terminals if misalignment is detected. Document findings in the equipment log to streamline future maintenance.

Step-by-Step Guide to Safely Connecting a Triple-Circuit Connector

Verify the power supply is completely isolated before handling any terminals. Use a voltage tester on each live conductor–neutral should register zero, while active lines must show absence of current. Confirm the circuit breaker is in the “off” position and padlock it if possible to prevent accidental reactivation during installation.

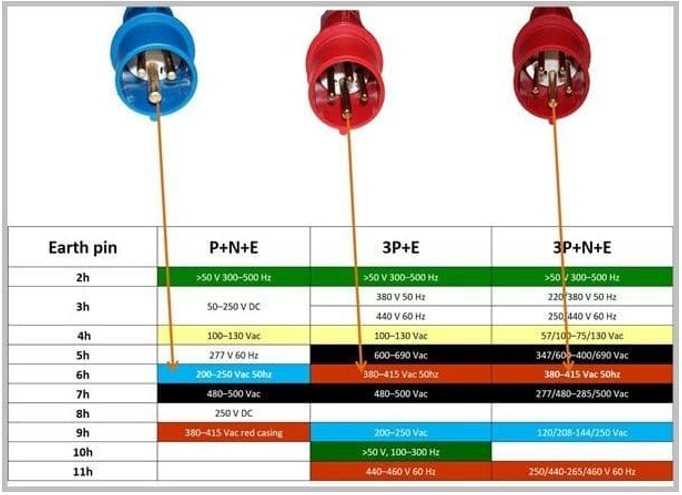

Identify the connector layout based on regional standards. For IEC 60309 (common in Europe), pin arrangement follows a clockwise sequence starting at 6 o’clock: L1, L2, L3, neutral, and earth. NEMA configurations (North America) typically use a different pin geometry–consult manufacturer specifications to avoid misalignment.

Strip the cable insulation precisely to expose 10–12 mm of conductor. Over-stripping weakens the connection, while insufficient exposure risks poor contact. Use calibrated wire strippers to avoid nicking the copper strands. For copper-clad aluminum conductors, apply an anti-oxidant compound to prevent corrosive buildup at termination points.

• Crimp lugs or ring terminals onto each conductor using a hydraulic crimper for high-current (32A+) connections. Hand crimpers suffice for lower loads (16A).
• Ensure the crimp dies match the terminal size–common errors include mismatched dies that crush conductors rather than forming a secure mechanical bond.
• Inspect each crimp for uniform compression; strands should not protrude from the terminal’s inspection window.

Secure terminals to their respective pins with torque-controlled drivers. Over-tightening can strip threads or distort washers, while under-tightening risks thermal loosening. Typical torque values:

1. M5 terminals: 2.5–3.0 Nm
2. M6 terminals: 4.0–5.0 Nm
3. M8 terminals: 7.0–8.5 Nm

Recheck the assembly for stray strands or metal fragments. Even microscopic debris can cause arcing under load. Enclose the termination box with its designated cover–exposed connections violate electrical codes in most jurisdictions and pose shock hazards.

Re-energize the supply only after a final continuity test. Measure resistance between each active line and earth–values should exceed 1 MΩ for dry installations. For damp environments, confirm with a megohmmeter at 500V DC. Log test results for compliance records if required by local regulations.

Color Coding Standards for Three-Conductor Electrical Systems by Region

In the European Union (IEC 60446), conductors follow a strict scheme: brown for live L1, black for L2, grey for L3, blue for neutral, and green/yellow for protective earth. Deviations are rare–only legacy installations may use red (L1), black (L2), and white (L3) for older industrial setups. Verify with a multimeter before servicing; miswired systems pose arc-flash risks, especially in panels rated above 400V. Always isolate the power source before testing continuity.

North America and Variations

Country	L1	L2	L3	Neutral	Ground
USA (NEC)	Black	Red	Blue	White/Gray	Green/Bare
Canada (CEC)	Red	Black	Blue	White	Green
Mexico (NOM-001)	Brown	Black	Grey	Light Blue	Green

In Canada, red denotes the first hot conductor, while the U.S. reserves black for the same function. Mexico aligns with IEC colors but uses lighter blue for neutral–confusion with U.S. white/gray neutrals can lead to equipment damage. High-leg delta systems in rural U.S. installations introduce an additional orange conductor for L2, which carries 208V relative to neutral; never connect this to standard 120V loads.

Japan (JIS C 0602) and South Korea (KS C IEC 60446) adopt similar color schemes to IEC but with unique exceptions: orange for L2 in Japan’s single-phase split systems and purple for L3 in some Korean industrial machinery. Australia and New Zealand (AS/NZS 3000) use the IEC standard but mandate that all hot conductors in flexible cables must be additionally striped or marked if identical–failure to do so violates compliance. Always consult local electrical codes before energizing equipment, as non-compliance penalties can exceed $10,000 in jurisdictions like New South Wales.
