Complete Guide to 3 Pin Alternator Wiring Connections and Schematics
Start by identifying the primary terminals on your charging unit: the battery-positive (B+), field circuit (F), and ground (GND). The B+ terminal must connect directly to the vehicle’s electrical system’s positive line, typically via a heavy-gauge cable rated for at least 8 AWG to handle current loads of 50-100 amps without voltage drop. The F terminal, often marked with an excitation symbol, requires a switched ignition source to activate the internal regulator–use a 10-14 AWG wire with a 10-amp fuse for protection. Ground must establish a solid path to the chassis or engine block; corrosion at this junction is a leading cause of intermittent charging failures.
Verify the regulator type before proceeding. Older models rely on an external voltage regulator, demanding a separate harness linking the ignition feed, ground, and field input. Modern integrated regulators eliminate this step but may still require a dedicated ignition wire for activation–consult the manufacturer’s specifications to confirm polarity and voltage thresholds (typically 13.5-14.7 volts at idle). Use a multimeter to test for 12.6 volts at the battery post and 1-2 volts less at the B+ terminal when the engine is off; discrepancies indicate resistance in the circuit.
Label all connections with heat-shrink tubing or colored markers to prevent miswirings during reassembly. For vehicles with auxiliary loads (e.g., winches, high-output stereos), route a secondary fused lead–minimum 6 AWG–from the B+ post directly to the battery’s positive terminal, bypassing the factory fusebox to prevent overloading the charging path. Inspect all crimps and solder joints with a pull test (minimum 10 pounds of force) to ensure mechanical integrity under vibration.

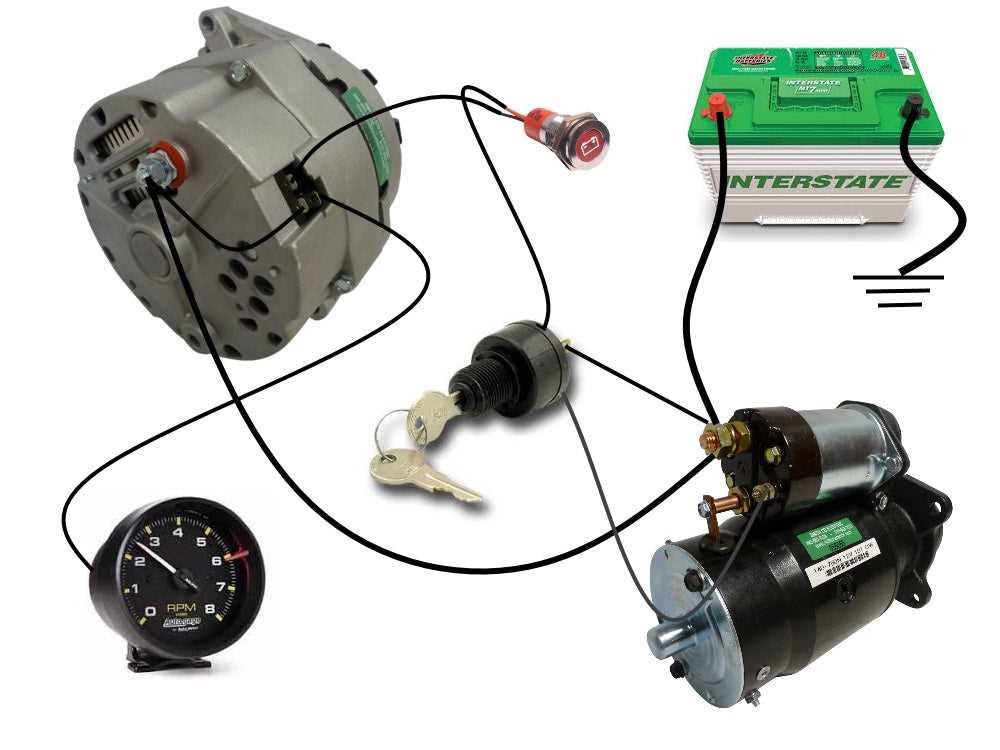

Connecting a Three-Terminal Charging System: Key Steps
Start by identifying the battery positive lead–this typically attaches to the largest of the three sockets on the generator. Use a 10-gauge or thicker wire for this connection to handle current demands without voltage drop.
Locate the ignition-triggered terminal, often marked with an “I” or similar symbol. This contact requires a 16-gauge wire linked directly to the ignition switch’s accessory position, ensuring the regulator receives power only when the engine runs.
- Verify the ground strap’s integrity–clean the engine block surface where it fastens to avoid resistance buildup.
- Avoid daisy-chaining grounds; route a separate 12-gauge cable straight to the battery’s negative post.
- Test each joint with a multimeter set to 0.1Ω continuity mode before final securing.
For older vehicles, bypass any factory ballasts or resistors by confirming the exciter voltage remains stable–consult the vehicle’s service guide for exact voltage ratings, usually 13.8–14.4V under load.

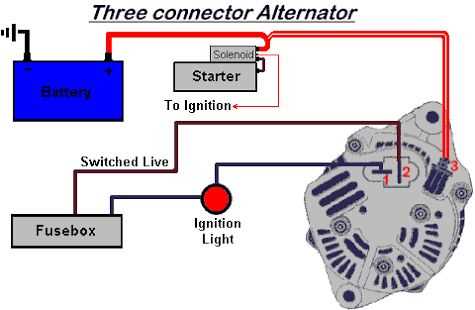

Identifying the Terminals on a 3-Contact Generator Plug
Locate the voltage regulator output first–it’s typically the smaller contact on the right when viewing the plug from the front. This connection supplies field current to the rotor and is often marked with an “F” or colored red. If markings are absent, trace the lead back to the rectifier assembly; the wire will connect directly to a diode trio or bridge.
Examine the central terminal next, which serves as the primary excitation input. This point receives switched power from the ignition circuit and may be labeled “IG,” “15,” or “S.” Verify its function by probing with a multimeter in continuity mode: it should show a low-resistance path to the vehicle’s fuse box when the key is turned to the “on” position, but not to ground.
The remaining contact–usually positioned on the left–handles the charge output and grounds the circuit. This is the main power delivery point, frequently tagged “B+,” “BAT,” or “30,” and connects to the battery positive through a fusible link or heavy-gauge cable. Ensure this terminal reads 13.8–14.5V relative to chassis ground when the engine runs; deviations indicate rectifier or stator issues.
Use a test light or oscilloscope to confirm signal characteristics. The field control contact should pulse at 120–300Hz under load, while the excitation input will show steady 12–14V when the ignition is active. The charge output will display a smooth DC waveform across all RPM ranges; ripple exceeding 0.5V suggests faulty diodes or worn bearings.
Compare terminal layouts across common models: Delco units position the excitation input in the center, while Hitachi and Mitsubishi often flip the field control and charge output contacts. Always reference the specific repair manual for your unit–aftermarket plugs may omit standard markings or invert contact assignments.
Label each contact immediately after identification to prevent misconnection. Apply colored shrink tubing or paint markings matching original factory codes: red for field current, yellow for switched ignition input, and green or blue for battery charge. Store the plug orientation in a phone photo to avoid reliance on memory during reassembly.
Step-by-Step Guide to Connecting a Three-Terminal Charging System
Disconnect the battery’s negative terminal before handling any electrical connections to prevent short circuits. Identify the three terminals on the generator: the field output (typically marked “F” or with a smaller gauge wire), the main power terminal (often “B” or “BAT”), and the voltage sensing terminal (labeled “S” or “IGN”). Use a multimeter set to 20V DC to measure the battery voltage–ensure it reads at least 12.2V before proceeding. Crimp ring terminals to the ends of 10-gauge wire for the main output and 14-gauge for the field and sensing lines to ensure secure, corrosion-resistant joins.
| Terminal | Wire Gauge | Connection Method | Test Voltage (Key ON, Engine OFF) |
|---|---|---|---|
| Field Output | 14 AWG | Fuse-protected link to ignition switch (5A fuse) | 12.0–12.4V |
| Main Power | 10 AWG | Direct to battery positive with 60A fuse | Battery voltage |
| Sensing Line | 14 AWG | Split to battery positive and dash voltage gauge | Battery voltage ±0.2V |
Common Mistakes When Hooking Up a Three-Terminal Power Generator
Reversing the excitation and output terminals fries the voltage regulator instantly. The thick wire from the stator feeds current to the battery; swapping it with the thin sensing lead causes uncontrolled charging cycles, often boiling electrolyte within minutes. Always match wire gauge: 10 AWG for output, 16 AWG for excitation and sensing–deviating risks melting insulation under 40A loads.
Ignoring ground continuity starves the generator’s internal circuit. A corroded chassis connection drops excitation voltage below 0.5V, preventing the regulator from switching on. Test with a multimeter: clamp the negative probe to the engine block, positive to the regulator’s metal tab–resistance should read under 0.2 ohms. Replace any rusted M6 bolts with zinc-coated fasteners to maintain a stable return path.
Overlooking Voltage Drop Under Load
Assuming 14.2V at idle while ignoring a 0.8V drop under 30A load masks a failing rectifier or frayed cable. Measure voltage at the battery terminals while running the engine at 2000 RPM with headlights and radiator fan engaged–a healthy unit delivers 13.8V to 14.4V; below 13.5V indicates either a worn brush set or excessive resistance in the thick output lead.
Connecting the sensing terminal directly to the battery instead of the ignition switch creates parasitic drain. The regulator remains activated, drawing 300mA continuously, flattening a fully charged 60Ah battery in under 8 days. Route the sensing wire through a 10A fuse and the ignition key’s Run position to prevent daytime power wastage.
Skipping the diode trio test leads to erratic charging. A shorted diode allows backflow into the stator windings during engine deceleration, generating uncontrolled 18V spikes that destroy dashboard electronics. Use a diode tester on the three AC terminals–forward voltage should be 0.5V to 0.7V; higher readings signal a failed component requiring immediate replacement with a 35A bridge rectifier.
Underestimating thermal expansion causes crimped terminals to loosen over time. Copper wires expand at 17 ppm/°C; after 50 heat cycles, a terminal crimped with 15 kg·cm torque develops 0.1 mm gaps, increasing resistance by 30% under load. Crimp with a ratchet tool set to 20 kg·cm, then solder the joint for redundancy, ensuring consistent contact up to 120°C.
Disregarding Belt Tension Specifications
A 12.7 mm drive belt stretched beyond 7% elongation reduces mechanical efficiency by 22%, causing slip and undercharge at idle. Check deflection with a tension gauge: new belts require 45–55 kg, worn belts 55–65 kg; adjust pulley alignment to within 0.5° of parallel to prevent edge wear and uneven charging across cylinders.
Testing Voltage Output on a 3-Connection Generator Circuit
Connect a multimeter set to 20V DC range directly to the main power terminal of the unit and a solid ground point. With the engine running at approximately 2,000 RPM, the reading should stabilize between 13.8 and 14.4 volts. Values outside this range indicate either insufficient charging or excessive voltage, requiring further diagnosis of the internal regulator or excitation coil.
Measure excitation voltage by probing the smaller control terminal while the ignition is on but the engine remains off. A reading of 1 to 3 volts confirms proper signal delivery from the voltage regulator; absence of voltage suggests a broken circuit, faulty ignition switch output, or corroded connector contacts. Clean terminals with 400-grit sandpaper and apply dielectric grease before reassembly to prevent future oxidation.
Check for voltage drop across the main power cable under load by starting the engine and activating high-current accessories such as headlights and blower motor. Use the multimeter to measure between the generator’s output stud and the battery positive terminal–acceptable losses are below 0.2 volts. Exceeding this threshold points to loose connections, undersized cable gauge, or internal generator winding resistance.
Verify internal diode integrity by switching the multimeter to diode test mode and probing between the main power terminal and the excitation terminal in both directions. A healthy circuit shows low resistance (
Conduct a load test by connecting a carbon-pile tester or a 30-amp resistor bank between the generator output and ground while monitoring voltage at 2,500 RPM. Voltage should not drop below 13.2 volts under full load conditions. Lower readings indicate worn brushes, damaged slip rings, or degraded stator winding insulation, all of which demand physical inspection and potential overhaul.
Inspect the drive pulley and belt tension immediately after testing. A properly tensioned V-belt should deflect no more than 10 mm under moderate thumb pressure. Excessive slack reduces rotor speed, directly lowering voltage output. Replace worn belts and align pulleys precisely to eliminate slippage and restore peak performance.
