How to Wire a 3 Pin On-Off-On Toggle Switch Step-by-Step Guide
Begin by identifying the terminal configuration. Most three-position levers feature a common contact (typically the middle terminal) flanked by two auxiliary connections. The common terminal carries the primary load. Verify this arrangement with a multimeter in continuity mode–probe the central contact and confirm it bridges to each side terminal in separate positions. Reversing this sequence risks incorrect circuit behavior or damage to components.

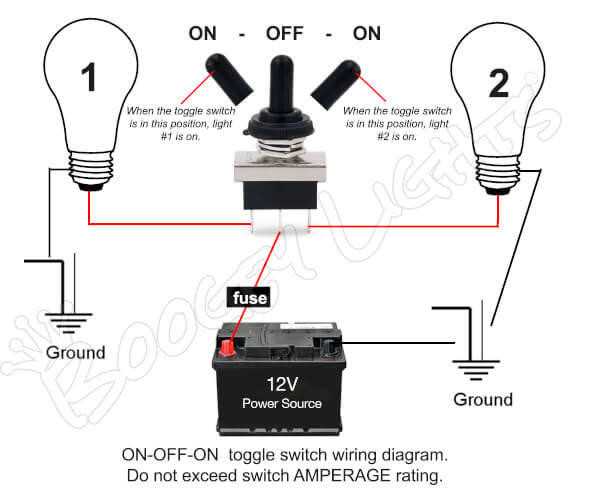

For low-voltage DC circuits (12V or below), connect the common terminal directly to the power source. The auxiliary terminals then link to opposite sides of the load–one terminating at the positive feed, the other routed through a resistive element or ground. Double-check polarity before energizing; reversing positive and negative leads in this setup overloads the lever and may cause arcing.
High-current AC applications (above 5A) require additional safeguards. Insert a suitably rated fuse or circuit breaker in series with the common terminal. The lever’s auxiliary contacts should then connect to the load’s start/stop inputs. Avoid extended dwell in the intermediate position; prolonged open-circuit states generate heat buildup in the contacts, accelerating wear and reducing lifespan to under 10,000 cycles.
Wire gauge selection follows Ohm’s law calculations. For 12V DC at 3A, use at least 18 AWG copper conductor. At 110V AC and 10A, step up to 14 AWG. Crimp connections using insulated butt splices or solder them for permanent installations. Loose terminations increase resistance, causing voltage drops that degrade performance.
Testing procedure: After wiring, cycle the lever through all positions while monitoring voltage at the load. A drop exceeding 0.2V indicates poor contact or undersized conductors. Replace the lever if readings fluctuate irregularly–intermittent faults suggest internal pitting.
Label each conductor immediately after installation. Mark the common terminal as “MAIN,” one auxiliary as “POWER,” and the other as “GROUND” (or “REMOTE” in multi-device setups). Document the configuration for future reference; schematics should include wire colors alongside terminal designations.

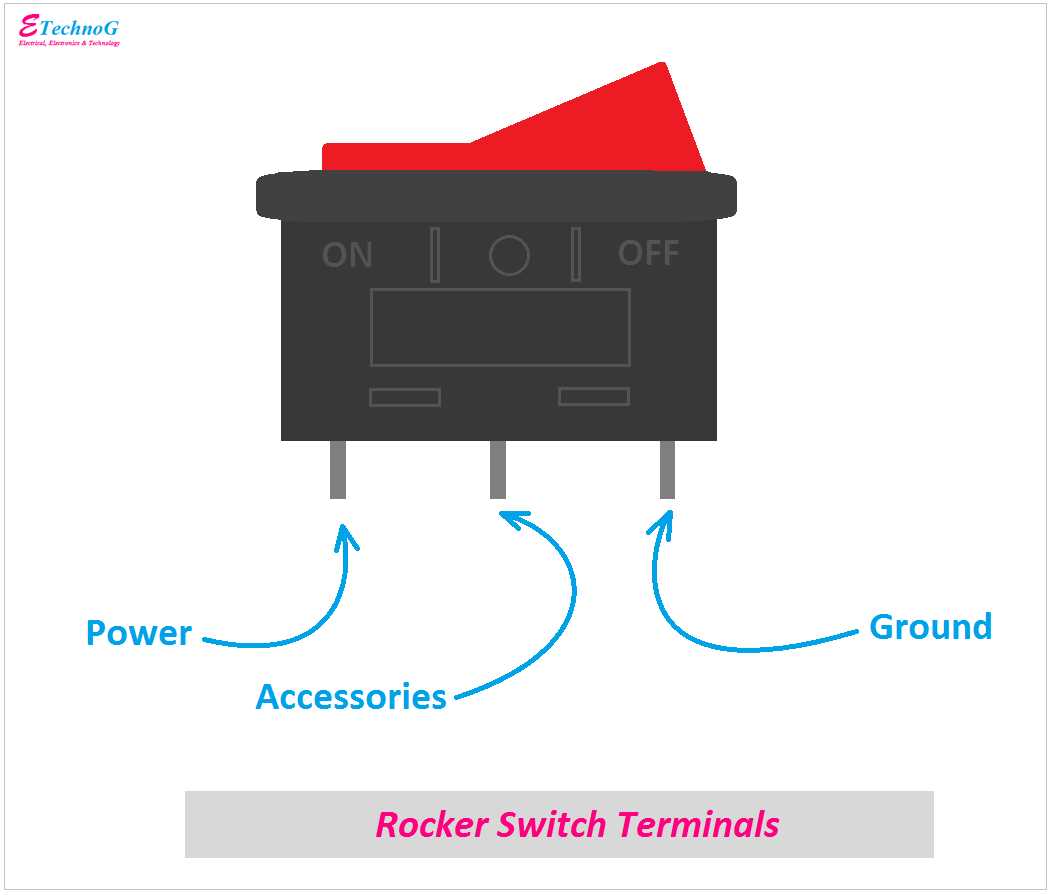

How to Connect a Three-Position Rocker Mechanism
Begin by identifying the central terminal–this acts as the common input for the circuit. Attach the power source here, ensuring the current flows through the middle contact first. For DC applications, polarity matters: positive should connect to the center if the device requires consistent voltage direction. Mistakes here can damage sensitive components or invert intended behavior.
The outer connections serve distinct functions: one enables continuous operation, the other activates an alternate mode, such as a secondary circuit or momentary override. Label each wire before attachment–red for primary, black for ground, and blue for auxiliary–to prevent cross-connections. Test continuity with a multimeter before finalizing splices, especially in low-voltage systems like LED strips or relays where incorrect paths may not be obvious.
For AC household appliances, abandon color-coding conventions used in DC setups. Instead, rely on terminal markings: typically, the upper position links to neutral, the lower to the live wire. If the mechanism lacks clear labels, trace the internal contacts–most have printed copper traces showing the path. Never assume symmetry; some variants route current differently in each position.
When integrating into a motor control setup, use the secondary contact for reverse polarity. Connect a bridge rectifier if the motor runs on AC but requires DC direction switching. Capacitors across terminals can smooth transient spikes, but values must match the load–too small risks arcing, too large introduces lag. Verify with an oscilloscope if precise timing is critical, such as in stepper motor drivers.
For failsafe designs, wire the auxiliary path through a fuse or PTC resettable device. This prevents overloads if the user accidentally engages both circuits simultaneously. In automotive applications, double-check the amp rating of the mechanism–many handle only 10A continuous, insufficient for high-draw components like fog lights. Solder connections for permanent setups; crimp terminals suffice for temporary prototypes.

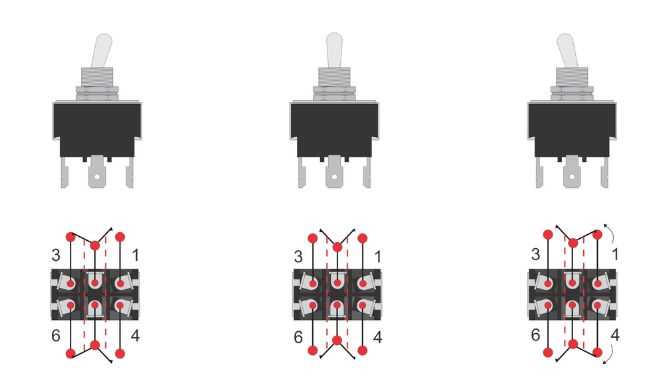

Identifying the Terminals of a 3-Position Control Lever
Locate the labeling on the base or the side of the actuator before proceeding–most manufacturers emboss tiny markings such as COM, NO, and NC directly adjacent to each contact point. If no text is visible, hold the unit under a bright light and tilt it until the microscopic identifiers become legible. COM always signifies the common lead, which serves as the pivot for the internal mechanism and must link to your power source or primary circuit path.
Test continuity between COM and the other two contacts using a multimeter set to the lowest resistance scale–one contact will register closed (corresponding to NC) when the lever is in its resting state, while the remaining contact will show open (NO). Trace the circuit path internally: when the lever flips toward the NO side, the movable conductive blade inside physically disengages from NC and snaps to NO, instantly reversing the contact states.
Examine the actuator’s mechanical travel–short lever throws usually indicate momentary action where NO and NC revert once released, while full-throw designs lock into place. Observe the tiny detents on the internal cam; a single shallow groove signifies center-off, a deeper groove marks detented positions, and absence of grooves suggests instantaneous operation suitable for pulse signaling rather than maintained control.
| Terminal Marking | Typical Circuit Role | Behavior in Rest Position |
|---|---|---|
| COM | Common lead for power input/output | Always connected |
| NO | Break contact for normally open path | Open (no continuity) |
| NC | Make contact for normally closed path | Closed (continuity established) |
Verify manufacturer datasheets for exact mechanical specifications since some European variants use alternate symbols: P1/P2/P3 or 11/12/14. Japanese units often label terminals numerically 1-2-3 counterclockwise starting from COM, whereas American models frequently maintain alphabetic conventions. If documentation is unavailable, cross-reference the lever’s directional throw–pushing toward the body usually activates the NC side, pulling outward engages NO.
Inspect the internal solder joints for micro-fractures if intermittent operation occurs–thermal cycling degrades cheap epoxy potting. Replace any unit exhibiting cracked housing or corroded terminals immediately to prevent high-impedance failure modes that can damage sensitive control logic. Maintained-contact variants require heavier gauge wire (minimum 18 AWG) to handle sustained currents without overheating, while momentary actuators can suffice with 22 AWG for low-power signals.
Visual Identification Without Tools
Rotate the unit against a light backdrop–COM is typically soldered to the central fulcrum post, visibly thicker and sometimes gold-plated for corrosion resistance. NO and NC terminals flank COM symmetrically; NO is commonly positioned opposite the lever’s pivot direction, often identifiable by a slightly recessed mounting hole or asymmetric spacing. On military-grade specimens, look for circular indentations on the terminal sleeves; the deepest indentation usually correlates to NO.
Confirm final lead assignments by manually toggling the lever and listening for the mechanical click–NC should audibly disengage with a sharp snap when transitioning to NO. Label each terminal immediately with heat-shrink tubing or colored wire markers to prevent cross-connection errors during final installation, especially in paralleled redundant control circuits where reversed polarity could induce catastrophic backfeed.
Connecting the Main Supply to the Central Terminal for Basic Activation Control
Route the primary voltage input directly to the middle contact of the selector. This approach ensures the mechanism operates only when engagement occurs between this fixed point and either outer position. Use a conductor rated for at least 125% of the expected current load–commonly 16 AWG for circuits under 10A and 12 AWG for heavier demands. Verify insulation type matches application needs: PVC for general use, silicone for high-temperature environments, or Teflon when chemical resistance is required.
- For DC systems, maintain consistent polarity. Label the positive lead at both ends to prevent reverse connection errors.
- In AC applications, ensure the chosen terminal handles line voltage without arcing. Use terminals rated for at least 600V if switching mains (120/240V).
- Avoid daisy-chaining. Run a separate lead from the fuse block or breaker directly to this central contact to prevent voltage drop.
When integrating into existing circuits, disconnect all power sources before attaching. Test continuity with a multimeter set to ohms (Ω) mode–touch probes to the central contact and each outer position to confirm no unintended bridges exist. If resistance measures below 1Ω, recheck crimping or solder joints. For high-current setups, consider tinning wire ends before insertion to improve conductivity and prevent oxidation.
- Strip insulation precisely: 8-10mm for 16-14 AWG, 10-12mm for 12 AWG and thicker. Over-stripping exposes bare wire; under-stripping weakens contact.
- Crimp using a ratcheting tool–apply full pressure to form a gas-tight joint. Avoid pliers; they compress unevenly.
- If soldering, keep the iron at 350-400°C. Apply heat to the terminal, not the wire, to prevent melting insulation.
- Secure connections with adhesive-lined heat shrink tubing (1.5x wire diameter) after testing to resist vibration.
After assembly, conduct a load test under actual operating conditions. Start with 50% of expected current, monitoring for heat buildup–excessive warmth indicates poor contact. If using copper-clad aluminum wire, take extra precautions: oxide builds quickly; clean with fine sandpaper before connection and apply corrosion inhibitor paste. For outdoor installations, seal all junctions with dielectric grease before covering with shrink tubing to block moisture ingress entirely.
