Step-by-Step Guide to Wiring a 3 Prong Electrical Plug Safely
Begin by identifying the terminals on your power cord end: the longer pin is the ground, the shorter left slot is neutral, and the shorter right slot carries the live current. Incorrect connections risk 120V shocks or equipment damage. Use a multimeter to verify polarity before securing any wires.
Strip 5–7mm of insulation from each conductor, twist the copper strands tightly, and insert into the corresponding screw terminals. The green or bare wire attaches to the ground pin, white or gray to neutral, and black, red, or blue to live. Tighten screws until the wire does not pull out when tugged firmly–loose connections create heat and fire hazards.
For 15-amp circuits, use 14 AWG copper wire; for 20-amp circuits, 12 AWG is mandatory. Check local electrical codes–some jurisdictions require pigtails when extending cords. Always cap unused wires with wire nuts and wrap the connection with electrical tape to prevent accidental contact.
Connecting a Three-Pin Connector Safely
Strip the outer insulation 5/8 inch from the cable end to expose the inner conductors, ensuring no damage to the copper strands. The green or bare wire connects to the U-shaped terminal–this is the ground, critical for fault protection. Twist the strands tightly and loop clockwise around the screw post to prevent loosening under vibration. Tighten the screw until resistance is felt, then add an extra quarter-turn to secure the connection without crushing the wire.
Color Code and Terminal Mapping

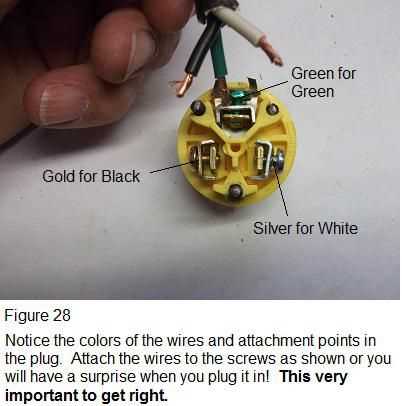

Black (hot) wire attaches to the brass-colored terminal on the right side when facing the terminals. White (neutral) connects to the silver terminal on the left. Verify the correct orientation by checking the molded ridge on the connector body–it must align with the wider slot in standard outlets. Crossed wires trip breakers or damage appliances; use a multimeter to confirm 120V between hot and neutral, 0V between neutral and ground.
After securing, wrap each terminal with electrical tape individually, then cover the entire assembly to prevent accidental shorts. Test with a plug-in circuit analyzer before first use–no substitutes for proper verification exist. Replace frayed or brittle cables immediately; compromised insulation is the leading cause of arc faults.

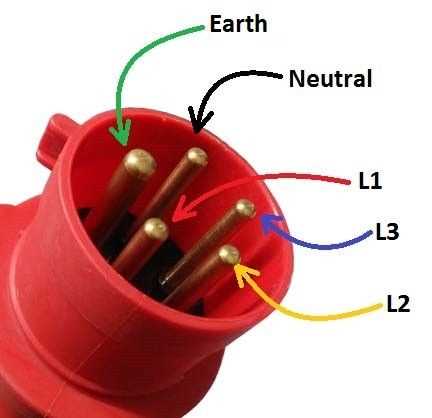

Identifying the Hot, Neutral, and Ground Leads on a Three-Pin Connector
Examine the brass screw terminal–this connects to the live (hot) conductor. The hot lead is typically coated in black or red insulation, though some older cords may use brown. Verify with a non-contact voltage tester: bring the probe near the terminal; a steady beep confirms the live connection. If the cable lacks color coding, the wider flat blade slot on the appliance’s socket corresponds to the neutral, while the narrower slot is hot.
| Lead Type | Standard Color | Terminal Position | Test Method |
|---|---|---|---|
| Live (hot) | Black, red, brown | Brass screw | Non-contact tester beeps |
| Neutral | White, light blue, gray | Silver screw | Multimeter reads 0V vs ground |
| Ground | Green, bare copper, yellow/green stripe | Green hexagonal screw | Continuity to metal chassis |
Neutral attaches to the silver-colored screw terminal, usually marked with a white stripe or gray coating. The blade is wider than the hot slot but narrower than the ground on standard receptacles. Test for neutrality by setting a multimeter to AC voltage: probe the terminal and ground; a reading near 0V confirms neutrality. Never assume polarity by color alone–verify with a meter on every installation.
Ground connects to the green screw terminal or bare wire, often terminating at a U-shaped post. The ground blade is rounded on North American plugs and half-round in UK/EU variants. Test continuity between the ground terminal and the device’s metal chassis–resistance should measure near 0 ohms. If the cord lacks a bare wire, the green-coated conductor serves as ground. Always confirm ground integrity before powering the device to prevent shock hazards.
How to Properly Strip and Prepare Conductors for a Three-Pin Connector
Measure 12–15 mm (½–⅝ in) from the end of each cable and score the insulation with wire strippers–adjust the tool’s gauge to match the conductor size (typically 1.5 mm² for 10A, 2.5 mm² for 16A). Rotate the strippers once around the sheath without cutting into the copper strands; a second pass risks weakening individual filaments. For stranded cores, twist the exposed ends clockwise in a tight spiral to prevent fraying before inserting into terminal slots.
Inspect the stripped length: no loose strands should protrude beyond the insulation cutoff. Use needle-nose pliers to trim any errant filaments flush with the main bundle–excess copper can cause short circuits against adjacent terminals. If the sheath is silicone or TPE, heat-shrink tubing pre-cut to 20 mm should slide over the insulation before termination; this prevents moisture ingress after assembly.
Special Cases and Precautions

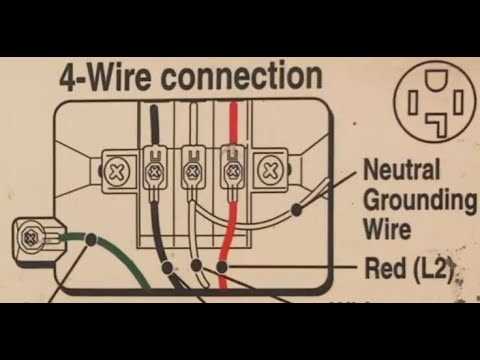

- Flat cables (e.g., NEMA 14-30): slot the live (L) and neutral (N) into separate stripper channels marked 6 AWG to avoid cutting through adjacent conductors.
- Solid core (Roman numeral II installations): bend the tips into a slight hook (3 mm offset) to improve grip in screw-down clamps.
- Aluminum conductors: apply anti-oxidant gel (NOALOX or equivalent) to exposed ends within 30 seconds of stripping to inhibit corrosion.
Verify the stripping depth with a caliper: 9.5 ±0.5 mm is optimal for IEC 60320 C13 connectors. Anything shorter reduces contact area; longer risks shorting. For cords under 1.0 m, add a second layer of electrical tape wrapped three times around the sheath–this reinforces strain relief when the connector is tugged during disconnection.
Proper Terminal Sequence for Safe Electrical Connector Assembly
Connect the green or bare conductor to the grounding terminal first–it must engage the central screw or U-shaped slot on the component. This ensures fault currents divert directly to earth before any other connections complete, preventing hazardous potential differences during assembly. Verify the wire strands remain fully inserted under the terminal clamp; trim excess insulation to avoid short circuits if strands splay outward.
Neutral Conductor Attachment
Position the white or light-colored conductor adjacent to the wider slot–this slot corresponds to the neutral contact. Secure it tightly with the terminal screw, ensuring no copper extends beyond the clamp; use pliers to twist strands if fraying occurs. Confirm resistance-free contact by gently tugging the wire–if movement is detected, re-strip the insulation and repeat clamping, adjusting screw torque to 0.5 Nm.
Attach the remaining dark conductor last to the narrower slot–this prevents accidental contact with live components if tools slip. Check the insulation integrity near the terminal; if nicked during stripping, re-cut or use a splice connector to prevent degradation. Verify all screws sit flush against the housing; overtightening can strip threads, while loose connections risk arcing.
Test continuity between the grounding pin and casing, and between each live terminal before energizing. Use a multimeter set to 200 ohms; readings above 0.5 ohms indicate poor contact. Re-examine terminals if deviations appear–corrosion, bent contacts, or misaligned screws require immediate correction to maintain safety compliance with IEC 60320 standards.
Testing a Wired Electrical Connector with a Multimeter for Safety
Set your multimeter to the 200V AC range before testing. Place one probe on the live terminal (brass screw) and the other on the neutral terminal (silver screw). A reading between 110–125V (or 220–240V for higher-voltage systems) confirms correct polarity. If the voltage is absent or reversed, disconnect power immediately and recheck connections.
- For ground integrity testing, switch the multimeter to continuity mode or resistance (Ω). Touch one probe to the ground terminal (green screw) and the other to the metal casing of the appliance or outlet box. A reading near 0Ω indicates a proper ground path. Values above 1Ω suggest a weak or broken ground–address this before use.
- Verify neutral-to-ground safety by measuring between the neutral and ground terminals. A reading above 0.5V may signal a neutral-ground fault, risking shock hazards. In such cases, inspect the circuit for loose wires or improper bonding.
- Never test voltage with the connector energized while disassembled. Always perform continuity and resistance checks with the power off to avoid short circuits or damage to the meter.
Use the voltage-hold function (if available) to capture transient readings. Fluctuating voltages (e.g., readings below 100V or erratic spikes) often point to faulty components, intermittent connections, or voltage drop issues in the supply line. Document readings for comparison during troubleshooting.
After testing, reassemble the connector securely. Ensure:
- All screws are tightened to 8–12 in-lbs of torque.
- No exposed conductors remain outside the terminal clamps.
- The strain relief clamp grips the cable jacket, not the conductors, to prevent pull-out.
- The outer shell is properly aligned and fastened to prevent accidental contact with live parts.
Test again under load by plugging in the appliance and monitoring for overheating, sparking, or humming–signs of underlying faults. Replace cracked or damaged connectors without delay.
