How to Wire a 3-Way Light Switch Step-by-Step Diagrams and Guide
Begin by installing power feed conductors at the first control point. Route a 14-3 or 12-3 NM cable between adjacent toggles, ensuring the red and black travelers terminate on matching brass terminals. The common screw–typically darker–receives the hot lead at the source box or the load wire at the fixture location. Verify continuity across all positions before securing faceplates.
Use 600 V-rated stranded copper conductors for runs exceeding 50 ft; solid core suffices for shorter spans. Mark travelers distinctly–wrap red electrical tape on both ends–to eliminate confusion during final checks. Grounding continuity must span every junction box; attach bare or green-insulated wires to all green grounding screws and interconnect with pigtails.
Load calculations dictate wire gauge: 14 AWG for 15 A breakers, 12 AWG for 20 A circuits. Stubborn flickers often trace to loose traveler connections–torque each terminal to 12 in-lbs. Avoid daisy-chaining travelers; each toggle requires direct cable runs to maintain signal integrity. Test polarity with a non-contact voltage pen prior to energizing.
In retrofit scenarios, fish tape simplifies pulling cable through existing walls. Lubricate conductors with silicone-based pulling compound for stubborn passages. Replace any toggle that feels warm to the touch; excessive heat signals arcing risks. Install surge-protected breakers if the circuit serves sensitive electronics.
Configuring Multi-Control Illumination Circuits
Use a 4-way toggle unit between paired 3-way modules to enable control from three distinct locations. Connect the travelers (common conductors) from the first 3-way module to the matching brass terminals on the 4-way device, then route the corresponding wires to the second 3-way module’s brass screws. Ensure polarity matches: black wire (or red if marked) to dark screws, white neutral strictly to silver terminals. Test continuity before securing connections; miswiring creates dead zones where no position activates the fixture.
Label every conductor with tape at both ends–source, travelers, neutral–to prevent confusion during installation. For enclosed spaces like stairwells, run 14-3 NM cable (or 12-3 for higher loads) between control points; spare wires reduce future expansion costs. Ground all devices to the junction box–no exceptions–using green screws or bare copper pigtails.
How to Connect a Three-Point Control Circuit: A Detailed Walkthrough

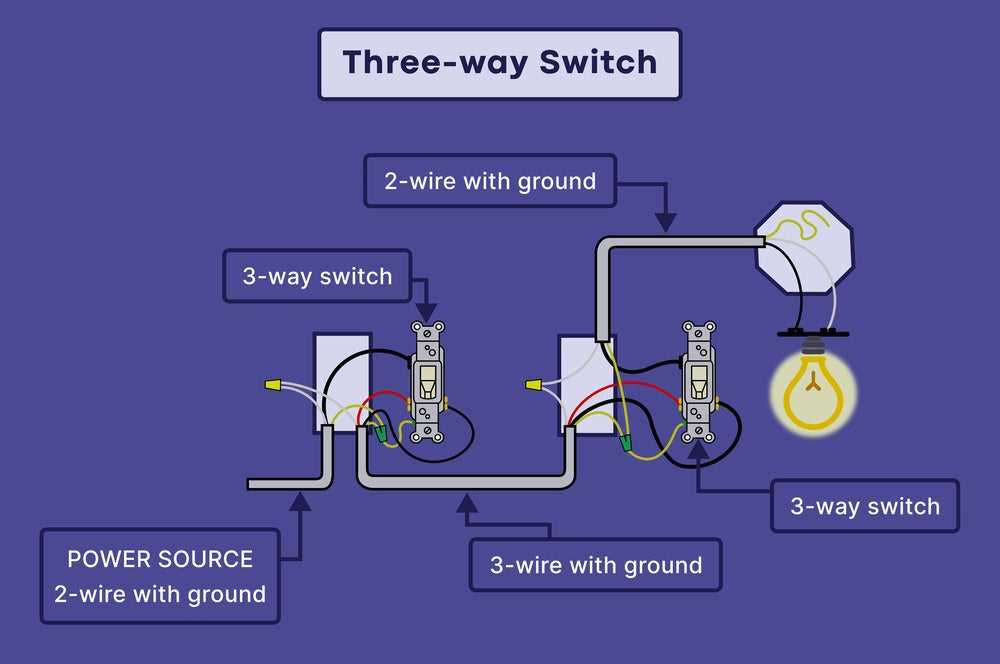

Start by identifying the power source cable at the first control point–it typically contains a black (hot), white (neutral), and bare or green (ground) conductor. Separate the neutral wire immediately, as it will bypass both control points and connect directly to the fixture’s neutral terminal. Strip ½ inch of insulation from each wire for secure connections.
At the first control box, attach the hot conductor to the common terminal (usually marked darker or labeled “COM”). Use a short length of 14 AWG copper wire (pigtail) to join the ground conductors from all incoming cables with the box’s grounding screw. Secure all connections with wire nuts, twisting clockwise until snug.
Run a sheathed cable (Romex or equivalent) from the first control point to the second–this carries two travelers (typically red and black) and a ground. Ensure both control boxes have matching traveler colors for consistency. At the second box, connect the travelers to the brass-colored terminals, leaving the common terminal free for now.
From the second control point, route another sheathed cable to the luminaire. This cable should include a hot (black), neutral (white), and ground. At the fixture, join the white wire to the neutral terminal and the black wire to the hot terminal. Ground the fixture as well, connecting it to the metal chassis or grounding screw.
- Always test continuity with a multimeter before energizing the circuit–verify no shorts between travelers or to ground.
- Label all wires with tape at both control points to avoid confusion during future maintenance.
- Use a torque screwdriver to tighten terminal screws to manufacturer specifications (usually 12–18 in-lbs).
At the second control box, attach the remaining hot conductor (from the luminaire’s cable) to the common terminal. Double-check all wire nuts for exposed strands–no bare copper should be visible. Push wires neatly into the boxes, ensuring no sharp edges touch bare conductors.
Energize the circuit at the breaker panel. Operate both control points to confirm the luminaire turns on and off from either location. If flickering occurs, recheck traveler connections at both boxes–loose terminals are the most common issue.
For dimming capability, replace standard controls with compatible electronic units, ensuring they support the luminaire’s wattage and type (LED, incandescent, etc.). Follow manufacturer instructions for dimmer-specific wiring, as some models require additional neutrals or specific phasing.
Pinpointing Key Conductors in Multi-Location Control Paths
To distinguish the fixed supply conductor (common) from the alternating links (travelers), first isolate the terminals on each regulating device. The common will connect to a single darker-hued conductor (typically black or red) on one device and a brass or dark screw on the other–never to both travelers simultaneously. Use a multimeter in continuity mode: probe the suspected common against grounding; it should show ~120V in a live circuit. The travelers will register voltage only when toggled opposite–screw colors often match, but polarity reverses between devices. Avoid assuming identical wire hues guarantee matching functions; labeling during disassembly prevents errors.
Grounding conductors follow predictable coding: bare, green, or green with yellow stripe. Verify by checking for secure attachment to metallic enclosures or grounded junction boxes–never route these through pivoting contacts. In older installations, cloth-insulated neutrals may mimic travelers; differentiate by identifying the uninterrupted neutral bundle that bypasses all regulating points entirely. Test for continuity to the service panel neutral bus when uncertain.
Essential Gear for Installing a Triple-Controller Illumination Setup
Choose a voltage tester with dual-range detection (12V-600V AC/DC) and a non-contact mode to verify circuit deactivation before handling conductors. Models with built-in LEDs and audible alerts reduce false negatives during verification. For stripping conductors, select precision wire cutters featuring calibrated notches for 14-10 AWG copper strands–avoid generic tools that crush insulation or nick strands, leading to weakened connections.
Use circuit breaker lockout devices rated for 20A residential panels to prevent accidental energization. A magnetic tip screwdriver (size #2 Phillips) with an insulated shaft (tested to 1000V) minimizes slippage when securing terminal screws. For conduit bending, a manual EMT bender with angle markings at 10° increments ensures proper offsets without over-bending, which can fracture conductors inside thin-wall tubing.
Precision Instruments for Accurate Installation
| Tool | Specification | Critical Use Case |
|---|---|---|
| Digital multimeter | True RMS, 6000-count display, CAT III 600V rating | Verifying neutral-to-ground voltage differentials ( |
| Fish tape | Non-conductive fiberglass, 25ft length, 3/16″ width | Routing conductors through 1/2″ flex conduit with multiple 90° bends |
| Cable jacket stripper | Adjustable depth blade for 12-2 Romex | Removing outer sheath without damaging inner conductor insulation |
Apply anti-oxidant compound (NOALOX or equivalent) to all aluminum-to-copper junctions to prevent galvanic corrosion. For pigtail connections, use crimp sleeves rated for 20A circuits–solder splices violate NEC Article 310.15(B)(16) for branch circuits. A torque screwdriver (0.5-3.5 Nm range) ensures terminal screws meet NEC 110.14(D) requirements–loose connections generate heat, causing premature failure.
Mark all conductors with color-coded sleeves or heat-shrink tubing before pulling through conduit: black for always-hot, red for switched-hot (from last controller), white for neutral, and green/yellow for equipment ground. Use a conduit deburring tool to eliminate sharp edges that can abrade insulation during conductor insertion. For final testing, an insulation resistance tester (500V DC megohmmeter) verifies integrity–readings below 100MΩ indicate moisture ingress or damaged insulation requiring replacement.
Safety Gear Mandatory for Live Work
Arc-rated gloves (ASTM F2675, Class 2) provide 12 cal/cm² protection when verifying circuit functionality. Safety glasses with side shields (ANSI Z87.1) prevent debris-induced eye injuries during drilling or cutting. A Class ABC fire extinguisher (5lb minimum) should be stationed within 10 feet of the work area–never rely on water-based extinguishers for electrical fires (NFPA 70E 130.7(C)(1)). For elevated tasks, a Type IA fiberglass ladder (300lb duty rating) with non-conductive standoffs prevents accidental contact with live conductors.
Diagnosing Faults in Multi-Control Circuit Setups
If one fixture fails to respond while others operate, inspect the neutral path first. Verify the integrity of the white conductor at each junction box–corrosion or poor crimping often disrupts continuity. Use a multimeter to test for 120V between the black conductor and ground at the non-functioning endpoint. Absence of voltage suggests a break upstream, likely at the common point or between control modules.
Flickering or intermittent operation typically stems from loose connections. Examine all terminal screws, particularly those securing travelers; torque them to 12 in-lbs. Replace any push-in splices with wire nuts if vibration or thermal cycling is suspected. For dimming inconsistencies, ensure travelers and commons are not swapped–L1 and L2 must remain on opposite terminals at both ends.
Check for improper grounding if the circuit trips GFCI protection. Neutral and ground must never share a path post-panel; separate them at all boxes and confirm ground continuity with a non-contact tester. At the fixture housing, measure voltage between the brass screw and grounded metal–readings above 3V indicate a floating neutral, often caused by a severed neutral link in branch circuitry.
When controls behave erratically, map traveler routes. Label each conductor with numbered flags at both endpoints; cross-verify paths by toggling modules to confirm correct polarity. Misrouted yellow or red wires force opposing logic, causing one module to disable while others engage. Re-terminate according to the modular sequence: common at dark screw, travelers on brass.
Persistent humming or buzzing signals harmonic interference. Swap incandescent loads for LED counterparts rated for multi-location control–older semiconductors struggle with phase-cut waveforms. If noise persists, insert a bypass capacitor (0.1µF, 250V) across load terminals at the fixture. For metallic enclosures, bond all boxes to the grounding bus with 12 AWG copper to eliminate stray inductance.
Isolate phantom loads by disconnecting all modules and testing them individually. A single faulty unit often backfeeds voltage, keeping fixtures partially energized. Replace any module with a resistance reading below 10MΩ between terminals while off. For mechanical wear, lubricate contact points with graphite powder–never oil-based compounds, which attract dust and accelerate degradation.
