How to Build and Analyze a 3-Way Speaker Crossover Network Schematic
For optimal audio separation, incorporate a third-order Butterworth filter for each band–low, mid, and high frequencies. This configuration ensures steep 18 dB/octave roll-off, reducing overlap between drivers. Start with non-polarized capacitors rated at least 100V for mid and high outputs, while low-frequency sections require 220µF to 470µF electrolytics with appropriate voltage derating. Resistors should be 1% tolerance metal film, sized between 2.2Ω and 10Ω depending on impedance matching needs.
Use air-core inductors for mid and high bands to avoid magnetic saturation–0.5mH to 1.5mH for midrange, 0.1mH to 0.3mH for tweeters. For bass frequencies, iron-core chokes (e.g., 1.8mH to 3.3mH) handle higher current without distortion. Ensure inductors are orthogonally oriented to minimize crosstalk, with at least 3cm spacing between coils.
Structure the subdivider with ground planes to reduce noise–separate analog and power grounds, joining them at a single star point near the amplifier input. For passive designs, polypropylene film capacitors (e.g., 2.2µF–6.8µF) outperform cheaper alternatives in phase accuracy. If active splitting is preferred, op-amps like NE5532 or LM4562 deliver low noise (10V/µs), critical for transient response.
Test frequency response with a sweep generator and oscilloscope–verify crossover points at 500Hz and 3.5kHz for typical three-band systems, adjusting component values in 5% increments until acoustic measurements align with electrical simulations. Shield sensitive traces with copper pours and keep signal paths to prevent EMI pickup.
Tri-Frequency Speaker Filter Layout Guide
Select a Butterworth alignment for passive networks to achieve a balanced frequency response with minimal phase distortion. Use a 12 dB/octave slope for midrange sections to prevent audible overlap between drivers. For tweeters, a steeper 18 dB/octave slope ensures protection from low-frequency energy while maintaining clarity in high notes.
Calculate component values using the formula C = 1/(2πfX) and L = X/(2πf), where f is the target cutoff and X is the nominal impedance. For a 4-ohm system with an 800 Hz divider, a 0.49 mH inductor and a 49.7 µF capacitor will isolate the woofer from midrange frequencies. Adjust values by ±5% to compensate for driver sensitivity variations.
Implement a Zobel network on woofers with impedance peaks above 5 ohms. A series resistor-capacitor pair (e.g., 10 Ω + 10 µF) flattens impedance curves, improving amplifier control. For voice coils with rising inductance, add a series resistance equal to half the voice coil’s DC resistance to stabilize load impedance.
Component Placement and Wiring
Position inductors perpendicular to each other to minimize magnetic interference. Mount capacitors at least 2 cm apart from inductors to avoid coupling effects. Use oxygen-free copper wire (AWG 16 for 50W+ systems) for all connections to reduce signal loss. Group midrange and tweeter components near their respective drivers to shorten signal paths.
Test each filter section with a sine wave sweep before final assembly. A mismatch in cutoff frequencies can cause 3–6 dB dips or peaks in the response curve. For active splits, use op-amps with ≥10 MHz bandwidth to preserve transient accuracy. Bypass electrolytic capacitors with 0.1 µF film types to eliminate high-frequency distortion.
Avoid daisy-chaining ground returns; connect each stage directly to a central star ground. Differentiate signal grounds from power grounds using separate paths or twisted pairs. For bi-amped systems, sync low-pass and high-pass sections within ±10 Hz of their crossover point to prevent phase cancellation.
Essential Parts for Constructing a Tri-Band Frequency Divider
Select capacitors with tight tolerance–preferably 1% or better–to ensure precise filtering in each band. Polypropylene film capacitors are optimal for mid and high frequencies due to their low dielectric absorption, while electrolytic capacitors can suffice for low-frequency sections if rated for high ripple current. Avoid ceramic capacitors above 100nF in signal paths, as their non-linear behavior introduces distortion. For example, a 10µF polypropylene capacitor in the woofer low-pass stage reduces phase shift compared to an equivalent electrolytic.
Inductors: Core Material and Wire Gauge
Air-core inductors eliminate saturation but require larger wire gauge to minimize series resistance; 18AWG is typical for mid-range drivers, while 16AWG suits subwoofer filters handling higher currents. Ferrite cores shrink coil size but risk saturation at high power–calculate maximum flux density using B = (L × Ipeak) / (N × Ae), where Ae is the core’s cross-sectional area. For a 2mH coil driving a 100W subwoofer, aim for B < 0.3T to prevent audible compression. Toroidal cores reduce stray fields but demand precise winding for consistent inductance.
Resistors in the network should dissipate heat without altering resistance; wirewound or metal film types rated at 5W or higher are mandatory for zobel circuits. A typical 10Ω resistor in series with a tweeter’s high-pass filter compensates for rising impedance, but its wattage must exceed IRMS2 × R; for a 4Ω tweeter, this translates to at least 2W. Bypass resistors with capacitors (e.g., 10Ω + 0.1µF) to prevent high-frequency ringing.
| Component | Recommended Type | Critical Specification | Example Value |
|---|---|---|---|
| Capacitor (LF) | Electrolytic (non-polar) | Low ESR, 105°C rating | 22µF / 63V |
| Capacitor (MF/HF) | Polypropylene film | 1% tolerance, 250V DC | 4.7µF / 400V |
| Inductor (LF) | Ferrite core | Saturation <0.3T, 16AWG | 3.3mH |
| Inductor (HF) | Air core | 18AWG, >0.5mH | 0.22mH |
| Resistor | Wirewound / Metal film | 5W+, non-inductive | 10Ω / 10W |
Driver impedance dictates network design–measure each unit’s impedance curve with a sweep generator and oscilloscope, accounting for voice-coil inductance. A 4Ω woofer may exhibit 8Ω at 1kHz; the filter must align with the actual impedance, not nominal ratings. Pad resistors on tweeters (e.g., L-pad) require precise calculation: Rseries = Z × (√(Lpad) – 1) / (Lpad – 1), where Lpad is the desired attenuation. For 6dB attenuation on a 4Ω tweeter, use 2.7Ω in series and 8.2Ω in parallel.

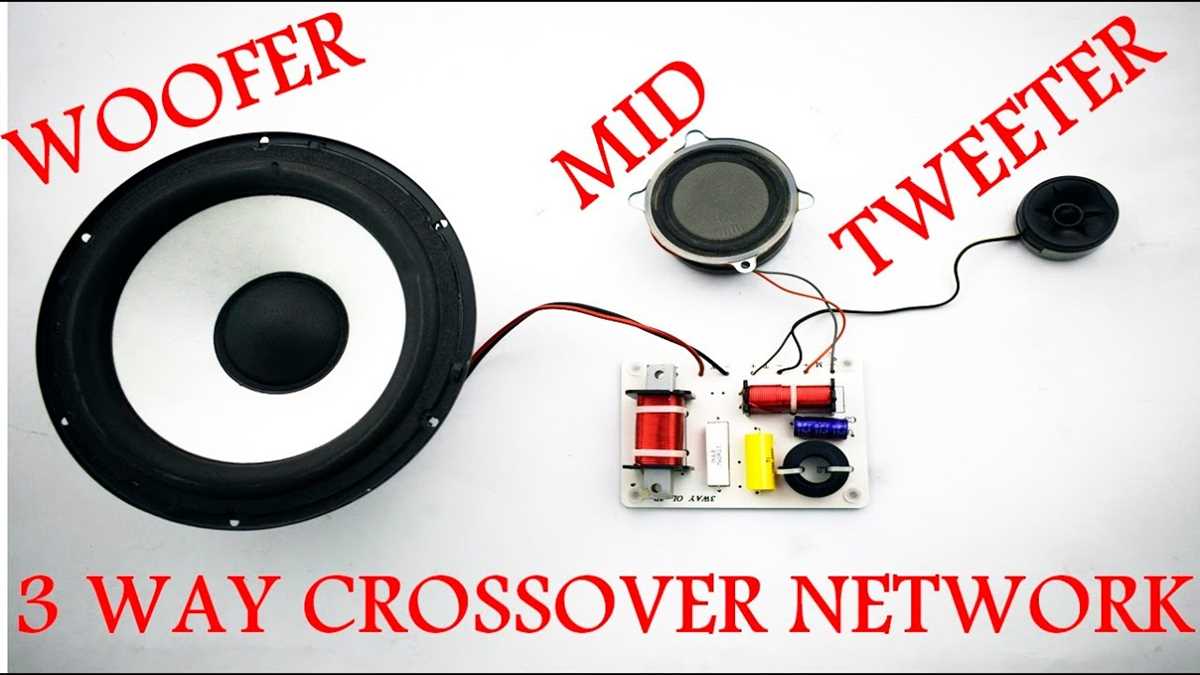

Step-by-Step Wiring Guide for Passive Tri-Filter Speaker Assembly
Begin by segregating drivers into low, mid, and high-frequency units. Label each with adhesive tape to prevent misconnections. Use oxygen-free copper wire (16-18 AWG for woofers, 18-20 AWG for tweeters) to minimize resistance and signal degradation. Pre-cut lengths 10-15% longer than required to allow adjustments during final placement.
Critical connection order:
- Attach ground wires from all drivers to a single common terminal block. Use a soldered joint or high-quality crimp connector to reduce oxidation.
- Connect positive terminals to their respective filter outputs–low-pass first, followed by band-pass and high-pass. Verify phase alignment (positive to positive) across all components.
- For band-pass sections, install a zobel network (10Ω resistor + 4.7µF capacitor in series) parallel to the midrange driver to flatten impedance spikes above 5kHz.
- Add a series resistor (1-3Ω) before tweeters if sensitivity exceeds 90dB to prevent overloading high-frequency units.
Test each path with a multimeter set to continuity mode before applying full-range signal. Sweep frequencies with an audio signal generator (20Hz–20kHz) while monitoring distortion levels. Adjust crossover points by recalculating component values if roll-off occurs outside ±10% of target frequencies. For example, a 3kHz midpoint with 18dB/octave slope typically uses:
- Low: 0.47mH inductor + 33µF capacitor
- Mid: 0.27mH inductor + 12µF capacitor (parallel to 0.15mH + 18µF)
- High: 4.7µF capacitor + 1mH air-core inductor
Avoid ferrite cores in inductors above 1kHz to prevent saturation.
Mount filters on a non-conductive board (phenolic or fiberglass, minimum 3mm thickness) spaced at least 2cm apart. Secure wires with zip ties every 5cm to prevent vibration-induced noise. Enclose the entire assembly in a shielded metal box (0.8mm galvanized steel) grounded to the amplifier’s chassis. Label input/output terminals clearly using engraving or heat-shrink tubing.
Calculating Capacitor and Inductor Values for Precision Frequency Division
For a second-order acoustic separator, target impedance Z = 8 Ω and cut-off frequency fc = 3 kHz. Use C = 1 / (2π × Z × fc) for capacitors and L = Z / (2π × fc) for inductors. Substituting values: C ≈ 6.63 µF (non-polarized, polypropylene) and L ≈ 0.424 mH (air-core, 20-gauge wire, 40 turns on 25 mm diameter). Verify with an LCR meter at 1 kHz; tolerances must stay within ±3% to prevent phase distortion.
Adjusting for first-order response? Halve the capacitor and double the inductor. For fc = 500 Hz, recalculate: C ≈ 39.8 µF (electrolytic with bypass) and L ≈ 2.55 mH (ferrite core, 1.5 A saturation rating). Ensure Q-factor remains below 0.8 to avoid peaking; measure frequency response with a sine sweep from 20 Hz to 20 kHz.
Component Selection Pitfalls
Film capacitors rated ≥ 100 VDC mitigate dielectric absorption; polyester types introduce 0.1–0.3 ms group delay. Inductors wound on powdered iron cores exhibit 0.5–1.2 dB insertion loss at 10 kHz–prefer gapped cores for lower saturation. For variable loads, use Znom + 20% in formulas; simulate with SPICE before prototyping.
