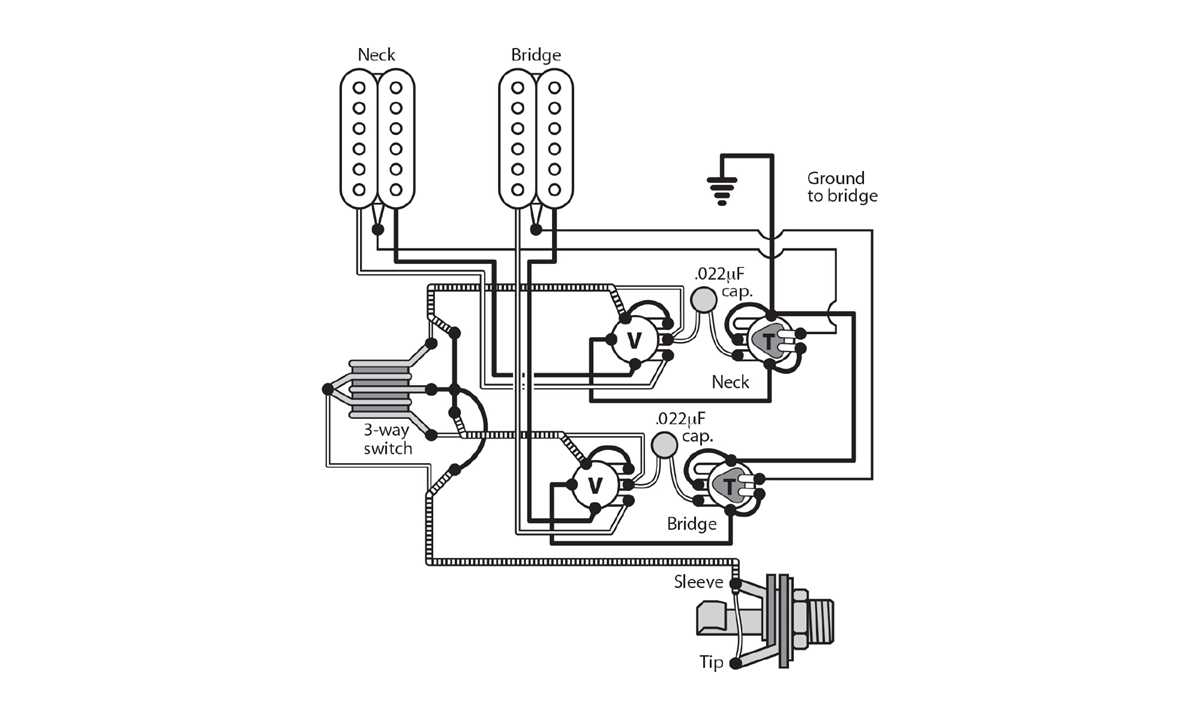

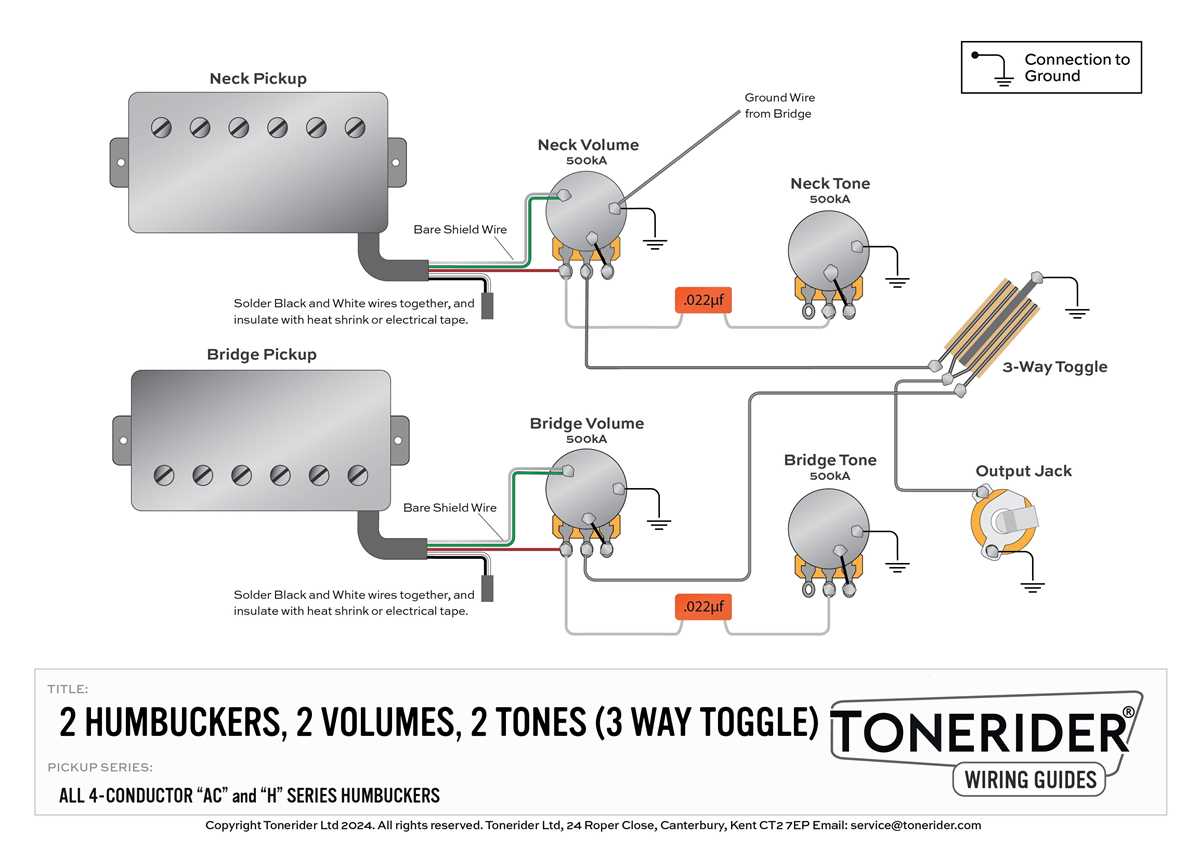

Complete Guide to Wiring a 3-Way Toggle Switch on Electric Guitar
Use a volume pot with a 250k ohm resistance for single-coil pickups and a 500k ohm for humbuckers to maintain tonal clarity at all positions. Solder the middle lug of the lever to the common output (typically the input of the next control) and connect the outer lugs to the hot leads of the pickups–this ensures seamless signal switching without phase cancellation.
For coil-split humbuckers, add a push-pull potentiometer on one of the volume or tone controls. Route the lever’s second lug to the push-pull’s switching contact to enable independent coil selection. Ground the lever’s metal housing directly to the bridge ground or a dedicated grounding point to eliminate unwanted hum.
Avoid daisy-chaining grounds between controls–use star grounding instead, connecting all grounds to a single central point (usually the back of a potentiometer). Test continuity with a multimeter after soldering: each lever position should register zero ohms between the middle lug and the active outer lug while showing infinite resistance to the inactive side.
For noiseless operation, shield the control cavity with copper foil or conductive paint, ensuring full coverage around the lever and wiring. Connect the shield directly to the main ground. If hum persists, reverse the polarity of one pickup by swapping the hot and ground wires at the pot.
Use braided shielded wire for all connections between the lever, pickups, and controls. Twist the wires tightly before soldering to reduce interference, keeping the runs as short as possible (ideally under 10 cm). Pre-tin all connections to prevent cold solder joints, which can introduce signal dropouts or crackling.
Understanding Three-Position Lever Circuit Configurations for Instruments
Begin by identifying the pole count of your lever–most electric stringed instruments use a two-pole (DP) setup, though some older or custom builds may feature three-pole variants. For standard DP installations, wire the inner lugs (positions 2 and 5) to the pickup outputs, ensuring polarity matches the manufacturer’s specifications. Misalignment here creates phase cancellation, dulling tone. Ground the outer lugs (1, 3, 4, 6) to the control cavity’s backplate or a dedicated ground wire, but avoid daisy-chaining to volume pots to prevent unwanted hum.
- Position Up: Connects the bridge transducer directly to the output jack, bypassing all tone circuitry. Ideal for cutting high-gain solos.
- Middle: Engages both pickups in parallel. Verify phase alignment–reverse the lead wires on one transducer if comb filtering occurs.
- Down: Routes only the neck transducer, delivering maximum low-end response but requiring a treble bleed cap (0.001µF) across the volume control to retain clarity when rolled down.
Component Selection and Placement
Use 250V-rated ceramic caps for tone shaping–polyester films introduce microphonic noise under high gain. Mount the lever as close to the output jack as possible; excess wire runs act as antennas for RF interference. For humbuckers, twist the positive and negative leads (24 twists per foot) to cancel induced noise–untwisted pairs radiate like single-coils. Solder joints must be concave and shiny; convex or dull connections introduce resistance and signal loss.
Common pitfalls include:
- Solder bridges between adjacent lugs–test continuity with a multimeter at 200Ω range.
- Cold solder joints–reheat until the alloy flows like mercury.
- Incorrect ground routing–star-ground every component to the bridge plate or tailpiece.
Tone Stack Integration
Install a 500kΩ audio taper pot for volume; log tapers introduce nonlinear jumps. For tone controls, pair a 250kΩ pot with a 0.022µF cap–values above 0.047µF muffle highs irreversibly. In series configurations, the lever’s middle position benefits from a 1MΩ resistor soldered between the two transducer hot leads to balance impedance mismatch. Avoid capacitor values below 0.01µF–these accentuate 60-cycle hum without enhancing tonal character.
Final inspection: strum each lever position with all tone/volume controls at full. Listen for:
- Consistent output volume–drops >3dB indicate a faulty lug connection.
- Absence of buzz–touch the strings to confirm ground continuity.
- No crackling–rotate pots 360° to detect intermittent shorts.
Failing any check, reheat suspect joints and test again.
Step-by-Step Electrical Linkups for a Tri-Position Lever
Start by soldering the input signal lead from the instrument’s pickup to the middle lug of the selector. This lug acts as the central hub for signal distribution, ensuring clean transmission regardless of position. Use heat-resistant silicone wire (20-22 AWG) to prevent interference and maintain tonal integrity.
Attach the bridge pickup’s hot wire to the top lug–the one furthest from the body. For standard configurations, this placement isolates the bridge coil when engaged alone, delivering a sharper, brighter output. Secure connections with 60/40 rosin-core solder and trim excess wire to avoid accidental shorts.
Connect the neck pickup’s lead to the bottom lug, ensuring polarity alignment matches the bridge coil. Misalignment here introduces phase cancellation, muddying the sound. Test continuity with a multimeter (200Ω range)–values should read near each coil’s DC resistance (typically 4-8kΩ for single-coils).
Ground the selector by soldering the braided shield from the pickup cavity to the nearest lug or switch frame. This step eliminates hum in single-coil setups. For humbuckers, link the bare ground wires from both coils to the same point to prevent ground loops.
Before finalizing, cycle through all positions: up (bridge), middle (both), down (neck). Listen for volume consistency–dips indicate loose connections or improper solder joints. Seal joints with heat-shrink tubing (3:1 ratio) to protect against vibration and corrosion.

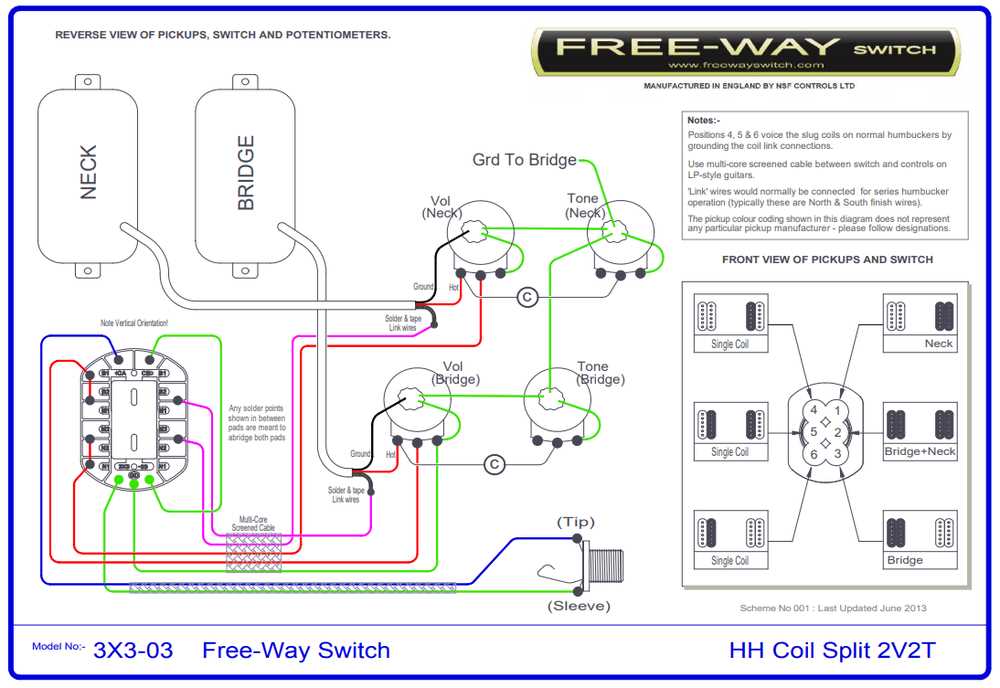

Humbucker and Single-Coil Pickup Setups with a Three-Position Selector
Install a series/parallel modification for humbuckers to retain high-output power in the bridge position while cutting noise in split mode–critical for high-gain playing. Wire the coil-splitter to the middle lug of the selector using a 1MΩ resistor to ground to prevent tone suck; omit capacitors entirely for humbuckers to preserve low-end clarity. For single-coils, bypass traditional 250kΩ pots and use 500kΩ for brighter, more articulate treble response, especially in the neck position where Strat-style pickups lose definition. Position the ground wire from the selector’s bridge lug directly to the bridge plate to eliminate ground loops, a common source of 60-cycle interference.
Combine a bridge humbucker with a split-position middle single-coil using this wiring sequence: humbucker (series) in position 1, coil-split humbucker (north coil only) in position 2, and the middle single-coil in position 3. This configuration yields a 12dB boost in position 2 without additional circuits. For Jazzmaster-style single-coils, connect the rhythm circuit’s capacitor (0.047µF) after the volume pot to prevent loading the pickup in position 3. Use shielded coaxial cable for all selector connections to reduce microphonic feedback, particularly in high-output humbuckers.
| Selector Position | Pickup Configuration | Tonal Outcome | Recommended Pot Values |
|---|---|---|---|
| 1 | Bridge humbucker (series) | High-output, compressed | 500kΩ |
| 2 | Bridge humbucker (split north coil) | Bright, open, P-90-like | 1MΩ (resistor) |
| 3 | Neck single-coil or middle position | Sparkling, airy, Strat-like | 250kΩ-500kΩ |
For Telecaster setups, connect the bridge pickup’s hot wire to the selector’s middle lug and the neck pickup’s hot directly to the output jack in position 3–this prevents phase cancellation with 4-conductor humbuckers. Isolate the selector’s frame from the control cavity’s shield using nylon washers to stop eddy currents from muting sustain. Replace standard push-back wire with Teflon-coated 22AWG for single-coils to handle high-voltage transients without signal degradation. Test continuity between each lug and ground after soldering; resistance should read
Common Errors in Three-Position Lever Circuitry and Solutions
Incorrect ground connections often cause excessive hum or signal loss in these configurations. Ensure the ground wire connects directly to the back of the potentiometer or to a dedicated grounding lug, never just to the housing. Use a multimeter to verify continuity between the ground point and the bridge; resistance should read near zero ohms. If hum persists, solder a small jumper from the ground wire to the metal casing of the instrument’s control cavity for added stability.
Misaligned hot and output leads disrupt phase consistency, leading to weak or inconsistent signal strength. The input (tip of the jack) must connect to the lever’s middle lug in a standard configuration, while the output (from the volume control) attaches to one outer lug. Swapping these wires flips the phase, cancelling frequencies when used with certain amplifier settings. Mark wires before desoldering to avoid confusion–label the input, output, and ground with tape or heat-shrink sleeves. Test each position with a probe to confirm signal flow before finalizing connections.
Overlooking potentiometer taper mismatches creates uneven volume curves across positions. Linear-taper pots work poorly for volume controls, causing abrupt jumps in output. Replace with audio-taper pots if the circuit behaves unexpectedly–these provide smoother logarithmic response. Check solder joints for cold connections; reheat suspect joints with fresh flux for improved conductivity. Avoid excessive heat to prevent pad lift on the circuit board.
