How to Wire a 3 Way Toggle Switch Step by Step Guide with Diagram
Begin by disconnecting the circuit at the panel before handling any live wires. Label each conductor with adhesive tape–black for common terminals, red or blue for travelers, and white or green for neutral or ground–to avoid misconnections. Verify the voltage rating of your device matches the supply (typically 120V or 277V in residential and commercial setups). Failure to confirm this introduces fire and equipment damage risks.
Locate the common screw–often darker or positioned apart from the others–and attach the feed wire here. Connect traveler wires to the remaining terminals, ensuring no slack; excess length increases resistance and creates potential short circuits. Ground the fixture by securing the bare or green wire to the grounding screw or metal box, if present. Use wire nuts rated for at least 600V to join conductors, twisting them clockwise before applying the nut to prevent loosening under load.
Test functionality in all positions after securing the device. If the control fails in one setting, recheck traveler connections–misplaced travelers cause incomplete circuits. For three-location setups, add a four-way intermediary between two three-point controls, aligning its travelers with input/output pairs. Remember: improper sequencing here disrupts the entire configuration.
Wire gauge matters–14 AWG for 15A circuits, 12 AWG for 20A–to handle current without overheating. Copper-only conductors are mandatory; aluminum requires special connectors and anticorrosive compound. Store unused tools and materials promptly–loose screws or exposed wires invite accidental contact during post-installation cleanup.
Connecting a Three-Position Control Mechanism: Key Steps

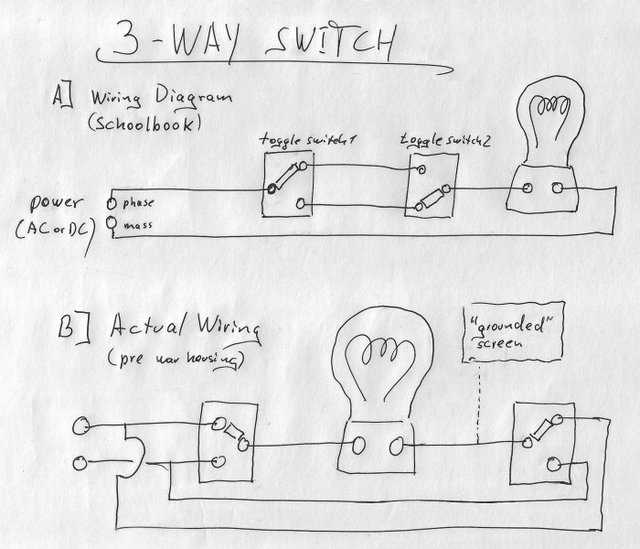

Begin by identifying the common terminal–typically marked as “COM” or with a darker screw–on both devices. This terminal carries the incoming or outgoing current, acting as the pivot for signal routing. For standard setups, connect the power source (hot wire) to the common terminal of the first unit. The corresponding common on the second device links to the load, such as a light fixture. The traveler contacts–usually two brass screws on each–must be wired together using the same color-coded conductors (e.g., red and black) to maintain consistency.
Mistakes often occur when distinguishing between traveler and neutral paths. In most residential setups, neutrals remain untouched, bundled in the junction box unless looping through fixtures is required. For installations involving smart modules or dimmers, consult the manufacturer’s schematic–some models require specific terminal assignments or additional grounding. Below is a reference for terminal roles in a typical 120V setup:
| Device Position | Common Terminal | Traveler 1 | Traveler 2 |
|---|---|---|---|
| Primary (Near Power) | Hot Input | Connected to Traveler 1 of Secondary | Connected to Traveler 2 of Secondary |
| Secondary (Near Load) | Output to Load | Connected to Traveler 1 of Primary | Connected to Traveler 2 of Primary |
Avoiding Common Pitfalls
Test continuity before finalizing connections–use a multimeter to verify that the mechanism cycles through each position without shorting. For circuits with multiple fixtures, ensure the load’s total wattage doesn’t exceed the unit’s capacity (typically 15-20A). If using non-metallic cable, secure all travelers with wire nuts and wrap with electrical tape to prevent accidental contact. For grounded metal conduit systems, bond the grounding conductor to each unit’s green screw to mitigate shock risks.
Essential Gear and Supplies for Installing a Three-Position Electrical Control
Gather the following before starting: a voltage tester with non-contact detection (120V AC sensitivity), wire strippers calibrated for 12-14 AWG solid copper, needle-nose pliers with insulated handles rated to 600V, and a screwdriver set containing both flathead and Phillips heads. Include a fish tape for routing conductors through conduit or wall cavities, and a circuit tracer to identify live lines in existing configurations. Add a multimeter capable of measuring resistance, continuity, and voltage drop, alongside a torpedo level for precision alignment of the control faceplate. For connections, stock copper lugs, heat-shrink tubing, and crimp connectors–all rated for 20A residential circuits.
- Cables: Romex NM-B 14/3 or 12/3 (depending on breaker panel ampacity), THHN/THWN strands for conduit runs.
- Fasteners: #8-32 machine screws for mounting, plastic anchors for drywall, or stainless-steel screws for masonry.
- Safety: Arc-rated gloves (ASTM F696), ANSI Z87.1-rated goggles, and a fiberglass-reinforced ladder with slip-resistant rungs.
- Optional: Junction box extender if retrofitting shallow boxes, a push-button label maker for wire identification, and a thermal camera to detect hotspots post-installation.
Step-by-Step Installation Guide for Three-Position Control Setups
Start by identifying the power source and load terminals on the mechanism–label them clearly using masking tape to prevent confusion. For standard setups, connect the incoming live conductor to the common terminal (often marked “COM” or colored differently). Neutral wires should bypass the device entirely unless integrating a smart variant requiring constant power. Use 12-gauge solid copper wire for all connections, ensuring no more than 3/8″ of exposed conductor is visible after termination.
Key Assembly Steps
- Turn off the circuit at the breaker panel–verify absence of voltage with a non-contact tester.
- Thread the traveler conductors through the electrical box knockouts without nicking insulation; secure them with cable clamps tightened to 12 in-lbs torque.
- Trim wire ends to expose fresh copper before inserting into terminal slots–loop conductors clockwise around screw posts for secure mechanical grip.
- For multi-ground configurations, bond all grounding wires using a crimp connector or split bolt rated for the ampacity.
- Fold wires neatly into the box before mounting the device–ensure no conductors interfere with the operating lever.
Test continuity between positions using a multimeter set to ohms (Ω). Between the common and each traveler terminal, resistance should toggle between zero and infinite as you change positions. If readings are inconsistent, recheck terminations–oxidized contacts or loose screws are common culprits. For dimmable applications, replace the standard mechanism with a compatible rheostat model, noting that compatible bulbs must support low-voltage startup.
Locating and Linking the Carrier Conductors in a Dual-Control Configuration
Begin by isolating the two brass-colored terminals on each mechanical controller–these are the carrier conductor attachment points. Use a multimeter in continuity mode to confirm which pairs of terminals across the two units maintain electrical connectivity when the actuator is toggled; these are your carrier conductors. Label them with colored tape (red and black or blue and yellow) at both ends to prevent misidentification during installation.
Termination Sequence for Reliable Contact
Strip 3/8 inch of insulation from each carrier conductor and form a clean, clockwise hook around the terminal screw to ensure consistent pressure. Tighten screws to 12-15 inch-pounds using an insulated torque screwdriver–over-torquing risks stripping threads while under-torquing leads to loose connections and intermittent failures. Verify secure contact by gently tugging each conductor; there should be no movement.
After securing both carrier conductors at one unit, route them through the cavity to the second control element via the shortest path to minimize exposure. Avoid sharp bends (maintain a minimum 3-inch radius) to prevent conductor fatigue. Connect the corresponding labeled ends to matching brass terminals, ensuring polarity consistency. Test operation by activating both control elements through their full range before closing the wall plate.
Resolving Frequent Problems in Multi-Position Electrical Control Setups
Check continuity between the common terminal and travelers with a multimeter if only one control point operates. Zero ohms indicate a closed path; infinite resistance confirms an open circuit. Replace the faulty mechanism if no continuity exists when toggled. Miswiring often causes this–confirm the common terminal connects to the power source or load, not a traveler.
Buzzing or flickering lights suggest loose connections. Turn off power, tighten all terminal screws, and wrap exposed copper with electrical tape. For backstab connections, replace with screw terminals–spring-loaded contacts degrade over time. If vibration is present, switch to stranded wire for better flexibility and long-term reliability.
Intermittent function typically stems from corroded contacts or frayed conductors. Disassemble the panel, clean contacts with fine-grit sandpaper, and apply dielectric grease to prevent oxidation. For frayed wires, strip back the insulation 1/2 inch, twist strands tightly, and reterminate. Avoid excessive bending near terminals to reduce stress fractures.
If both control points fail, verify the power source first. Test voltage at the common terminal of the nearest unit–120V (or local standard) should register. No voltage? Inspect the circuit breaker, upstream connections, or fuse. If voltage exists but loads don’t activate, trace the travelers for breaks or shorts using a non-contact voltage tester.
Conflicting operation–where one unit works only if the other is in a specific position–indicates swapped travelers. Label terminals during disassembly: common (black screw) and travelers (brass or silver screws). Reconnect strictly per markings. For older installations, note that colors may differ; rely on screw types, not wire hues.
Overheating near terminals signals overload or poor contact. Reduce load wattage or upgrade to a heavier-duty unit rated for 20A. For aluminum wiring, apply antioxidant paste and use copper pigtails with UL-approved connectors. Always torque screws to manufacturer specifications–under-tightened terminals cause arcing; over-tightened ones strip threads.
